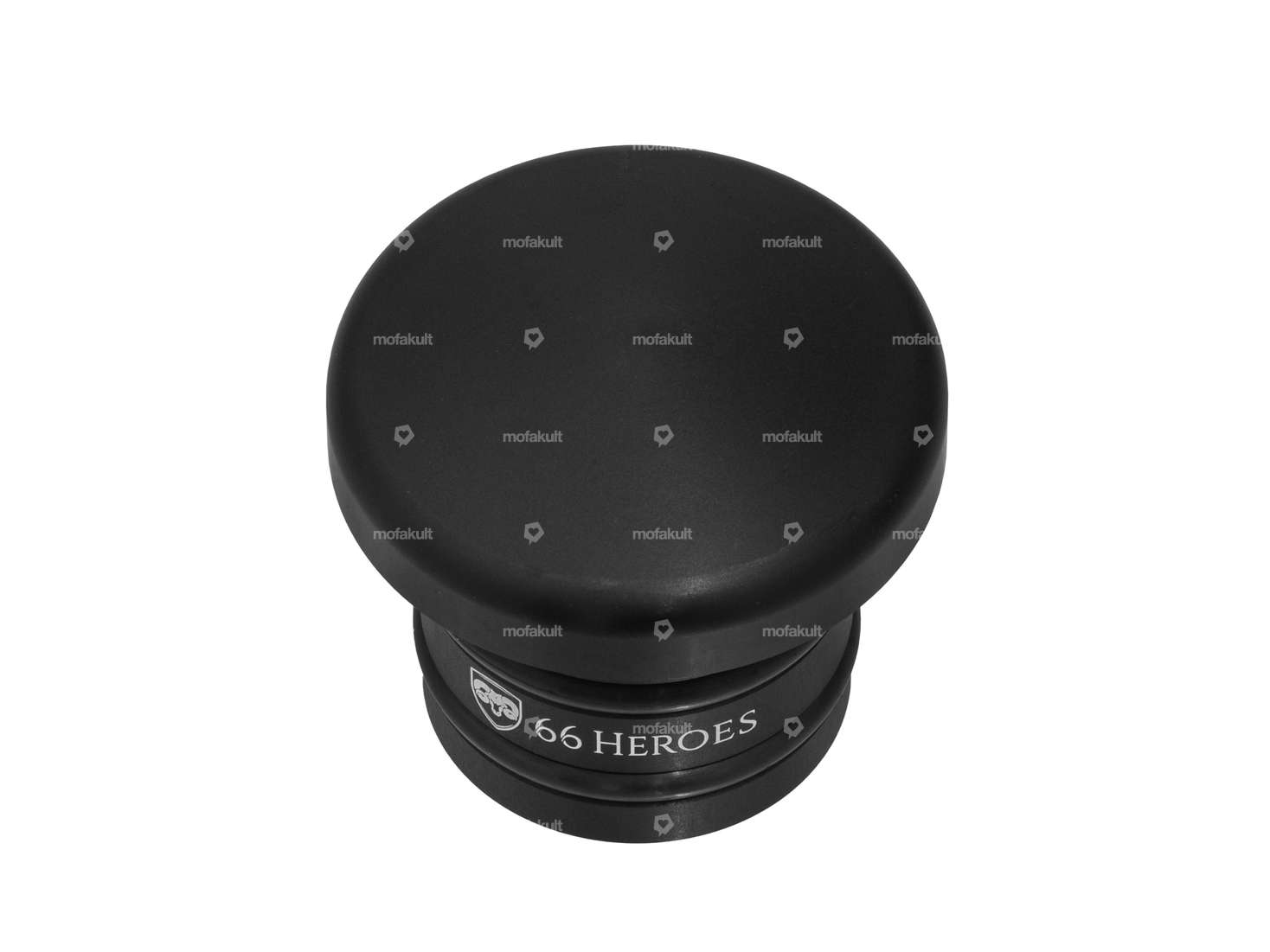

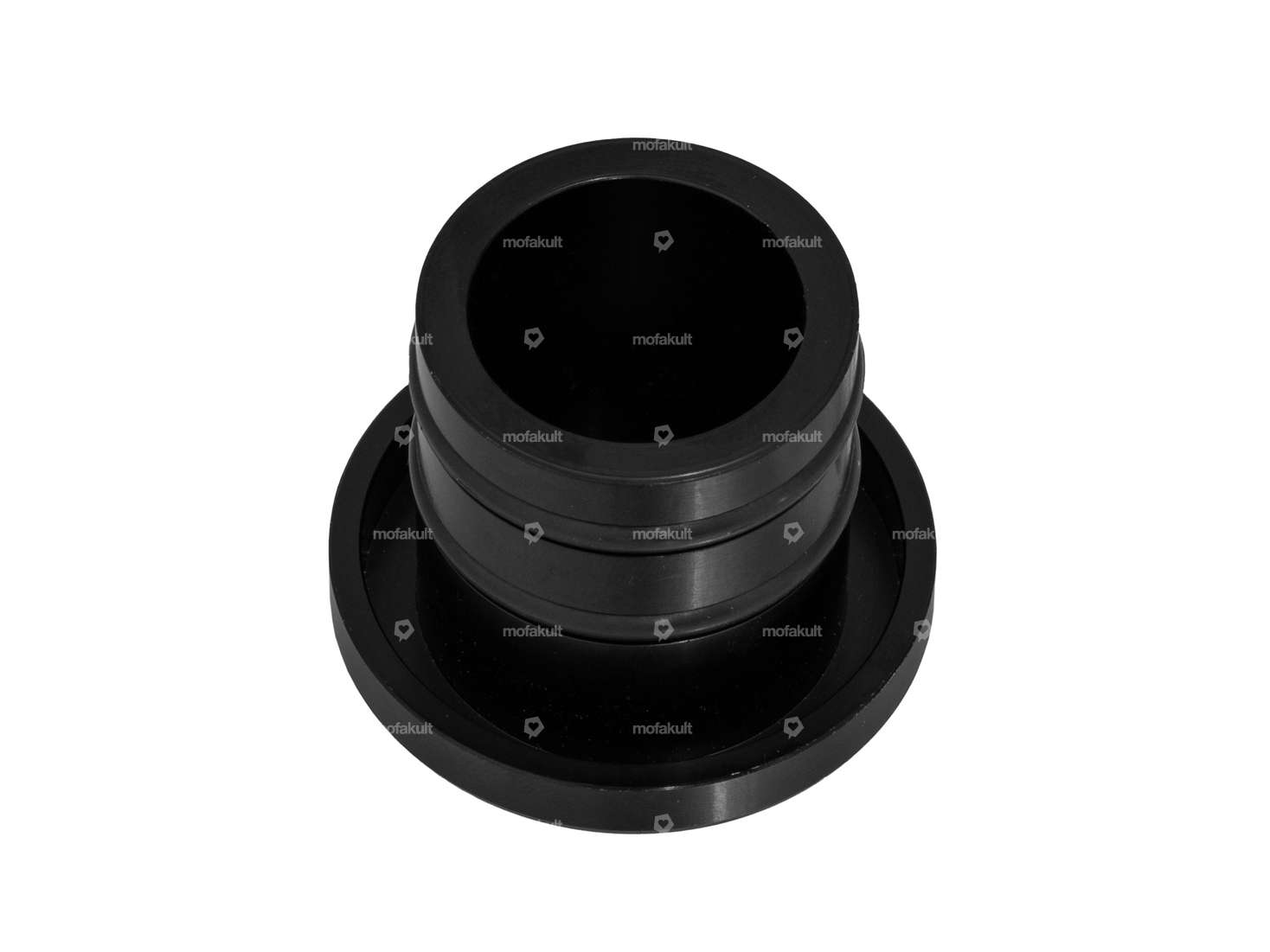

66HEROES Tank cap round black | Piaggio Ciao, Bravo

66HEROES Tank cap corrugated black | Piaggio Ciao, Bravo

Ø External head: 45 mm · Manufacturer: 66HEROES · Material: Aluminum · Fuel filler cap: Plug 33 mm · Surface: anodized · Color: black · Vented: Yes

66HEROES Sealing ring CNC tank cap FPM | Piaggio Ciao, Bravo

Manufacturer: 66HEROES · Material: FPM / FKM (colloquially known as Viton) · Color: black · Ø outside: 33 mm · Thickness: 3.5 mm · Mounting type: Plug connection clamped · Ø inside: 26 mm

66HEROES Tank cap "Piaggio" black round | Piaggio Ciao, Bravo

Ø External head: 45 mm · Manufacturer: 66HEROES · Material: Aluminum · Surface: anodized · Fuel filler cap: Plug 33 mm · Lockable: No · Color: black · Vented: Yes · Ø outside connection piece: 32 mm

66HEROES Tank cap "66HEROES" black round | Piaggio Ciao, Bravo

Ø External head: 45 mm · Manufacturer: 66HEROES · Material: Aluminum · Surface: anodized · Fuel filler cap: Plug 33 mm · Lockable: No · Color: black · Vented: Yes · Ø outside connection piece: 32 mm

66HEROES Tank cap "66HEROES" corrugated black | Piaggio Ciao, Bravo

Ø External head: 45 mm · Manufacturer: 66HEROES · Material: Aluminum · Surface: anodized · Fuel filler cap: Plug 33 mm · Lockable: No · Color: black · Vented: Yes · Ø outside connection piece: 32 mm

66HEROES Tank cap "Piaggio" chrome round | Piaggio Ciao, Bravo

Ø External head: 45 mm · Manufacturer: 66HEROES · Material: Aluminum · Surface: chrome-plated · Fuel filler cap: Plug 33 mm · Color: Chrome · Lockable: No · Vented: Yes · Ø outside connection piece: 32 mm

66HEROES Tank cap "66HEROES" chrome round | Piaggio Ciao, Bravo

Ø External head: 45 mm · Manufacturer: 66HEROES · Material: Aluminum · Surface: chrome-plated · Fuel filler cap: Plug 33 mm · Color: Chrome · Lockable: No · Vented: Yes · Ø outside connection piece: 32 mm

66HEROES Gas cap gold round | Piaggio Ciao, Bravo

Ø External head: 45 mm · Manufacturer: 66HEROES · Material: Aluminum · Surface: gold-plated · Fuel filler cap: Plug 33 mm · Lockable: No · Color: gold · Vented: Yes · Alternative version of the Piaggio OEM number: 16369 · Alternative version of the Piaggio OEM number: 103189 · Alternative version of the Piaggio OEM number: 274190 · Alternative version of the Piaggio OEM number: 813970

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Thread type: MF12x1 (fine pitch thread) · Material lever: Metal · Filter type: Plastic net · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Reserve level: 70 mm

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø Stranded wire: 1.2 mm · Nipple shape: Ball · Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Cable length: 1650 mm

Pedals square | Piaggio Ciao, SI, Bravo

Material: Plastic · Surface: ribbed · Color: black · Drive: Outer edge · Total length: 118 mm · Width: 51 mm · Height: 29 mm · Reflectors: Yes · Thread type: FG14.3 (9/16" 20G) · Width across flats: 15 mm

Stand 14 mm axle (1A quality) | Piaggio Ciao PX, C24

Manufacturer: Made in Italy · Material: Steel · Surface: varnished · Color: black · Stand base - center mount (A): 232 mm · Total width of stand base (B): 200 mm · Wide receptacle (C): 78 mm · Ø Receptacle (D): 14 mm · Wide upright foot (F): 20 mm · Total height: 250 mm

CIF screw set side protection | Piaggio Ciao

Manufacturer: CIF · Material: Spring steel · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Surface: raw · Color: silver · Number of components: 12 pcs · Screw head: Lens head · Drive: Slot

Side protectors Mono black | Piaggio Ciao

Manufacturer: Made in Italy · Material: Plastic · Color: black · Width: 45 mm · Height: 270 mm · Total length: 760 mm · Number of fixing points: 6 pcs

Cuppini lamp grille headlight angular black | Piaggio Ciao

Manufacturer: Cuppini · Material: Plastic · Test mark: none · Color: black · Width: 132 mm · Height: 95 mm · Hole spacing: 105 mm · Depth: 27 mm

Cuppini lamp grille rear light black | Piaggio Ciao, Bravo

Manufacturer: Cuppini · Material: Plastic · Test mark: none · Color: black · Width: 135 mm · Height: 58 mm · Hole spacing: 112.5 mm · Ø Receptacle: 3.5 mm · Depth: 15 mm

Fuse plate emblem original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Total length: 13 mm · Width: 8 mm · Clamping range: 3 - 5 mm · Piaggio OEM number: 008108
