Installation instructions for the foot-operated 4-speed Kreidler Florett engine.

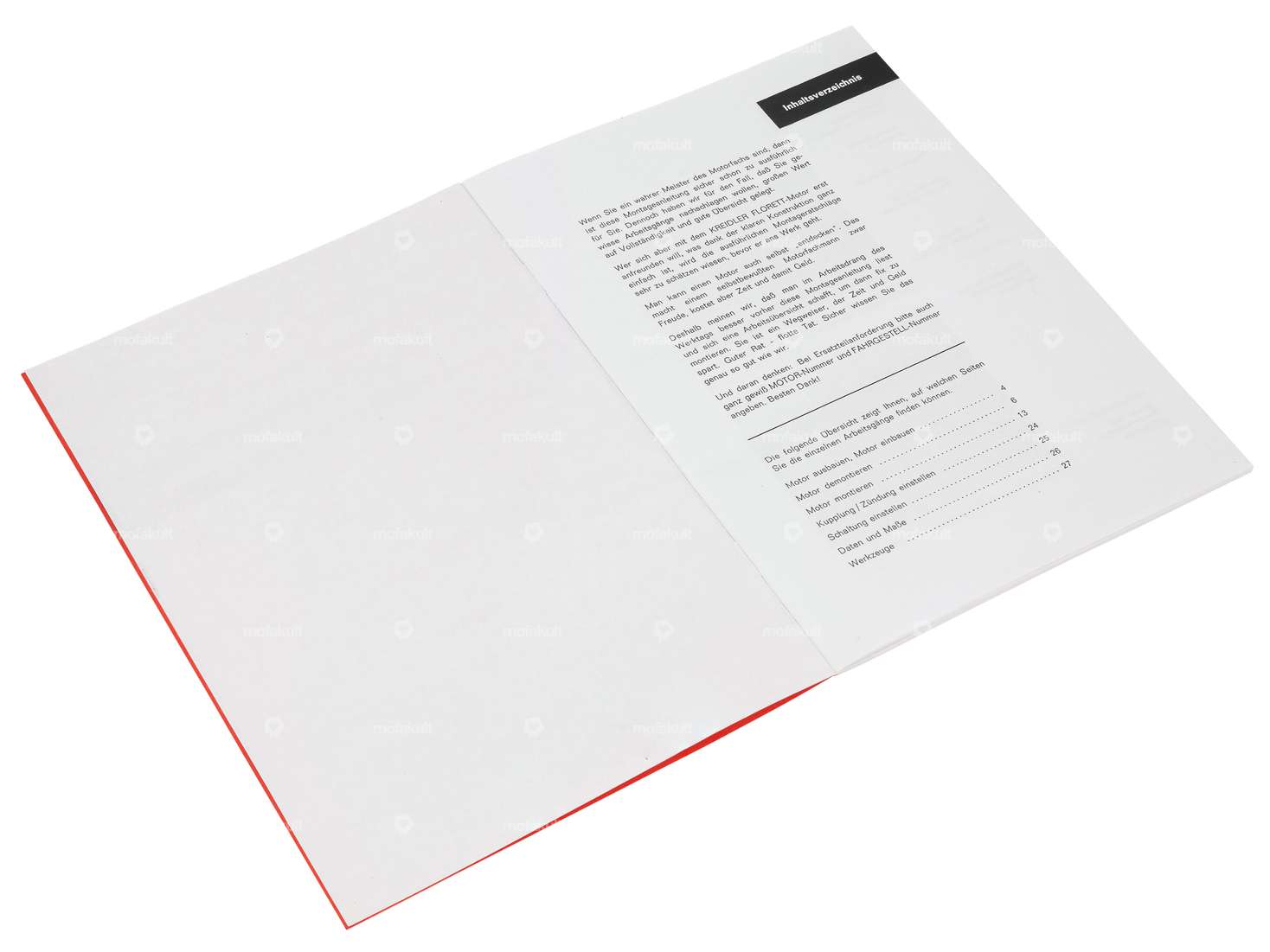

Very helpful, informative booklet. Among other things, it explains engine removal and installation, clutch adjustment, ignition and shifting with the aid of detailed pictures. No workshop with Kreidler mopeds / mopeds should be without this detailed instruction manual.
Size: A5 (148 x 210 mm)
Pages: 27
Language: German
High-quality facsimile (reproduction) of the original edition.
Further workshop manuals, spare parts catalogs and repair manuals can be found in the accessories section.
| Material | Paper |
| Width | 148 mm |
| Height | 210 mm |
| DIN format | A5 |
| Number of pages | 27 pcs |
| Language | German |
| Kreidler |
