Gabel

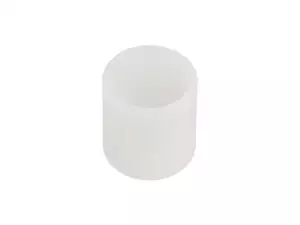

Sliding bush fork original | Puch

Ø inside: 23 mm · Total length: 30 mm · Manufacturer: Made in Italy · Material: Plastic · Surface: raw · Color: white · Ø outside: 27 mm

GPO control bearing set M26x1 mm | Puch

Manufacturer: GPO · Material: Steel · Surface: blue galvanized · Color: silver · Bearing type: Bearing ring · Thread type: MF26x1 (fine pitch thread) · Ø mounting frame: 31 mm · Ø inside: 26.8 mm · Ø outside: 41 mm

swiing® revival screw M7x35 clamping bridge | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Thread type: M7x1 (standard thread) · Drive: Hexagon socket · Total length: 41.6 mm · Screw head: Cylinder head · Width across flats SW: 5 mm · Ø External head: 10.5 mm · Thread length: 34.6 mm · Shank: No · Number of components: 1 pcs · Area of application: Standard · Strength class: 8.8

swiing® revival snap ring low control bearing set (version 2.0)

Manufacturer: swiing® revival parts · Material: Spring steel · Surface: blank · Nominal diameter: 20 mm · Nominal diameter: 28 mm · Height: 7 mm · Thickness: 0.6 mm · Puch spare part no.: 349.1.30.015.1 · Sachs spare part no.: P0521

Screw M7x40 cylinder head Allen key galvanized (clamping bridge)

Material: Steel · Surface: blue galvanized · Manufacturer: Made in Italy · Drive: Hexagon socket · Screw head: Cylinder head · Shank: No · Thread type: M7x1 (standard thread) · Thread length: 40 mm · Width across flats SW: 6 mm · Strength class: 8.8

GPO steerer tube nut M26x1 closed fork plate chrome

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Nut type: Cap nut · Height: 13.8 mm · Thread type: MF26x1 (fine pitch thread) · Ø outside: 28.9 mm · Ø outside: 36.4 mm · Drive: External hexagon · Width across flats SW: 30 mm · Thread depth: 12 mm · Area of application: Standard

Bearing ring 26.5/37.5/4 fork 14 balls | Puch

Ø ball: 4 mm · Bearing type: Bearing ring · Ø inside: 26.5 mm · Ø outside: 37.5 mm

GPO fork lock | Puch

Ø rotating part: 12 mm · Manufacturer: GPO · Wide locking block: 4.1 mm · Locking block length: 15.3 mm · Material: Brass · Material: Spring steel · Material: Steel · Surface: blank · Width: 17 mm · Ø outside: 12 mm · Length of turned part: 25.6 mm · Total length: 40.8 mm · Ø Pin: 8 mm

EBR fork reinforced black | Puch

Manufacturer: EWC · Color: Chrome · Color: black · Material: Steel · Surface: chrome-plated · Thread type: MF26x1 (fine pitch thread) · Adjustable: No · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Ø spars: 28 mm · Head tube length: 180 mm · Total length: 580 mm · Fork bridge - center wheel axle: 381 mm · Distance brake cam to wheel axle center-center: 40 mm · Thread length: 57 mm

swiing® revival washer (26.3/37/2) Fork plate End nut

Manufacturer: swiing® revival parts · Ø inside: 26.3 mm · Ø outside: 37 mm · Material: Steel · Surface: blue galvanized · Thickness: 2 mm · Nominal diameter (thread): 26 mm

swiing® revival bellows Ø 23/30 x 100 mm | Puch

Manufacturer: swiing® revival parts · Material: Rubber · Color: black · Ø inside 2: 30 mm · Ø outside: 35 mm · Ø outside: 45 mm · Ø inside: 23 mm · Total length: 103 mm

GPO steerer tube nut M26x1 open stem chrome

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Nut type: Flange nut · Ø inside: 22.1 mm · Ø outside: 36.5 mm · Drive: External hexagon · Height: 14 mm · Thread type: MF26x1 (fine pitch thread) · Width across flats SW: 30 mm · Thread depth: 11.5 mm

swiing® ingenious adjusting nut M26x1 control bearing

Material: Steel · Surface: Hardened · Color: black · Manufacturer: swiing® ingenious parts · Thread type: MF26x1 (fine pitch thread)

GPO mudguard arch 17" front chrome

Manufacturer: GPO · Color: Chrome · Material: Steel · Surface: chrome-plated · Mounting type: Nuts & bolts · Wheel size [inch]: 17 " · Outer width: 130 mm · Distance mudguard - center hole: 212 mm · Distance mudguard - center hole: 247 mm · Ø outside: 14 mm · Total length: 270 mm · Wide intake: 115 mm · Ø mounting hole: 5.9 mm · Number of fixing points: 6 pcs · Ø mounting hole: 6.4 mm · Hole spacing: 35 mm

O-ring fork plate

Cord thickness: 3 mm · Color: black · Ø inside: 25 mm · Ø outside: 31 mm · Number of components: 1 pcs · Material: Rubber

swiing® revival washer 2 mm end nut fork plate Inox

Material: Chrome steel (stainless steel) · Thickness: 2 mm · Manufacturer: swiing® revival parts · Ø outside: 37 mm · Nominal diameter (thread): 26 mm · Ø inside: 26.3 mm

swiing® revival washer headset 26x32x2.5 mm | Puch

Thickness: 2.5 mm · Manufacturer: swiing® revival parts · Ø outside: 32 mm · Nominal diameter (thread): 26 mm · Ø inside: 26.2 mm

swiing® revival fork spring original | Puch

Ø wire: 3 mm · Manufacturer: swiing® revival parts · Total length: 184 mm · Ø inside: 13 mm · Ø outside: 19 mm

Clamping bridges aluminum | Puch

Material: Aluminum · Color: silver · Surface: raw · Width: 21.5 mm · Clamping diameter: 22 mm · Total length: 48.9 mm · Height: 24.6 mm · Number of fixing points: 2 pcs · Ø mounting hole: 8 mm · Hole spacing: 30 mm

Bolt fork plate chrome | Puch

Material: Steel · Surface: chrome-plated · Total length: 28.5 mm · Drive: External hexagon · Screw head: Hexagon · Thread type: M8x1.25 (standard thread) · Thread length: 23 mm · Width across flats SW: 17 mm

swiing® revival spacer ring head tube 5 mm Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Nominal diameter: 26 mm · Ø inside: 26.2 mm · Total length: 5 mm · Ø outside: 32 mm

Fork leg set | Puch Maxi S, N

Total length: 578 mm · Manufacturer: Quenching · Material: Steel · Surface: chrome-plated · Color: Chrome · Adjustable: No · Ø spars: 23 mm · Distance brake cam to wheel axle center-center: 38 mm

GPO grooved pin fork lock

Surface: blank · Total length: 10 mm · Manufacturer: GPO · Area of application: Standard · Material: Steel · Nominal diameter: 2.5 mm · Ø External head: 5 mm · Ø Pin: 2.75 mm

swiing® revival steerer tube nut M26x1 closed fork plate Inox

Height: 14 mm · Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Drive: External hexagon · Ø outside: 36.6 mm · Width across flats SW: 30 mm · Thread type: MF26x1 (fine pitch thread)

Clasp 30 - 33 mm bellows small | Pony (P8216)

Manufacturer: Pony · Ø inside: 30 - 33 mm

66HEROES screw M8x25 fork plate Inox | Puch

Manufacturer: 66HEROES · Material: Chrome steel (stainless steel) · Thread type: M8x1.25 (standard thread) · Total length: 29.5 mm · Drive: External hexagon · Screw head: Hexagon · Thread length: 25 mm · Shank: No · Width across flats SW: 17 mm

Notched pin aluminum Puch fork lock

Material: Aluminum · Total length: 10 mm · Ø outside: 8 mm

EBR sliding bush Ø 28 mm fork

Ø inside: 28 mm · Ø outside: 32 mm · Manufacturer: EWC · Material: Plastic · Color: black · Total length: 26 mm

swiing® revival mudguard arch 17" front black

Material: Steel · Surface: varnished · Color: black · Manufacturer: swiing® revival parts · Mounting type: Nuts & bolts · Number of fixing points: 6 pcs · Hole spacing: 35 mm · Ø mounting hole: 5.9 mm · Ø mounting hole: 6.3 mm · Wheel size [inch]: 17 " · Outer width: 130 mm · Distance mudguard - center hole: 212 mm · Distance mudguard - center hole: 247 mm · Total length: 270 mm · Wide intake: 115 mm

EBR standard fork chrome | Puch

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Adjustable: No · Ø spars: 23 mm · Spar end distance (center-center): 140 mm · Thread type: MF26x1 (fine pitch thread) · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Total length: 570 mm · Thread length: 57 mm · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm

swiing® revival stop plate fork spring | Puch

Manufacturer: swiing® revival parts · Material: Rubber · Color: black

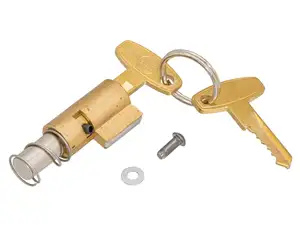

Fork lock (1A quality) | Puch

Material: Brass · Material: Spring steel · Material: Steel · Surface: blank · Width: 16.9 mm · Ø rotating part: 11.9 mm · Wide locking block: 4.2 mm · Ø outside: 11.9 mm · Locking block length: 15.6 mm · Total length: 40.6 mm · Length of turned part: 26 mm · Ø Pin: 8 mm

swiing control bearing M26x1, 31 mm High End | Puch

Manufacturer: swiing · Material: Steel · Surface: gas nitrided · Color: black · Bearing type: Bearing ring · Ø mounting frame: 21.15 mm · Ø outside: 43.3 mm · Ø inside: 26.8 mm · Thread type: MF26x1 (fine pitch thread)

66HEROES Clamping bridges aluminum black | Puch

Material: Aluminum · Surface: anodized · Color: black-matt · Total length: 49 mm · Width: 22 mm · Height: 26 mm · Manufacturer: 66HEROES · Number of fixing points: 2 pcs · Hole spacing: 30 mm · Ø mounting hole: 7.3 mm · Clamping diameter: 22 mm

Fork steerer nut M26x1 closed small fork plate chrome

Manufacturer: Quenching · Material: Steel · Surface: chrome-plated · Nut type: Cap nut · Ø outside: 28.6 mm · Drive: External hexagon · Area of application: Standard · Height: 16.3 mm · Thread type: MF26x1 (fine pitch thread) · Thread depth: 8 mm · Width across flats SW: 30 mm

swiing® revival clamping bridges aluminum black | Puch

Material: Aluminum · Surface: anodized · Color: black · Total length: 47 mm · Width: 17 mm · Height: 26 mm · Manufacturer: swiing® revival parts · Number of fixing points: 2 pcs · Hole spacing: 30 mm · Ø mounting hole: 7.3 mm

GPO clamping bridge EBR cast fork plate aluminum silver

Manufacturer: GPO · Material: Aluminum · Surface: anodized · Color: silver · Total length: 47 mm · Width: 17 mm · Height: 20.4 mm · Number of fixing points: 2 pcs · Ø mounting hole: 6.4 mm · Hole spacing: 30 mm

Front reinforcement / mudguard arch chrome (cheap)

Material: Steel · Outer width: 143 mm · Surface: chrome-plated · Color: Chrome · Mounting type: Nuts & bolts · Distance mudguard - center hole: 207 mm · Distance mudguard - center hole: 242 mm · Ø outside: 16 mm · Wide intake: 128 mm · Ø mounting hole: 6.2 mm · Hole spacing: 35 mm · Number of fixing points: 6 pcs · Wheel size [inch]: 17 " · Total length: 270 mm

EBR lamp holders

Total length: 112 mm · Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø spars: 28 mm

Fork tube pin plastic Ø 24 mm flat (P8213)

Manufacturer: Pony · Material: Plastic · Color: black · Total length: 25 mm · Ø inside: 24 mm · Ø outside: 27 mm

Bellows Ø 27/37 x 160 mm (P4520) | Pony GTX

Manufacturer: Pony · Material: Rubber · Color: black · Ø inside 2: 37 mm · Ø inside: 27 mm · Total length: 160 mm

EBR fork chrome reinforced | Puch

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Adjustable: No · Color: Chrome · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Ø spars: 28 mm · Thread length: 57 mm · Head tube length: 180 mm · Fork bridge - center wheel axle: 381 mm · Thread type: MF26x1 (fine pitch thread) · Distance brake cam to wheel axle center-center: 40 mm · Total length: 580 mm

EBR clamping bridge black

Width: 49 mm · Manufacturer: EWC · Material: Steel · Surface: varnished · Color: black · Total length: 61 mm · Height: 17 mm · Clamping diameter: 22 mm · Number of fixing points: 4 pcs · Hole spacing: 33 mm · Hole spacing: 45 mm

swiing® revival end nut fork 1" / 24G open

Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Drive: External hexagon · Ø outside: 35 mm · Thread type: FG25.4 (1" 24G) · Height: 13.7 mm · Width across flats SW: 30 mm

EBR standard fork black | Puch

Manufacturer: EWC · Surface: chrome-plated · Adjustable: No · Material: Steel · Spar end distance (center-center): 120 mm · Color: Chrome · Color: black · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Fork bridge - center wheel axle: 383 mm · Total length: 570 mm · Distance brake cam to wheel axle center-center: 40 mm · Ø spars: 23 mm · Thread type: MF26x1 (fine pitch thread) · Thread length: 57 mm

EBR front reinforcement/ mudguard arch black (1A quality)

Manufacturer: EWC · Material: Steel · Outer width: 143 mm · Surface: varnished · Color: black · Distance mudguard - center hole: 203 mm · Distance mudguard - center hole: 239 mm · Wheel size [inch]: 17 " · Ø mounting hole: 6.2 mm · Number of fixing points: 6 pcs · Wide intake: 127 mm · Mounting type: Nuts & bolts · Hole spacing: 36 mm · Total length: 267 mm

Snap ring high control bearing set

Nominal diameter: 20 mm · Nominal diameter: 25 mm · Material: Steel · Surface: blue galvanized · Height: 13.6 mm · Thickness: 0.3 mm · Manufacturer: Made in Italy

Bellows Ø 28/35 x 175 mm

Material: Rubber · Color: black · Total length: 175 mm · Manufacturer: Made in Italy · Ø inside 2: 35 mm · Ø inside: 28 mm

Brake caliper, brake hose & brake lever for EBR forks

Material: Cast aluminum · Surface: varnished · Color: gray · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Hole spacing: 32 mm · Hole spacing: 60 mm · Thread type: M8x1.25 (standard thread) · Brake lever length (lever length): 162 mm · Cable length: 900 mm · Ø Handlebars: 22 mm

Splash guard cloth empty

Number of fixing points: 3 pcs · Color: black · Material: Plastic · Total length: 165 mm · Width: 150 mm · Mounting type: Nuts & bolts
