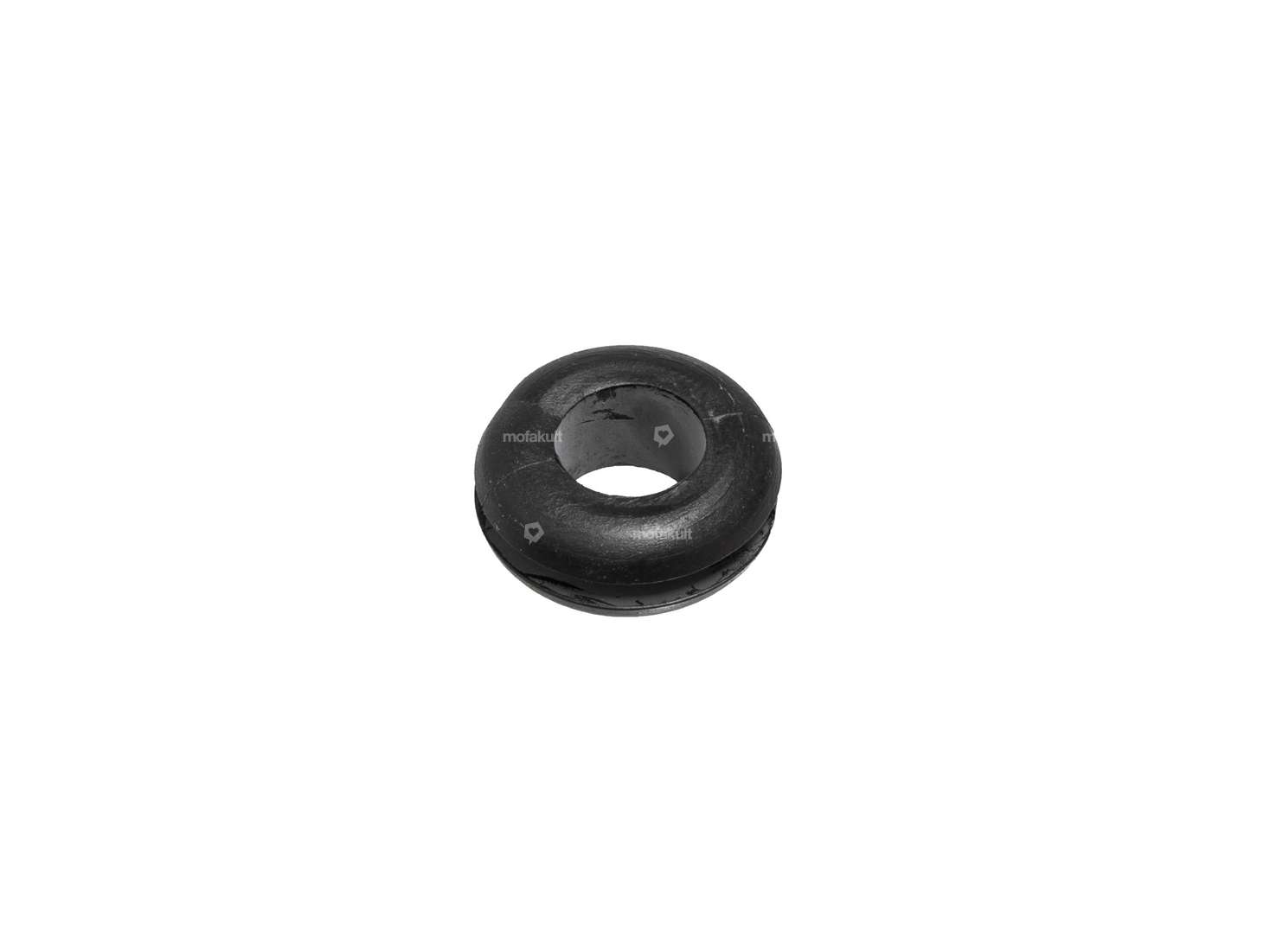

Universally usable cable grommet made of soft plastic (also known colloquially as a cable protector or rubber ring) to protect cables and wires. The cable grommet is also used to close, seal and cover grommet holes on your moped, moped or small motorcycle.

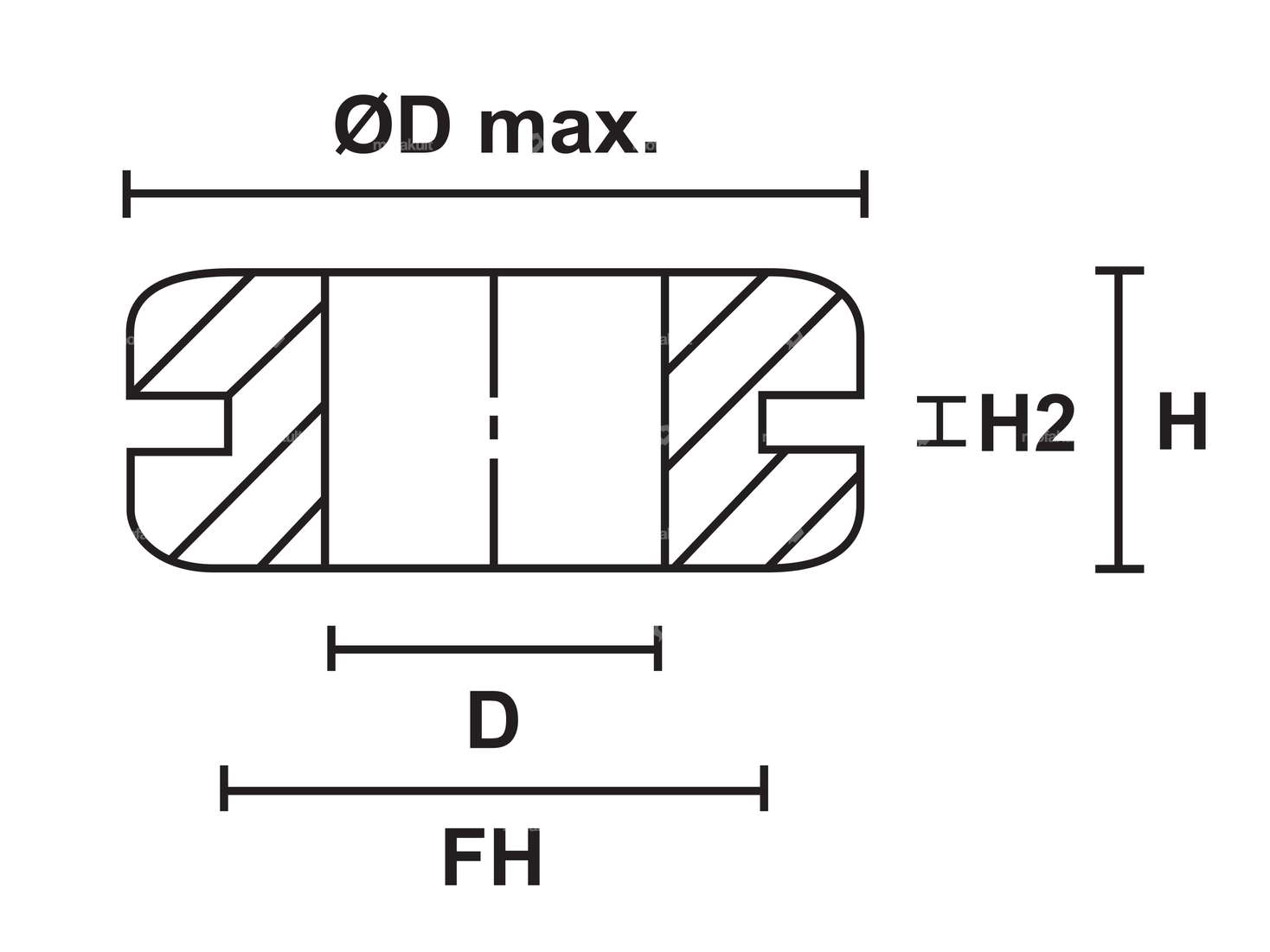

D (cable grommet hole): 9 mm
FH (mounting hole): 12 mm
Ø D max: 15 mm
H2 (material thickness): 2 mm
H: 6 mm
Material: Soft PVC, black
The intended use of this rubber center is extensive, as it can be assembled together without further ado.
A quality product manufactured in Germany.
Details
| Manufacturer | Made in Germany |
| Material | Polyvinyl chloride (PVC-P_soft) |
| Ø outside | 15 mm |
| Height | 6 mm |
| Ø Cable bushing | 8 mm |
| Color | black |
| Ø mounting hole | 12 mm |
| Material thickness | 2 mm |
