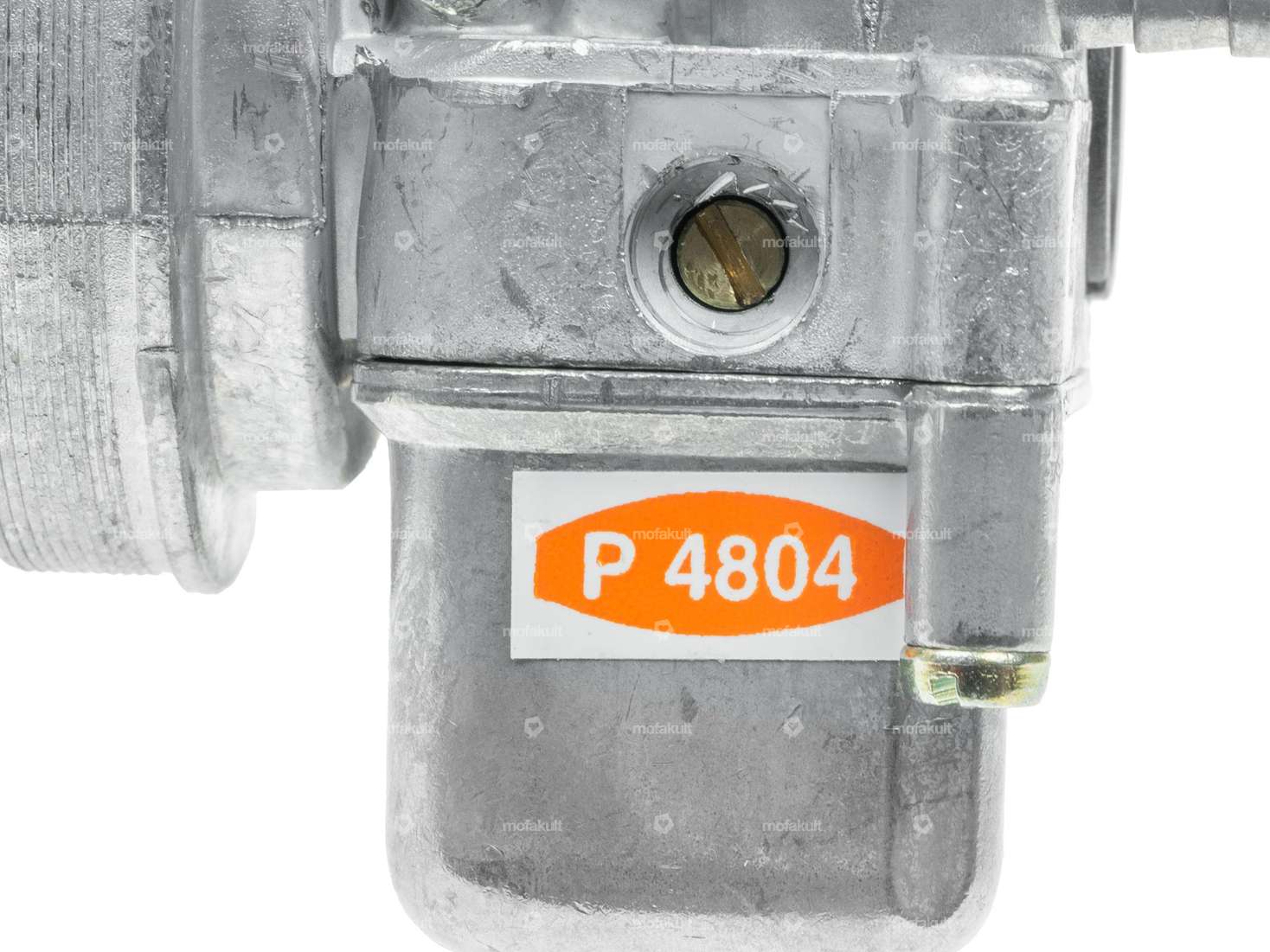

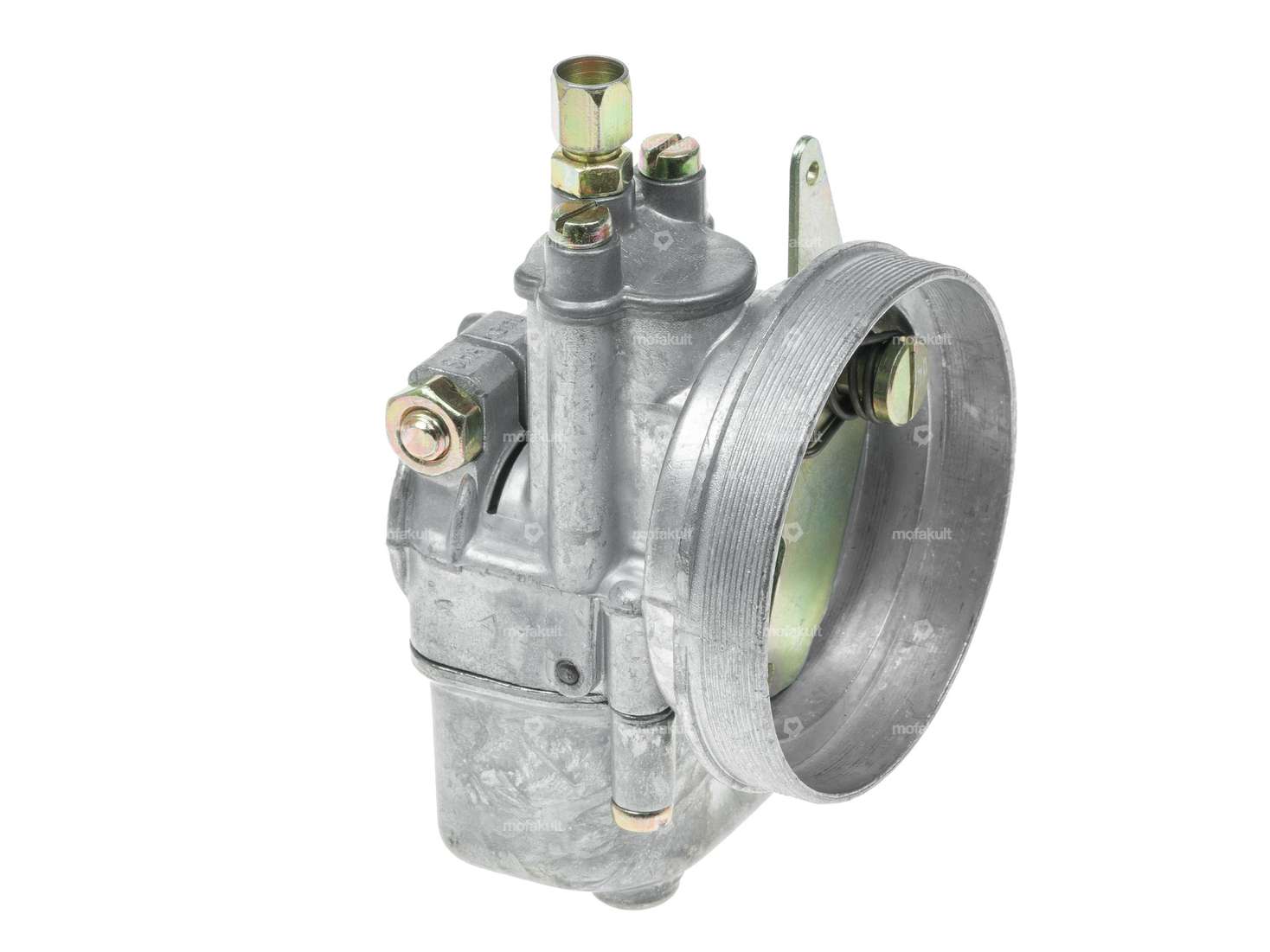

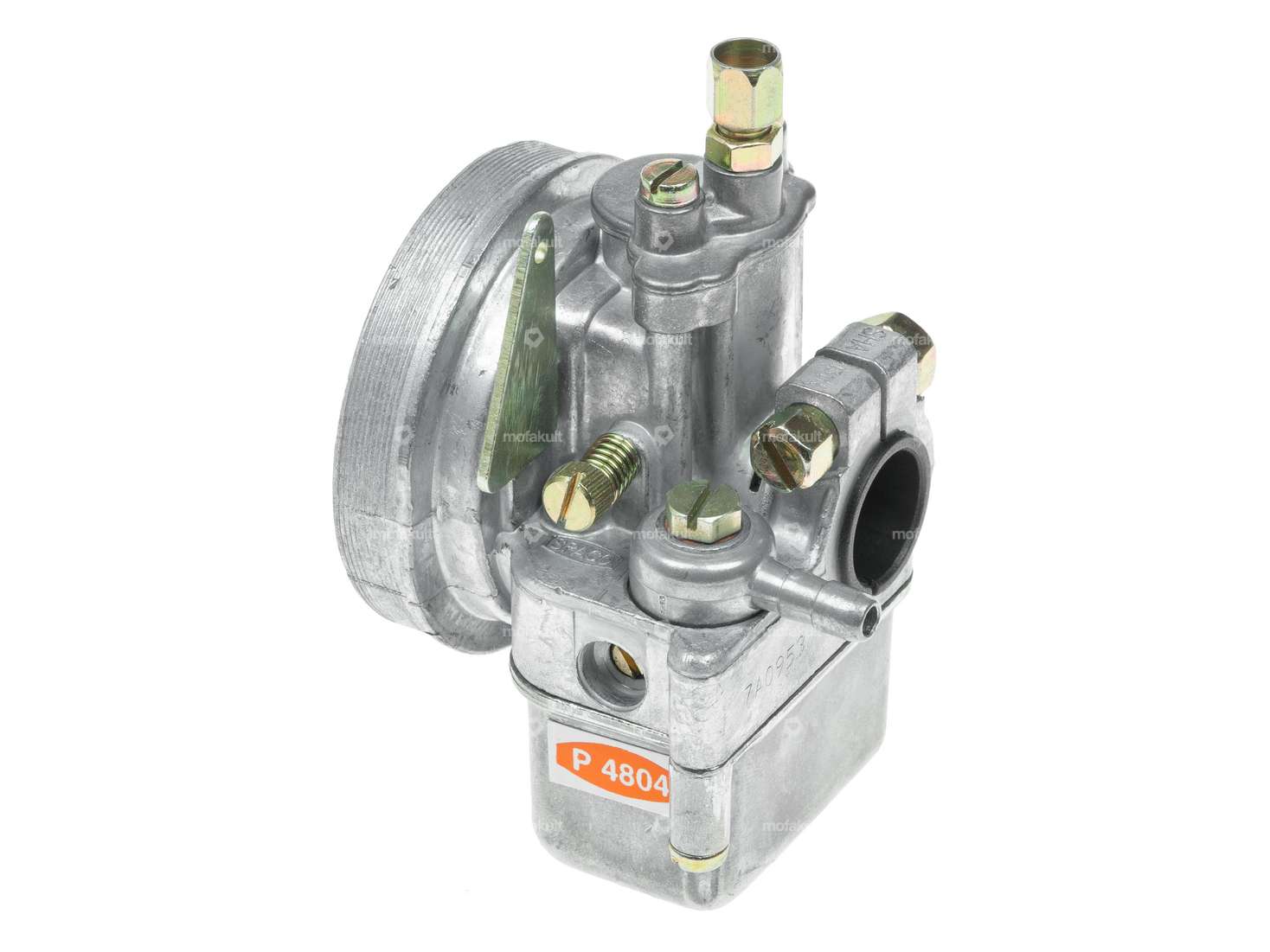

Dell'Orto 13/11 SHA Spaco carburetor hand choke

Home
| Motor
| Carburetor & intake system
| Carburetor
114,40 EUR

Incl. 19% VAT.

The Dell'Orto 13 / 11 SHA Spaco carburetor impresses with its compact design and can be used universally for various mopeds, mopeds and small motorcycles.

The Spaco version has a large air filter connection.

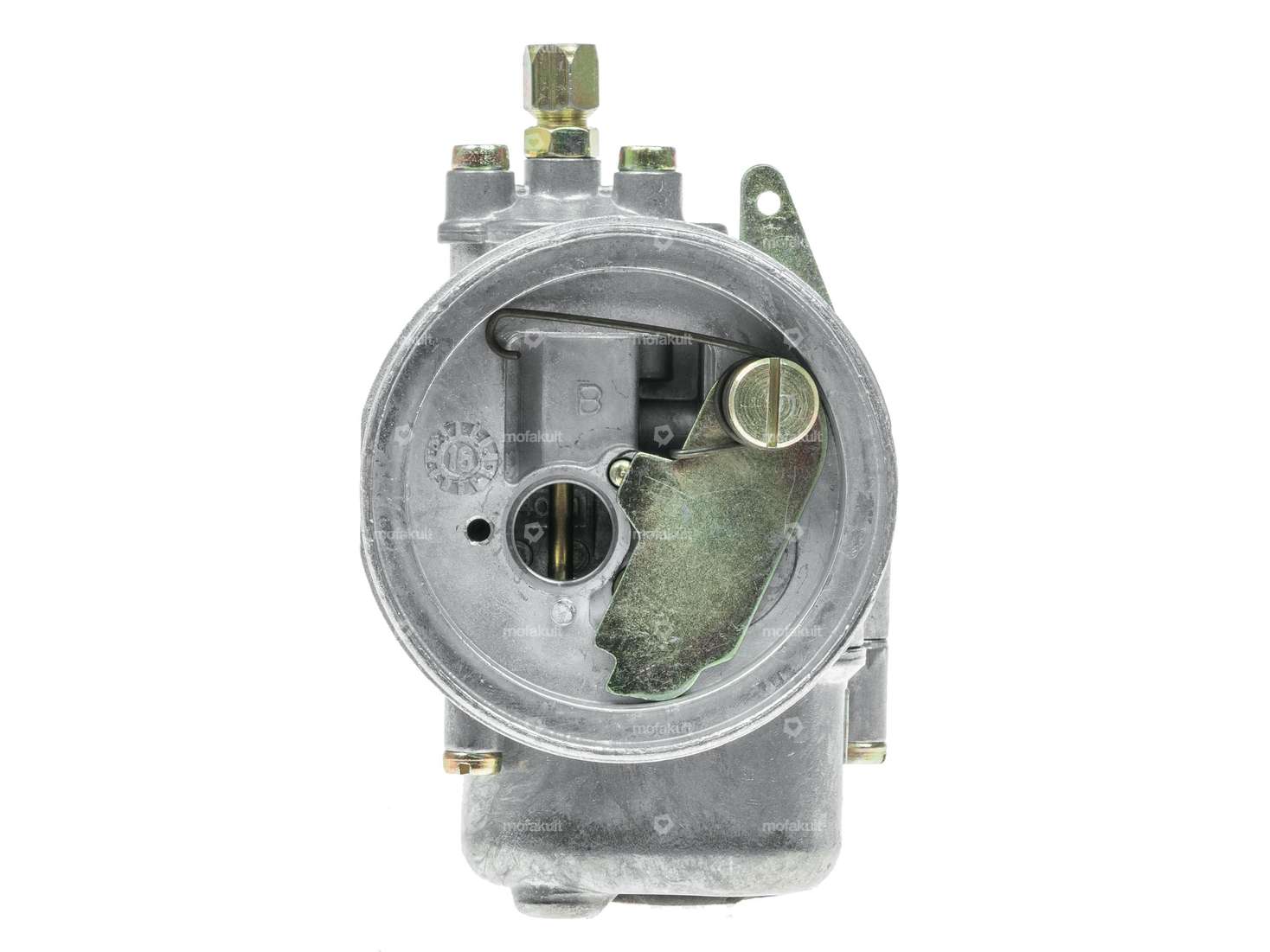

The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).

Carburettor type: SHA type 3 (SHA3)
Main diameter (M5): 48
Inlet connection diameter: 16 mm (or 18 mm after removing the reducer). 18 mm after removing the reducing sleeve)
Ø outside air filter connection: 59 mm
Ø passage on air filter side: 11 mm
Ø passage on intake manifold side: 13 mm
Total height: 99 mm (without pipe bend)
Total length: 52 mm
Total width: 65 mm

Matching nozzles, intake manifolds and alternative air filters can be found in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

Details

ManufacturerDell'Orto
MaterialAluminum
Area of applicationOriginal, Tuning
Component group CarburetorCarburetor complete
Nominal diameter13 mm, 11 mm
Carburetor typeSHA (Piaggio)
Width65 mm
Colorblack
Choke controlHand choke
Ø fuel hose connection6 mm, 5.2 mm
Nozzle threadM5x0.8 (standard thread)
Total length52 mm
Ø without reducing sleeve18 mm
Ø Internal connection16 mm
Ø Inside entrance11 mm
Height99 mm
Ø Output inside13 mm
Ø Air filter connection59 mm
Mixed oil connectionNo
Mounting typePlug connection clamped
Vacuum connectionNo
Nozzle size48
CamouflagedNo

Accessories & related products

Intake gasket, engine Beta 521 & 512 (A8100)
undefined

For: Pony / Cilo (Beta 521 & 512)

18595

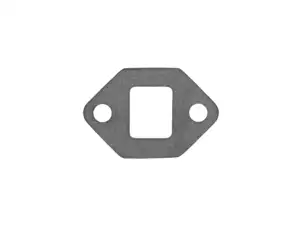

Intake gasket, engine Beta 521 & 512 (A8100)
