For: Universal · Tomos

21392

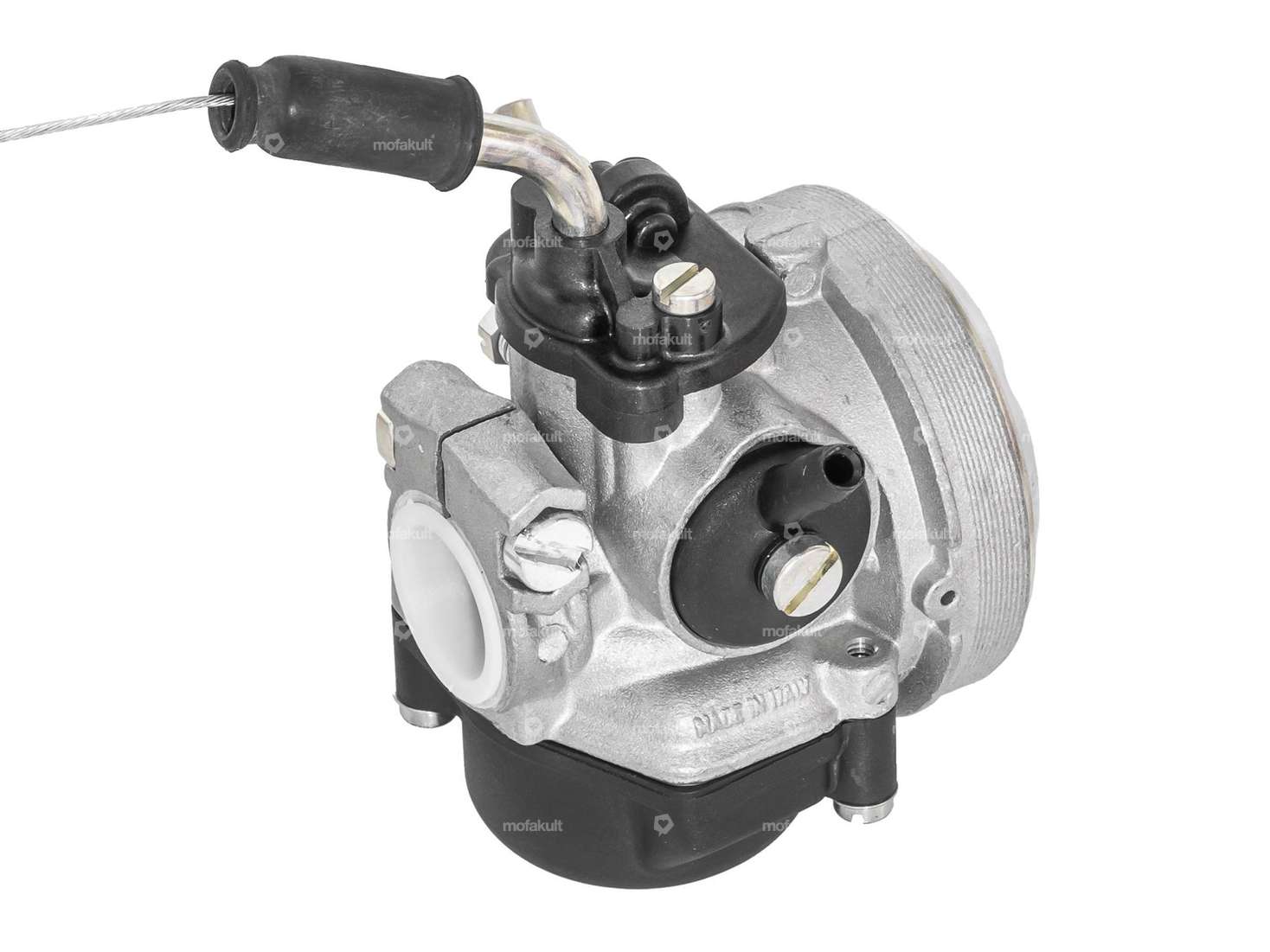

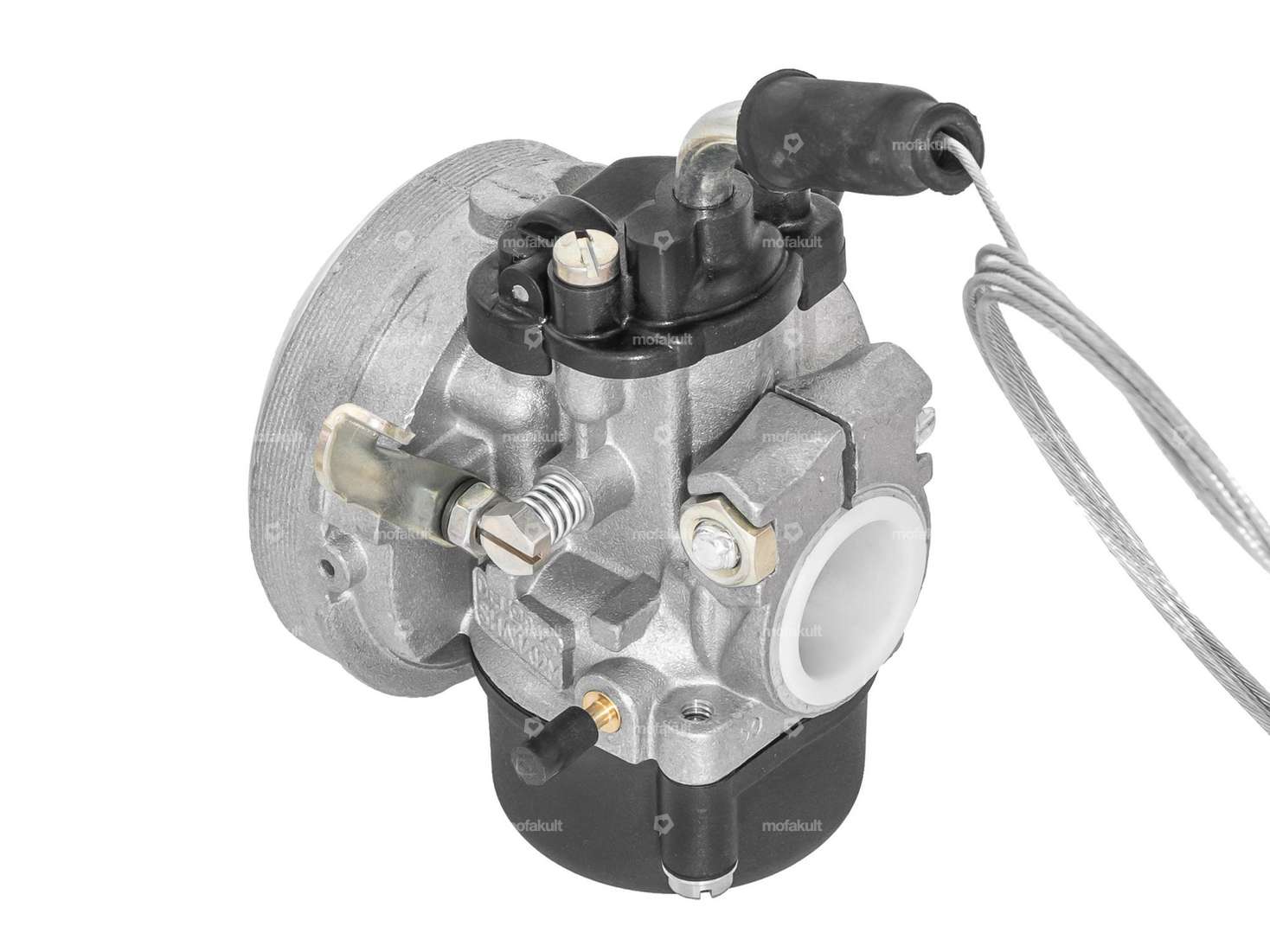

Dell'Orto 14/12 M SHA carburetor hand choke (incl. filter)

rating iconrating iconrating iconrating iconrating icon
No reviews
87,40 EUR

Incl. 19% VAT.

Description

The Dell'Orto 14 / 12 M SHA racing carburetor impresses with its compact design and can be used universally for various mopeds, mopeds and small motorcycles.

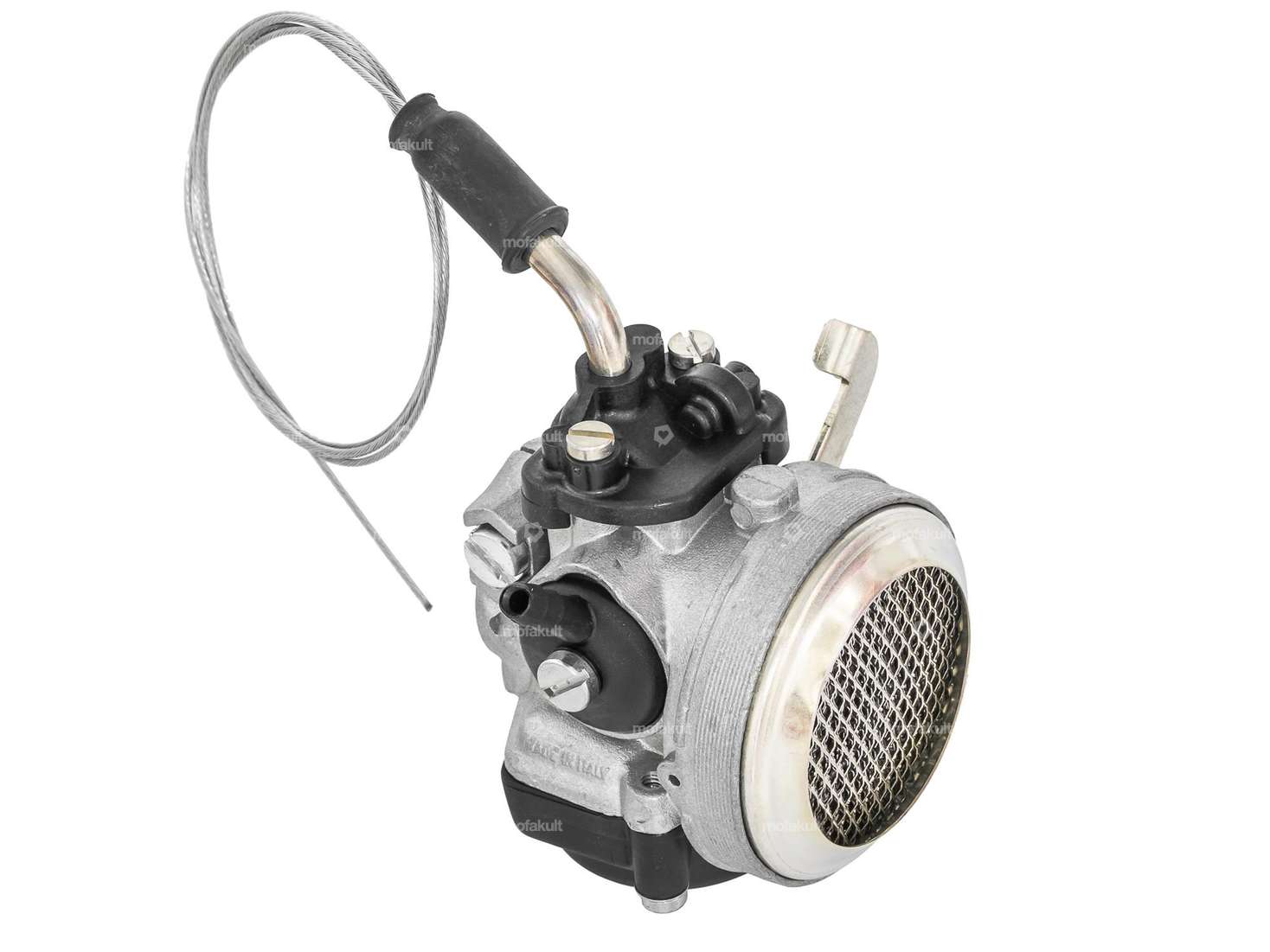

The integrated air filter screen can be easily removed for cleaning purposes.

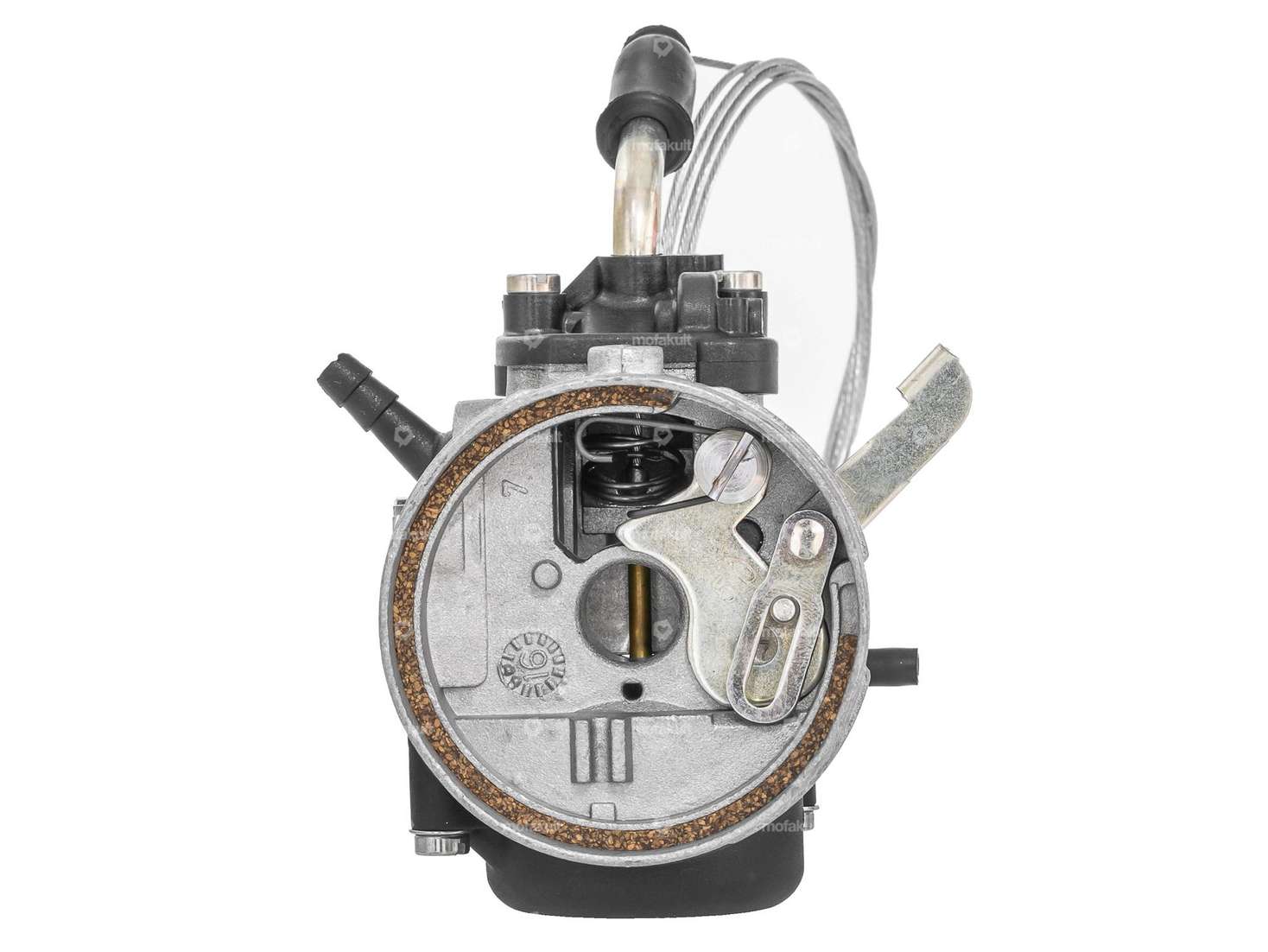

The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).

Carburettor type: SHA type 4 (SHA4)
Main diameter (M5): 68
Inlet connection diameter: 18 mm (or 21 mm after removing the reducer). 21 mm after removing the reducing sleeve)
Ø outside air filter connection: 59 mm
Ø passage on air filter side: 12 mm
Ø passage on intake manifold side: 14 mm
Total height: 81 mm (without pipe bend)
Total length: 65 mm
Total width: 82 mm

Matching nozzles and air filters can be found in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

ManufacturerDell'Orto
MaterialAluminum
Area of applicationTuning
Component group CarburetorCarburetor complete
Colorblack
Nominal diameter14 mm, 12 mm
Width82 mm
Carburetor typeSHA
Total length65 mm
Height110 mm
Nozzle threadM5x0.8 (standard thread)
Nozzle size68
Ø without reducing sleeve21 mm
Mounting typePlug connection clamped
Ø Internal connection18 mm
Ø Inside entrance12 mm
Ø Output inside14 mm
Ø Air filter connection59 mm, 56 mm
Ø fuel hose connection6 mm, 5.2 mm
Mixed oil connectionYes
Vacuum connectionNo
Choke controlHand choke
CamouflagedNo
Universal
Tomos
