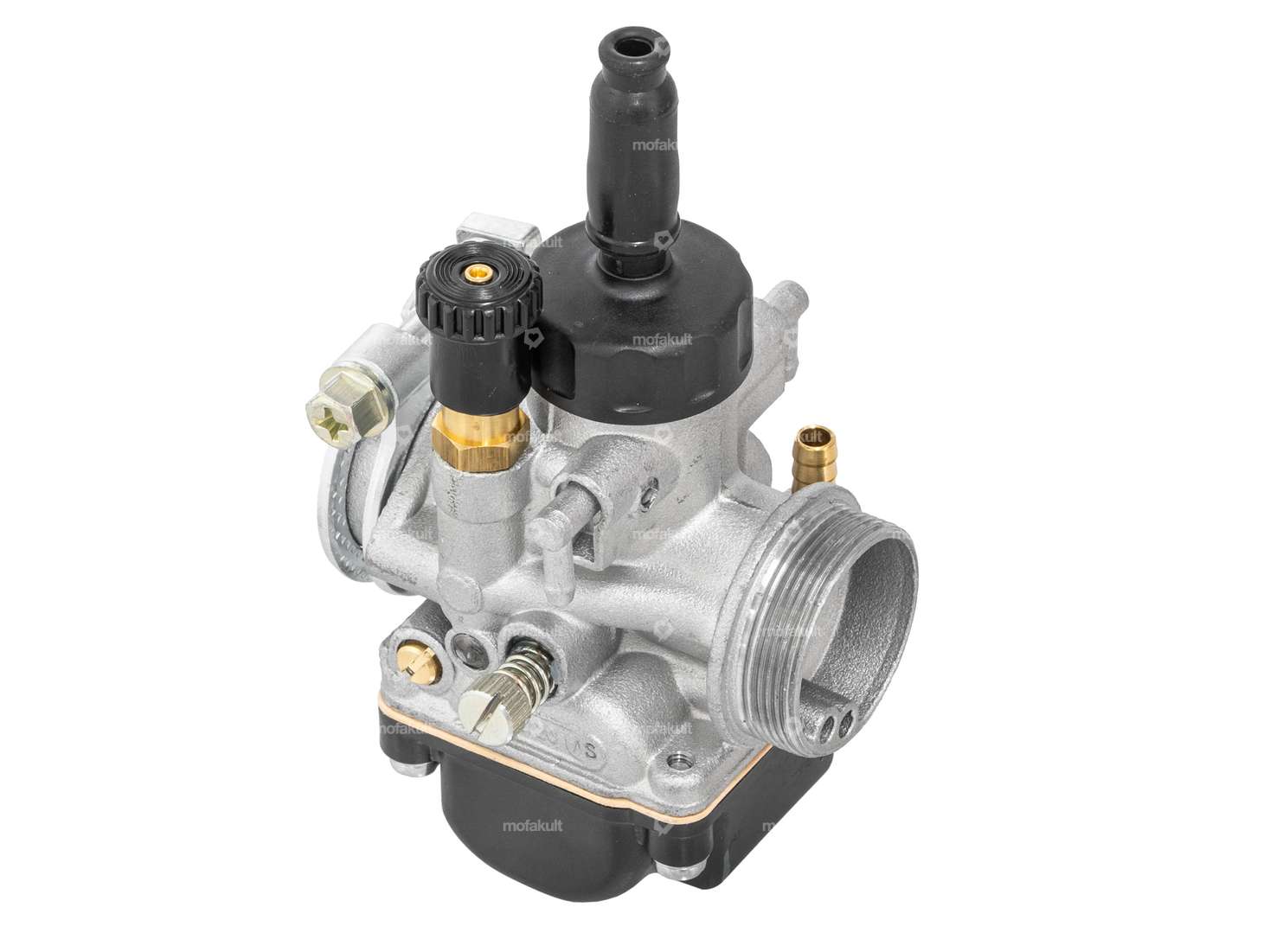

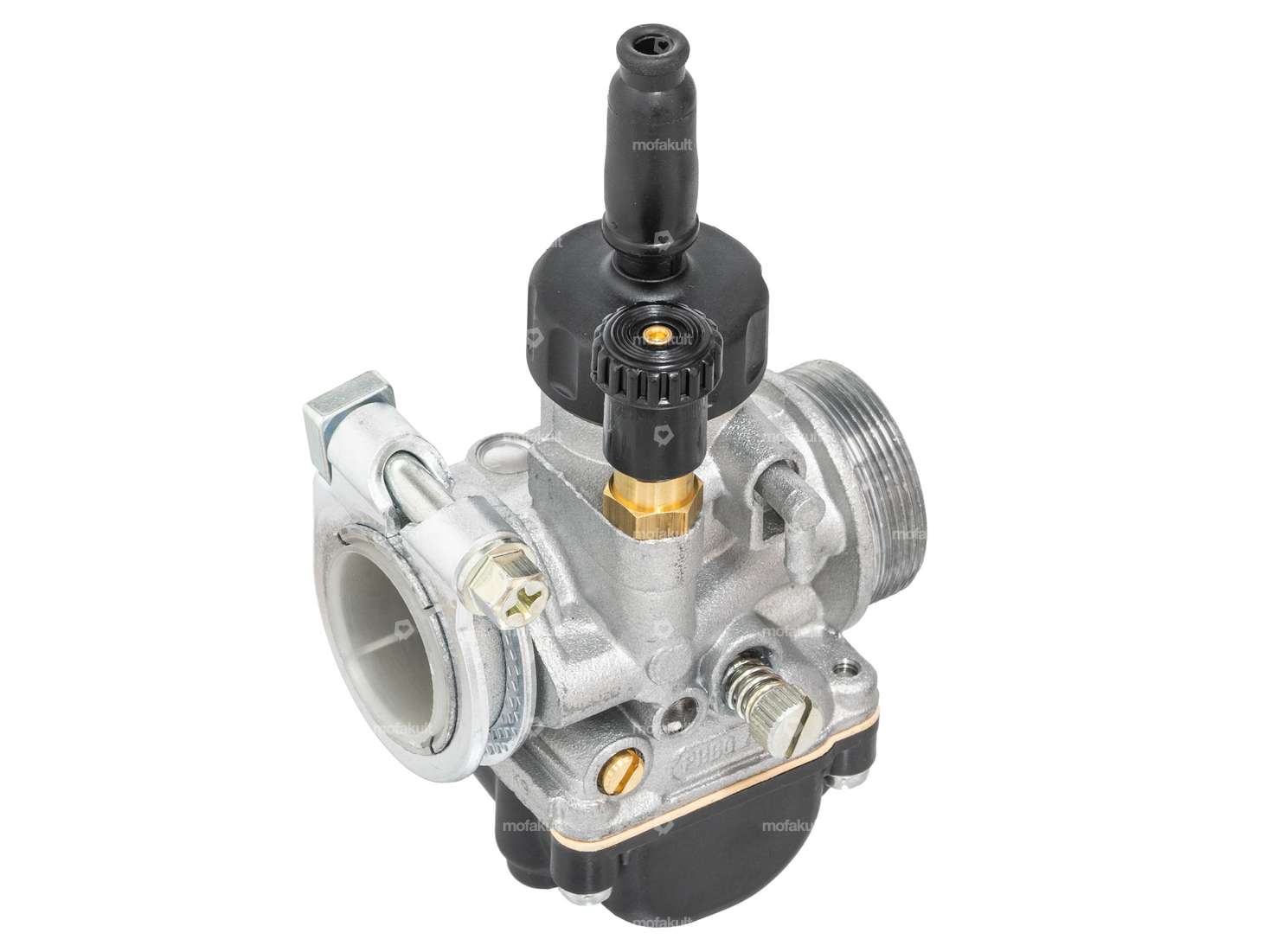

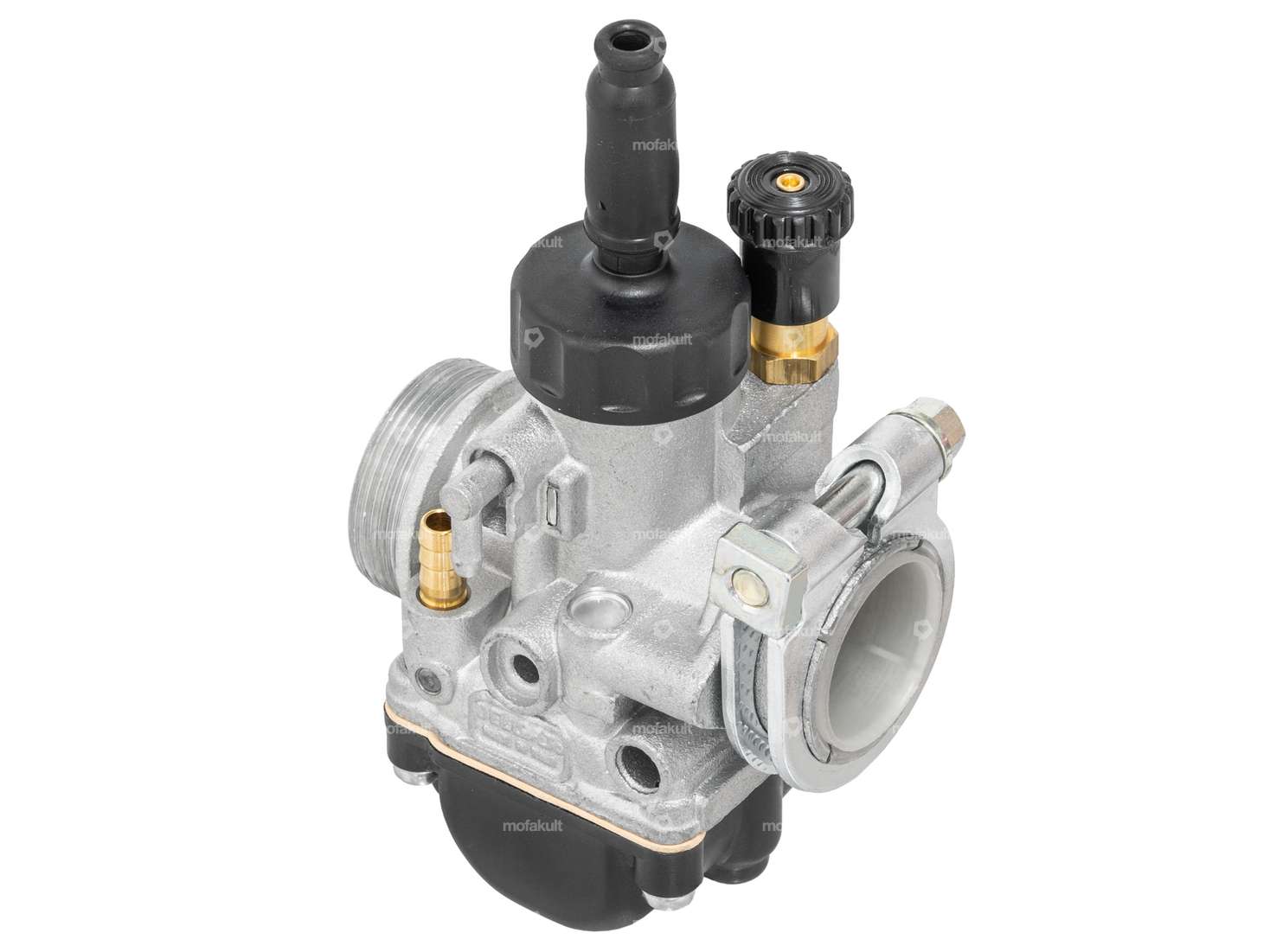

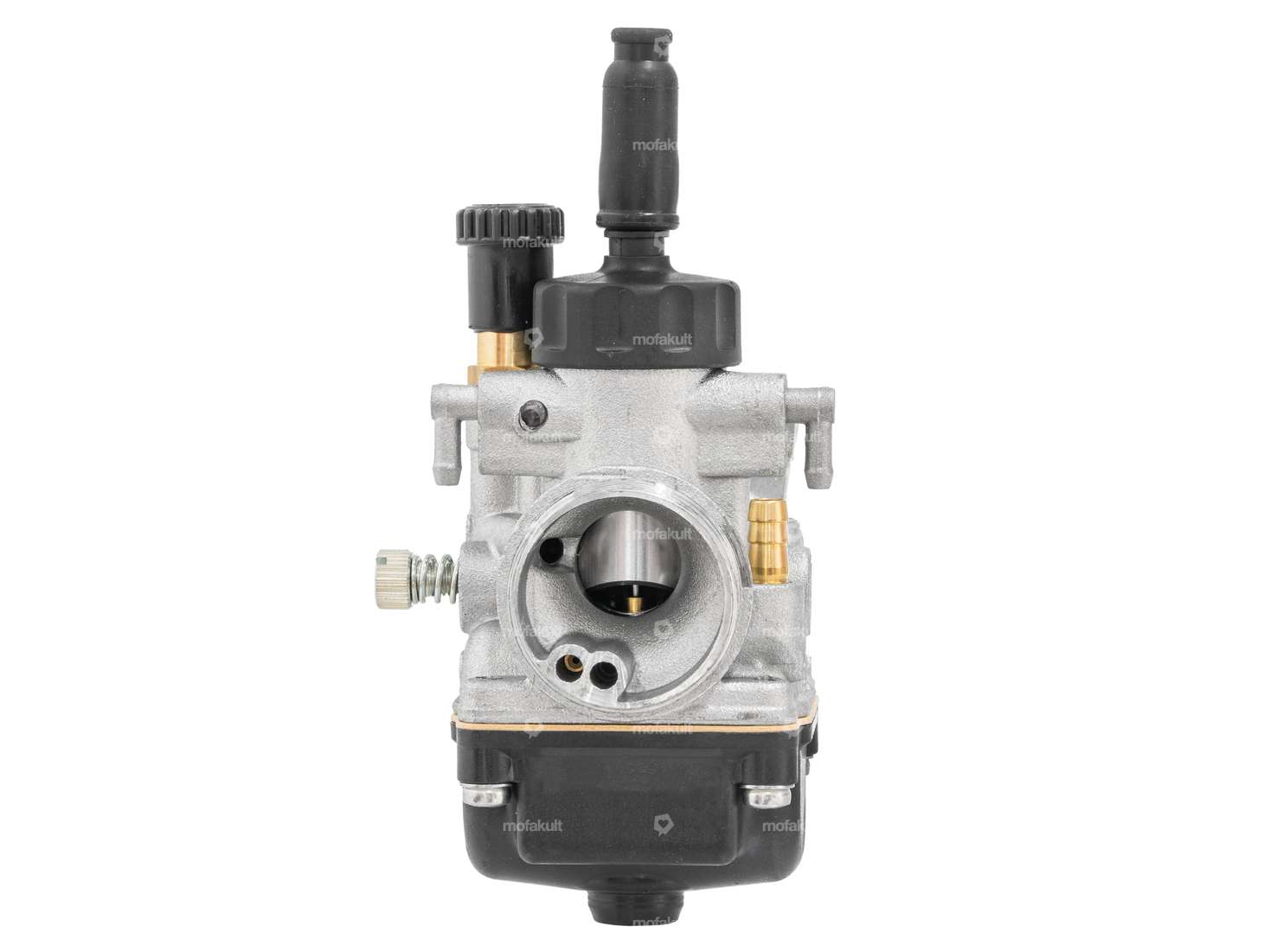

Dell'Orto 15 mm PHBG AS carburetor hand choke

Home
| Motor
| Carburetor & intake system
| Carburetor
148,70 EUR

Incl. 19% VAT.

15 mm PHBG racing carburetor for universal use for your moped, moped and small motorcycle.
This high-quality racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 70 cc.

The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary lines and the mixture adjustment screw.

The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.

Main thread size (M5): 70 (with throttle plate)
Adjacent thread size (idle thread): 50
Choked thread size: 60
Air filter connection diameter: 32 mm (M32 x 1.25)
Intake port connection diameter: 24 mm (or 26 mm after removing the reducing sleeve)
Total height: 125 mm
Total width: 75 mm

Matching nozzles, air filters and intake manifolds can be found in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

Details

Height125 mm
Width75 mm
ManufacturerDell'Orto
Area of applicationTuning
Component group CarburetorCarburetor complete
Carburetor typePHBG AS
Nominal diameter15 mm
Nozzle threadM5x0.8 (standard thread)
Ø without reducing sleeve26 mm
Ø Internal connection24 mm
Ø Air filter connection32 mm
Air filter connection threadMF32x1.25 (fine pitch thread)
Ø fuel hose connection6 mm
Mounting typePlug connection clamped
Choke controlHand choke
Choke nozzle size60
Nozzle size70
Size of secondary nozzle50

Accessories & related products

18.5 mm intake manifold Dell'Orto PHBG | Puch E50

For: Puch

10659

18.5 mm intake manifold Dell'Orto PHBG | Puch E50

Material: Aluminum · Area of application: Tuning · Color: Chrome · Surface: polished · Ø inside: 18.8 mm · Ø External connection: 23.9 mm · Total length: 40 mm · Number of fixing points: 2 pcs · Mounting type: Screws · Total height: 57 mm · Height flange center hole: 45 mm · Camouflaged: No · Hole spacing inlet: 38 mm

20,50 EUR

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Tomos · Cilo · Hercules

10703

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.2 mm · Nipple shape: Ball · Cable length: 1650 mm

3,20 EUR

swiing nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG
undefined

For: Universal · Pony / Cilo (Beta 521 & 512) · Piaggio

10902

swiing nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG

Manufacturer: swiing · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Drive: Slot · Quantity: 10 pcs · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Total length: 8 mm · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 75 · Nozzle size: 78 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92

23,90 EUR

swiing nozzle set M5 (92 - 110) Dell'Orto SHA, PHBG
undefined

For: Universal · Pony / Cilo (Beta 521 & 512) · Piaggio

10903

swiing nozzle set M5 (92 - 110) Dell'Orto SHA, PHBG

Manufacturer: swiing · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98 · Nozzle size: 100 · Nozzle size: 102 · Nozzle size: 104 · Nozzle size: 106 · Nozzle size: 108 · Nozzle size: 110 · Total length: 8 mm · Drive: Slot

23,90 EUR

swiing nozzle set M5 (80 - 100) Dell'Orto SHA, PHBG
undefined

For: Universal · Pony / Cilo (Beta 521 & 512) · Piaggio

17985

swiing nozzle set M5 (80 - 100) Dell'Orto SHA, PHBG

Manufacturer: swiing · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98 · Nozzle size: 100 · Total length: 8 mm · Drive: Slot

23,90 EUR

swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG
undefined
angle-right

For: Universal · Pony / Cilo (Beta 521 & 512) · Piaggio · Tomos

22000

swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Drive: Slot · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Total length: 8 mm · Nozzle size: 30 · Nozzle size: 31 · Nozzle size: 32 · Nozzle size: 33 · Nozzle size: 34 · Nozzle size: 35 · Nozzle size: 36 · Nozzle size: 37 · Nozzle size: 38 · Nozzle size: 39 · Nozzle size: 40 · Nozzle size: 41 · Nozzle size: 42 · Nozzle size: 43 · Nozzle size: 44 · Nozzle size: 45 · Nozzle size: 46 · Nozzle size: 47 · Nozzle size: 48 · Nozzle size: 49 · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60 · Nozzle size: 61 · Nozzle size: 62 · Nozzle size: 63 · Nozzle size: 64 · Nozzle size: 65 · Nozzle size: 66 · Nozzle size: 67 · Nozzle size: 68 · Nozzle size: 69 · Nozzle size: 70 · Nozzle size: 71 · Nozzle size: 72 · Nozzle size: 73 · Nozzle size: 74 · Nozzle size: 75 · Nozzle size: 76 · Nozzle size: 77 · Nozzle size: 78 · Nozzle size: 79 · Nozzle size: 80 · Nozzle size: 81 · Nozzle size: 82 · Nozzle size: 83 · Nozzle size: 84 · Nozzle size: 85 · Nozzle size: 86 · Nozzle size: 87 · Nozzle size: 88 · Nozzle size: 89 · Nozzle size: 90 · Nozzle size: 91 · Nozzle size: 92 · Nozzle size: 93 · Nozzle size: 94 · Nozzle size: 95 · Nozzle size: 96 · Nozzle size: 97 · Nozzle size: 98 · Nozzle size: 99 · Nozzle size: 100 · Nozzle size: 101 · Nozzle size: 102 · Nozzle size: 103 · Nozzle size: 104 · Nozzle size: 105 · Nozzle size: 106 · Nozzle size: 107 · Nozzle size: 108 · Nozzle size: 109 · Nozzle size: 110 · Nozzle size: 111 · Nozzle size: 112 · Nozzle size: 113 · Nozzle size: 114 · Nozzle size: 115 · Nozzle size: 116 · Nozzle size: 117 · Nozzle size: 118 · Nozzle size: 119 · Nozzle size: 120

4,00 EUR

Dell'Orto choke nozzle 60 PHBG 15 - 21 mm
undefined

Universal

23762

Dell'Orto choke nozzle 60 PHBG 15 - 21 mm

Manufacturer: Dell'Orto · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Nozzle type: Choke nozzle · Nozzle size: 60 · Drive: Slot

12,50 EUR

66HEROES Air filter mushroom grille black Dell'Orto PHBG (Ø=28 mm)
undefined

Universal

25363

66HEROES Air filter mushroom grille black Dell'Orto PHBG (Ø=28 mm)

Manufacturer: 66HEROES · Camouflaged: No · Area of application: Tuning · Color: black · Filter type: Grille · Ø outside: 60 mm · Total length: 70 mm · Ø Internal connection: 28 mm · Mounting type: Plug connection clamped

21,60 EUR

Not in stock

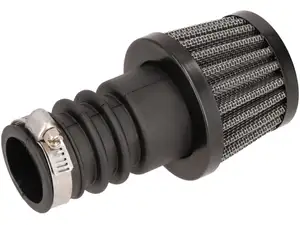

66HEROES Mushroom air filter grille 28 - 32 mm black
