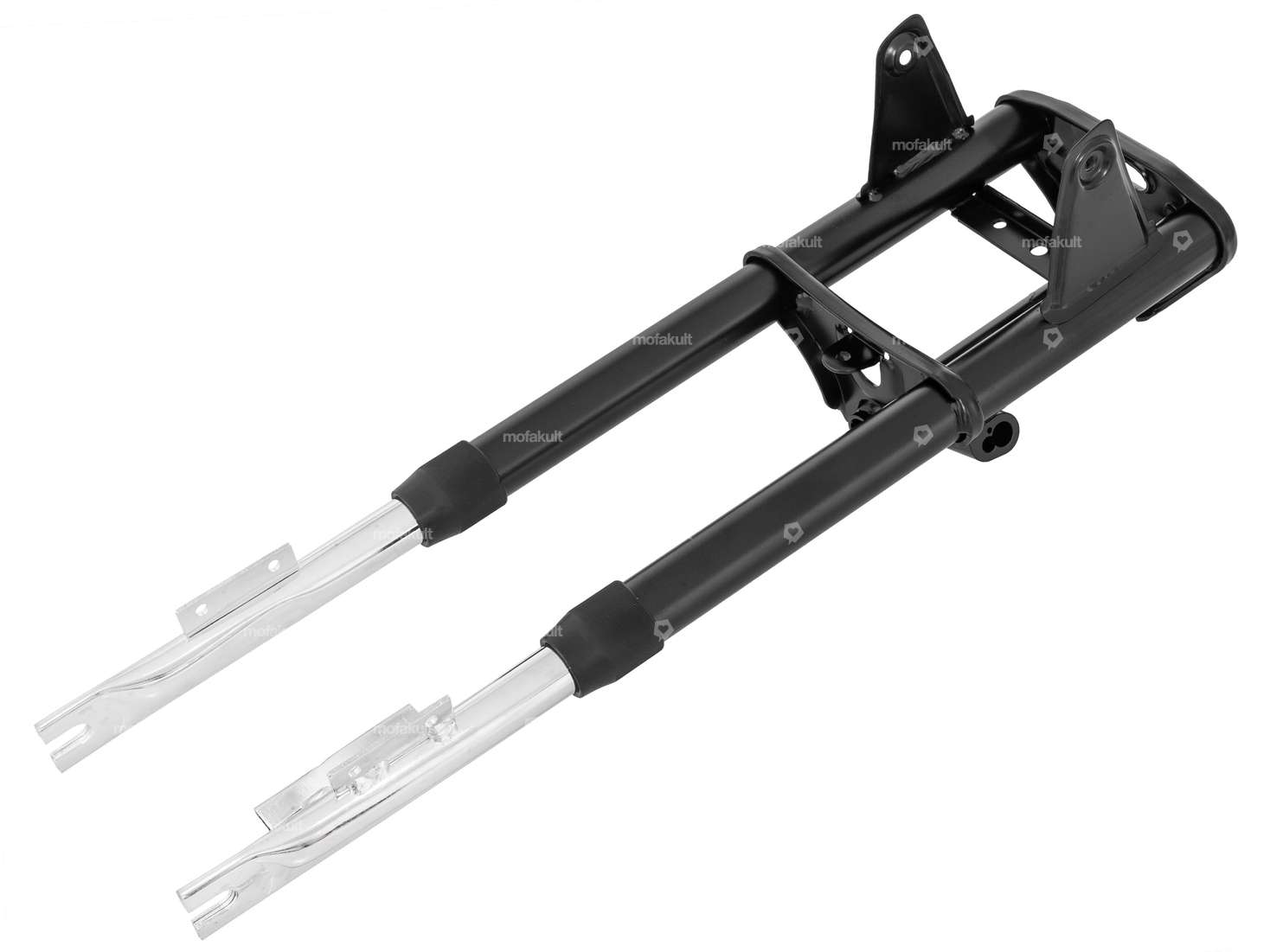

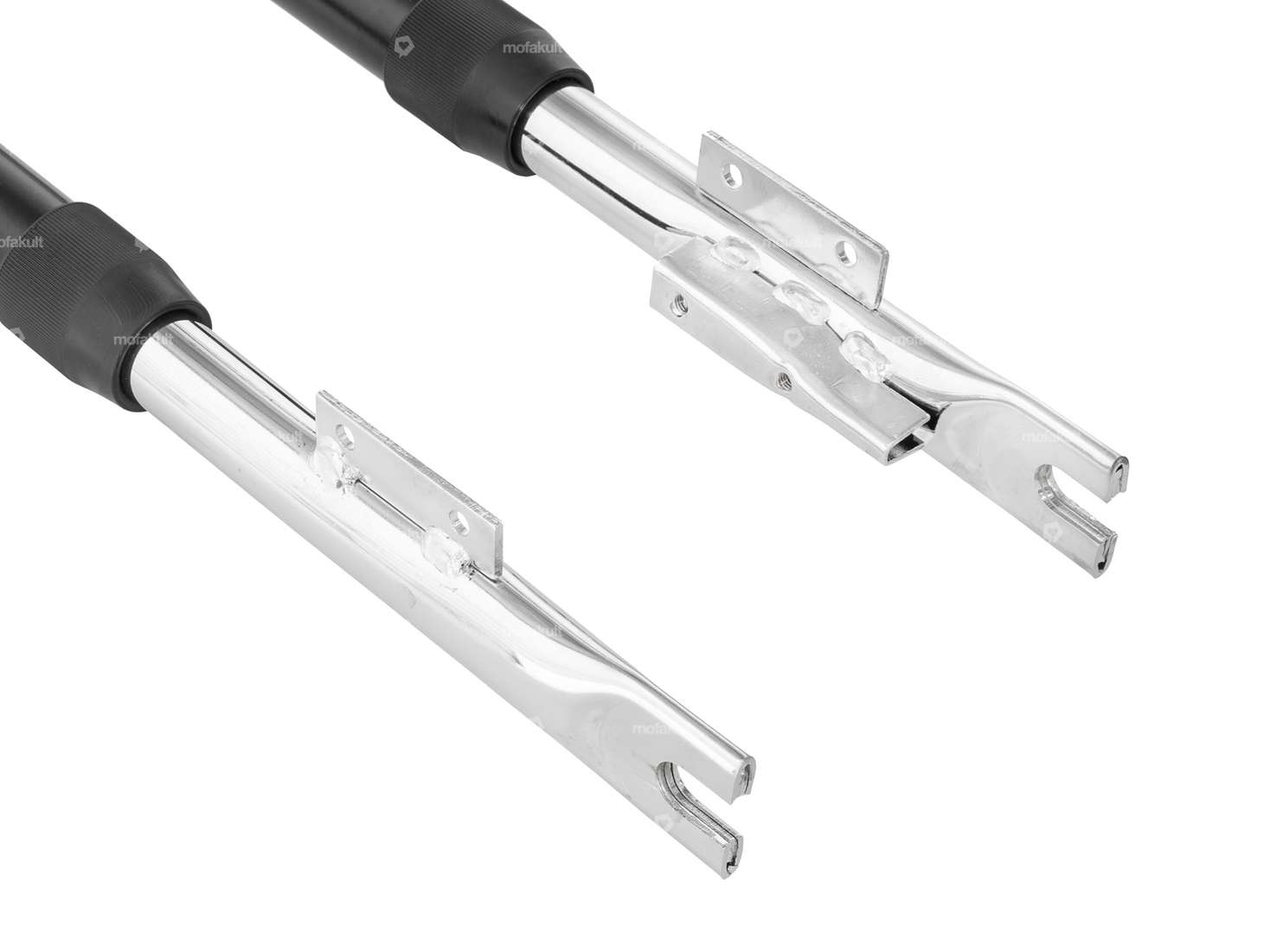

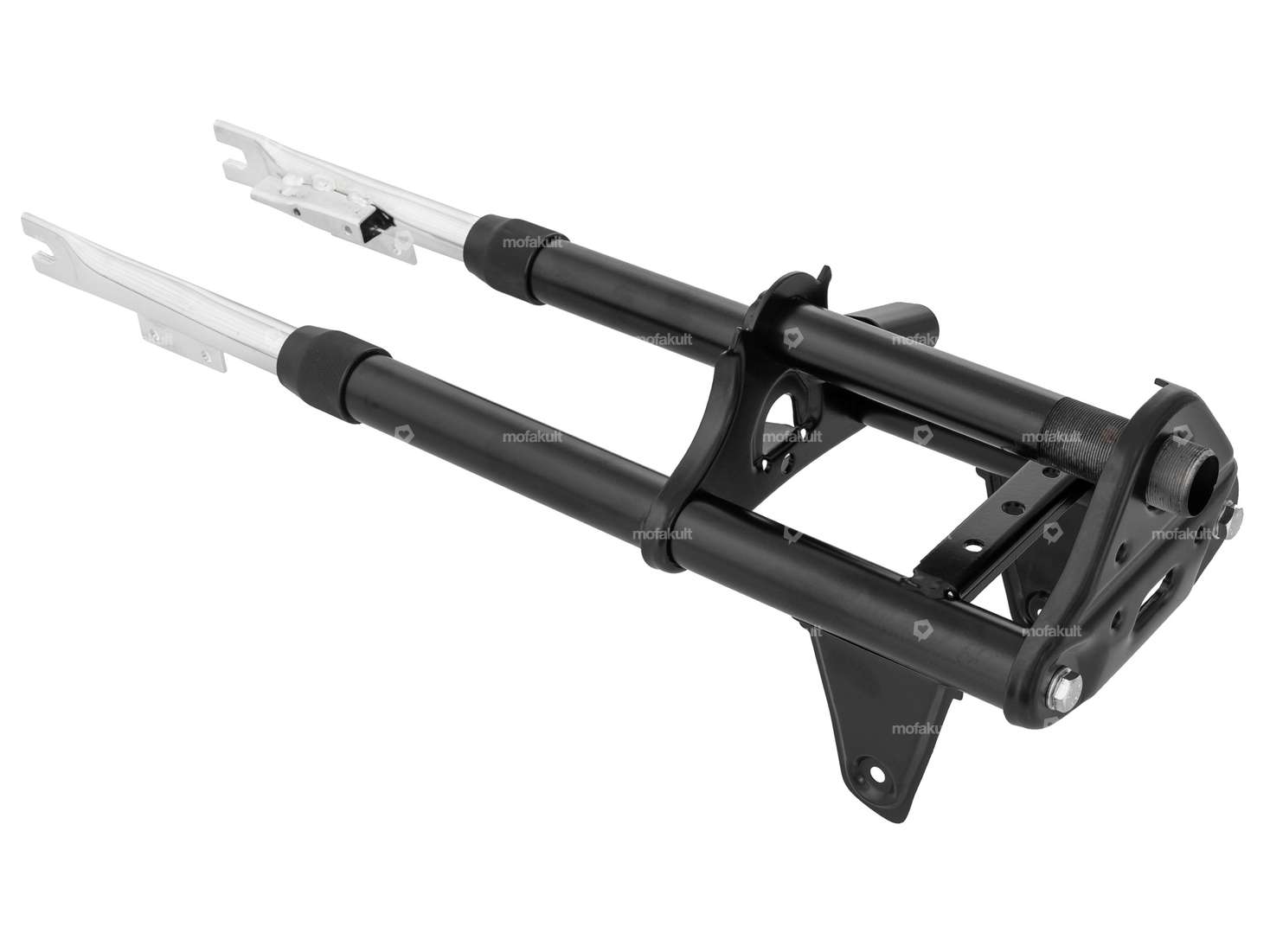

Black-painted EBR fork compatible with Puch X30 NS, NL, NG-2AH, and Supermaxi LG1 and LG2 mopeds.

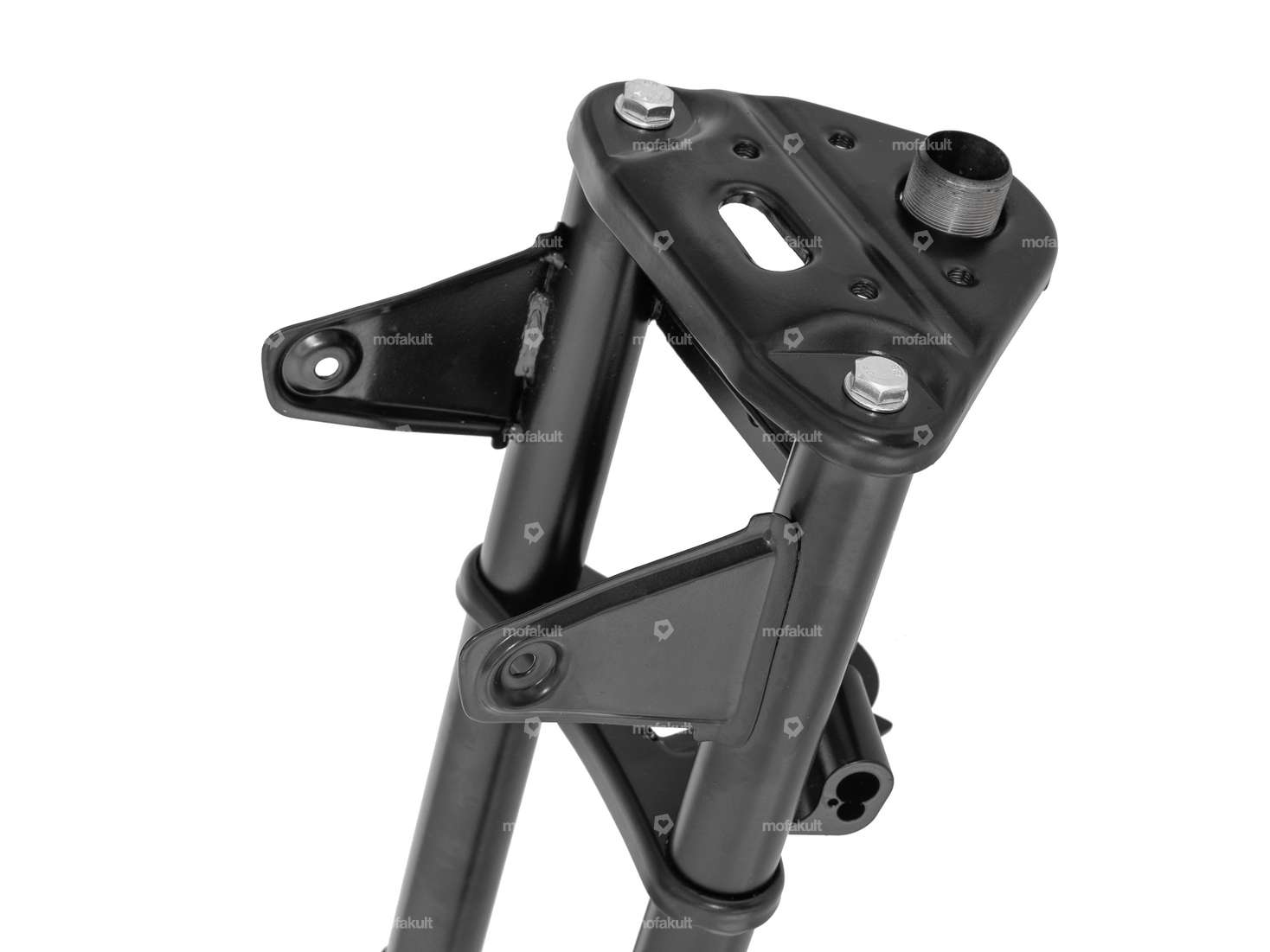

The fork features a welded fork lock mount—just like the original Puch forks from back in the day.
You can find the matching fork lock and fender bracket listed below in the accessories section.
Designed for handlebar mounting on the fork plate.
Inner Ø of head tube (for stem mounting): 22 mm
; head tube length: 18 cm
; total length: 57 cm
Brand-name product from the Italian manufacturer EBR.
| Manufacturer | EWC |
| Surface | varnished, chrome-plated |
| Color | black, Chrome |
| Material | Steel |
| Adjustable | No |
| Ø spars | 23 mm |
| Spar end distance (center-center) | 120 mm |
| Ø outer head tube | 26.2 mm |
| Ø head tube inside | 22.1 mm |
| Head tube length | 180 mm |
| Thread type | MF26x1 (fine pitch thread) |
| Fork bridge - center wheel axle | 384 mm |
| Thread length | 56.5 mm |
| Distance brake cam to wheel axle center-center | 38 mm |
| Total length | 575 mm |
| Puch |
