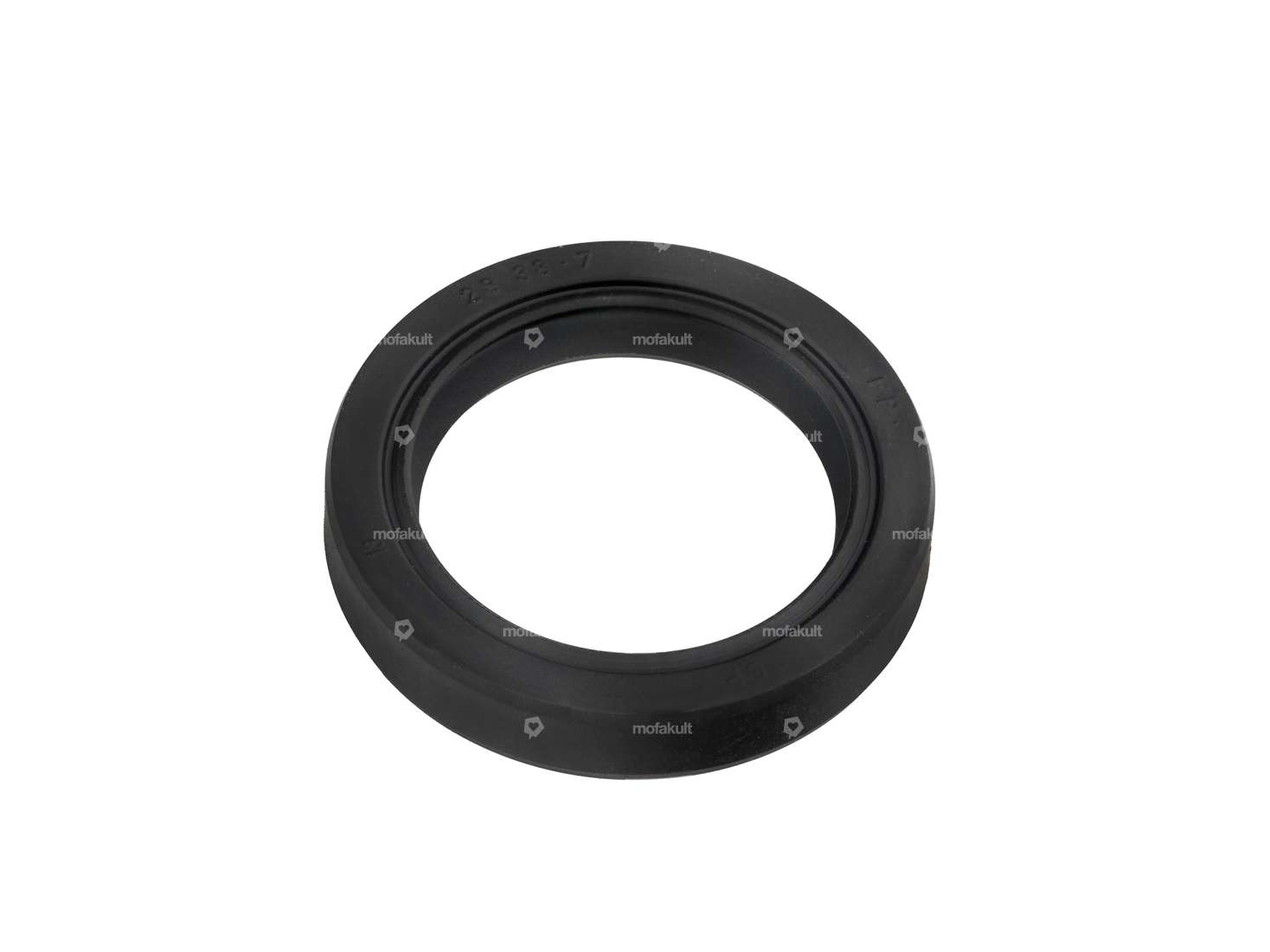

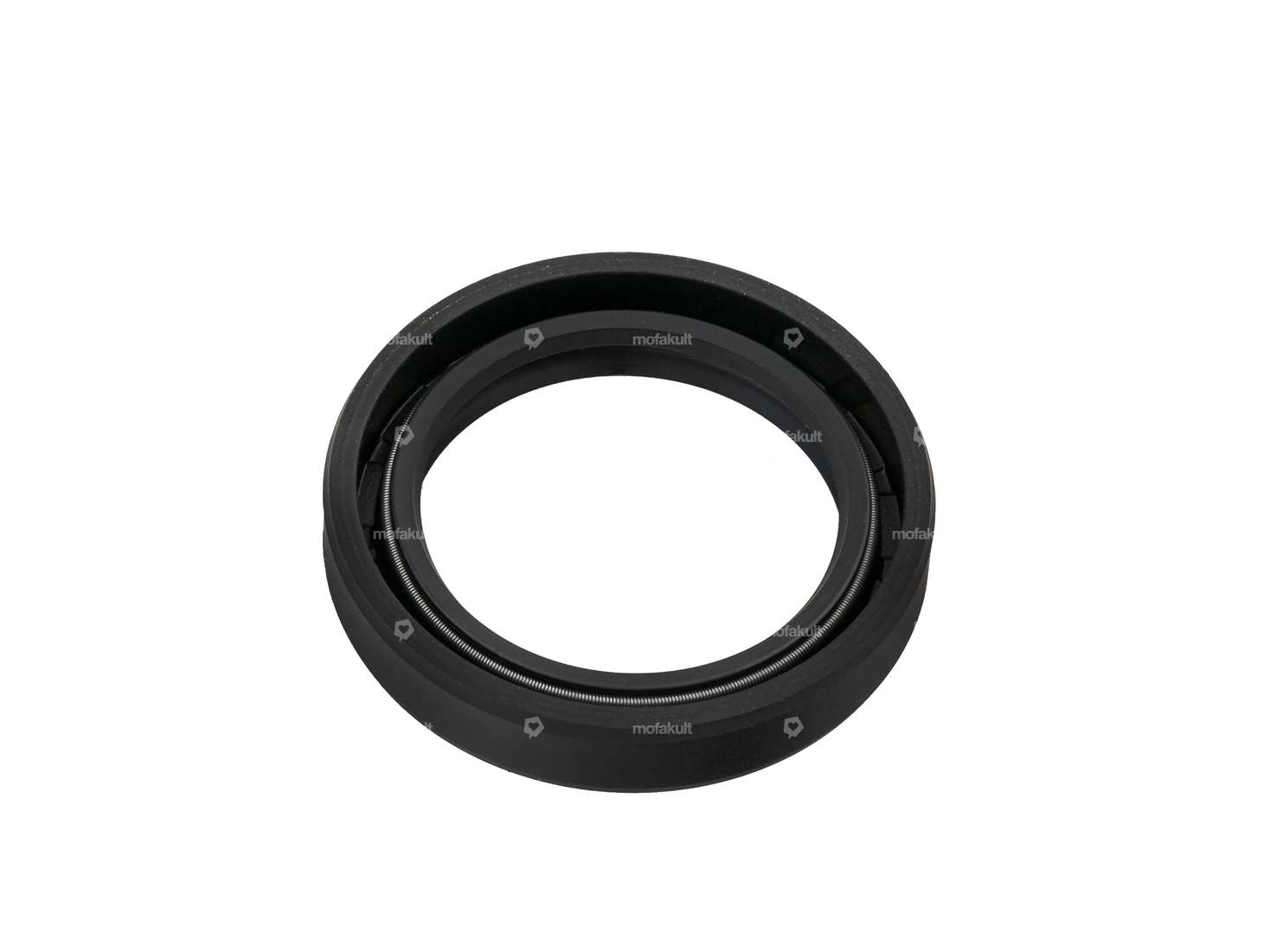

Shaft seal ring 28x38x7 mm for use on the hydraulic EBR fork for your moped & moped.
This shaft seal ring (colloquially known as oil seal) is mounted on the fork legs of all hydraulic EBR forks, also suitable for Alpa forks.
If your fork loses oil, this shaft seal ring should be replaced.
Ø inner: 28 mm
Ø outer: 38 mm
Width: 7 mm
Material: NBR
Temperature resistant: -30 to +100 °C, briefly up to 120 °C
Type: AS - With rubberized outer jacket, a sealing lip and a dust lip.
Branded product from the Italian manufacturer EBR.
| Shaft seal type | AS - With rubberized outer casing / one sealing lip / one dust lip. |
| Manufacturer | EWC |
| Material | NBR |
| Surface | rubberized |
| Ø inside | 28 mm |
| Width | 7 mm |
| Ø outside | 38 mm |
| Temperature resistance (min.) | -30 - 100 °C |
| Universal |
| Puch |
| Sachs |
