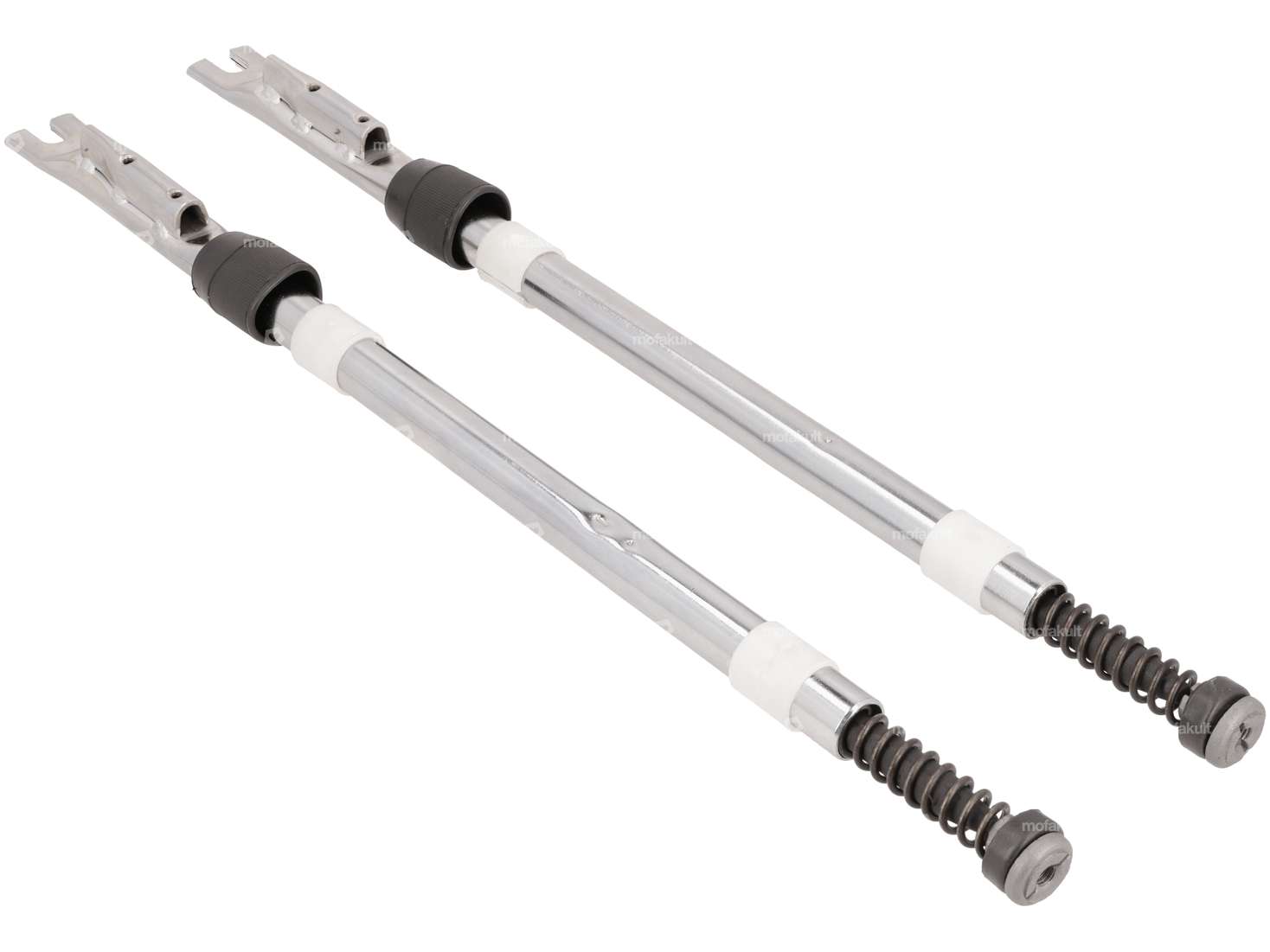

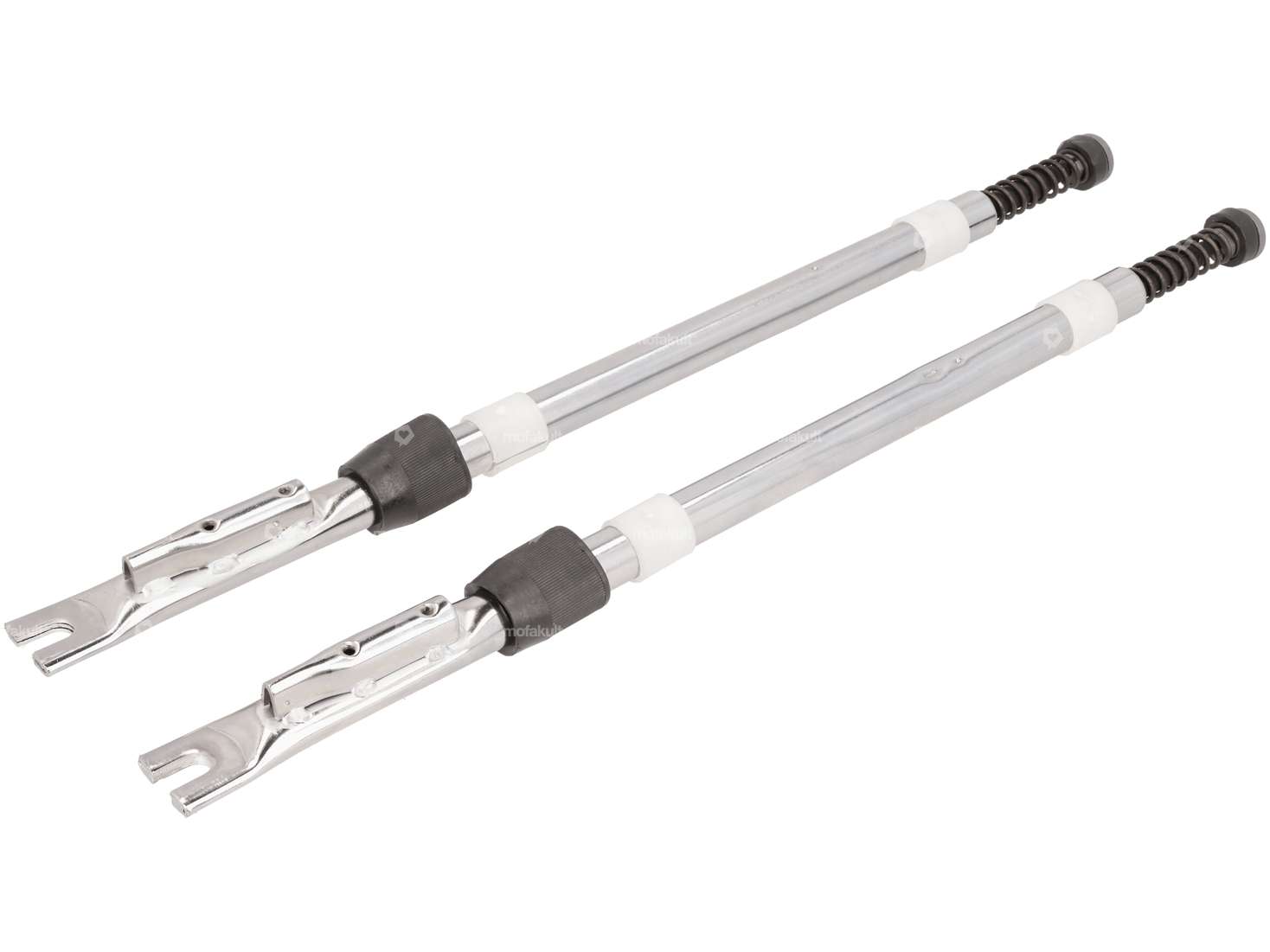

Complete standpipe set suitable for Puch Maxi S & N mopeds / mopeds.
The set consists of left & right fork leg, spring inserts, cover sleeves, rubber springs and sliding bushes.
Ø fork leg: 23 mm
Block for brake anchor plate: 74 x 16/8 x 16 mm (LxWxH)
Total length: 495 mm
Below block to below fork leg: 46 mm
Spring length incl. insert: 210 mm. Insert: 210 mm
Note: This is a cheap reproduction product that cannot be compared with the original fork legs. The springs are slightly longer, which means that the sliding bush protrudes slightly from the steerer tube. In addition, the welded-on tab on the fork leg may need to be compressed slightly to fit into the brake anchor plate.
Accessories for the dip tubes, such as reinforced springs, can be found under accessories.
Good-quality reproduction product from the Asian market.
| Manufacturer | Quenching |
| Material | Steel |
| Color | Chrome |
| Surface | chrome-plated |
| Adjustable | No |
| Ø spars | 23 mm |
| Total length | 578 mm |
| Distance brake cam to wheel axle center-center | 38 mm |
| Puch |
Accessories & related products
EBR standard fork chrome | Puch
Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Adjustable: No · Thread type: MF26x1 (fine pitch thread) · Ø spars: 23 mm · Thread length: 57 mm · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm · Total length: 570 mm
151,60 EUR
66HEROES screw M8x25 fork plate Inox | Puch
Manufacturer: 66HEROES · Material: Chrome steel (colloquially known as stainless steel) · Thread type: M8x1.25 (standard thread) · Drive: External hexagon · Thread length: 25 mm · Total length: 29.5 mm · Screw head: Hexagon · Nominal diameter (thread): 8 mm · Shank: No · Width across flats: 17 mm
10,40 EUR

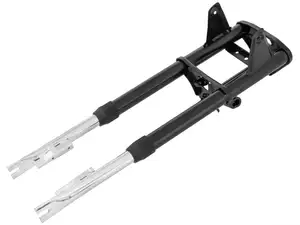

EBR fork with lock black | Puch Maxi
