GPO stud bolt set "Divertimento" & "Diablo" cylinder | Sachs 502, 50/2, 50/3, 50/4

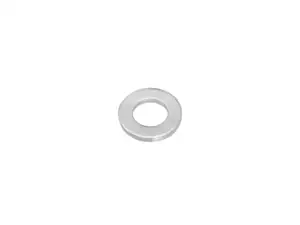

Washer M6 standard (6.4/12/1.6) galvanized

Material: Steel · Surface: galvanized (blue) · Thread size: M6 · Ø inside: 6.4 mm · Nominal diameter inside: 6 mm · Nominal diameter (thread): 6 mm · Ø outside: 12 mm · Thickness: 1.6 mm · Hardness [HV]: 140 HV · Pony OEM number: A4515 · Sachs OEM no.: 0944 142 002

Nut M6 galvanized

Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Nut type: Hexagon nut 0.8D · Thread type: M6x1 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 6 mm · Height: 4.8 mm · Width across flats: 10 mm · Strength class: 8

GPO 43 mm cylinder kit "Divertimento" (slotted) | Sachs 502, 50/2, 50/3, 50/4

Nominal diameter: 43 mm · Manufacturer: GPO · Material: Gray cast iron · Surface: blank / oiled · Displacement: 61 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 40 mm · Ø outlet inside: 28 mm · Inlet window: 17 x 15 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: MF40x1.5 (fine pitch thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 51 x 40 / 37 x 37 · Decompressor: No · Camouflaged: Yes

GPO 41 mm cylinder kit "Divertimento" (slotted) | Sachs 502, 50/2, 50/3, 50/4

Nominal diameter: 41 mm · Manufacturer: GPO · Material: Gray cast iron · Surface: blank / oiled · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 40 mm · Ø outlet inside: 28 mm · Inlet window: 17 x 15 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: MF40x1.5 (fine pitch thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 51 x 40 / 37 x 37 · Decompressor: No · Camouflaged: Yes

GPO stud bolt "Divertimento" & "Diablo" cylinder | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Material: Steel · Surface: blackened · Diameter: 5.3 mm · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Total length: 62 mm · Thread length: 7.8 mm · Thread length: 11.8 mm · Strength class: 10.9

swiing® revival carburetor 17 mm Bing SSB 1/17/69

Manufacturer: swiing® revival parts · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Area of application: Standard · Area of application: Tuning · Carburetor type: SSB · Mounting type: Flange · Height: 100 mm · Nominal diameter: 17 mm · Hole spacing inlet: 31 mm · Nozzle size: 76 · Width: 85 mm · Total length: 132 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: without choke

swiing® revival stud bolt set M5x26 inlet (10.9 strength) | Sachs 50/2, 50/2, 50/3

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M5x0.8 (standard thread) · Nominal diameter (thread): 5 mm · Total length: 26 mm · Thread length: 7 mm · Thread length: 14 mm · Width across flats: 8 mm · Strength class: 8 · Strength class: 10.9 · Drive: External hexagon

BAD ASS cylinder head L Ø 41-43 mm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: BAD ASS · Material: Aluminum · Ø cylinder: 41 - 43 mm · Ø outside: 108 mm · Number of fixing points: 1 pcs · Number of fixing points: 4 pcs · Ø screw holder: 19.3 mm · Hole pattern [mm]: 37 x 37 · Decompressor: M10x1.5 · Area of application: Tuning

GPO 41 mm piston "Divertimento" | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Nominal diameter: 41 mm · Material: Aluminum · Ø outside piston (A): 40.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.4 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.7 mm

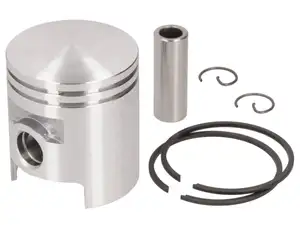

GPO 43 mm piston "Divertimento" | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Material: Aluminum · Nominal diameter: 43 mm · Ø outside piston (A): 42.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.4 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.7 mm

GPO 43 mm cylinder kit "Divertimento" (slotted) | Sachs 502, 50/2, 50/3, 50/4

Nominal diameter: 43 mm · Manufacturer: GPO · Material: Gray cast iron · Surface: blank / oiled · Displacement: 61 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 40 mm · Ø outlet inside: 28 mm · Inlet window: 17 x 15 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: MF40x1.5 (fine pitch thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 51 x 40 / 37 x 37 · Decompressor: No · Camouflaged: Yes

GPO 41 mm cylinder kit "Divertimento" (slotted) | Sachs 502, 50/2, 50/3, 50/4

Nominal diameter: 41 mm · Manufacturer: GPO · Material: Gray cast iron · Surface: blank / oiled · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 40 mm · Ø outlet inside: 28 mm · Inlet window: 17 x 15 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: MF40x1.5 (fine pitch thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 51 x 40 / 37 x 37 · Decompressor: No · Camouflaged: Yes

GPO gasket set "Divertimento" & "Diablo" cylinder | Sachs 502, 50/2 (CH)

Manufacturer: GPO · Material: Sealing carton · Number of components: 4 pcs
