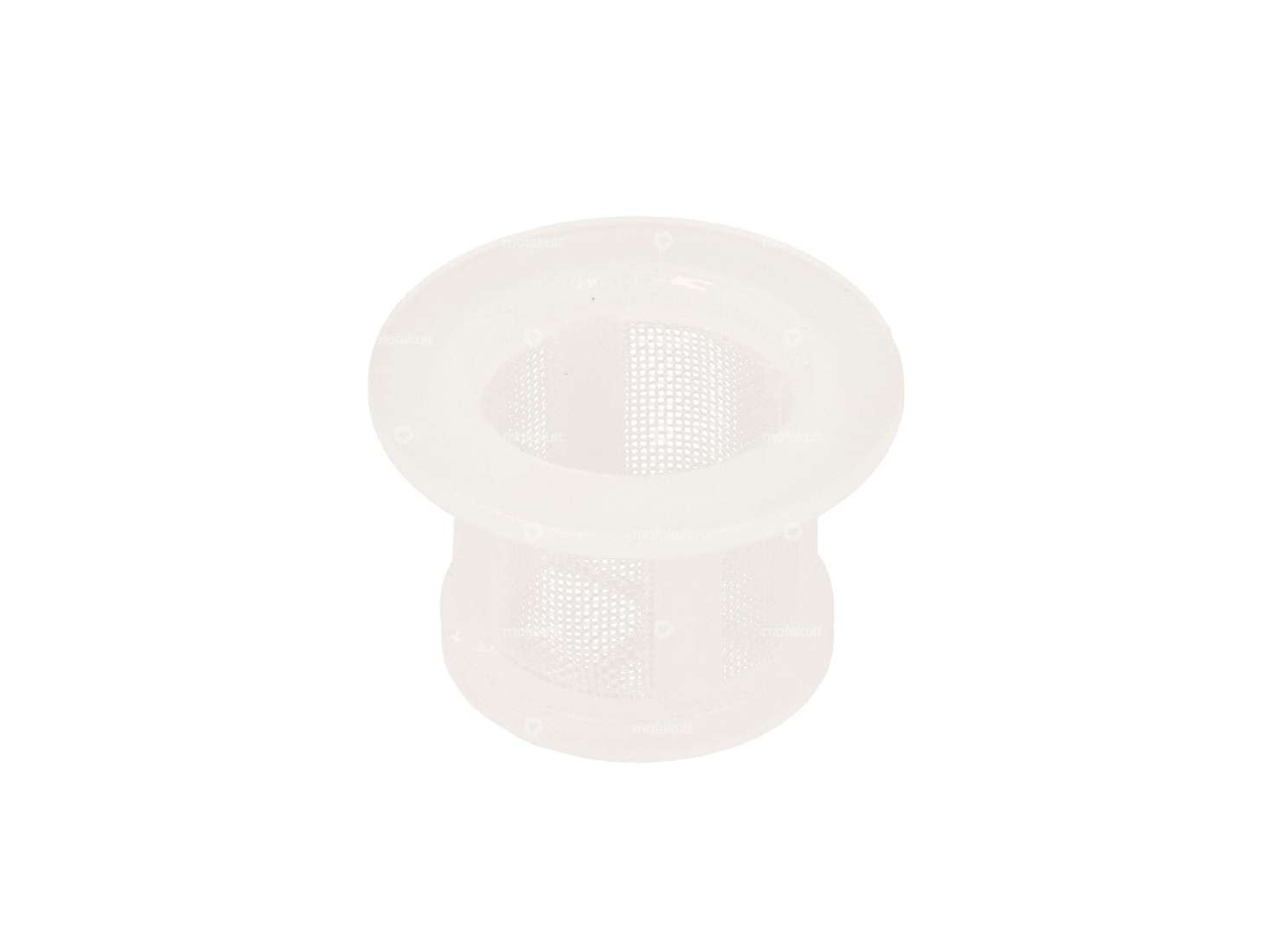

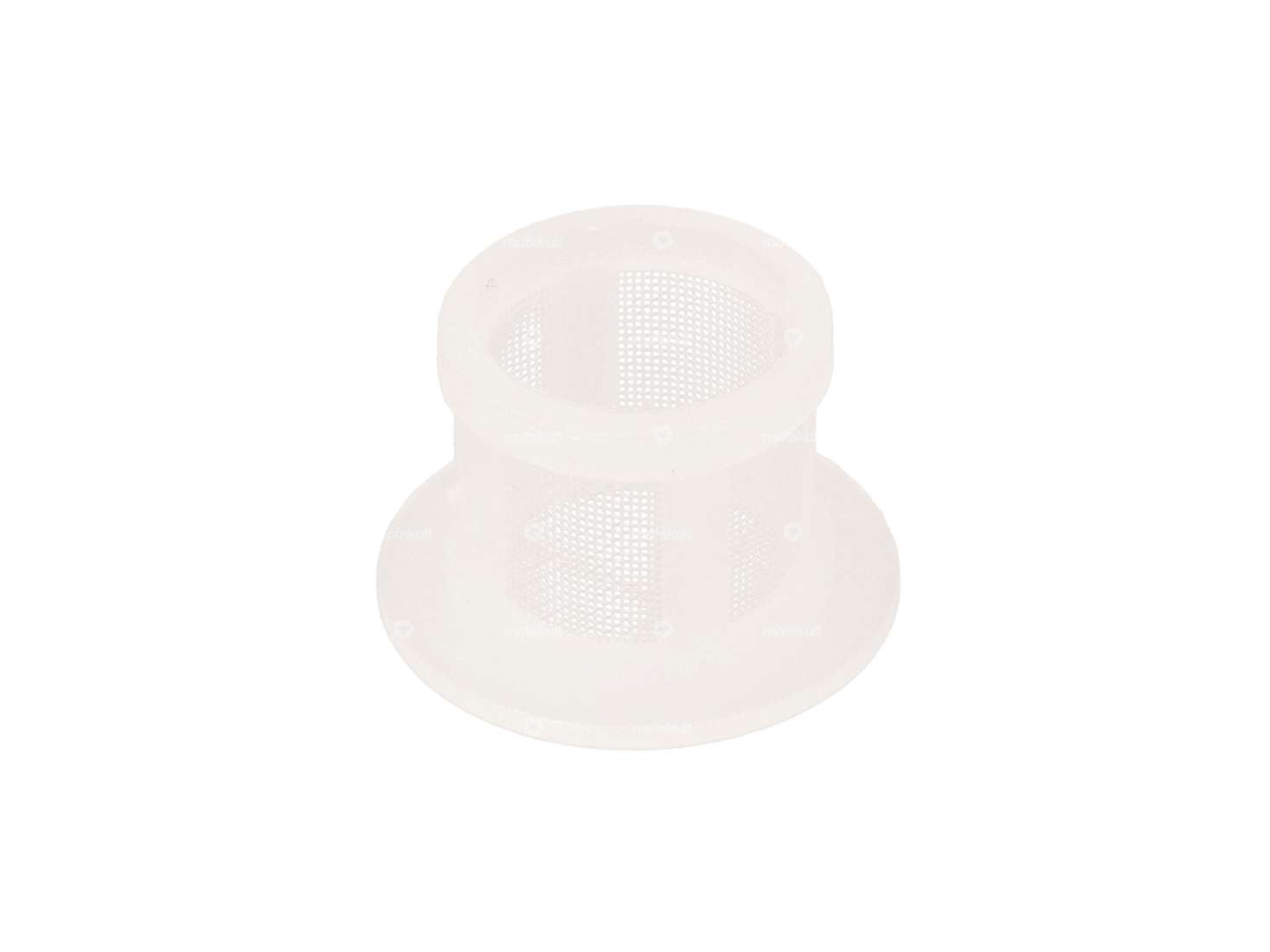

Gurtner fuel filter carburetor AR1 | MBK, Motobécane 51

Gurtner carburetor AR 1/13 with air filter original | MBK / Motobécane 51 (AV10)

Nominal diameter: 13 mm · Manufacturer: Gurtner · Material: Aluminum · Material: Plastic · Component group Carburetor: Carburetor complete · Choke control: Cable choke · Total length: 75 mm · Width: 101 mm · Mounting type: Plug connection clamped · Ø fuel hose connection: 6 mm · Nozzle size: 58 · Ø Inside entrance: 13 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50 mm · Height: 118 mm · Ø Internal connection: 19 mm · Area of application: Original · Area of application: Standard

Gurtner carburetor float AR | MBK, Motobécane (AV10, AV7)

Manufacturer: Gurtner · Material: Plastic · Component group Carburetor: Adjusting screws, float, etc. · Carburetor type: Gurtner AR · Ø outside: 23.7 mm · Height: 19.8 mm · Height: 41.1 mm

Gurtner nozzle #56 AR1 | MBK, Motobécane (AV10)

Manufacturer: Gurtner · Material: Brass · Component group Carburetor: Spraying · Carburetor type: Gurtner AR · Quantity: 1 pcs · Total length: 8.5 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: MF6x0.75 (fine pitch thread) · Nozzle size: 56 · Thread length: 4.6 mm

Gurtner spring throttle slide carburetor AR | MBK, Motobécane (AV7, AV10)

Spring design: Pressure spring · Ø wire: 0.8 mm · Manufacturer: Gurtner · Material: Spring steel · Ø inside: 8 mm · Carburetor type: Gurtner AR · Ø outside: 9.5 mm · Total length: 33.5 mm · Number of components: 1 pcs · Area of application: Original · Area of application: Standard

Rear light black - red

Material: Plastic · Test mark: none · Ø Receptacle: 3.5 mm · Width: 65 mm · Bulb holder: BA9s · Depth: 55 mm · Mounting type: Nuts & bolts · Battery operated: No · Number of fixing points: 1 pcs · Brake light: No · Reflectors: Yes · Color: black · Color: red

GPO sprocket 45 teeth black | Puch Maxi, Puch X30 NG-2AH

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Thickness: 4.5 mm · Ø inside: 94 mm · Manufacturer: GPO · Material: Steel · Surface: powder-coated · Number of teeth: 45 pcs · Number of fixing points: 6 pcs · Hole spacing 2: 68 mm · Ø mounting hole: 6.7 mm · Cranking (offset): 8 mm · Hole spacing: 36.5 mm · Color: black · Ø bolt circle: 105.5 mm

GPO tail light ULO | Puch Maxi N, S old version

Width: 60 mm · Height: 110 mm · Manufacturer: GPO · Material: Plastic · Test mark: none · Tension: 6 V · Bulb holder: BA15s · Color: black · Color: red · Number of fixing points: 2 pcs · Ø Receptacle: 4 mm · Battery operated: No · Brake light: No · Reflectors: Yes · Depth: 80 mm · Mounting type: Nuts & bolts

swiing® revival shock absorber axle galvanized | Puch Maxi S

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M8x1.25 (standard thread) · Total length: 200 mm

GPO 17" spoke single incl. nipple (2.9 x 188 mm) galvanized steel

Nipple length: 14.7 mm · Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Surface: galvanized (yellow) · Length from hook: 188 mm · Ø spoke head: 5.7 mm · Ø spoke: 2.9 mm · Thread length: 11 mm · Nominal diameter (thread): 3.2 mm · Ø nipple head: 8 mm · Ø Nipple neck: 5 mm · Hook length: 10.5 mm · Hook angle: 92 °

Exhaust 18 mm original 1-piece | Puch Maxi S, N

Manufacturer: Puch · Material: Steel · Surface: chrome-plated · Mounting type: Welded lug · Number of fixing points: 4 pcs · Ø Flame tube outside: 18 mm · Color: Chrome · Flame tube attachment: Flange

Motorex engine oil (gear oil) manual 450 ml

Manufacturer: Motorex · Oil type: GL4 · Viscosity (SAE): 80W · Contents: 450 ml · Area of application: Gearbox lubrication with clutch · Gearbox type: Foot control · Gearbox type: Manual gearshift · Temperature resistance (min.): -30 - 220 °C

swiing® revival rear wheel spacer tube L=70 mm | Puch Maxi

Nominal diameter inside: 12 mm · Ø inside: 12.5 mm · Manufacturer: swiing® revival parts · Ø outside: 16 mm · Total length: 70 mm · Puch OEM number: 349.5.41.826.1

swiing® revival wheel axle LELEU & Grimeca wheel hub cast wheel rear | Puch

Manufacturer: swiing® revival parts · Ø outside: 11.8 mm · Total length: 185 mm · Material: Steel · Surface: galvanized (blue) · Thread type: MF12x1 (fine pitch thread) · Width across flats: 19 mm · Thread length: 26 mm · Thread length: 52.5 mm · Ø shaft: 11.9 mm · Shank length: 100 mm

SKF 6001 2RSH Ball bearing 12/28/8

Bearing type: Deep groove ball bearing · Stock number: 6001 · Inner ring width: 8 mm · Ø inside: 12 mm · Manufacturer: SKF · Ball bearing closed: Yes · Dust protection type: 2RSH - NBR contact seal on both sides · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided · Width: 8 mm · Ø outside: 28 mm
