Technical data sheet DE
Attention:

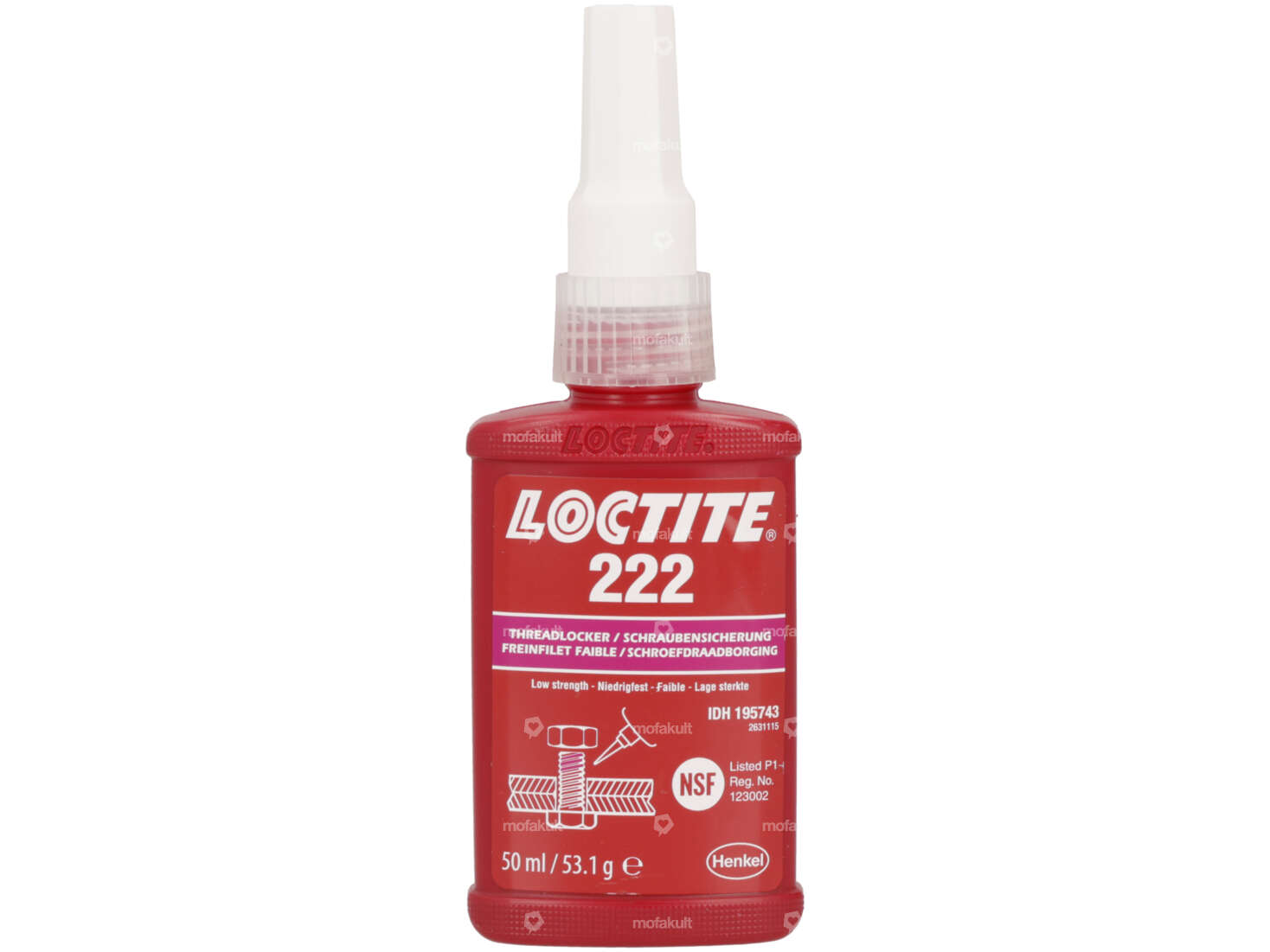

Loctite 222 is a low Ögig Öltolerant low-strength screw connection.
Suitable for all threaded connections made of metal. Also for passive materials such as aluminium, stainless and galvanized steel. Prevents loosening due to vibration, e.g. on gearboxes, motors, etc.
The connections can be removed with normal tools.
Strength: low strength
Functional strength (at room temperature on steel): 6 hours
Loose-break torque: 6 Nm
Thread sizes up to M36
Temperature resistance: up to 150 °C
Original Loctite product from the German manufacturer Henkel.
| Temperature resistance (min.) | -55 - 150 °C |
| Color | violet |
| Manufacturer | Loctite |
| Material to be used | Aluminum, Steel |
| Contents | 50 ml |
| Hazard warning | Causes serious eye irritation, May irritate the respiratory tract, Harmful to aquatic organisms (with long-term effects) |
| Area of application | Chemistry |
| Adhesion | low strength |
| Type of application | 1K |
| Gap dimension (max.) | 0.01 mm |
| Alignment time | 1200 sec |
| Breakaway torque (according to material) | 6 N/m, 14 N/m |
