Universal

24532

M12 locking plate 2 tabs

rating iconrating iconrating iconrating iconrating icon
No reviews
3,40 EUR

Incl. 19% VAT.

Description

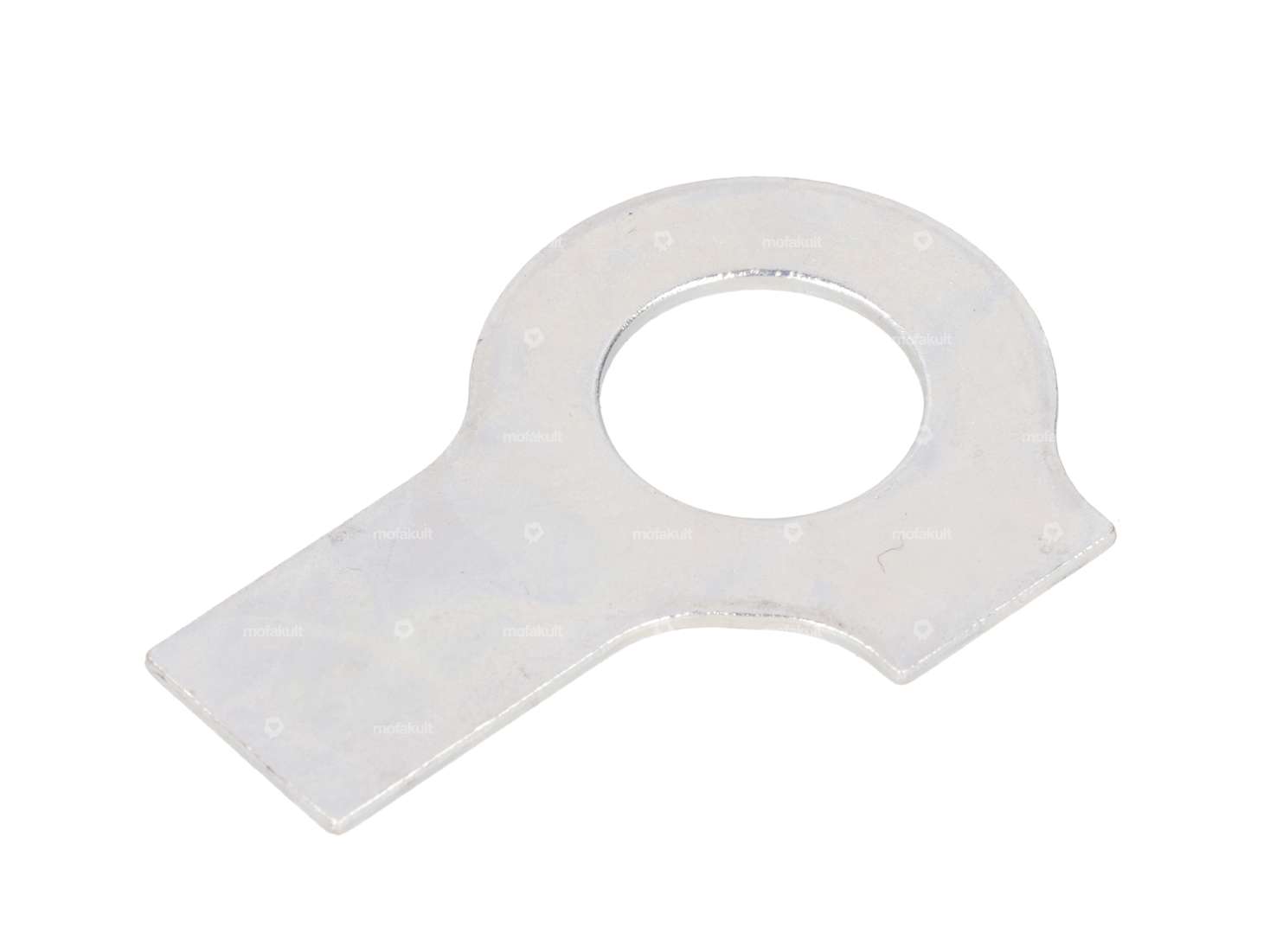

Galvanized lock washer with 2 tabs for securing nuts and bolts.

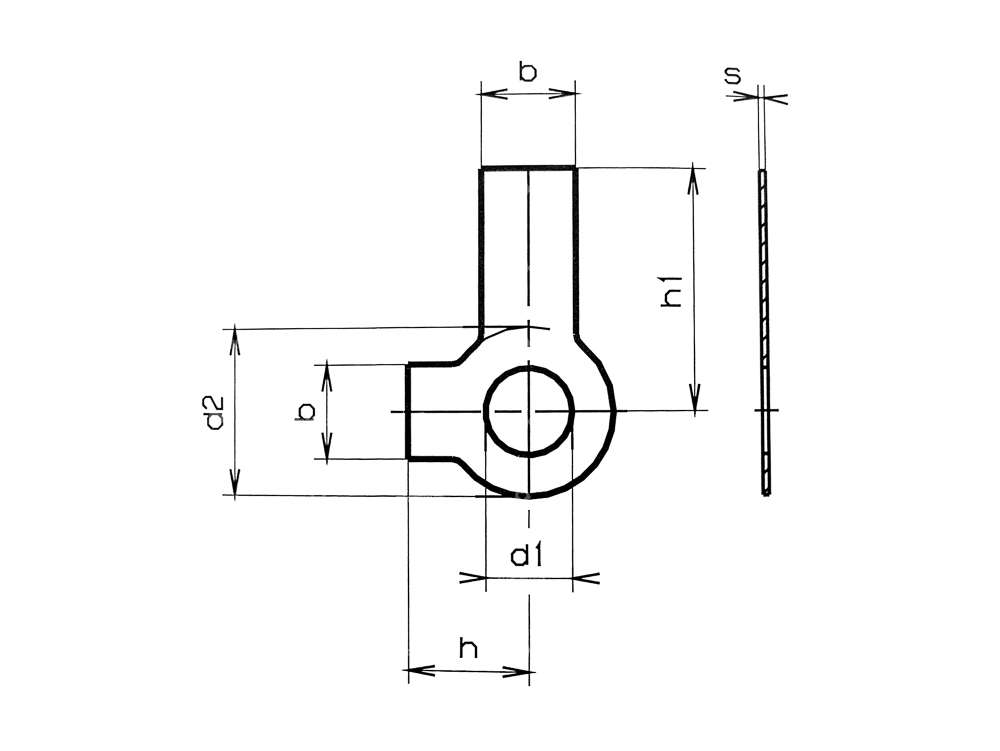

Take the following measurements from figure 2:

  • d1: 13 mm
  • d2: 24 mm
  • b: 12 mm
  • h: 15 mm
  • h1: 28 mm
  • s: 1 mm

Thickness1 mm
MaterialSteel
Surfacegalvanized (blue)
Ø outside24 mm
Total length15 mm
Nominal diameter (thread)12 mm
Number of lobes2 pcs
Width12 mm
Ø inside13 mm
Thread sizeM12
Length 228 mm
Width 212 mm
