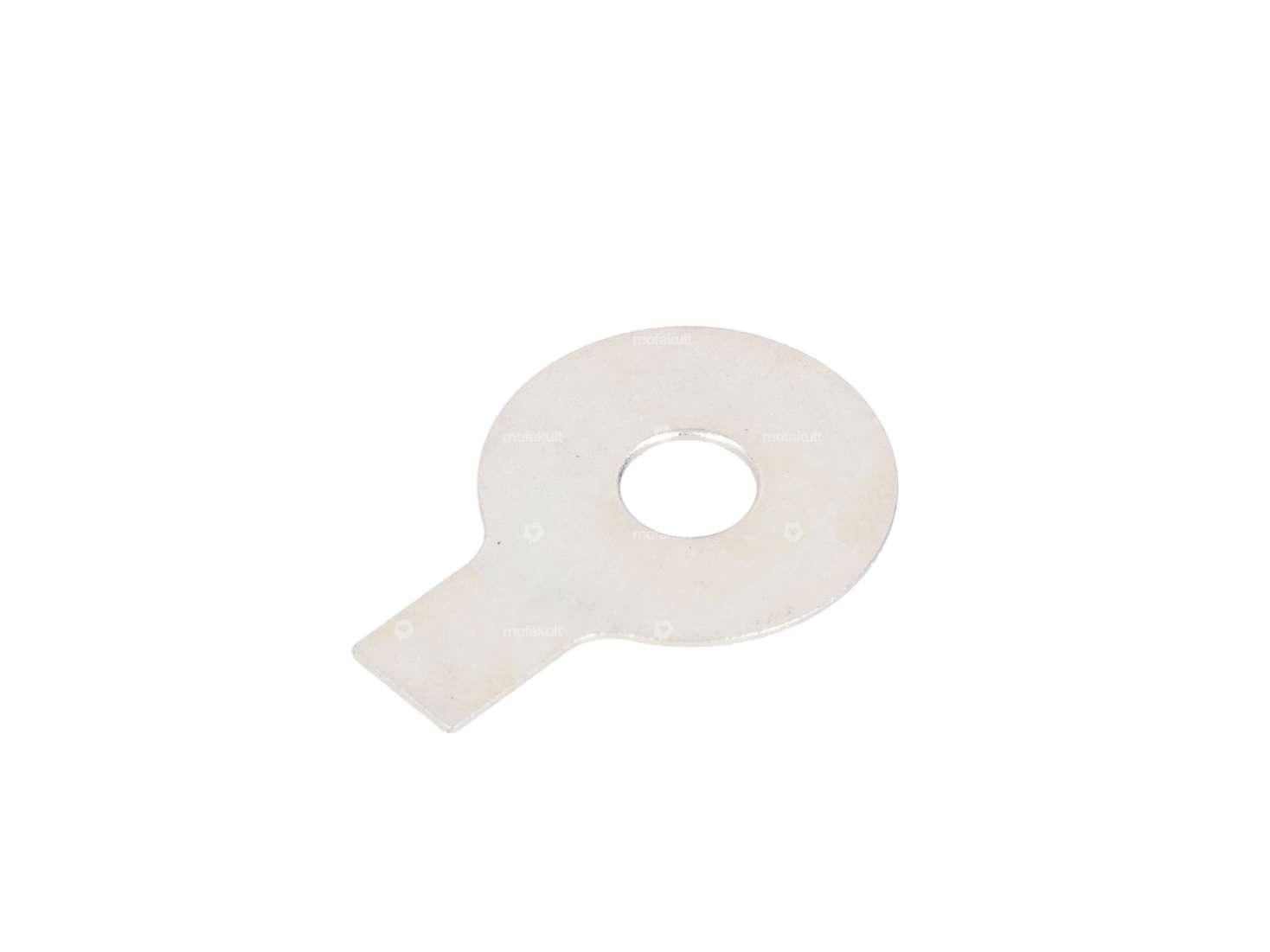

Galvanized lock washer with 1 tab for securing nuts and bolts.

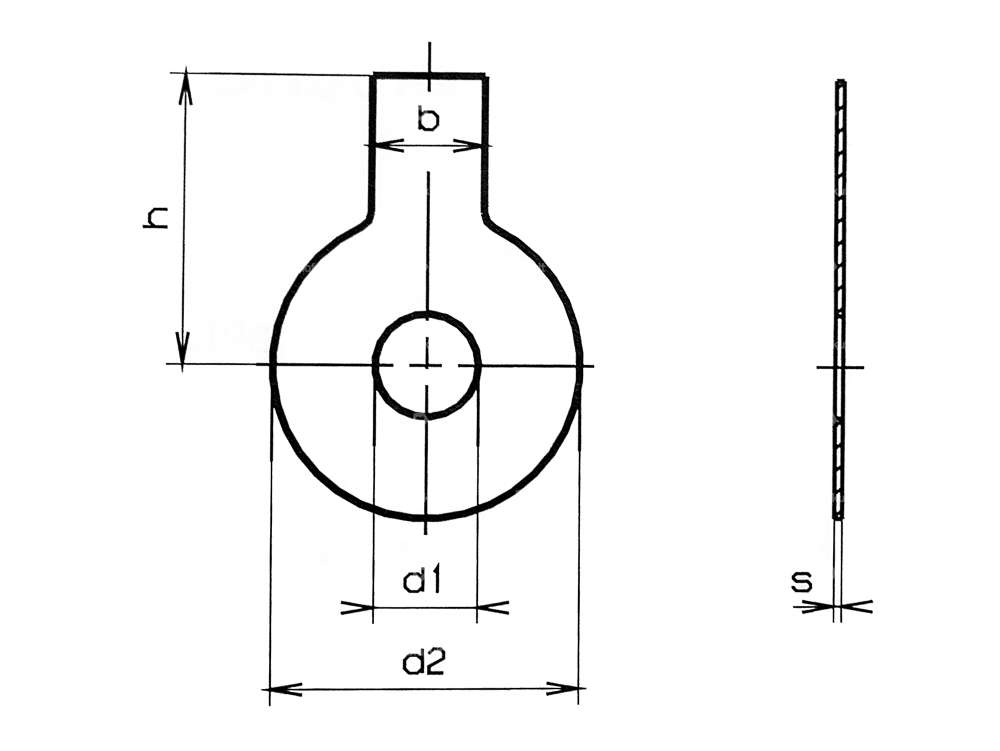

Take the following measurements from figure 2:
- d1: 5.3 mm
- d2: 19 mm
- h: 17 mm
- b: 6 mm
- s: 0.5 mm
| Ø inside | 5.3 mm |
| Material | Steel |
| Surface | galvanized (blue) |
| Width | 6 mm |
| Thickness | 0.5 mm |
| Number of lobes | 1 pcs |
| Ø outside | 19 mm |
| Thread size | M5 |
| Total length | 17 mm |
