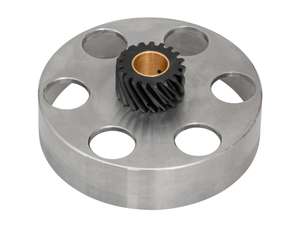

MBR Clutch basket Racing 19 teeth angled short | Puch E50

Manufacturer: MBR · Toothing type: helical toothed · Number of teeth: 19 pcs · Area of application: Tuning

swiing® ingenious bearing & shaft seal set Racing C3 / FPM (new model) | Puch E50

Manufacturer: swiing® ingenious parts · Number of components: 7 pcs · Area of application: Racing

Thrust Washer 16/27.8/1, Small Bearing Ring | Puch Z50, ZA50

Manufacturer: Puch · Ø inside: 16 mm · Ø outside: 27.8 mm · Material: Steel · Surface: hardened & ground · Thickness: 1 mm · Puch OEM number: 321.1.13.624.1 · Puch OEM number: 329.1.13.009.1

swiing® revival square inlet seal | Puch X30 Velux

Place of use: Admission · Manufacturer: swiing® revival parts · Thickness: 0.5 mm · Hole spacing inlet: 32 mm

Spacer 20/28/0.3 Crankshaft E20 Bearing | Puch

Nominal diameter inside: 20 mm · Manufacturer: Puch · Ø inside: 20 mm · Ø outside: 28 mm · Material: Steel · Surface: blank / oiled · Thickness: 0.3 mm

O-ring cylinder head Ø 47 x 2 mm FPM | Puch

Place of use: Cylinder head · Temperature resistance (min.): 0 - 200 °C · Color: black · Ø inside: 47 mm · Ø outside: 51 mm · Material: FPM / FKM (colloquially known as Viton) · Cord thickness: 2 mm

swiing® revival sleeve 25/17/14.6 mm | Puch ZA50

Nominal diameter inside: 17 mm · Manufacturer: swiing® revival parts · Ø inside: 16.9 mm · Ø outside: 24.95 mm · Total length: 14.6 mm · Material: Steel · Surface: burnished · Ø Puncture: 20.9 mm · Puch OEM number: 321.1.13.623.1

Gearbox shaft NOS | ZA50

Manufacturer: Puch · Material: Steel · Recording type: Interlocking · Toothing type: helical toothed · Number of teeth: 31 pcs · Puch OEM number: 321.1.13.620.2

Spring Kickstarter | Puch E50

Material: Plastic

Spacer washer 10/20/1 countershaft NOS | Puch ZA50

Nominal diameter inside: 10 mm · Manufacturer: Puch · Ø inside: 10 mm · Ø outside: 20 mm · Material: Steel · Surface: blank / oiled · Thickness: 1 mm

Centering screw M22x1.5 plastic | Puch Z50

Drive: External hexagon · Material: Plastic · Nut type: Hexagon nut · Thread type: MF22x1.5 (fine pitch thread) · Nominal diameter (thread): 22 mm · Puch OEM number: 329.1.12.133.1

66HEROES Clutch release lever gold | Puch Z50

Color: gold · Manufacturer: 66HEROES · Total length: 56.5 mm · Material: Aluminum · Surface: gold-plated · Alternative version of the Puch OEM number: 050.2.1231

swiing® ingenious torsion spring clutch lever reinforced +20% | Z50

Spring design: Torsion spring · Manufacturer: swiing® ingenious parts

Engine Wiring | Puch Z50

Puch OEM number: 128.6305

swiing® revival sheet metal cable guide | Puch X30 Sport

Spring design: Leaf spring · Manufacturer: swiing® revival parts · Material: Spring steel · Material thickness: 0.3 mm · Puch OEM number: 349.1.14.203.1

66HEROES Kick starter shaft cap "PUCH" nickel-plated | Puch Z50

Material: Aluminum · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Manufacturer: 66HEROES · Color: silver · Thread size: M8 · Drive: Hexagon socket · Ø outside: 28 mm · Screw head: Countersunk head

swiing® ingenious crankshaft "High End" (+1 mm stroke) | Puch E50

Material: Aluminum · Material: Steel · Manufacturer: swiing® ingenious parts · Cheek type: Full cheeks · Area of application: High End · Crankshaft stroke: 44 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Thread length: 11 mm · Thread length: 15 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Weight: 970 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs

Cylinder base gasket 0.5 mm NBR | Puch

Place of use: Cylinder base · Material: NBR · Ø inside: 48 mm · Thickness: 0.5 mm

M6 copper ring 6.3/9.8/0.8 | Sachs (A1845)

Material: Copper · Ø inside: 6.3 mm · Ø outside: 9.8 mm · Thickness: 0.8 mm · Pony OEM number: A1845 · Sachs OEM no.: 0250 112 100

swiing® revival 38 mm gasket set original cylinder | Puch

Manufacturer: swiing® revival parts · Area of application: Standard · Number of components: 4 pcs · Ø cylinder: 38 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes

66HEROES Oil Filler Plug M10 Black E50 | Puch Maxi S, N

Material: Aluminum · Surface: anodized · Manufacturer: 66HEROES · Color: black · Thread type: MF14x1.5 (fine pitch thread) · Drive: Slot · Nominal diameter (thread): 14 mm

Crescent ring clutch shaft Puch E50

Place of use: Clutch · Manufacturer: Puch · Fuse type: Outside

ADDY engine housing GME spindled "der.pruefstand-Edition" | Puch E50

Manufacturer: ADDY · Material: Aluminum

SKF 6202 C3 ball bearing 15/35/11

Manufacturer: SKF · Stock number: 6202 · Inner ring width: 11 mm · Bearing clearance: C3 · Bearing cage: Sheet steel cage ball-guided · Bearing type: Deep groove ball bearing · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Puch OEM number: 900.4.6202

swiing® revival clutch trigger original | Puch E50

Manufacturer: swiing® revival parts · Area of application: (Dis)assembly tool

swiing® revival Bearing Press-on Sleeve Ø 17.6 mm | Puch, Sachs

Material: Steel · Surface: galvanized (blue) · Manufacturer: swiing® revival parts · Nominal diameter inside: 17.5 mm · Ø inside: 17.6 mm · Ø outside: 25 mm · Total length: 86 mm

MBR clutch basket 19 teeth Racing angled | Puch E50

Color: silver · Manufacturer: MBR · Ø inside: 15 mm · Ø inside: 17 mm · Ø outside: 100.5 mm · Height: 49 mm · Material: Steel · Recording type: Interlocking · Toothing type: helical toothed · Number of teeth: 19 pcs · Ø Receptacle: 31.1 mm · Area of application: Tuning

MBR retaining plate shaft seal on ignition side "Racing" Inox

Material: Chrome steel (colloquially known as stainless steel) · Manufacturer: MBR · Surface: brushed · Color: silver · Area of application: Tuning · Number of fixing points: 4 pcs · Ø inside: 25.3 mm · Ø outside: 89.4 mm

GPO gasket set cylinder 38 mm Puch

Manufacturer: GPO · Area of application: Standard · Area of application: Tuning · Number of components: 4 pcs · Ø cylinder: 38 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes

Oil seal FPM 17/40/7 A | Puch E50

Material: FPM / FKM (colloquially known as Viton) · Manufacturer: Puch · Temperature resistance (min.): -30 - 200 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 17 mm · Ø outside: 40 mm · Width: 7 mm

Starter cable Ø 1.5 mm x 160 cm | Puch Maxi

Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Ø Stranded wire: 1.5 mm · Ø nipple: 8 mm · Nipple length: 12 mm · Area of application: Standard · Number of components: 1 pcs · Nipple shape: Barrel (transverse) · Cable length: 1600 mm

swiing® revival Cylinder Base Gasket | Puch E50 (Cat.)

Place of use: Cylinder base · Material: Sealing paper · Manufacturer: swiing® revival parts · Thickness: 0.6 mm

MBR Clutch KTM SX50 | Puch E50

Manufacturer: MBR · Material: Steel · Material addition: Aluminum · Area of application: High End · Area of application: MX · Area of application: Racing · Area of application: Tuning · Number of jaws: 3 pcs · Recording type: Cone mounting · Number of springs: 3 pcs

MBR clutch springs hard KTM SX50 clutch | Puch E50

Manufacturer: MBR · Spring design: Pressure spring · Material: Spring steel · Color: red · Area of application: Racing · Number of components: 6 pcs

swiing® revival nut / spring washer clutch E50 | Puch Maxi

Material: Steel · Surface: galvanized (blue) · Manufacturer: swiing® revival parts · Nut type: Hexagon nut 0.8D · Thread type: MF10x1 (fine pitch thread) · Drive: External hexagon · Nominal diameter (thread): 10 mm · Height: 8 mm · Width across flats: 17 mm

MBR holding tool KTM SX50 clutch Puch E50

Manufacturer: MBR · Material: Steel · Area of application: Special tool · Thickness: 5 mm

Rito crankshaft Racing (version 2023) (old model) | Puch E50

Material: Aluminum · Manufacturer: Rito · Material: Steel · Cheek type: Full cheeks · Area of application: Racing · Area of application: Tuning · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Thread length: 10.5 mm · Thread length: 12.5 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Weight: 975 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs · Alternative version of the Puch OEM number: 349.1.10.015.0

swiing® ingenious spring gearshift (reinforced, +20%) Inox | Puch X30 Z50

Manufacturer: swiing® ingenious parts · Material: Chrome steel (colloquially known as stainless steel)

swiing® revival spring cage | Puch ZA50

Material: Aluminum · Surface: anodized · Manufacturer: swiing® revival parts · Ø inside: 45 mm · Number of teeth: 7 pcs · Ø outside: 61.3 mm · Height: 8 mm · Puch OEM number: 21.1.13.652.1

Special gearwheel 1st gear 70 t. | Puch ZA50

Material: Steel · Toothing type: helical toothed · Ø inside: 22 mm · Number of teeth: 70 pcs · Ø outside: 100.05 mm · Total length: 56.15 mm · Thickness: 9.55 mm · Puch OEM number: 321.2.13.600.2 · Puch OEM number: 321.4.13.600.0

swiing® revival clutch springs original | Puch E50

Spring design: Pressure spring · Material: Spring steel · Manufacturer: swiing® revival parts · Ø wire: 1.6 mm · Area of application: Tuning · Number of components: 3 pcs · Ø outside: 8.3 mm · Total length: 28 mm

swiing® revival gearbox cover gasket 0.3 mm engine | Puch E50

Material: Sealing paper · Manufacturer: swiing® revival parts · Color: sand-colored · Number of components: 1 pcs · Number of fixing points: 4 pcs · Ø inside: 106 mm · Ø outside: 116 mm · Thickness: 0.35 mm · Puch OEM number: 349.1.10.349.1

GPO 3-jaw clutch (Ultra Light Version) | Puch E50

Material: Aluminum · Manufacturer: GPO · Material: Steel · Area of application: Tuning · Number of jaws: 3 pcs · Ø outside: 93.5 mm · Recording type: Cone mounting · Number of springs: 3 pcs · Thickness: 21 mm

Oil seal FPM 22/40/7 A DUO crankshaft | Puch E50

Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Ø inside: 22 mm · Ø outside: 40 mm · Width: 7 mm · Material: FPM / FKM (colloquially known as Viton)

MBR clutch basket 18 teeth Racing straight | Puch E50

Manufacturer: MBR · Material: Steel · Area of application: Tuning · Toothing type: straight toothed · Ø Receptacle: 31 mm · Ø inside: 15 mm · Ø inside: 17 mm · Number of teeth: 18 pcs · Ø outside: 99.5 mm · Recording type: Interlocking · Height: 49 mm

MBR spur gear 94 teeth "Racing" straight | Puch E50

Manufacturer: MBR · Material: Steel · Surface: hardened & ground · Toothing type: straight toothed · Ø axle: 17 mm · Number of teeth: 94 pcs · Ø outside: 145 mm · Recording type: Interlocking

SKF 6203 C3 Ball bearing 17/40/12

Manufacturer: SKF · Stock number: 6203 · Inner ring width: 12 mm · Bearing clearance: C3 · Bearing cage: Sheet steel cage ball-guided · Bearing type: Deep groove ball bearing · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm

ASP clutch 2-jaw "sheet" Aramid | Puch E50

Manufacturer: ASP · Material: Steel · Material addition: Aramid (colloquially known as Kevlar) · Area of application: Racing · Area of application: Tuning · Number of jaws: 2 pcs · Ø outside: 91.5 mm · Number of springs: 4 pcs · Thickness: 21.5 mm · Alternative version of the Puch OEM number: VM 477.0 · Alternative version of the Puch OEM number: 349.1.12.004.0

Oil seal FPM 17/40/7 DUO | Puch E50

Material: FPM / FKM (colloquially known as Viton) · Manufacturer: Puch · Temperature resistance (min.): -30 - 200 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 40 mm · Width: 7 mm

GPO oil filler plug black | Puch Z50, ZA50

Manufacturer: GPO · Material: NBR · Color: black · Ø outside: 16.4 mm · Ø mounting hole: 11 mm · Total length: 25 mm · Clamping diameter: 13 mm · Puch OEM number: 364.2.10.660.1
