Sachs engine & gearbox

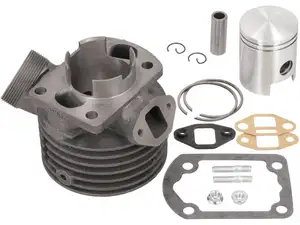

GPO Ø 41 mm "Wummer" cylinder kit (slotted) | Sachs 502, 50/2 (CH)

Nominal diameter: 41 mm · Manufacturer: GPO · Material: Gray cast iron · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 44.8 mm · Ø Outlet outside: 40 mm · Ø outlet inside: 30 mm · Inlet window: 18 x 15 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 · Decompressor: No · Camouflaged: Yes

GPO Ø 41 mm cylinder kit "Divertimento" (slotted) | Sachs 502, 50/2, 50/3, 50/4

Nominal diameter: 41 mm · Manufacturer: GPO · Material: Gray cast iron · Surface: blank / oiled · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 40 mm · Ø outlet inside: 28 mm · Inlet window: 17 x 15 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: MF40x1.5 (fine pitch thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 51 x 40 / 37 x 37 · Decompressor: No · Camouflaged: Yes

swiing® ingenious decompressor set | Sachs 503

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Chrome steel (colloquially known as stainless steel) · Material: Copper · Material: Steel · Thread type: M10x1.5 (standard thread) · Ø outside: 14 mm · Width across flats: 14 mm · Area of application: Standard · Total length: 21.5 mm · Thread length: 14 mm · Sachs OEM no.: 0291 013 300

O-ring pedal axle Ø 19 x 2 mm | Sachs 505

Ø inside: 19 mm · Ø outside: 23 mm · Cord thickness: 2 mm · Hardness: 70 Shore · Material: NBR · Sachs OEM no.: 0250 165 000

O-ring pedal axle Ø 13 x 1.5 mm | Sachs 505

Ø inside: 13 mm · Ø outside: 16 mm · Cord thickness: 1.5 mm · Hardness: 70 Shore · Material: NBR · Sachs OEM no.: 0250 164 000

O-ring clutch lever Ø 6.75 x 1.78 mm | Sachs 504, 505, 535

Ø inside: 6.75 mm · Ø outside: 10.31 mm · Cord thickness: 1.78 mm · Hardness: 70 Shore · Material: NBR · Pony OEM number: A1890 · Pony OEM number: U5186 · Sachs OEM no.: 1950 024 000

O-ring guide bushing circuit Ø 10.1 x 1.6 mm | Sachs 505/3

Ø inside: 10.1 mm · Ø outside: 13.3 mm · Cord thickness: 1.6 mm · Hardness: 70 Shore · Material: NBR

GPO stud bolt "Divertimento" & "Diablo" cylinder | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Material: Steel · Surface: blackened · Diameter: 5.3 mm · Thread type: M6x1 (standard thread) · Total length: 62 mm · Thread length: 7.8 mm · Thread length: 11.8 mm · Strength class: 10.9

38 mm cylinder kit 30 km/h version | Sachs 504, 505, 535, (508)

Material: Aluminum · Displacement: 50 ccm · Ø piston pin (B): 12 mm · Nominal diameter: 38 mm · Ø cylinder neck: 49.4 mm · Ø cylinder neck: 51.9 mm · Ø Outlet outside: 25.9 mm · Inlet window: 18 x 13.4 · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Ø outlet inside: 22.5 mm · Decompressor: M10x1.5 · Outlet type: straight · Hole spacing inlet: 31.5 mm · Hole pattern [mm]: 55 x 55

swiing® revival pressure pin clutch 58.2 mm | Sachs 503 ABL (A5625)

Ø Pin: 4.8 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: gas nitrided · Total length: 58.2 mm · Pony OEM number: A5625 · Sachs OEM no.: 0249 144 000

Shaft seal set | Sachs 506

Shaft seal type: A - With rubberized outer part / one sealing lip. · Shaft seal type: B - With sheet metal outer casing / one sealing lip. · Material: NBR · Place of use: Motor housing · Surface: rubberized

NSK sleeve freewheel clutch basket (old version) | Sachs 503 ABL automatic

Stock number: RC101410 · Manufacturer: NSK · Height: 15.8 mm · Ø inside: 15.88 mm · Ø outside: 22.22 mm

AKOA 38 mm cylinder head for decovalve | Sachs 503 2AL, AAL, 2BL, ABL

Manufacturer: AKOA · Material: Aluminum · Height: 29 mm · Ø outside: 84 mm · Ø cylinder: 38 mm · Number of fixing points: 4 pcs · Candle thread: short · Decompressor: M10x1.5 · Hole pattern [mm]: 37 x 37 · Area of application: Tuning · Alternative version of the Pony OEM number: A1087 · Alternative version of the Sachs OEM number: 0213 142 000

GPO piston rings 43 x 1.5 mm (IS) "Divertimento" (pair) | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Diameter: 42.95 mm · Height: 1.5 mm · Nominal diameter: 43 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Thick piston ring: 1.7 mm

AKOA 41 mm cylinder head for decovalve | Sachs 503 2AL, AAL, 2BL, ABL

Manufacturer: AKOA · Material: Aluminum · Height: 29 mm · Ø outside: 84 mm · Ø cylinder: 41 mm · Number of fixing points: 4 pcs · Candle thread: short · Decompressor: M10x1.5 · Hole pattern [mm]: 37 x 37 · Area of application: Tuning

AKOA 40 mm cylinder head "Power-Edition" | Sachs 503 2AL, AAL, 2BL, ABL

Manufacturer: AKOA · Material: Aluminum · Height: 29 mm · Ø outside: 84 mm · Ø cylinder: 40 mm · Number of fixing points: 4 pcs · Candle thread: short · Decompressor: No · Hole pattern [mm]: 37 x 37 · Area of application: Tuning

AKOA 41 mm cylinder head "Power-Edition" | Sachs 503 2AL, AAL, 2BL, ABL

Manufacturer: AKOA · Material: Aluminum · Height: 29 mm · Ø outside: 84 mm · Ø cylinder: 41 mm · Number of fixing points: 4 pcs · Candle thread: short · Decompressor: No · Hole pattern [mm]: 37 x 37 · Area of application: Tuning

swiing® revival torsion spring clutch lever | Sachs 503 AB / ABL (A5610)

Ø wire: 2.1 mm · Manufacturer: swiing® revival parts · Leg length: 8 mm · Length spring hook: 10 mm · Material: Spring steel · Surface: galvanized (blue) · Ø inside: 20.5 mm · Ø outside: 24.7 mm · Pony OEM number: A5610

GPO pressure spring clutch | Sachs AL, AML, 503 AAL, AC, ADV (A1352)

Spring design: Pressure spring · Ø wire: 1.6 mm · Manufacturer: GPO · Material: Spring steel · Ø inside: 29.2 mm · Ø outside: 32.4 mm · Total length: 35 mm · Pony OEM number: A1352

ADDY special gearwheel 1st gear 24 t. | Sachs 503, 50/2

Manufacturer: ADDY · Material: Steel · Toothing type: straight toothed · Surface: burnished · Thickness: 9.4 mm · Ø inside: 15.5 mm · Number of teeth: 24 pcs · Total length: 14.1 mm · Ø outside: 54.5 mm

AKOA fan cowl left | Sachs 503

Manufacturer: AKOA · Material: Aluminum · Surface: powder-coated · Color: silver · Height: 220 mm · Total length: 315 mm · Number of fixing points: 4 pcs · Thread type: M6x1 (standard thread) · Width: 130 mm · Pony OEM number: A1057 · Pony OEM number: A5647 · Sachs OEM no.: 0211 141 099

AKOA fan cowl right | Sachs 503

Manufacturer: AKOA · Material: Aluminum · Surface: powder-coated · Color: gray · Color: silver · Height: 140 mm · Total length: 13065 mm · Number of fixing points: 1 pcs · Thread type: M6x1 (standard thread) · Width: 65 mm · Pony OEM number: A1061 · Pony OEM number: A5666 · Sachs OEM no.: 0211 142 099

Tivedens engine 41 mm cylinder kit S4 | Sachs 50/2 (DE), 50/3, 50/4

Manufacturer: Barikite · Manufacturer: Tivedens Motor AB · Material: Gray cast iron · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Ø piston pin (B): 12 mm · Nominal diameter: 41 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 40 mm · Inlet window: 17 x 15 mm · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Ø outlet inside: 18 mm · Ø outlet inside: 30 mm · Outlet type: Union nut · Hole spacing inlet: 31 mm · Thread outlet: MF36x1.5 (fine pitch thread) · Area of application: Tuning

Piston 38 mm | Sachs 50/2 1A, 1B

Ø outside piston (A): 37.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Thick piston ring: 1.6 mm · Weight piston kit: 87 g · Sachs OEM no.: 0286 373 005

swiing® ingenious fan wheel gold (EVO, HPI, Bosch, Ducati) | Sachs 50/2, 50/3

Manufacturer: swiing® ingenious parts · Material: Aluminum · Weight: 116 g · Surface: gold-plated · Surface: polished · Color: gold · Height: 25 mm · Ø inside: 39 mm · Ø outside: 110 mm · Ø mounting hole: 6 mm · Number of fixing points: 6 pcs · Ø bolt circle: 48 mm · Ø bolt circle: 70 mm

swiing® ingenious bearing press-on plunger Ø 12/32 mm (type 6201)

Ø Pin: 12 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Ø inside: 12 mm · Ø outside: 32 mm · Total length: 52.5 mm · Number of components: 2 pcs · Area of application: Special tool

GPO pad spring clutch | Sachs 502 1A / 1B

Material thickness: 0.3 mm · Manufacturer: GPO · Material: Spring steel · Total length: 250 mm

Tivedens engine 41 mm cylinder kit S3 | Sachs 50/2 (DE), 50/3, 50/4

Manufacturer: Tivedens Motor AB · Material: Gray cast iron · Displacement: 55 ccm · Surface: varnished · Crankshaft stroke: 42 mm · Ø piston pin (B): 12 mm · Nominal diameter: 41 mm · Ø cylinder neck: 44 mm · Ø Outlet outside: 40 mm · Inlet window: 17 x 15 mm · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Ø outlet inside: 29.5 mm · Outlet type: Union nut · Hole spacing inlet: 31 mm · Thread outlet: MF40x1.5 (fine pitch thread) · Area of application: Tuning

Tivedens engine 41 mm cylinder kit S3 fan-cooled | Sachs 50/2 (DE), 50/3

Manufacturer: Tivedens Motor AB · Material: Gray cast iron · Displacement: 55 ccm · Surface: varnished · Crankshaft stroke: 42 mm · Ø piston pin (B): 12 mm · Nominal diameter: 41 mm · Ø cylinder neck: 44 mm · Ø Outlet outside: 40 mm · Inlet window: 17 x 15 mm · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Ø outlet inside: 29.5 mm · Outlet type: Union nut · Hole spacing inlet: 31 mm · Thread outlet: MF40x1.5 (fine pitch thread) · Area of application: Tuning

Stud bolt M6x125 | Sachs 503 AB, ADV

Material: Steel · Surface: burnished · Total length: 125 mm · Thread length: 17 mm · Thread length: 21 mm · Thread type: M6x1 (standard thread)

swiing® ingenious bearing press-on plunger Ø 15/35 mm (type 6202)

Ø Pin: 15 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Surface: anodized · Ø inside: 15 mm · Ø outside: 35 mm · Total length: 52.5 mm · Number of components: 2 pcs · Area of application: Special tool

GPO clutch spring | Sachs 502 1A / 1B

Spring design: Tension spring · Ø wire: 0.9 mm · Manufacturer: GPO · Material: Spring steel · Ø outside: 4.1 mm · Total length: 208 mm

swiing® revival torsion spring clutch lever | Sachs 504, 505, 535, 508 (A4235)

Ø wire: 1.7 mm · Manufacturer: swiing® revival parts · Leg length: 6.5 mm · Length spring hook: 13.5 mm · Material: Spring steel · Ø inside: 8.1 mm · Ø outside: 11.5 mm · Total length: 34.5 mm · Pony OEM number: A4235 · Hercules OEM number: S00 0239 136 200 · Sachs OEM no.: 0239 136 200

GPO 41 mm piston "Divertimento" | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Material: Aluminum · Ø outside piston (A): 40.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.4 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 41 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.7 mm

swiing ingenious exhaust adapter 26 mm Athena cylinder| Sachs 504, 505, 508

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Height: 25.5 mm · Ø inside: 22 mm · Ø outside: 26 mm · Total length: 67 mm · Ø mounting hole: 8.3 mm · Hole spacing: 50 mm · Width: 43 mm

swiing ingenious exhaust adapter 24 mm Athena cylinder| Sachs 504, 505, 508

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Height: 25.5 mm · Ø inside: 20 mm · Ø outside: 24 mm · Total length: 67 mm · Ø mounting hole: 8.3 mm · Hole spacing: 50 mm · Width: 43 mm

swiing® ingenious bearing press-on plunger Ø 8/22 mm (type 608)

Ø Pin: 8 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Ø inside: 8 mm · Ø outside: 22 mm · Total length: 52.5 mm · Number of components: 2 pcs · Area of application: Special tool

Piston 38.6 mm | Sachs 50/2 1A, 1B

Ø outside piston (A): 38.54 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38.6 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Thick piston ring: 1.6 mm · Weight piston kit: 92 g · Sachs OEM no.: 0286 373 007

GPO piston rings 41 x 1.5 mm (IS) "Divertimento" (pair) | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Diameter: 40.95 mm · Height: 1.5 mm · Nominal diameter: 41 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Thick piston ring: 1.7 mm

swiing® revival thrust washer 15/26/0.20 Clutch | Sachs 502 AL, AML / 503 AAL, AC, ADV

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Thickness: 0.2 mm · Ø inside: 15 mm · Ø outside: 26 mm

Crankshaft | Sachs 504 (A4376)

Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 15 mm · Crankshaft stroke: 42 mm · Ø piston pin (B): 10 mm · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 85 mm · Total length crankpin ignition side: 70.2 mm · Ø crank webs: 80.5 mm · Ø Connecting rod eye: 15 mm · Thread length: 9.5 mm · Thread length: 11.5 mm · Bearing seat right: 15 mm · Thread type: MF10x1 (fine pitch thread) · Thread type: MF8x1 (fine pitch thread) · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 22.5 mm · Dimension needle bearing: 12 / 15 x 14 · Wide crank webs: 34.2 mm · Length 1st paragraph: 43.5 mm · Length 2nd paragraph: 19 mm · Ø 1st step (on the coupling side): 11.65 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 11 mm · Length of shoulder (ignition side): 25.25 mm

Exhaust manifold 32 mm | Hercules Prima GT

Material: Steel · Surface: chrome-plated · Color: Chrome · Ø inside: 29 mm · Mounting type: Stud bolts & nuts · Ø outside: 31.6 mm · Total length: 260 mm · Nominal diameter (thread): 6 mm · Number of fixing points: 2 pcs · Thread type: M6x1 (standard thread) · Hole spacing outlet: 50 mm · Flame tube attachment: Plug connection clamped

Power1 41 mm cylinder kit aluminum (square intake) | Sachs 50/3, 50/4 fan-cooled

Manufacturer: Power1 · Material: Aluminum · Camouflaged: No · Displacement: 57 ccm · Surface: Nickel silicon carbide (colloquially known as Nikasil) · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Nominal diameter: 41 mm · Ø cylinder neck: 44 mm · Inlet window: 16 x 18 · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Outlet type: Union nut · Hole spacing inlet: 31 mm · Thread outlet: MF40x1.5 (fine pitch thread) · Hole pattern [mm]: 51 x 40 / 37 x 37 · Area of application: Tuning

Power1 38 mm cylinder kit aluminum (square intake) | Sachs 50/3, 50/4 fan-cooled

Manufacturer: Power1 · Material: Aluminum · Camouflaged: No · Displacement: 50 ccm · Surface: Nickel silicon carbide (colloquially known as Nikasil) · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Nominal diameter: 38 mm · Ø cylinder neck: 44 mm · Inlet window: 16 x 18 · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Outlet type: Union nut · Hole spacing inlet: 31 mm · Thread outlet: MF40x1.5 (fine pitch thread) · Hole pattern [mm]: 51 x 40 / 37 x 37 · Area of application: Tuning

swiing® ingenious fan wheel gold (EVO, HPI, Bosch, Ducati) | Puch X30 Velux / Sachs 503 / Belmondo

Manufacturer: swiing® ingenious parts · Material: Aluminum · Weight: 87 g · Surface: gold-plated · Surface: polished · Color: gold · Height: 13.5 mm · Ø inside: 39 mm · Ø outside: 120 mm · Ø mounting hole: 6 mm · Number of fixing points: 10 pcs · Ø bolt circle: 48 mm · Ø bolt circle: 70 mm · Ø bolt circle: 100 mm

GPO piston rings 43 x 1.5 mm (IS) (pair) | Sachs 50/2, 50/3, 50/4

Manufacturer: GPO · Diameter: 43 mm · Height: 1.5 mm · Nominal diameter: 43 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Thick piston ring: 1.7 mm · Area of application: Tuning

swiing® ingenious 6201 Bearing dummy 12/32/10 Aluminum

Bearing type: Deep groove ball bearing · Stock number: 6201 · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Ø inside: 12 mm · Ø outside: 32 mm · Width: 10 mm · Area of application: Special tool · Area of application: Workshop accessories

Ignition cover black | Sachs 505, 535 (A5672 & A4452)

Material: Steel · Surface: varnished · Color: black · Height: 31 mm · Ø inside: 125 mm · Ø outside: 128 mm · Pony OEM number: A4452 · Pony OEM number: A5672 · Piaggio OEM number: 0244 167 000

Ignition cover (version with speedometer drive) | Sachs 50

Material: Aluminum · Pony OEM number: A1001 · Sachs OEM no.: 0211 066 001

Newfren clutch disk set Ø103.5/74.5 x 2.6 | Sachs Casal 50

Manufacturer: NewFren · Material: Composite materials · Thickness: 2.6 mm · Recording type: Interlocking · Ø inside: 74.5 mm · Number of slats: 4 pcs · Ø outside: 103.5 mm · Area of application: Standard
