Membrane system

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Total length: 23 mm · Area of application: Standard · Thread length: 6 mm · Thread length: 12 mm · Pony spare part no.: A3700 · Sachs spare part no.: 0640 016 101 · Sachs spare part no.: 0640 016 102

swiing® revival membrane seal 0.4 mm | Sachs 50/2, 50/3, 50/4 (A1840)

Manufacturer: swiing® revival parts · Material: Oiled paper · Hole spacing inlet: 67 mm · Thickness: 0.4 mm · Pony spare part no.: A1840 · Sachs spare part no.: 0250 106 00

swiing® revival stud bolt inlet M5x26 mm galvanized (strength 10.9) | Sachs (A1474)

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Thread type: M5x0.8 (standard thread) · Total length: 26 mm · Thread length: 7 mm · Thread length: 14 mm · Strength class: 10.9 · Pony spare part no.: A1474 · Sachs spare part no.: 0241 031 101

Ripp-Lock washer M5 5.2/12/1.4 galvanized

Material: Steel · Surface: blue galvanized · Thread size: M5 · Ø inside: 5.2 mm · Nominal diameter (thread): 5 mm · Ø outside: 12 mm · Thickness: 1.4 mm

Diaphragm seal engine Beta 521 & 512 (A8101)

Manufacturer: Pony · Place of use: Admission · Thickness: 2 mm · Hole spacing inlet: 35 mm · Area of application: Standard · Ø screw holder: 6.6 mm

Flange nut M5 galvanized (10 strength)

Material: Steel · Surface: blue galvanized · Nut type: Flange nut · Thread type: M5x0.8 (standard thread) · Drive: External hexagon · Height: 5 mm · Width across flats SW: 8 mm · Strength class: 10 · Pony spare part no.: A1501 · Sachs spare part no.: 0242 024 104

Flange nut M5 galvanized (8 strength)

Material: Steel · Surface: blue galvanized · Nut type: Flange nut · Thread type: M5x0.8 (standard thread) · Drive: External hexagon · Height: 5 mm · Width across flats SW: 8 mm · Strength class: 8

Athena gasket set 45 mm AJH diaphragm

Manufacturer: Athena · Area of application: Tuning · Ø cylinder: 45 mm · Hole pattern [mm]: 44 x 44 mm / 60 x 40 mm · Number of components: 5 pcs · Hole spacing outlet: 42 mm

Diaphragm motor Beta 521 & 512 (A8114)

Manufacturer: Pony · Number of flaps: 2 pcs · Membrane material: Fiberglass · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Original

swiing® ingenious intermediate flange 17 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Surface: anodized · Surface: blue galvanized · Number of flaps: 2 pcs · Total length: 29 mm · Width: 80 mm · Hole spacing: 31 mm · Hole spacing: 67 mm · Thread type: M5x0.8 (standard thread) · Thickness: 6.9 mm · Ø inside: 17 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Diaphragm insert Sachs 50/2

Material: Brass · Area of application: Standard · Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Ø mounting hole: 5.2 mm · Number of fixing points: 2 pcs · Hole spacing: 67 mm · Pony spare part no.: A2624 · Sachs spare part no.: 0286 213 010

Gilardoni italkit diaphragm seal

Manufacturer: Gilardoni italkit · Area of application: Tuning · Ø cylinder: 47 mm · Place of use: Admission · Hole spacing inlet: 34 mm · Hole spacing inlet: 60 - 34 mm · Hole pattern [mm]: 34 x 60

Stage6 8-folding diaphragm by Moto Tassinari (Gilardoni italkit)

Manufacturer: Stage6 · Area of application: High End · Material: Plastic · Surface: raw · Number of flaps: 8 pcs · Membrane material: Carbon · Total length: 77 mm · Thick membrane platelets: 0.4 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Width: 49 mm · Ø mounting hole: 6.6 mm · Hole pattern [mm]: 60 x 35 mm

Polini 2-folding diaphragm insert

Manufacturer: Polini · Number of flaps: 2 pcs · Thickness: 2 mm · Number of fixing points: 4 pcs · Ø mounting hole: 5.3 mm · Mounting type: Screws · Area of application: Tuning · Hole pattern [mm]: 39 x 36/32 mm

swiing® revival stud bolt M5x26 inlet (strength 10.9) | Sachs 50/2, 50/2, 50/3

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Thread type: M5x0.8 (standard thread) · Total length: 26 mm · Thread length: 7 mm · Thread length: 14 mm · Width across flats SW: 8 mm · Strength class: 8 · Strength class: 10.9 · Drive: External hexagon

Polini gasket diaphragm

Manufacturer: Polini · Place of use: Admission · Ø cylinder: 45 mm

Polini intake system 4-folding diaphragm PHBG

Manufacturer: Polini · Number of flaps: 4 pcs · Ø inside: 19 mm · Ø outside: 24 mm · Mounting type: Screws · Area of application: Tuning

Polini lung aluminum

Manufacturer: Polini · Material: Aluminum · Total length: 105 mm · Total height: 40 mm · Mounting type: Cable ties · Area of application: Tuning

Polini gasket diaphragm | Morini M1, M01 / M02

Manufacturer: Polini · Thickness: 0.8 mm · Hole spacing inlet: 44 mm

Stage6 lung aluminum

Manufacturer: Stage6 · Material: Aluminum · Camouflaged: No · Surface: chrome-plated · Color: Chrome · Area of application: Tuning · Total length: 105 mm · Total length: 125 mm · Ø inside: 4 mm · Mounting type: Cable ties · Total height: 40 mm · Ø External connection: 6 mm

swiing® ingenious intermediate flange 13 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Number of flaps: 2 pcs · Hole spacing: 31 mm · Hole spacing: 67 mm · Thread type: M5x0.8 (standard thread) · Ø inside: 13 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Standard · Area of application: Tuning

Athena membrane seal set (2 pcs.)

Manufacturer: Athena · Material: Sealing paper · Thickness: 0.5 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 33 x 32 mm

Malossi 4-folding diaphragm carbonite Puch

Manufacturer: Malossi · Area of application: Tuning · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Ø outside: 24 mm · Mounting type: Screws

Malossi diaphragm plate carbonite 0.3 mm

Manufacturer: Malossi · Area of application: Tuning · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Total length: 100 mm · Width: 100 mm

Polini 2-folding diaphragm | Tomos

Manufacturer: Polini · Number of flaps: 2 pcs · Hole pattern [mm]: 39 x 36/32 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning · Tomos spare part no.: 222238

Intermediate flange cylinder Athena AJH Puch

Color: black-matt · Material: Plastic · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 · Area of application: Tuning

Polini gasket set 4-folding diaphragm | Puch

Manufacturer: Polini · Area of application: Tuning · Number of flaps: 4 pcs · Hole pattern [mm]: 39 x 36/32 mm

Malossi 4-flap diaphragm Carbon Gilardoni italkit | Puch

Manufacturer: Malossi · Material: Plastic · Number of flaps: 4 pcs · Membrane material: Carbon · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 61 x 39 mm / 58 x 35 mm · Area of application: Tuning

Athena 22 mm intake manifold Diaphragm Dell'Orto PHBG | Puch

Manufacturer: Athena · Material: Aluminum · Area of application: Tuning · Mounting type: Screws · Ø inside: 22 mm · Ø External connection: 26 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40

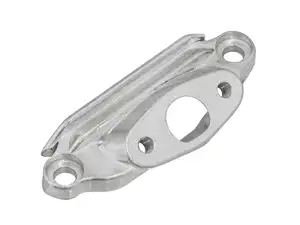

Intermediate flange diaphragm 12 mm | Sachs 502, 50/2, 50/3, 50/4 (A2621)

Area of application: Standard · Material: Aluminum · Number of flaps: 2 pcs · Hole spacing: 31 mm · Hole spacing: 67 mm · Thread type: M5x0.8 (standard thread) · Ø inside: 12 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Pony spare part no.: A2621 · Sachs spare part no.: 0286 210 001

Malossi reed valve carbon 0.3 mm

Manufacturer: Malossi · Total length: 100 mm · Width: 100 mm · Area of application: Tuning · Membrane material: Carbon · Thick membrane platelets: 0.3 mm

Athena diaphragm seal AJH

Manufacturer: Athena · Material: Oiled paper · Thickness: 0.5 mm · Place of use: Admission · Ø screw holder: 6.7 mm · Hole pattern [mm]: 40 x 62 · Area of application: Tuning

Polini intake system 4-folding diaphragm "Big Valve" PHBG / CP carburetor | Puch

Ø outside: 24 mm · Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Material: Plastic · Surface: glass bead blasted · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Thread type: M5x0.8 (standard thread) · Ø inside: 28.6 mm · Ø mounting hole: 5.2 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Racing · Area of application: Tuning

GPO Membrane Carbon | Cilo Cross 521, 512 / Pony Cross 521, GTX 521 (A8114)

Manufacturer: GPO · Material: Aluminum · Number of flaps: 2 pcs · Membrane material: Carbon · Thick membrane platelets: 0.25 mm · Total length: 48 mm · Width: 33 mm · Hole spacing: 35 mm · Number of fixing points: 2 pcs · Area of application: Tuning · Alternative version of the Pony Spare part no.: A8114

2-folding membrane insert Athena AJH

Area of application: Tuning · Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 mm

Polini 20 mm intake manifold 2-folding diaphragm Puch

Manufacturer: Polini · Material: Aluminum · Ø inside: 20 mm · Ø External connection: 25 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Total height: 46 mm · Area of application: Tuning

Malossi diaphragm plate carbonite 0.35 mm

Manufacturer: Malossi · Area of application: Tuning · Membrane material: Carbonite · Thick membrane platelets: 0.35 mm · Total length: 100 mm · Width: 100 mm

Malossi diaphragm plate carbonite 0.4 mm

Manufacturer: Malossi · Area of application: Tuning · Membrane material: Carbonite · Thick membrane platelets: 0.4 mm · Total length: 100 mm · Width: 100 mm

Malossi 4-folding diaphragm insert carbonite Gilardoni italkit Puch

Manufacturer: Malossi · Number of flaps: 4 pcs · Membrane material: Carbonite · Hole pattern [mm]: 61 x 39 mm / 58 x 35 mm · Area of application: Tuning · Mounting type: Screws · Number of fixing points: 4 pcs

MBR plate inlet Gilardoni italkit steel

Ø inside: 21 mm · Width: 48 mm · Manufacturer: MBR · Material: Steel · Surface: raw · Thickness: 5 mm · Total length: 72.5 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 mm · Area of application: Tuning

Polini 2-folding diaphragm Puch

Manufacturer: Polini · Number of flaps: 2 pcs · Thickness: 2 mm · Number of fixing points: 4 pcs · Ø mounting hole: 5.3 mm · Mounting type: Screws · Area of application: Tuning · Hole pattern [mm]: 39 x 36/32 mm

MLM 19 mm intake manifold Polini 4-folding diaphragm Dell'Orto PHBG, CP | Puch

Manufacturer: MLM · Material: Steel · Surface: varnished · Area of application: Tuning · Ø inside: 25.3 mm · Color: black · Mounting type: Plug connection clamped · Ø External connection: 28.5 mm · Total height: 80 mm

Malossi gasket set 4-folding diaphragm

Manufacturer: Malossi · Material: Sealing paper · Area of application: Tuning · Mounting type: Screws · Number of fixing points: 4 pcs

MBR cover diaphragm inlet Gilardoni italkit | Puch

Manufacturer: MBR · Material: Steel · Surface: raw · Width: 48 mm · Total length: 72.5 mm · Hole pattern [mm]: 60 x 35 mm · Thickness: 5 mm · Ø mounting hole: 6.3 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Membrane transpacer Polini Trapez 12 mm aluminum | Puch ZA50

Material: Aluminum · Surface: blank · Total length: 50 mm · Width: 42.5 mm · Width: 46 mm · Hole pattern [mm]: 32 / 36 x 39 · Thickness: 12 mm · Ø mounting hole: 5.4 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Malossi diaphragm plate carbonite | Minarelli, Morini

Manufacturer: Malossi · Material: Carbonite · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Total length: 38 mm · Width: 20 mm · Hole spacing: 8 mm · Ø mounting hole: 3 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Tuning

swiing® ingenious intermediate flange 12 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Number of flaps: 2 pcs · Hole spacing: 31 mm · Hole spacing: 67 mm · Thread type: M5x0.8 (standard thread) · Ø inside: 12 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Standard

Gasket set diaphragm Gilardoni italkit Puch

Number of components: 2 pcs · Hole pattern [mm]: 60 x 35 mm · Area of application: Tuning

MLM 19 mm intake manifold Polini 2-folding diaphragm Dell'Orto PHBG, CP | Puch

Manufacturer: MLM · Material: Steel · Surface: varnished · Ø inside: 19 mm · Ø External connection: 23 mm · Area of application: Tuning · Mounting type: Screws · Color: black · Number of fixing points: 4 pcs · Total height: 67 mm

Malossi reeds carbon & fiberglass 0.3 / 0.35 / 0.4 mm

Manufacturer: Malossi · Number of flaps: 2 pcs · Membrane material: Carbon · Membrane material: Glass fiber · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Thick membrane platelets: 0.4 mm · Area of application: Tuning · Mounting type: Screws · Number of fixing points: 2 pcs

Polini 2-folding diaphragm Peugeot 103

Manufacturer: Polini · Number of flaps: 2 pcs · Thickness: 2 mm · Number of fixing points: 4 pcs · Ø mounting hole: 5.3 mm · Mounting type: Screws · Area of application: Tuning · Hole pattern [mm]: 39 x 36/32 mm

Gilardoni italkit 4-folding diaphragm original

Manufacturer: Gilardoni italkit · Number of flaps: 4 pcs · Membrane material: Carbon · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 mm · Area of application: Tuning · Ø mounting hole: 6.3 mm

DMP 4-folding diaphragm insert

Manufacturer: DMP · Area of application: Tuning · Number of flaps: 4 pcs · Hole pattern [mm]: 60 x 40 mm · Mounting type: Screws · Number of fixing points: 4 pcs

Malossi 2-folding diaphragm insert

Manufacturer: Malossi · Area of application: Tuning · Number of flaps: 1 pcs · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 39 x 36/32 mm

Polini intake system 4-folding diaphragm SHA

Manufacturer: Polini · Material: Aluminum · Number of flaps: 4 pcs · Ø outside: 19 mm · Ø inside: 15 mm · Mounting type: Screws · Area of application: Tuning

Athena 2-folding diaphragm Puch / Sachs

Manufacturer: Athena · Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Area of application: Tuning · Number of fixing points: 4 pcs

Malossi 4-folding diaphragm carbonite Peugeot 103 / 104 / 105

Manufacturer: Malossi · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Ø outside: 24 mm · Mounting type: Screws · Area of application: Tuning
