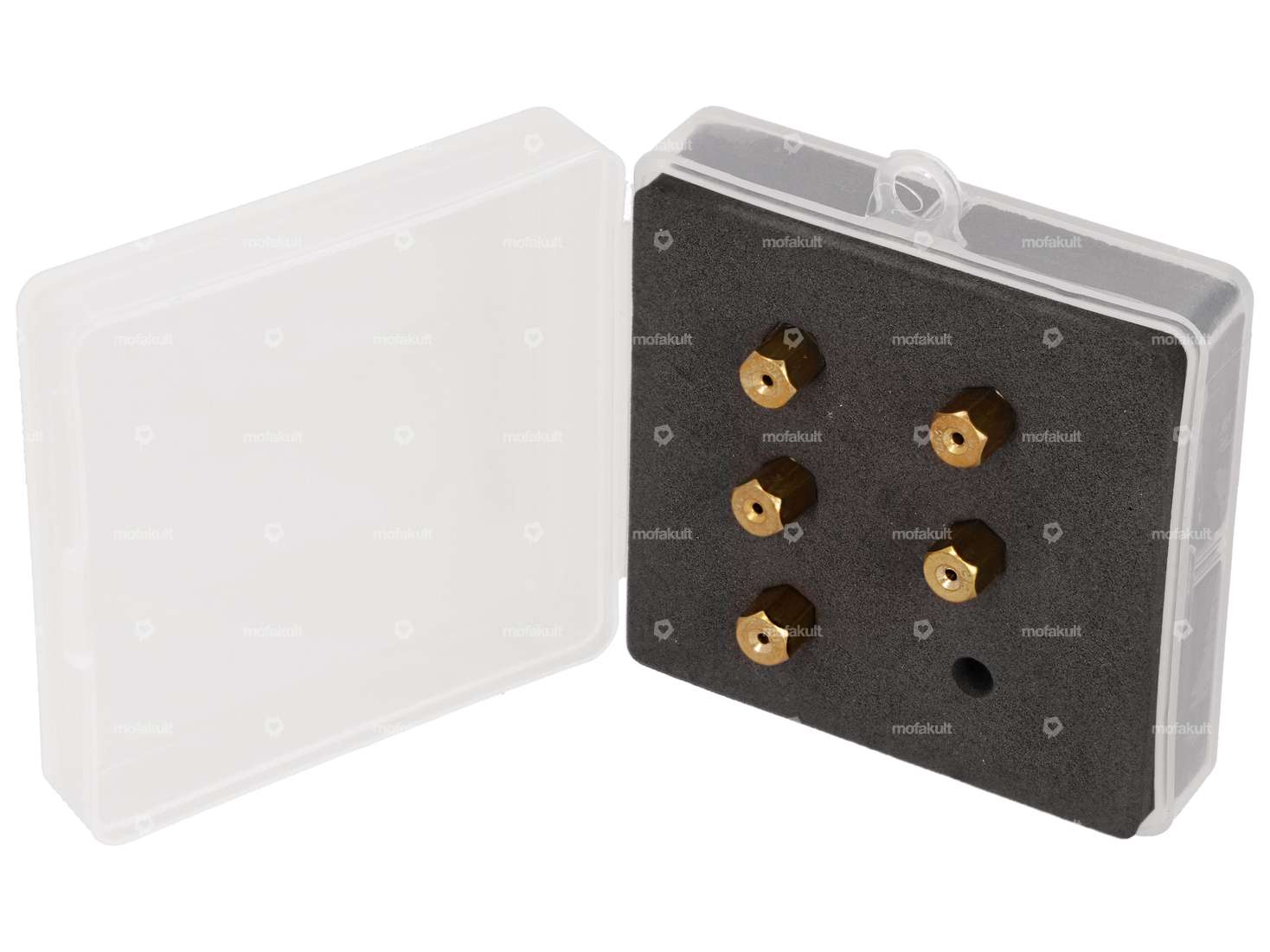

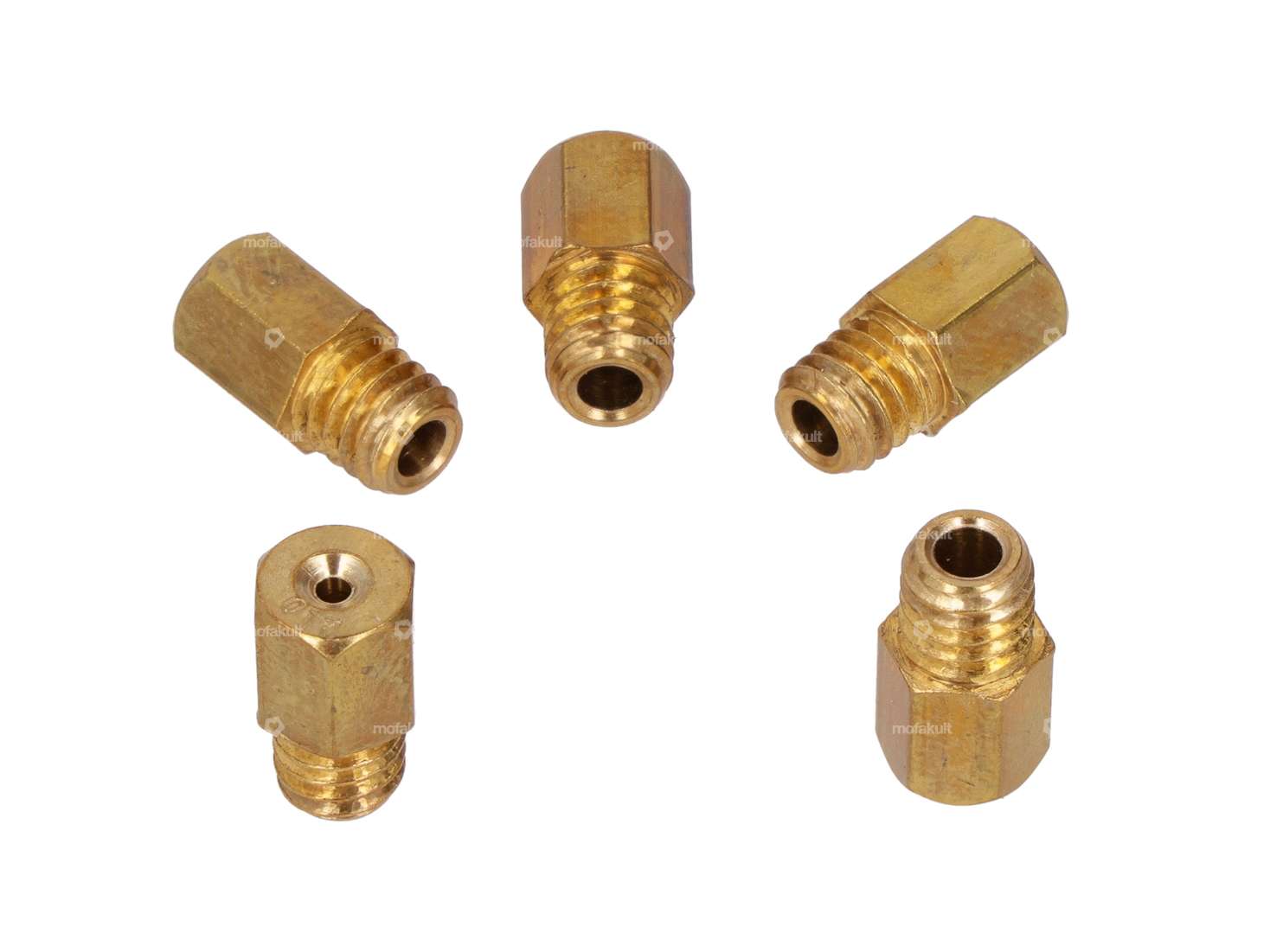

Jetset with five medium-high main jets suitable for Mikuni VM, TM and TMX carburetors.
The following jet sizes are included in the set: 90, 95, 100, 105, 110
With this selection, the fuel-air mixture of your carburetor can be perfectly tuned.
Note: These carburetor jets for Mikuni carburetors are not only described by the physical size (the diameter of the jet hole) like many other carburetor jets, but by the actual flow rate. This means that the Mikuni size specification refers to the amount of fuel that can flow through the nozzle per unit of time.
So if you are using carburettor jets from different manufacturers, you need to be careful, as other manufacturers may describe the diameter of the jet hole.
| Drive | External hexagon |
| Material | Brass |
| Quantity | 5 pcs |
| Component group Carburetor | Spraying |
| Carburetor type | Mikuni (VM, TM, TMX) |
| Total length | 11.6 mm |
| Nozzle type | Main nozzle |
| Thread length | 4.7 mm |
| Width across flats | 6 mm |
| Nozzle thread | M5.3x0.9 (standard thread) |
| Nozzle size | 110, 105, 100, 95, 90 |
