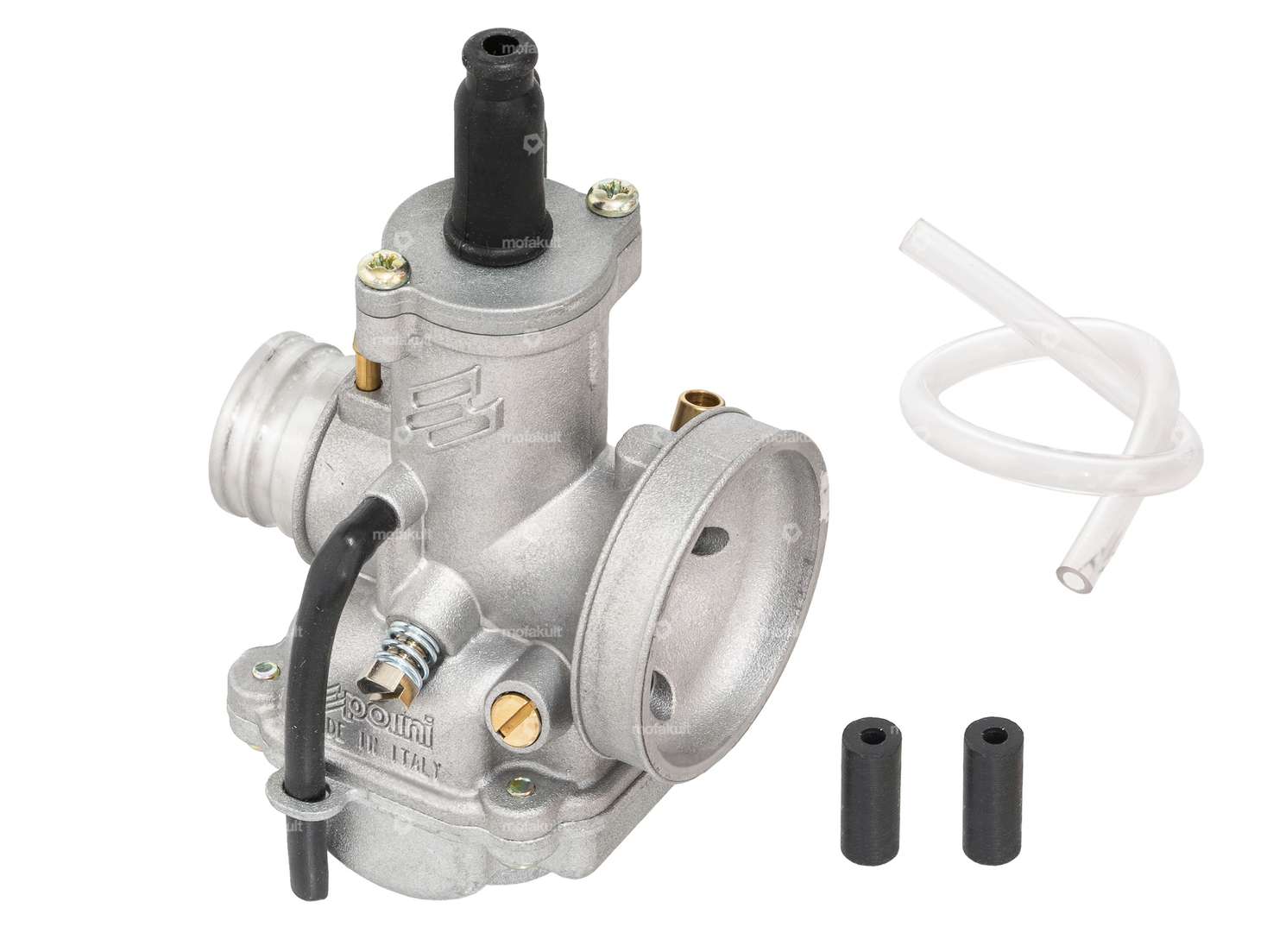

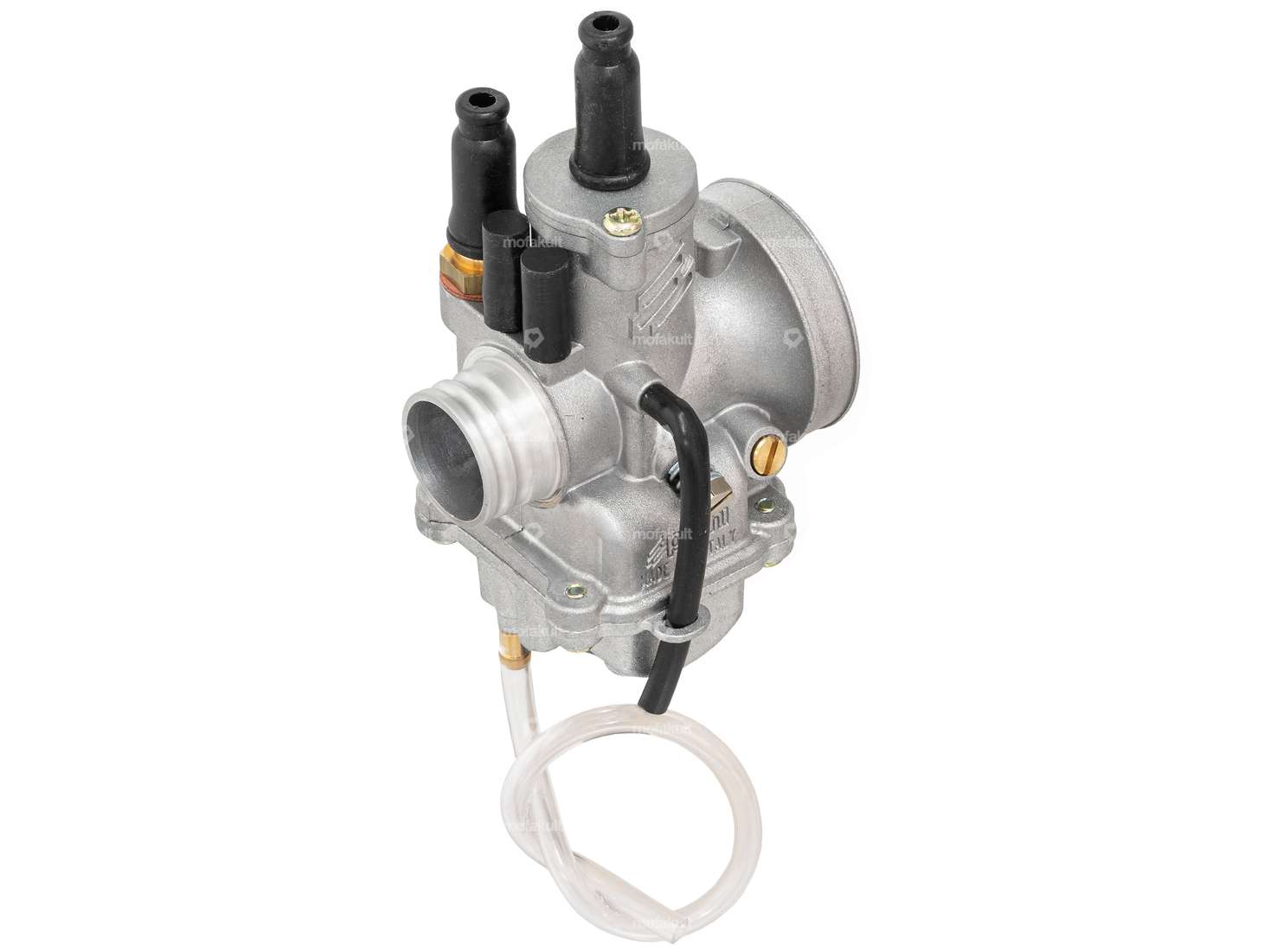

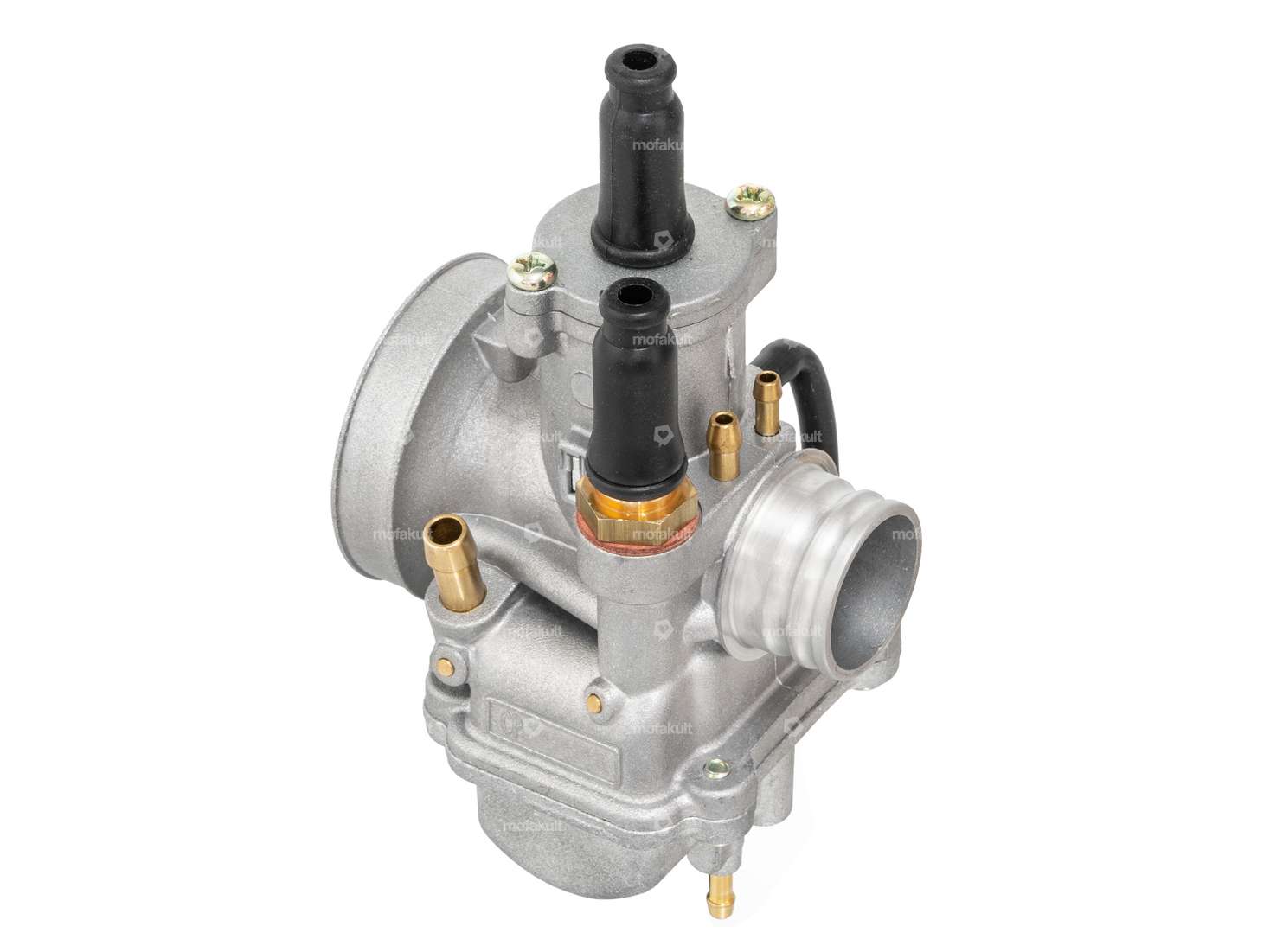

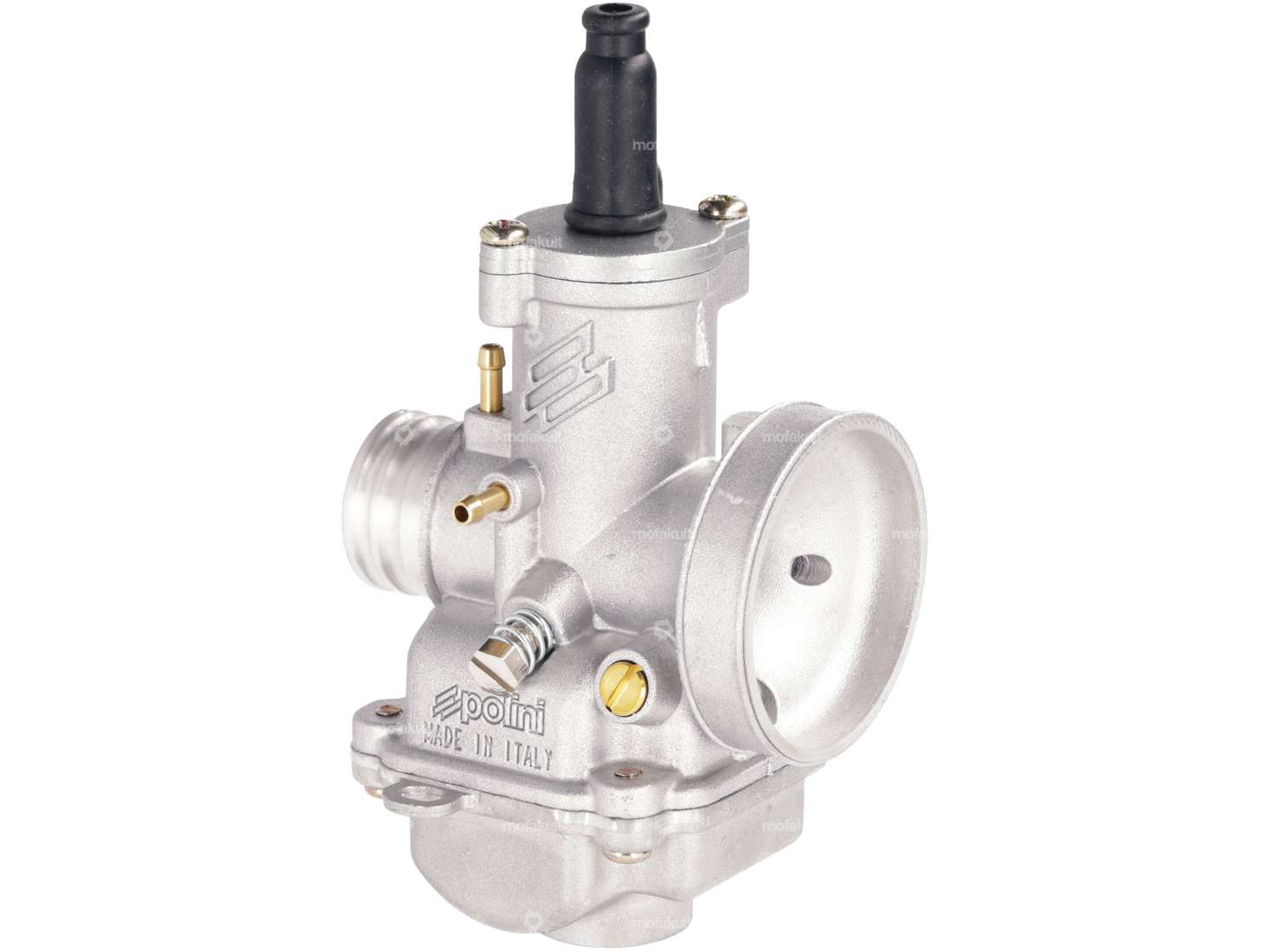

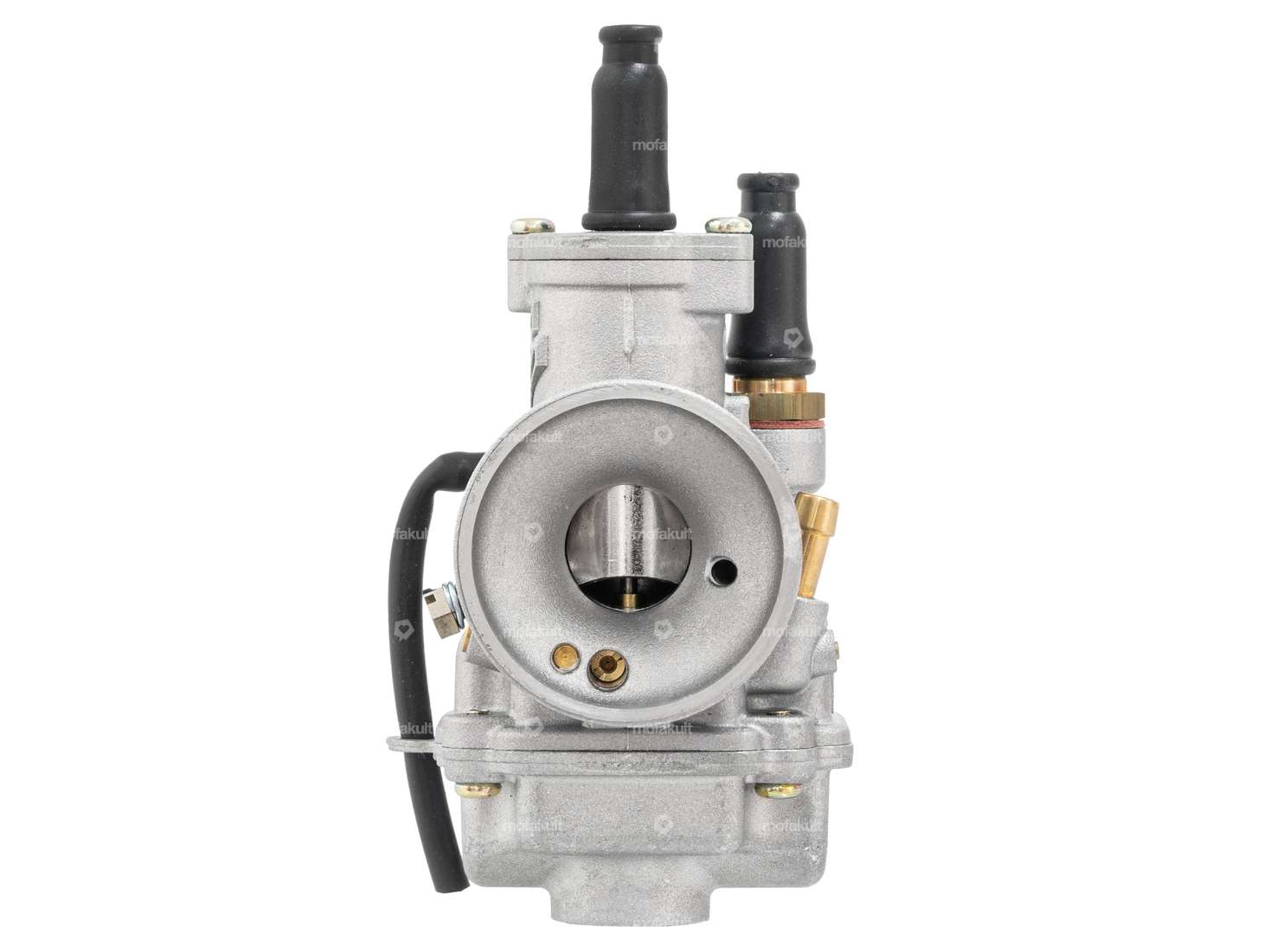

Polini has placed particular emphasis on size and weight in the development of the CP model; this carburetor is therefore particularly compact and around 40% lighter than traditional carburetors.
Due to the compact design, the intake path is very short. Unique is the concentric design of the passage, i.e. a circular passage instead of an oval one as with most other carburettors - a geometry that optimizes the air flow. Modifications to the mixing tube and the use of a larger needle ensure better atomization of the gas mixture.
This is intended to simplify the tuning of the carburetor and enable high performance with low consumption. All CP carburetors have an oil and vacuum connection.
A rubber sleeve (item no. 15414) is used to attach the carburetor to the intake manifold.
Connection diameter of intake manifold: 25 mm
Connection diameter of air filter: 46 mm
Main diameter: 80
Side diameter: 38
Quality product from the Italian manufacturer Polini.
| Manufacturer | Polini |
| Component group Carburetor | Carburetor complete |
| Carburetor type | CP |
| Nominal diameter | 17.5 mm |
| Choke control | Cable choke |
| Ø fuel hose connection | 6 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 80 |
| Mounting type | Plug connection |
| Ø Air filter connection | 46 mm |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
| Area of application | Tuning |
| Size of secondary nozzle | 38 |
Ratings
Moped fans also bought
Continental 2.00 - 2.50 x 17" tube
Manufacturer: Continental · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Wheel size: 17 " · Tire height [%]: 100 · Old designation: 21 x 2 " · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 " · Valve type: TR6 car valve
17,50 EUR
Airsal intake manifold 46 / 47 mm cylinder | Puch
Material: Aluminum · Number of fixing points: 2 pcs · Ø inside: 19 mm · Manufacturer: Airsal · Mounting type: Screws · Ø External connection: 24 mm · Hole spacing inlet: 38 mm · Total length: 60 mm · Area of application: Tuning · Height flange center hole: 65 mm · Total height: 75 mm · Camouflaged: No
46,90 EUR
Polini jet set (80 - 98) main jets long version CP, Keihin, Koso, PWK
Material: Brass · Manufacturer: Polini · Component group Carburetor: Spraying · Carburetor type: CP · Carburetor type: Coso · Carburetor type: Keihin · Carburetor type: PWK · Quantity: 10 pcs · Drive: External hexagon · Nozzle type: Main nozzle · Nozzle size: 54 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 86 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98
46,90 EUR
Polini jet set (60 - 78) main jets long version CP, Keihin, Koso, PWK
Material: Brass · Manufacturer: Polini · Component group Carburetor: Spraying · Carburetor type: CP · Carburetor type: Coso · Carburetor type: Keihin · Carburetor type: PWK · Quantity: 10 pcs · Drive: External hexagon · Nozzle type: Main nozzle · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 74 · Nozzle size: 76 · Nozzle size: 78
46,90 EUR
Polini auxiliary jet set 32 - 40 | CP carburetor
Material: Brass · Manufacturer: Polini · Component group Carburetor: Spraying · Carburetor type: CP · Carburetor type: Keihin · Carburetor type: PWK · Quantity: 5 pcs · Nozzle type: Secondary nozzle · Drive: Slot · Nozzle size: 32 · Nozzle size: 34 · Nozzle size: 36 · Nozzle size: 38 · Nozzle size: 40
29,30 EUR
Polini CP 15 mm carburetor (cable choke)
Manufacturer: Polini · Component group Carburetor: Carburetor complete · Carburetor type: CP · Nominal diameter: 15 mm · Choke control: Cable choke · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 6 mm · Nozzle size: 80 · Mounting type: Plug connection · Ø Air filter connection: 46 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Area of application: Tuning · Size of secondary nozzle: 38
158,50 EUR
Not in stock

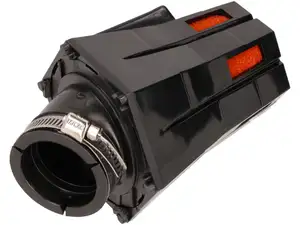

Tun'R air filter foam with splash cap Evo 45° (Ø 28 / 35 mm)
