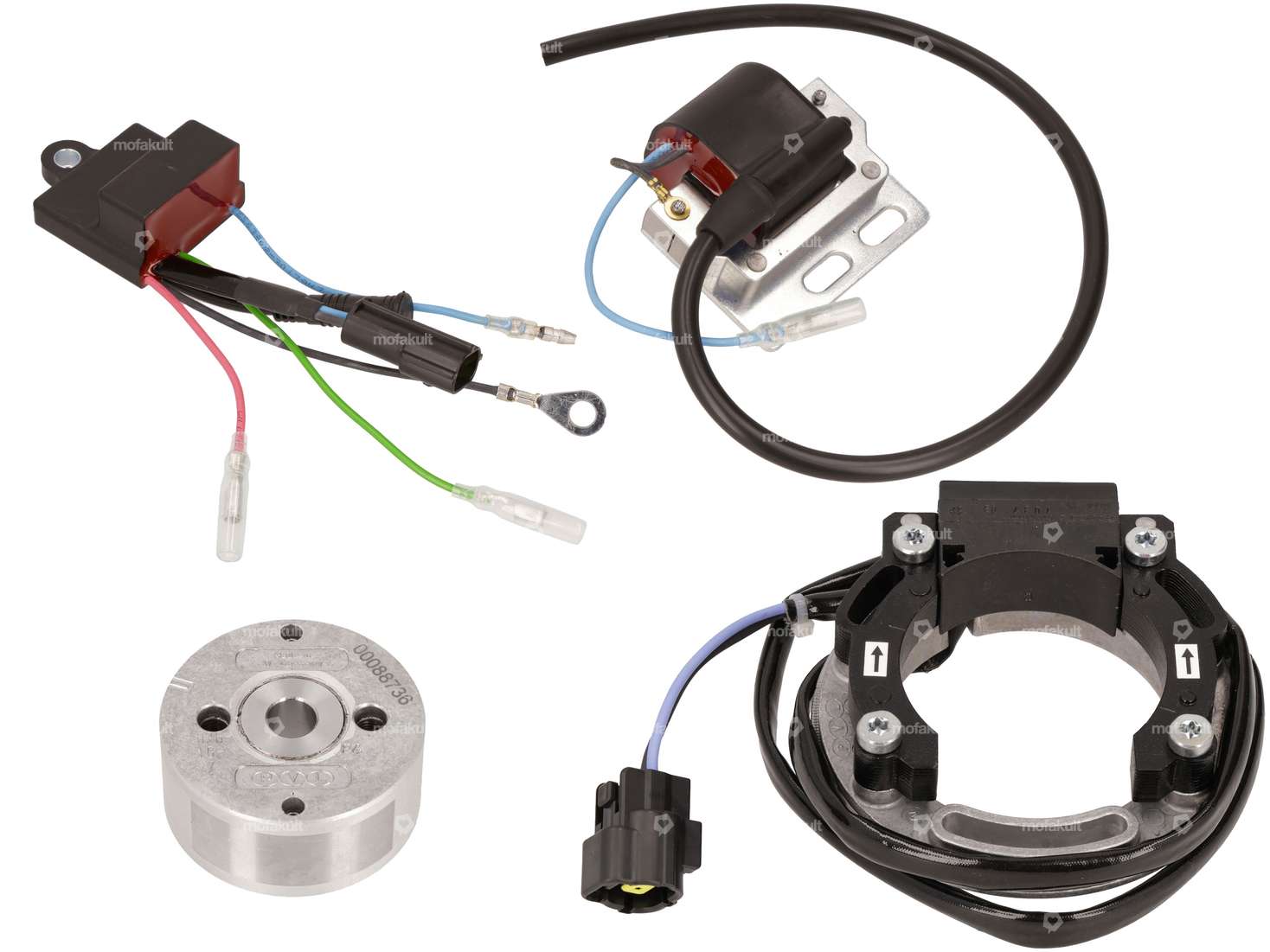

Digital internal rotor magneto for clockwise and counter-clockwise rotating engines with Ø 90 mm ignition plate mount on your cross and racing moped, moped or small motorcycle.
This digital racing ignition is ideal for racing. Thanks to the freely programmable CDI, the ignition can be set precisely to the conditions required. The special internal windings generate the necessary voltage at the start and thus optimize the ignition performance. Voltage peaks in high speed ranges are balanced out thanks to the digital technology and guarantee stable performance.
The CDI unit enables the free programming of two individual ignition curves (programming software not included) in the range from 0 to 40 degrees. Depending on requirements and track conditions, for example, the first end curve can be set for narrow and difficult terrain and the second end curve for fast straights and long bends.
Manufacturer: PVL · Material: Steel, Aluminum, Plastic, Copper · Color: black · Number of cables: 2 pcs · Cable length: 800 mm · Ø outside: 90 mm, 100 mm · Number of fixing points: 3 pcs · Ø bolt circle: 82 mm · Area of application: Tuning, Racing
Manufacturer: PVL · Direction of rotation: left, right · Cone ratio: 1:5
Manufacturer: PVL · Place of use: Ignition · Cable length: 420 mm, 120 mm · Color: black · Total length: 66 mm · Height: 65 mm · Mounting type: Nuts & bolts · Number of fixing points: 2 pcs · Hole spacing: 23 mm · Area of application: Tuning, Racing
Manufacturer: PVL · Material: Plastic · Color: black · Total length: 53 mm · Width: 44 mm · Height: 26 mm · Number of fixing points: 1 pcs · Ø mounting hole: 6.6 mm · Area of application: Tuning, Racing
| Manufacturer | PVL |
| Material | Steel, Aluminum, Copper, Plastic |
| Direction of rotation | right, left |
| Ø mounting plate | 90 mm, 100 mm |
| Mounting type | Screws |
| Number of fixing points | 3 pcs |
| Area of application | Tuning, Racing, High End |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS) |
