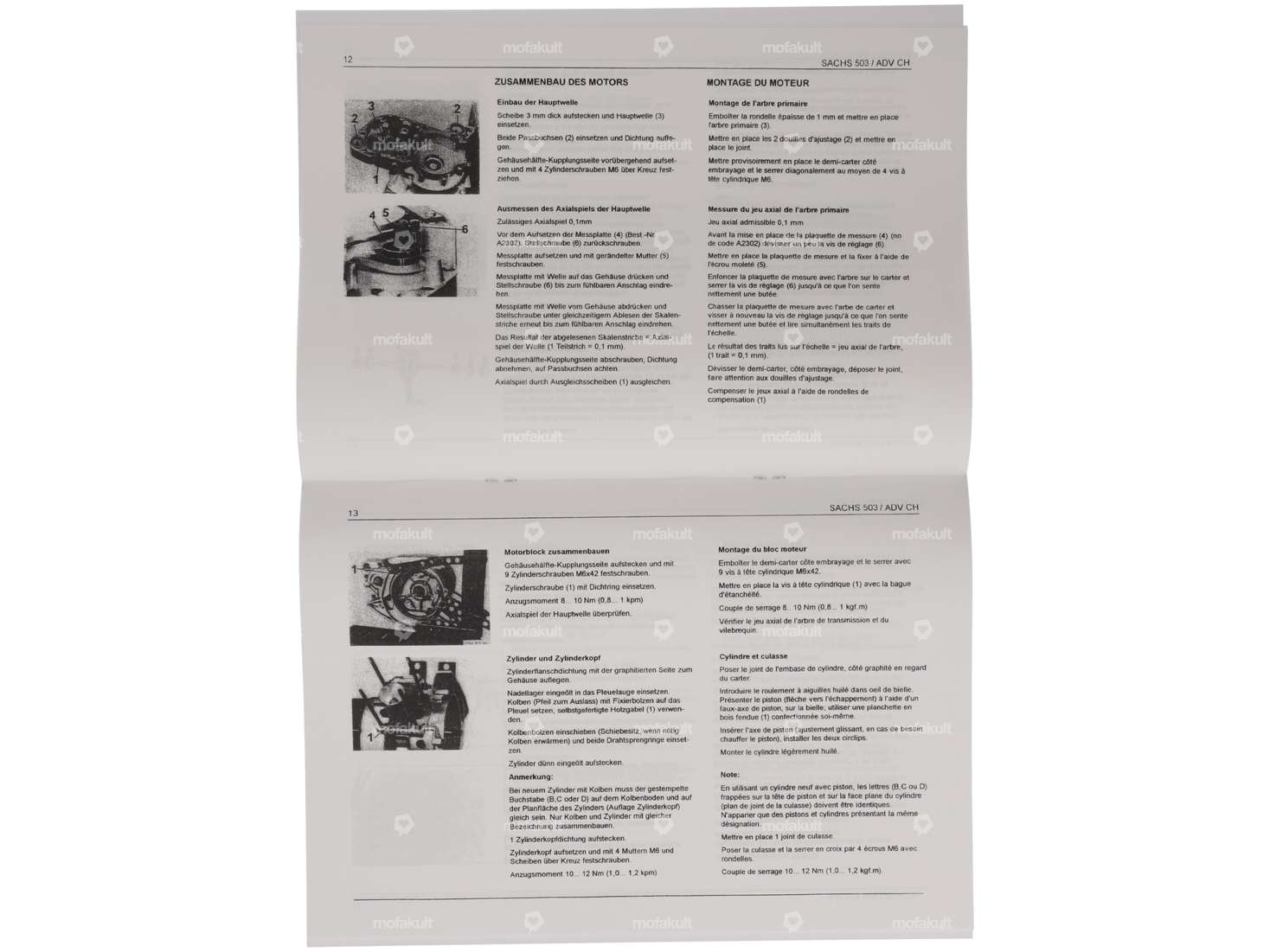

Nostalgic repair manual with various exploded views and descriptions for repairing your Sachs 503 ADV CH moped / moped engine.
All aspects of the engine are described in detail and are illustrated by comprehensive overhaul instructions, numerous pictures and important facts.
In addition, the following areas are explained in detail: technical data, special tools, engine, inspection work, carburetor and the ignition system.
| Material | Paper |
| DIN format | A4 |
| Number of pages | 28 pcs |
| Language | German, French |
| Sachs | 503 - ADV |
Ratings
Accessories & related products
Explore categories from Literature & Posters
Moped fans also bought
Oil seal NBR 17/33/7 B DUO crankshaft | Sachs 503 AB, ADV
Shaft seal type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Ø outside: 33 mm · Width: 7 mm · Ø inside: 17 mm · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C
10,10 EUR
NSK 6201 ball bearing 12/32/10
Stock number: 6201 · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CM (special/noise-reduced) · Bearing cage: Sheet steel cage ball-guided · Groove ring: No · Material: Steel · Surface: blank · Bearing type: Shoulder bearing · Ø inside: 12 mm · Ø outside: 32 mm · Width: 10 mm · Ball bearing closed: No · Area of application: Standard
9,65 EUR
swiing® revival gearbox cover gasket | Sachs 503 AAL, ABL, AB, AC, ADV, 2AL, 2BL (A1888)
Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Total length: 200 mm · Width: 130 mm · Number of components: 1 pcs · Number of fixing points: 6 pcs · Thickness: 0.35 mm · Pony OEM number: A1888 · Sachs OEM no.: 0250 150 000
6,15 EUR
Shaft seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)
Manufacturer: Sachs · Material: NBR · Surface: coated · Ø outside: 31.5 mm · Width: 3.5 mm · Ø inside: 14.96 mm · Place of use: Pinion shaft · Area of application: Standard · Temperature resistance (min.): -30 - 100 °C · Pony OEM number: A1134 · Sachs OEM no.: 0230 011 100 · Sachs OEM no.: 0230 011 200
8,50 EUR
Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)
Shaft seal type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Ø inside: 15 mm · Ø outside: 30 mm · Width: 7 mm · Temperature resistance (min.): -30 - 100 °C · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000
6,15 EUR
swiing® revival gasket set | Sachs 503 ADV wide screen Cat.
Manufacturer: swiing® revival parts · Material: Copper · Material: Fiber · Material: Rubber · Material: Sealing carton · Material: Sealing paper · Ø outlet inside: 23.3 mm · Number of components: 15 pcs · Hole spacing inlet: 38 mm · Hole pattern [mm]: 56 x 56 · Decompressor: No · Area of application: Standard
50,90 EUR
