Repair instructions for mopeds / mopeds with 2-speed Sachs 505 engine

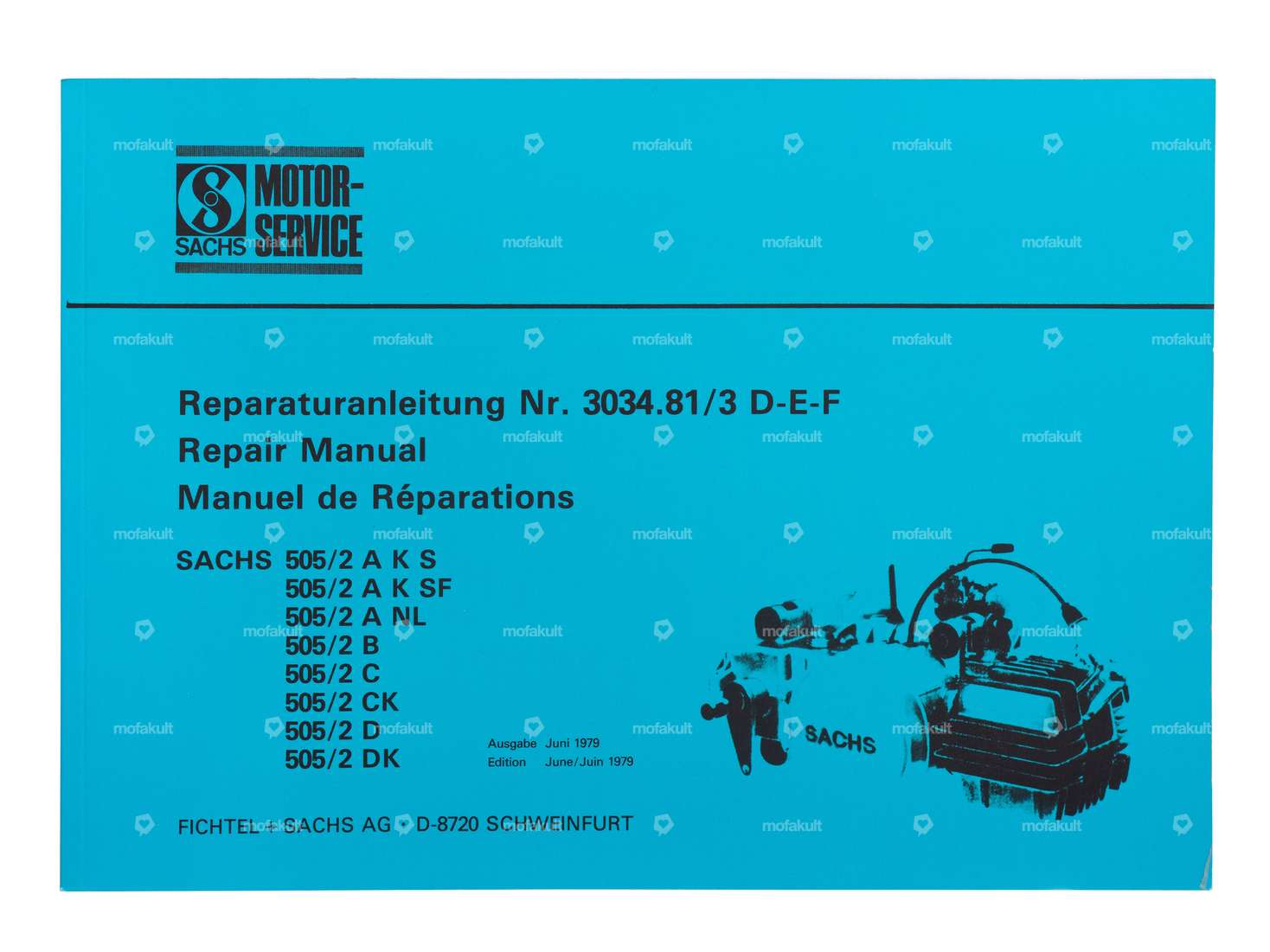

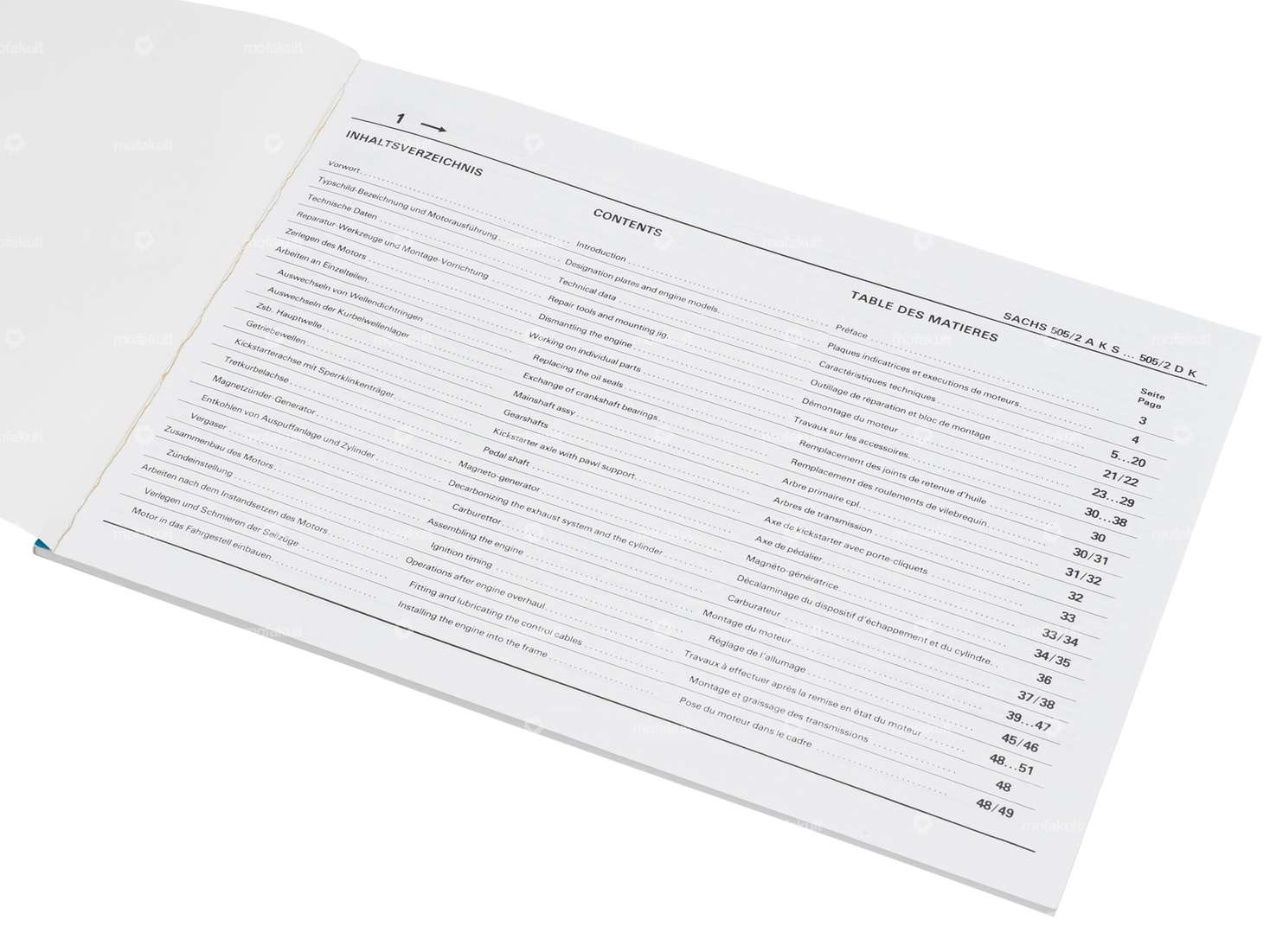

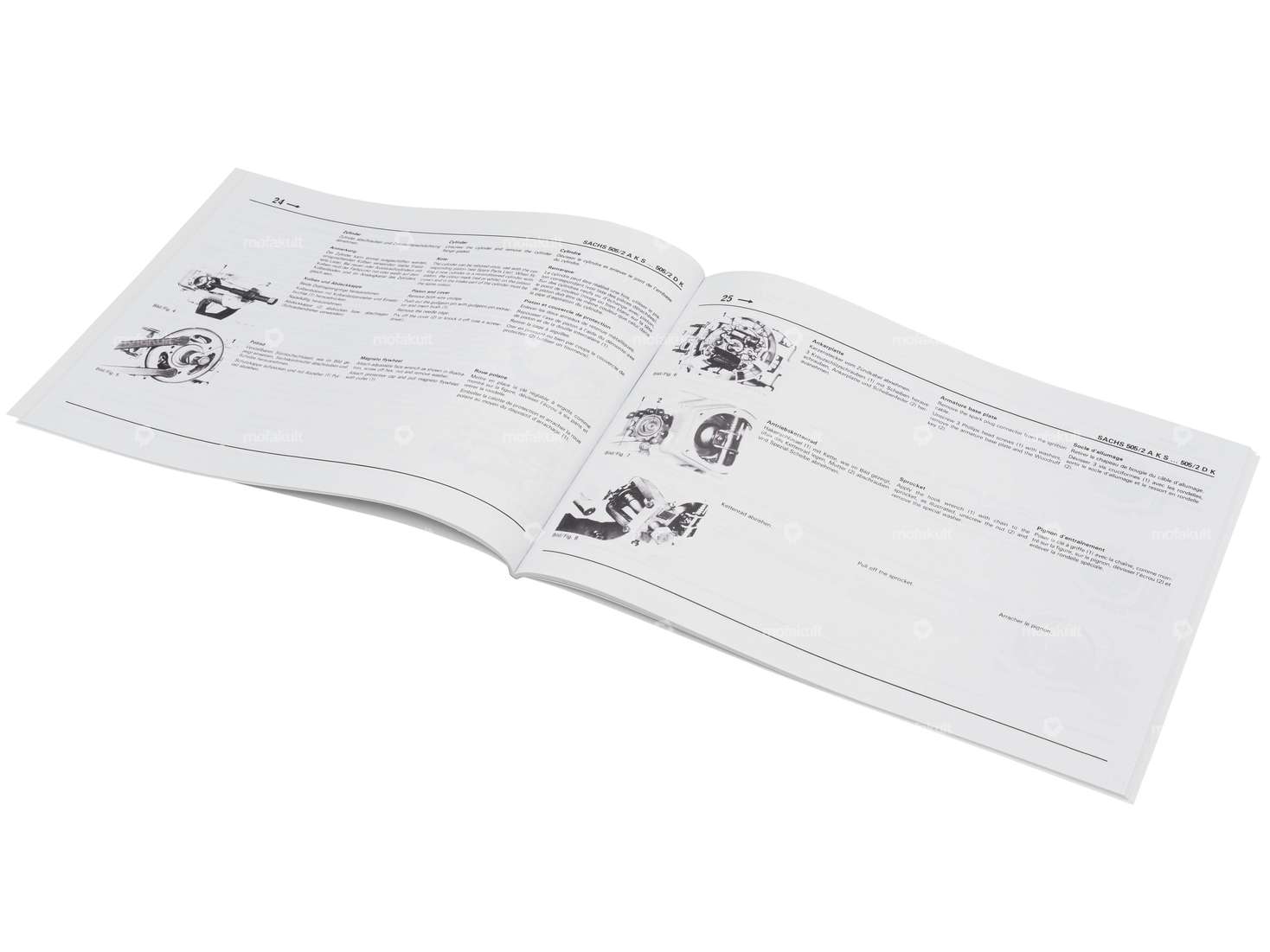

.These engines were installed in Hercules Prima 3 and 5 and Optima models, among others.
| Material | Paper |
| DIN format | A4 |
| Number of pages | 62 pcs |
| Language | German, English, French |
| Sachs | 505 (with pedal shaft) - 2A (HG) |
| Hercules | Great - 3, 5, Optima |
