Description

Spare parts catalog for your Piaggio Ciao, Boxer, Bravo moped / moped from the year 1980

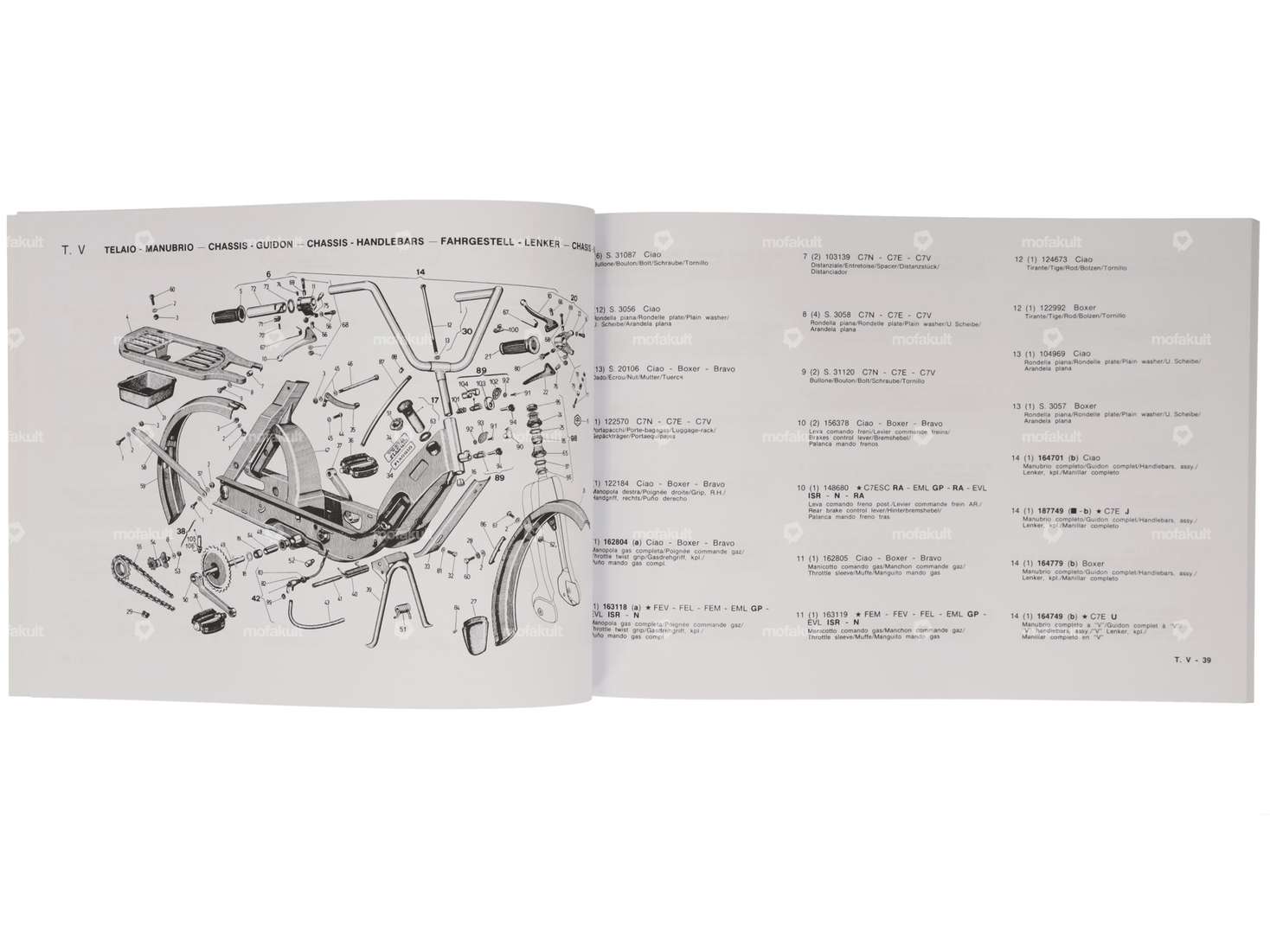

The complete mopeds were recorded in exploded drawings. Each individual component is marked with the part number, spare part number and assembly location.

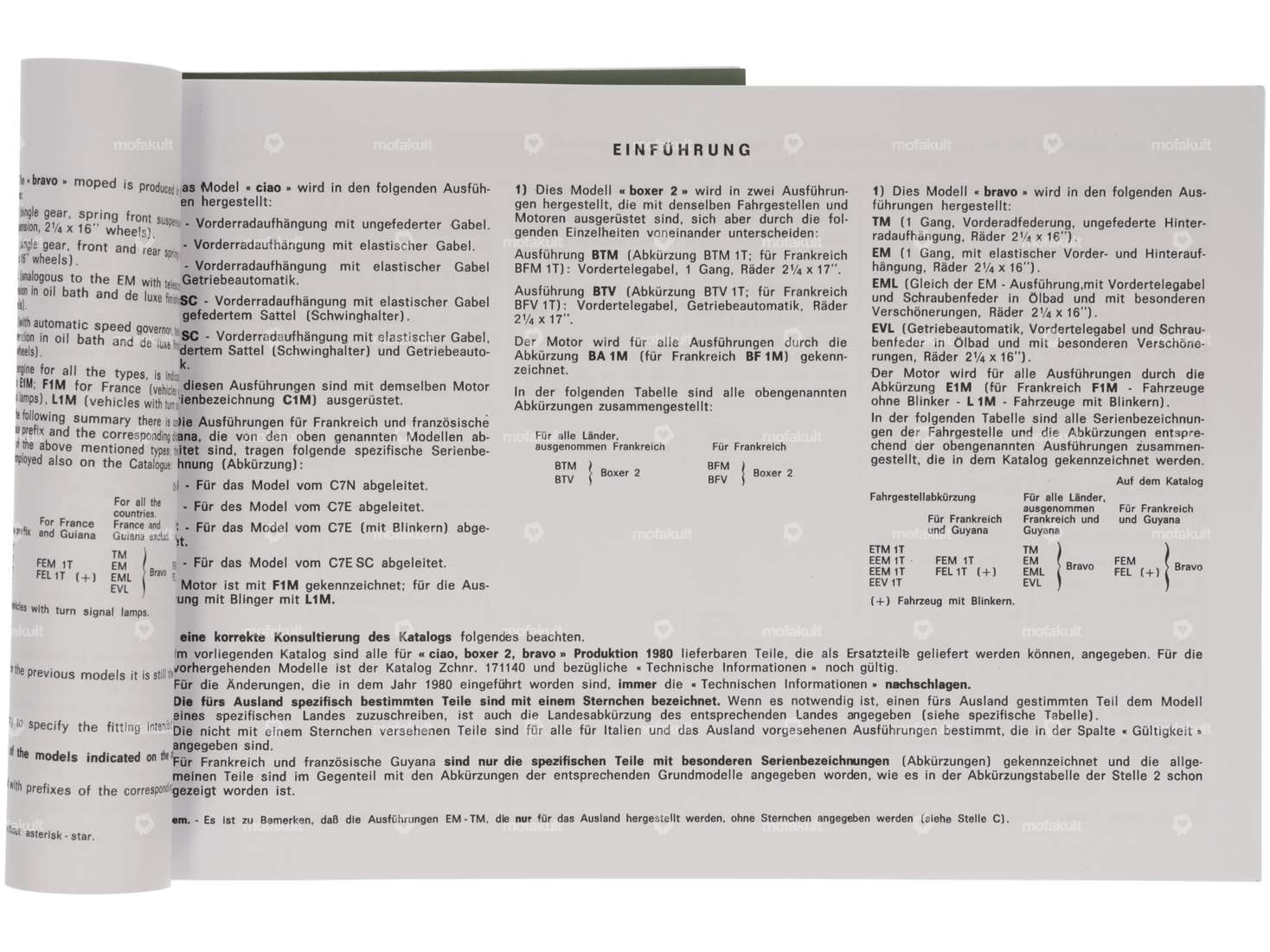

High-quality facsimile (reproduction) of the original edition with 120 interesting pages.

More operating instructions, spare parts catalogs and repair instructions can be found in the accessories section.

Details

Material	Paper
DIN format	A4
Number of pages	120 pcs
Language	German, English, Italian, French, Spanish

Suitable for the following models

Piaggio

Ciao

Bravo / Super Bravo

Boxer

Ratings
