Front wheel conversion kit with ball bearings suitable for the front Grimeca cast wheel (Snowflake) with 14 spokes on your Gilera CBA moped / moped.
The advantages of this conversion kit include improved stability, reduced vibrations and a longer bearing life.

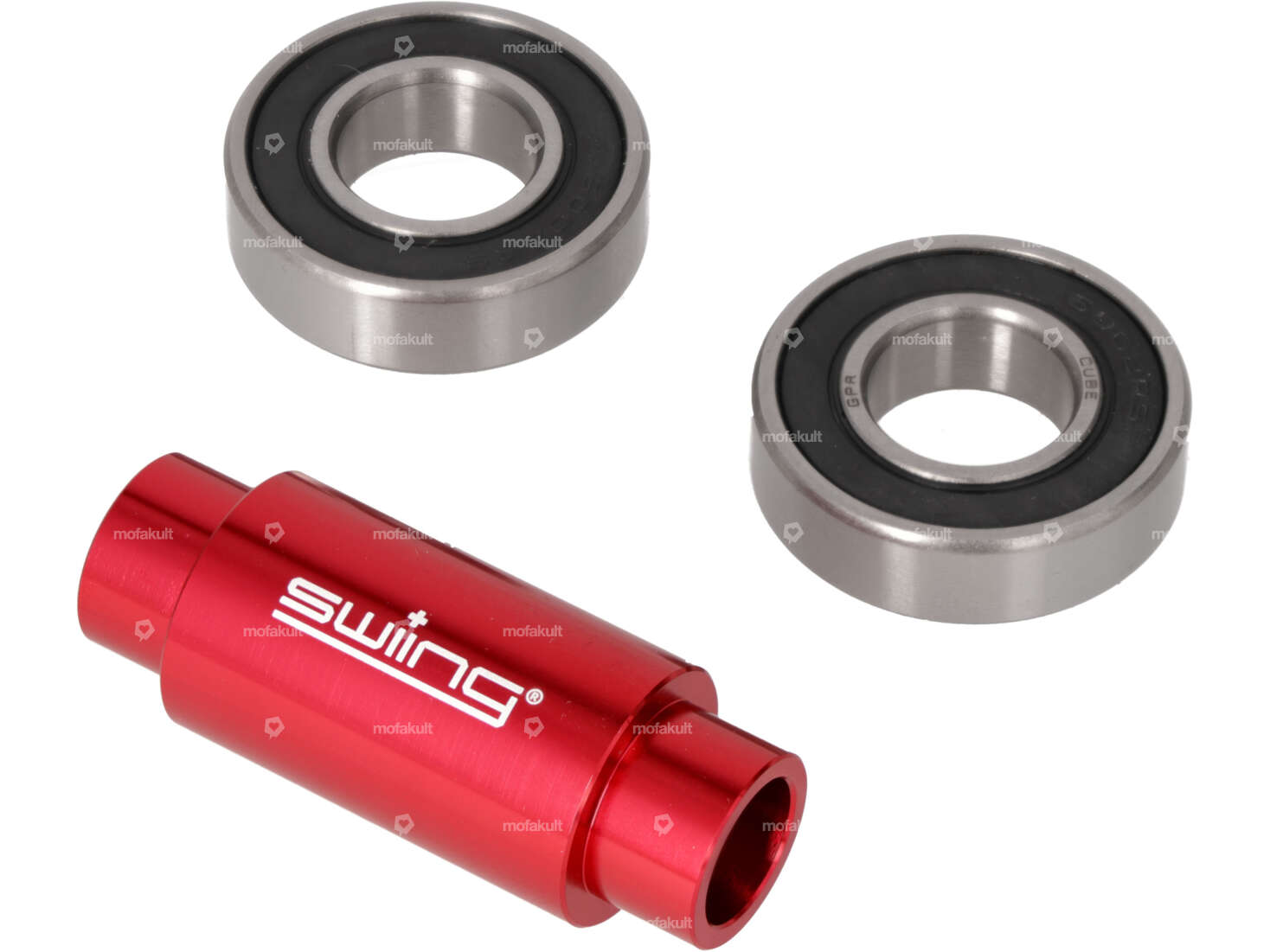

The set consists of two 6002 RS ball bearings and a red anodized aluminium spacer tube. The original 11 mm front axle can still be used.
Ø outer spacer tube: 20 / 14.9 mm
Total length of spacer tube: 52 mm
Ø inner spacer tube: 11.2 mm
Grooved ball bearing with dust cap:
Ø outer: 32 mm
Ø inner: 15 mm
Width: 9 mm
Exceptional product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® ingenious parts, CUBE |
| Ball bearing closed | Yes |
| Ø shaft | 15 mm |
| Material | Aluminum, Steel |
| Ø outside | 20 mm |
| Ø inside | 11.2 mm |
| Surface | anodized |
| Shank length | 9 mm |
| Total length | 52 mm |
| Piaggio | Gilera CBA |
