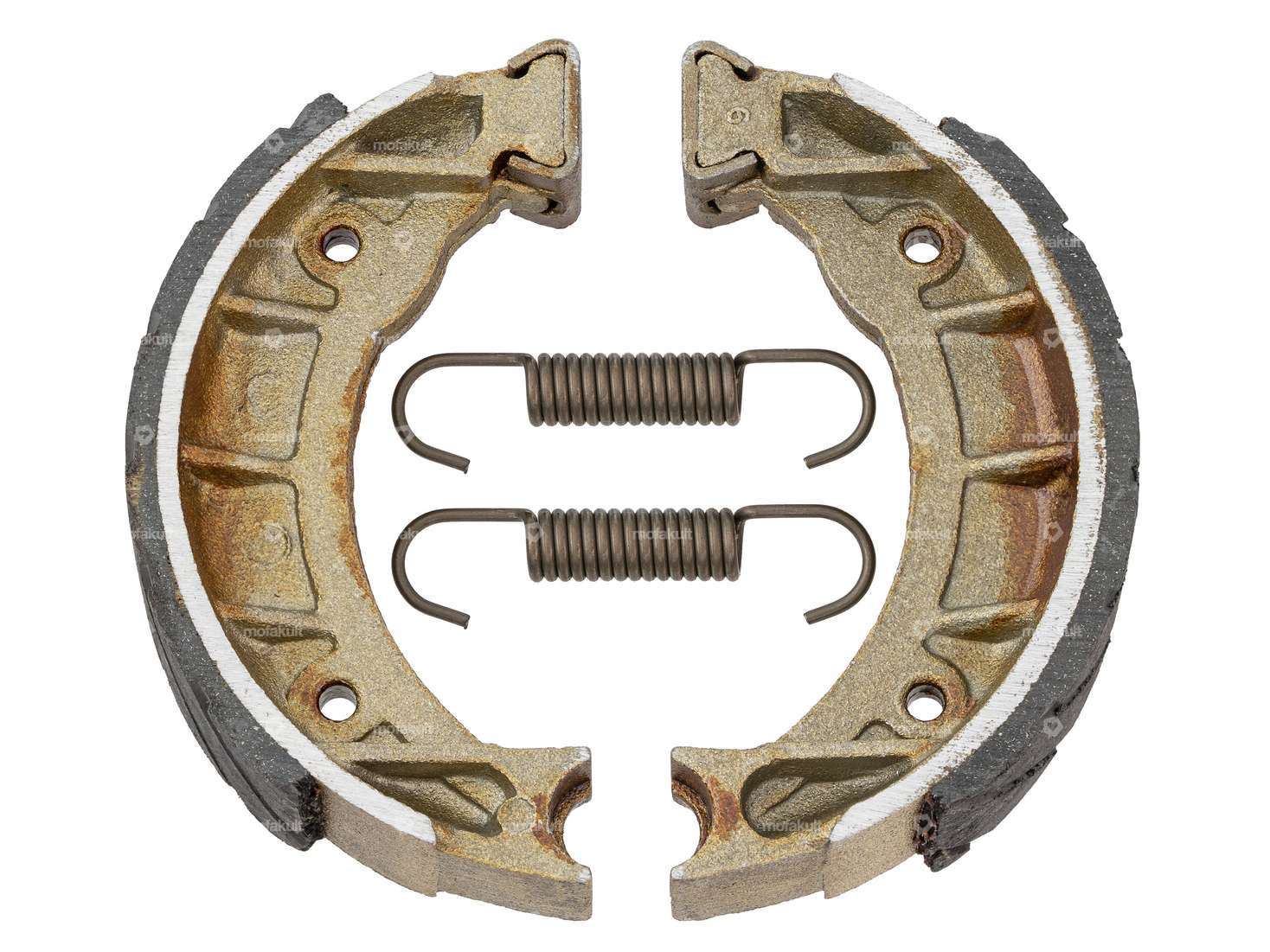

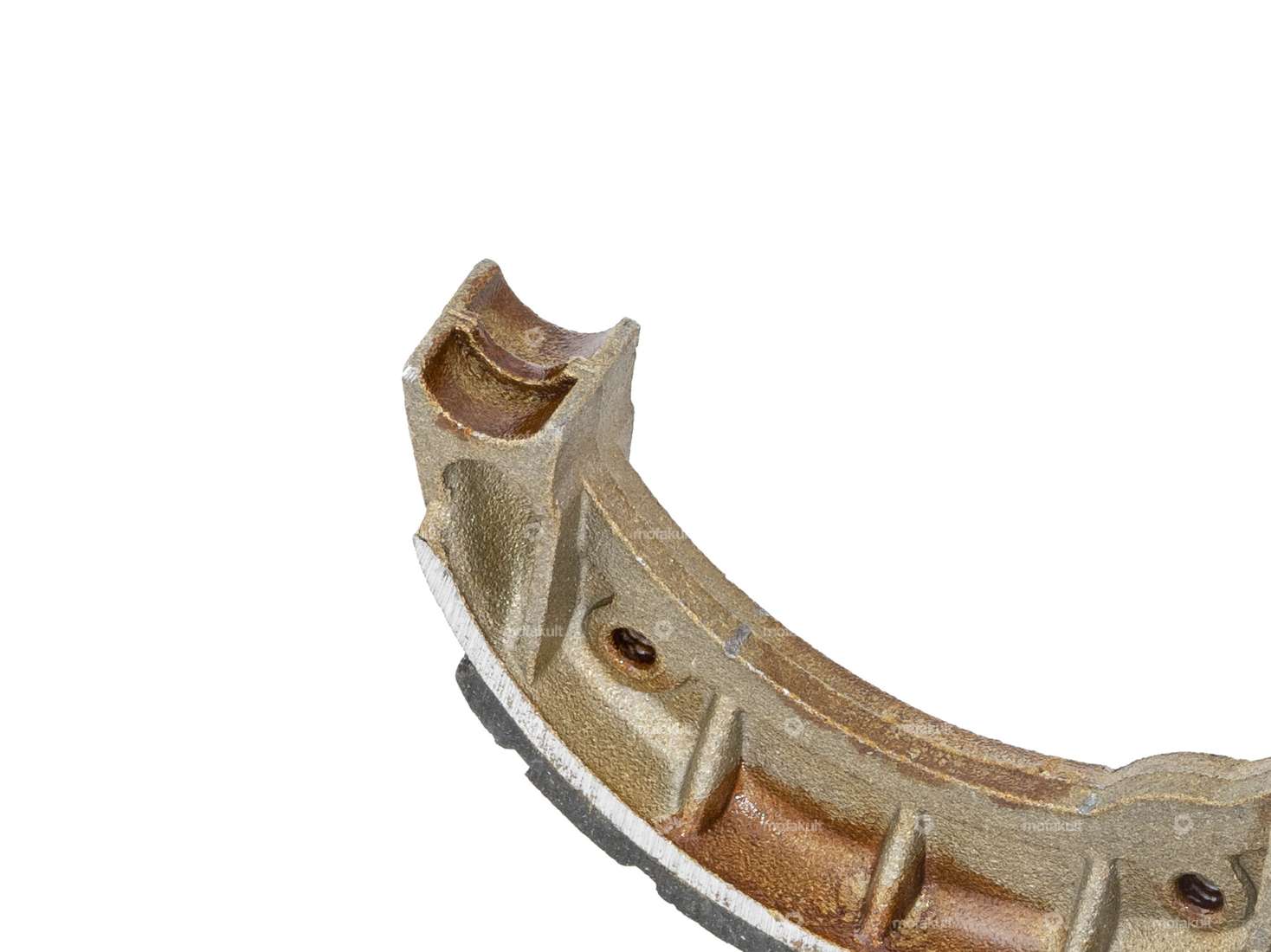

High-quality Ø 105x20 mm brake pads with return springs for drum brakes on cast iron front wheels for your Piaggio Ciao, Si and Bravo moped / moped.

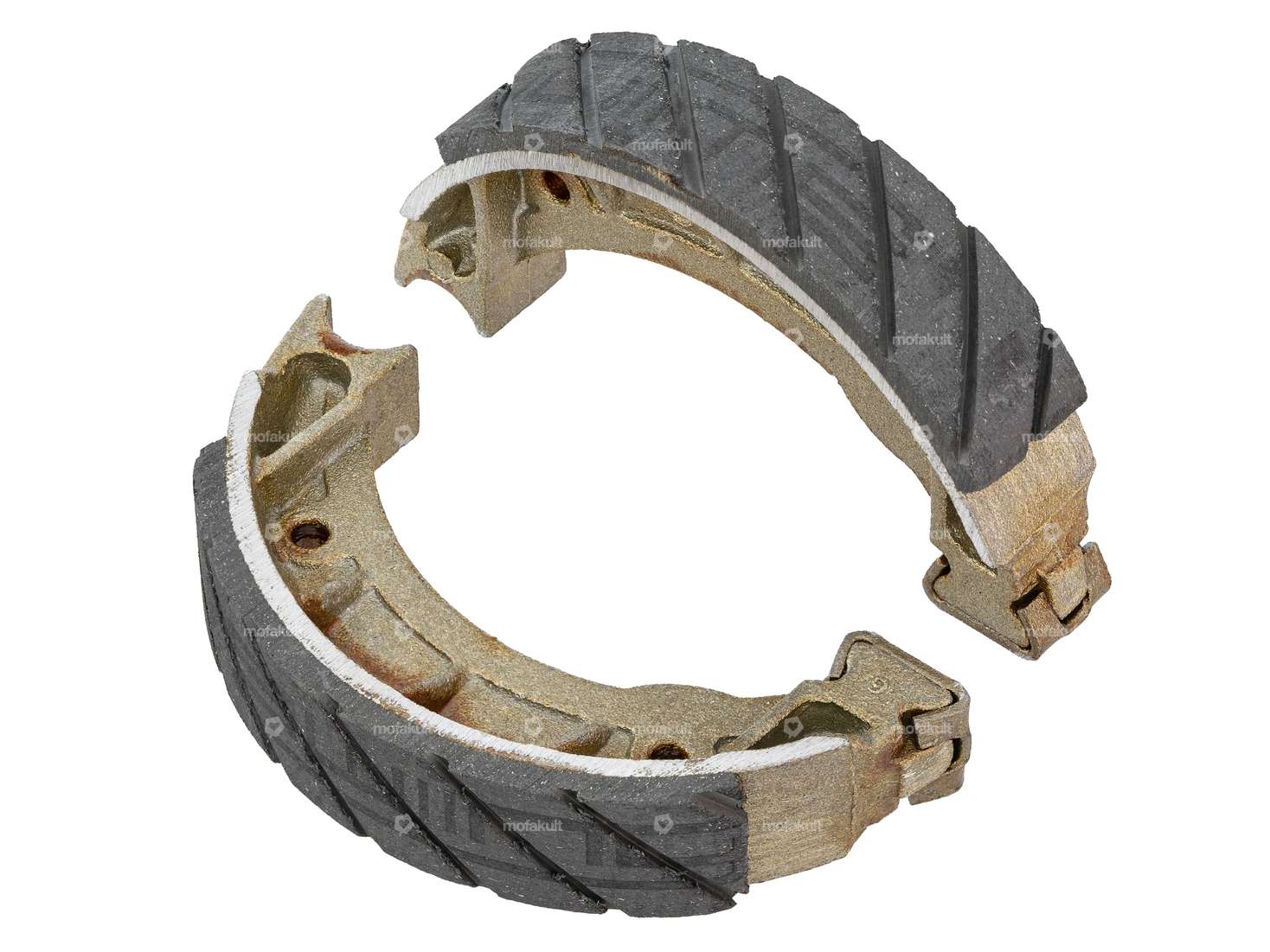

The pad is slotted at an angle. This ensures better heat and brake dust dissipation, resulting in an increased braking effect. Due to the uncompromising braking force, these brake pads are mainly used in racing applications.
Alternative brake pads, matching springs and appropriate cleaning agents and lubricants can be found in the accessories section.
Made by the quality brand swiing – swiss ingenious.
| Slotted | Yes |
| Manufacturer | swiing® ingenious parts |
| Ø drum | 105 mm |
| Number of springs | 2 pcs |
| Springs included | Yes |
| Width | 20 mm |
| Area of application | Racing |
| Piaggio | Ciao - PX, C24 Si Bravo / Super Bravo |
