Socket axle set with closed groove ball bearings (Ø 29 mm) for front cast hubs (Leleu) on your Puch moped / moped.
The threaded shaft set consists of a 165 mm long wheel axle, two special ball bearings and all required nuts and spacers.
The wheel axle set works with Leleu front wheel hubs, which are installed in cast rims.

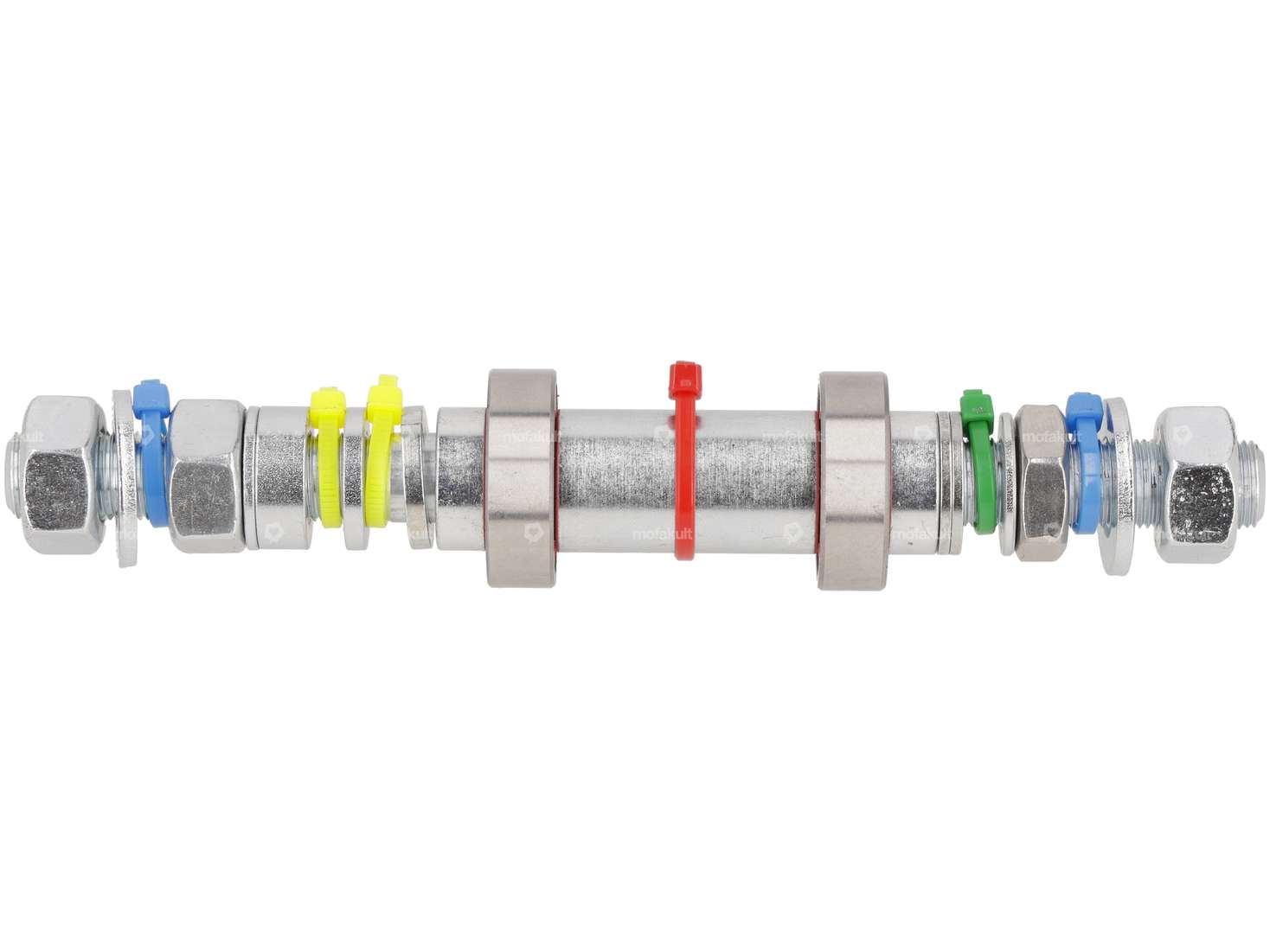

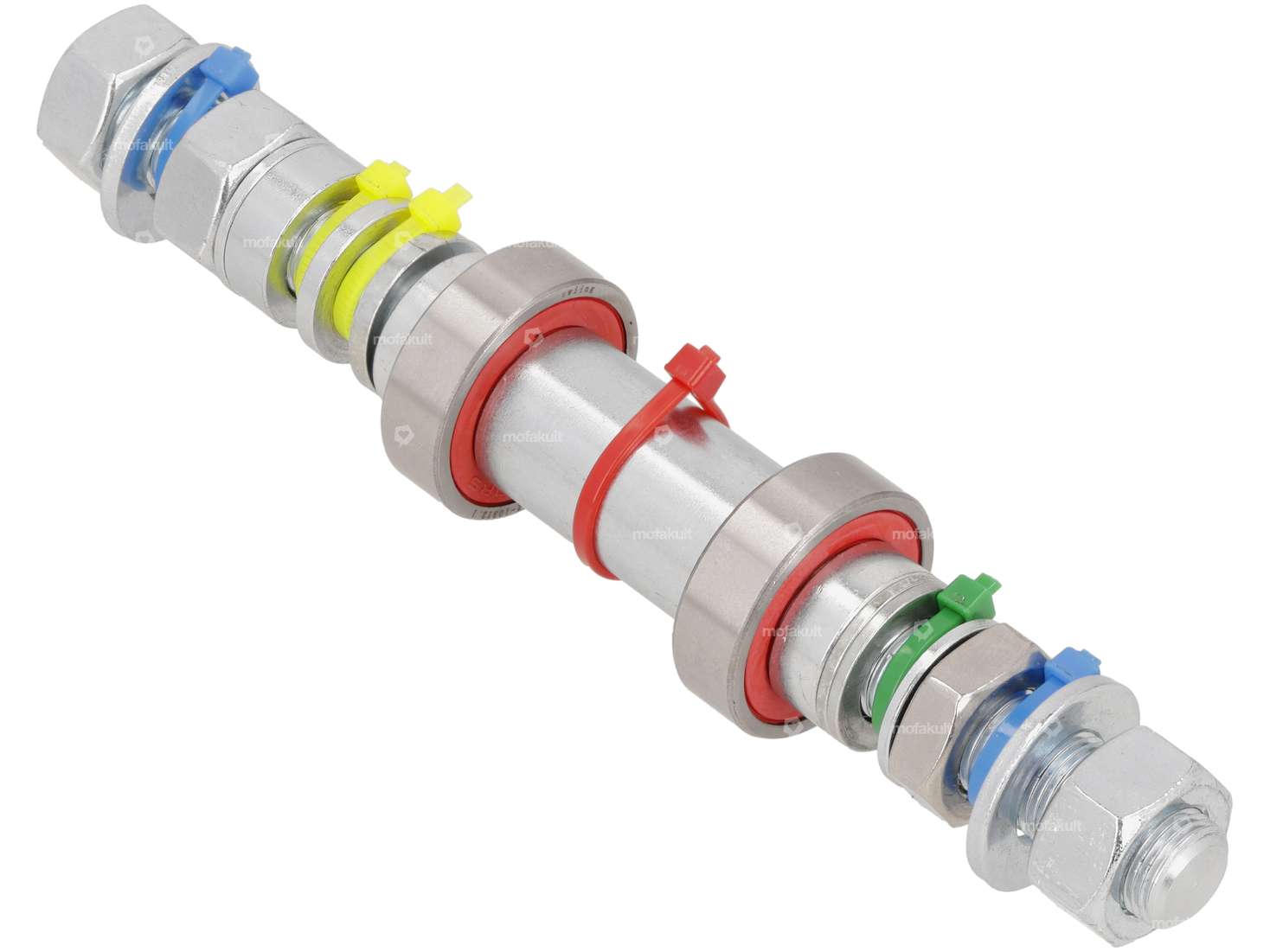

The cable ties show you where to fit what:
- Red cable tie: wheel hub
- green cable tie: brake anchor plate
- Yellow cable tie: Replacement disk for the speedometer drive (the disk is removed if a drive is fitted)
- Blue cable ties: fork braces
Note: When mounting the ball bearings, it is important to note that the long spacer bush between the two ball bearings must be clamped to ensure that the two bearings press with the inner ring on the bushing. If this is not observed, the ball bearings will inevitably jam.
| Surface | galvanized (blue) |
| Height | 9.9 mm, 5.9 mm |
| Manufacturer | swiing® ingenious parts |
| Total length | 165 mm |
| Material | Steel |
| Ø shaft | 11.95 mm |
| Ø inside | 12 mm |
| Width | 34.5 mm, 6.6 mm, 11 mm, 2.7 mm |
| Ø outside | 29.02 mm |
| Thread type | MF12x1 (fine pitch thread) |
| Shank length | 74.5 mm |
| Width across flats | 19 mm |
| Thread length | 50 mm, 40.5 mm |
| Ball bearing closed | Yes |
| Puch |
