swiing revival parts transparent

For: Sachs

16046

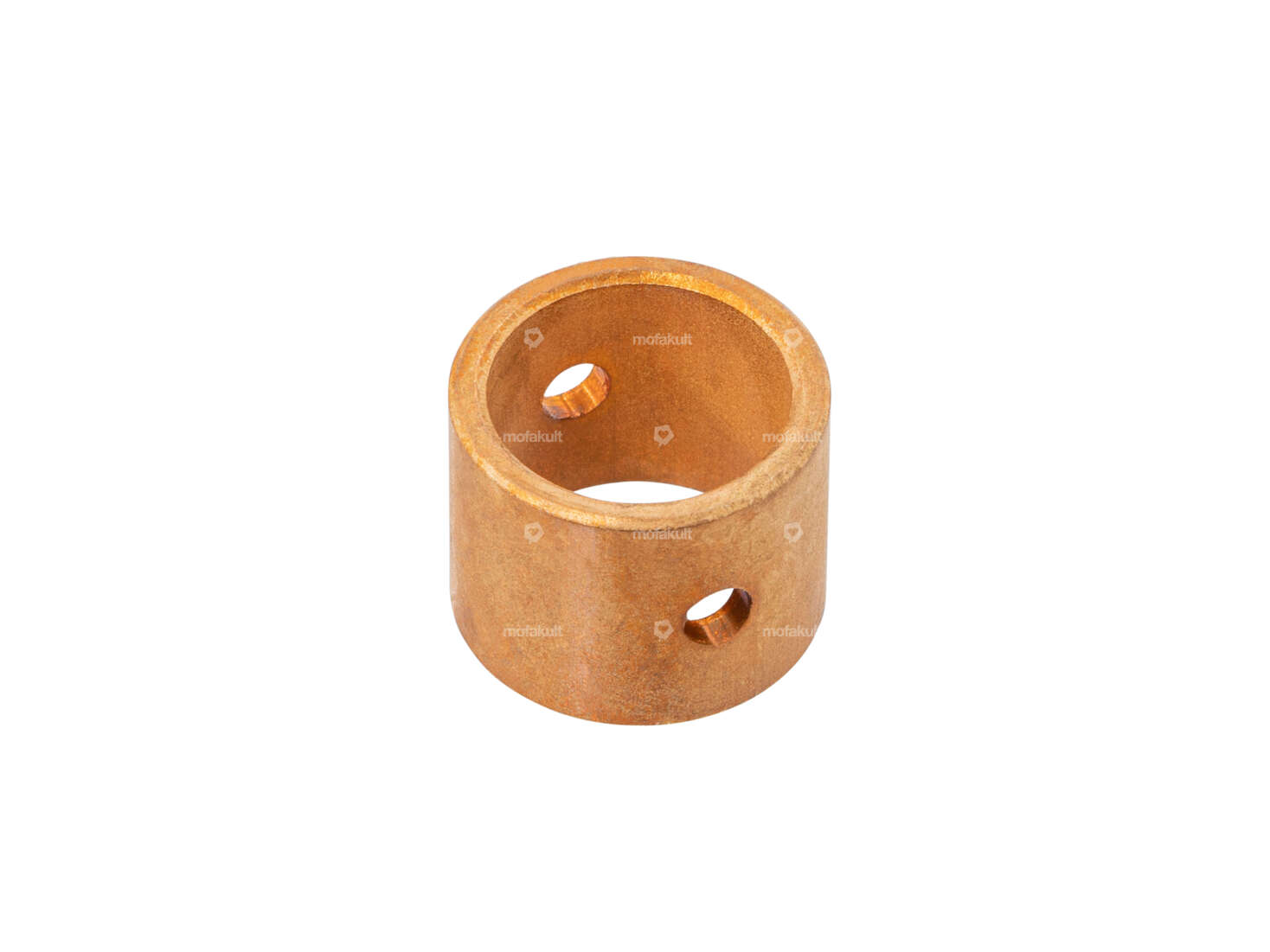

swiing® revival connecting rod bushing 12/15.05/12 | Sachs (A1153)

rating iconrating iconrating iconrating iconrating icon
No reviews
  • − 11% from 10 Pieces

    13,50 EUR per pc.

15,10 EUR

Incl. 19% VAT.

Description

Büchse for connecting rods from original Sachs crankshafts.

Outer diameter: 15.05 mm
Nominal inner diameter: 12 mm
Ø inner (raw): 11.9 mm
Length: 12 mm

Attention: To ensure a perfect fit of the piston pin, it is essential to ream the bushing to the correct size due to shrinkage after pressing in.
Suitable reamers can be found under accessories.

Nostalgic product for the highest demands of the quality brand swiing®.

Original Sachs spare part number: A1153

Nominal diameter inside12 mm
Manufacturerswiing® revival parts
Materialspecial bearing bronze
Ø inside12 mm
Ø outside15.05 mm
Total height12 mm
Pony OEM numberA1153
Sachs OEM no.0232 038 015
Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

502 (Saxonette) - AL , AML

50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS)

50/3

503 - AAL , 2AL / 2BL
