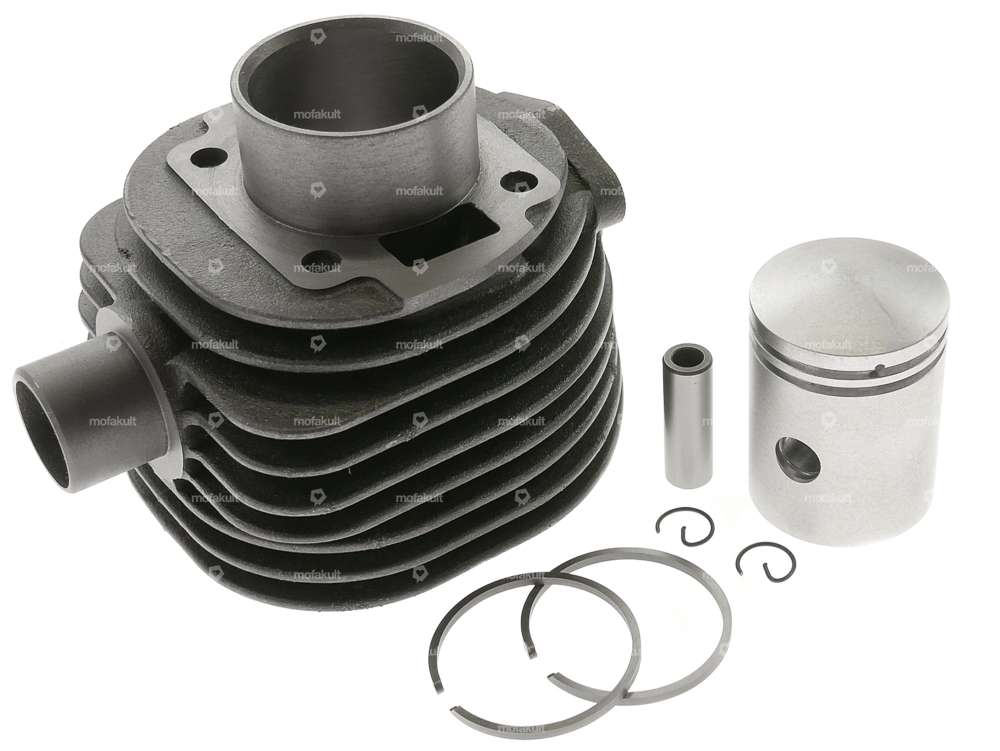

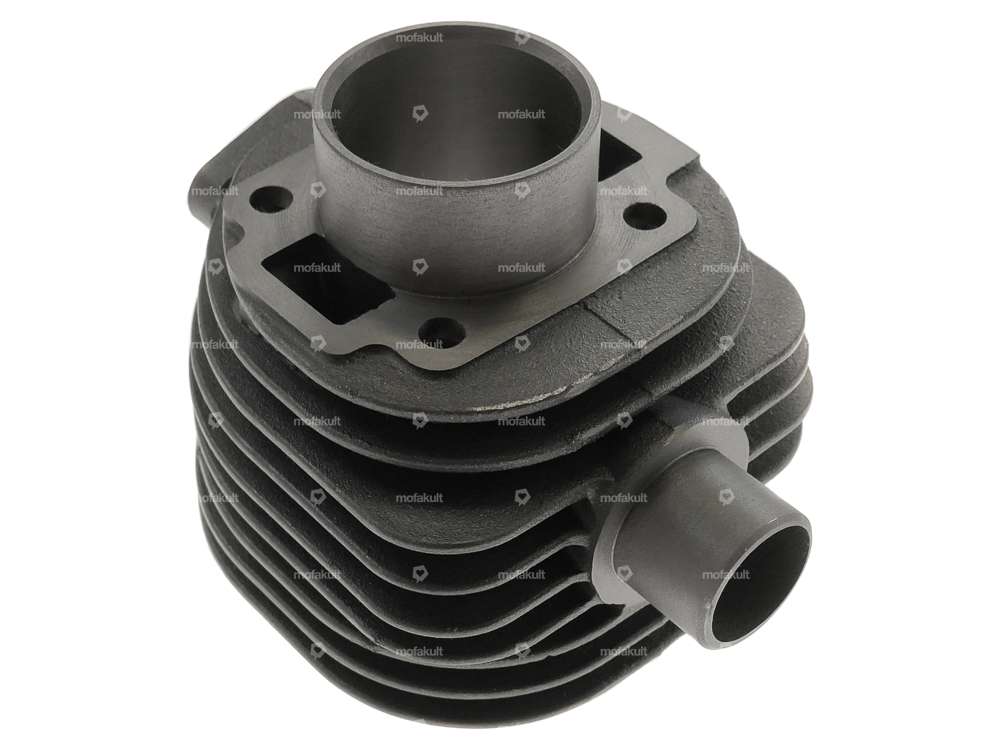

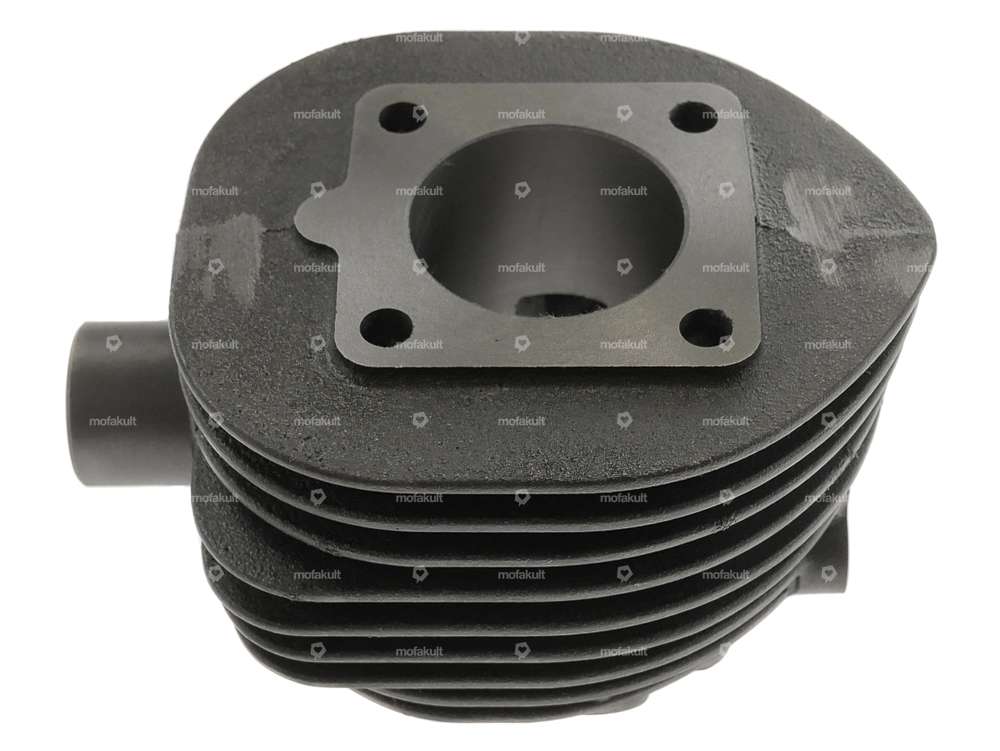

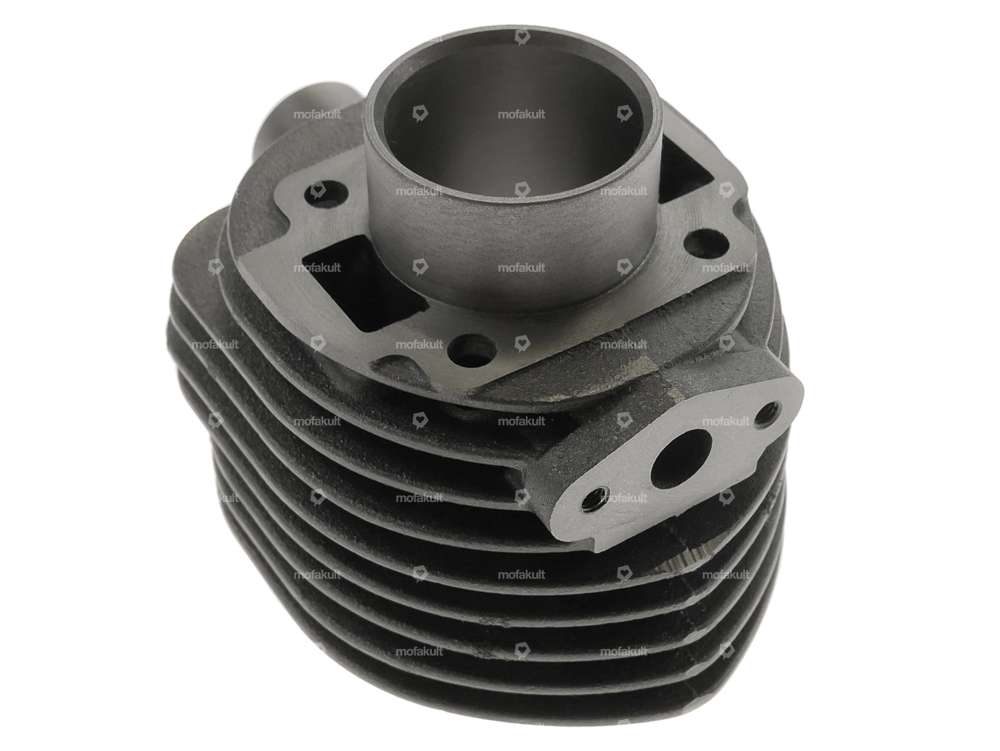

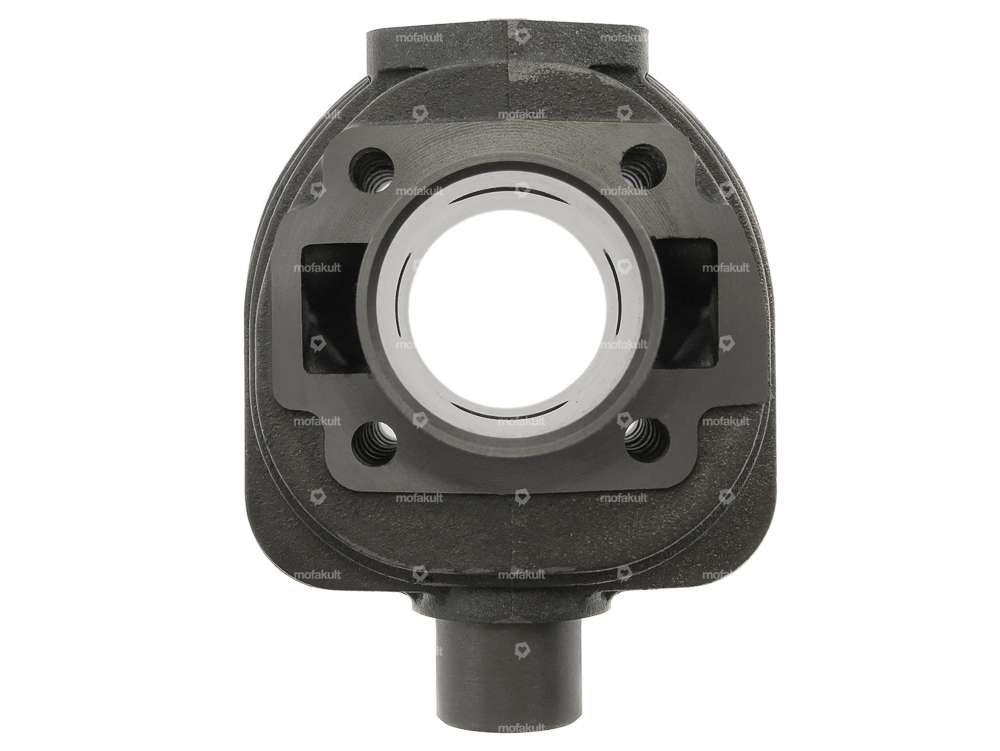

38 mm cylinder suitable for ILO / JLO mopeds.
Ø Connection exhaust: 24.85 mm
Hole spacing threaded intake manifold: 31 mm
Distance between stud bolt holes diagonal: 60 mm (square)
The piston is fitted with the arrow pointing towards the outlet
.Attention: This cylinder does not fit the Swiss engines, the one stud bolt hole must be adapted as this is slightly offset on the CH engines.
The gaskets are not included, scope of delivery according to figure 1.
| Nominal diameter | 38 mm |
| Material | Gray cast iron |
| Displacement | 50 ccm |
| Area of application | Standard |
| Ø cylinder neck | 44 mm |
| Surface | sandblasted |
| Ø Outlet outside | 24.85 mm |
| Ø piston pin (B) | 10 mm |
| Number of fixing points | 4 pcs |
| Outlet type | clamped |
| Hole pattern [mm] | 42 x 42 |
| Camouflaged | No |
| Hole spacing inlet | 31 mm |
| ILO / JLO |
Ratings
Explore categories from Cylinder
Moped fans also bought
DMP front fender black (new model) | Tomos A35, Classic
Material: Steel · Color: black · Surface: varnished · Folding the ends: folded · Total length over ends: 490 mm · Scope: 610 mm · Wide mudguard profile: 90 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 150 mm · Mounting type: Nuts & bolts
52,40 EUR

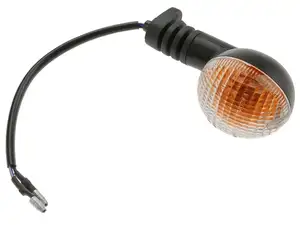

Blinker left front / right rear | Tomos
