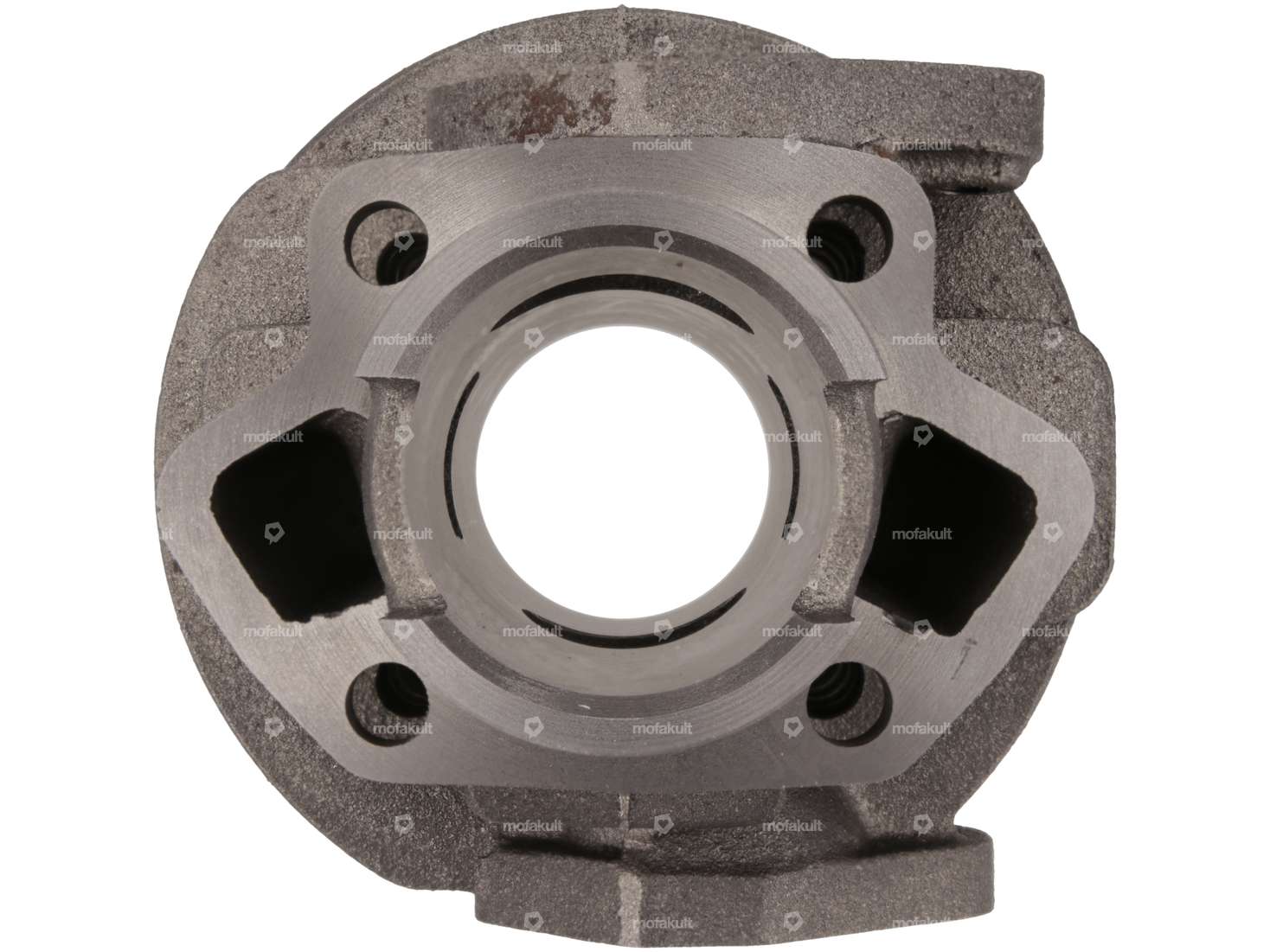

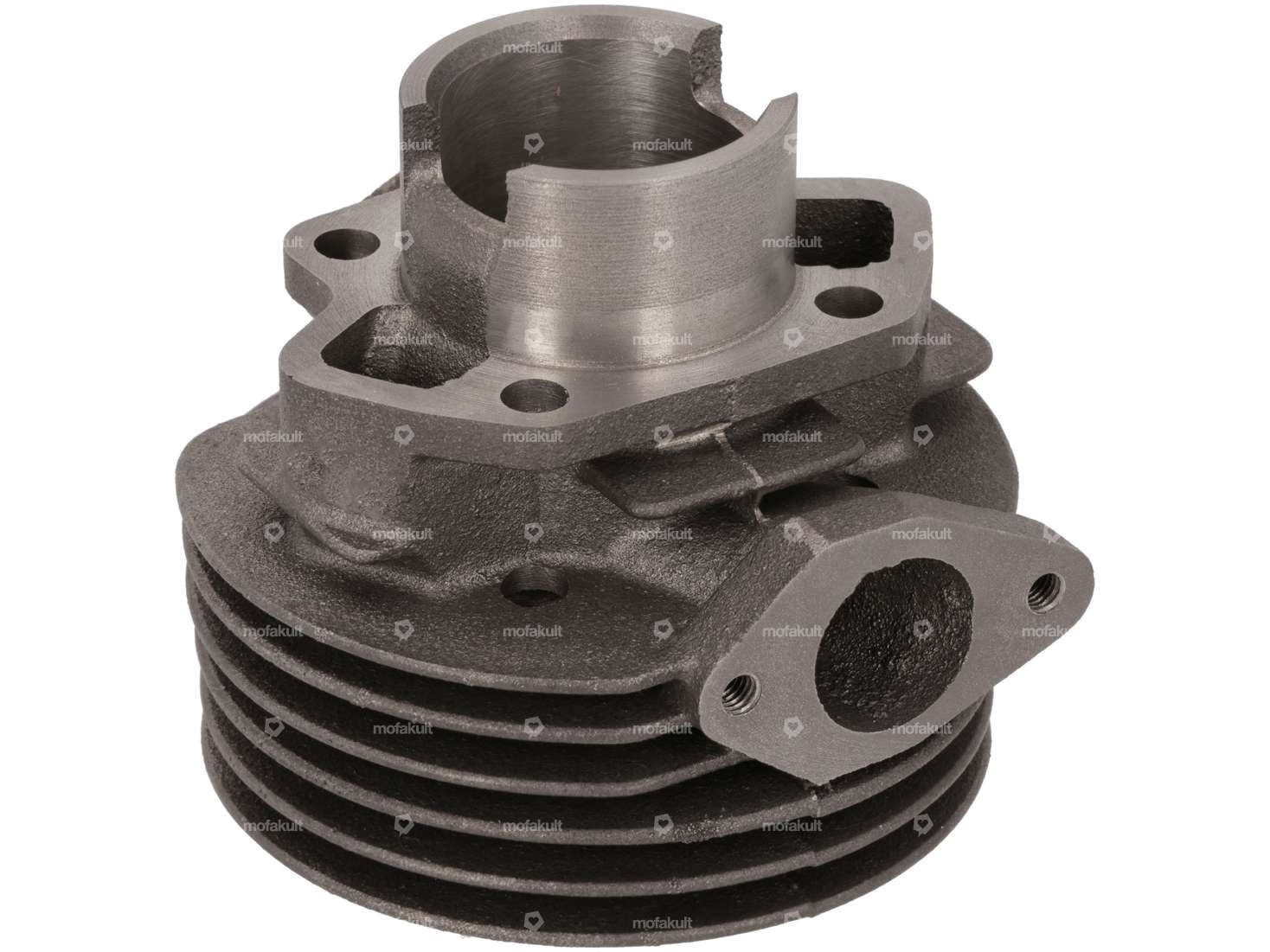

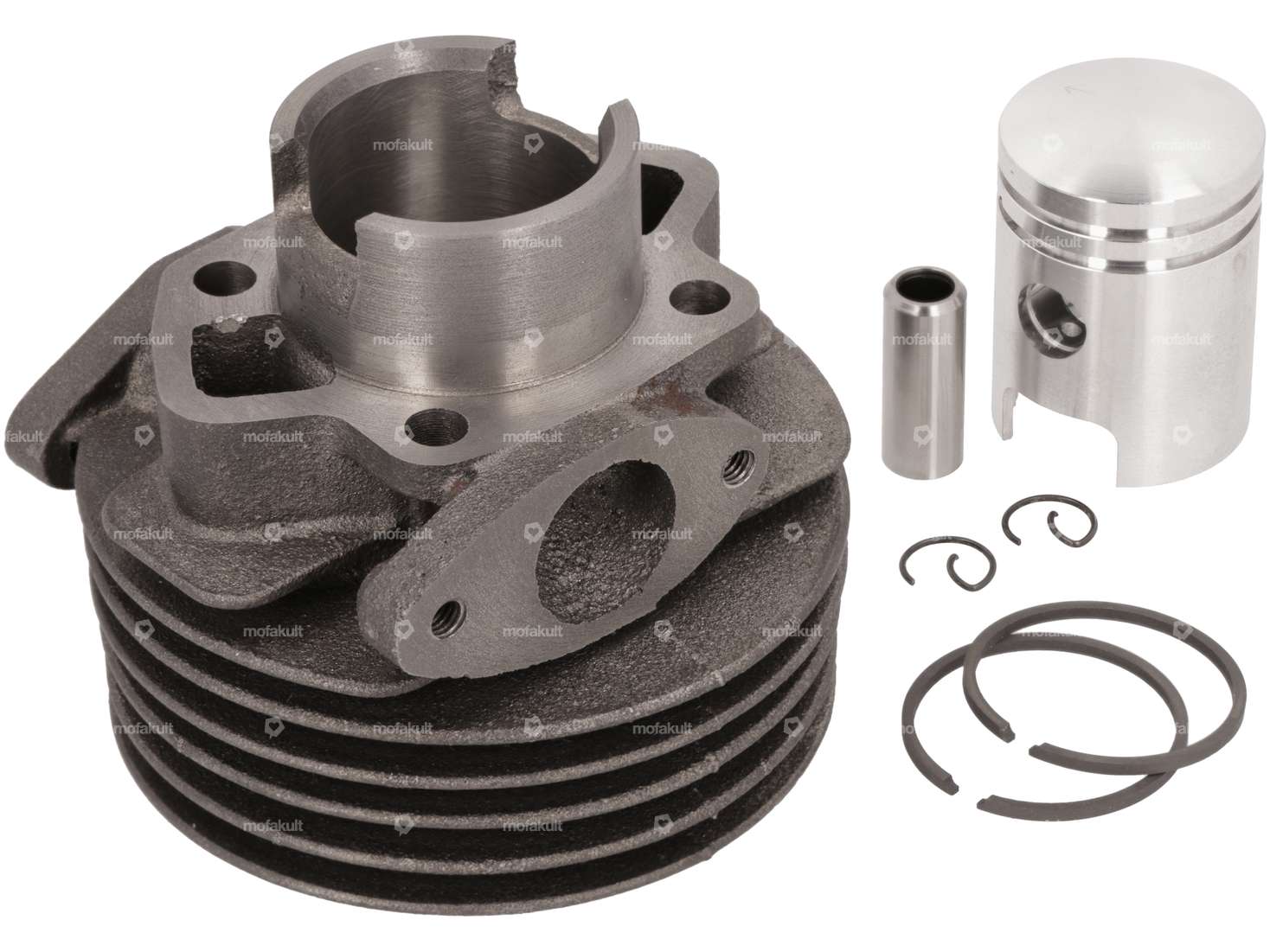

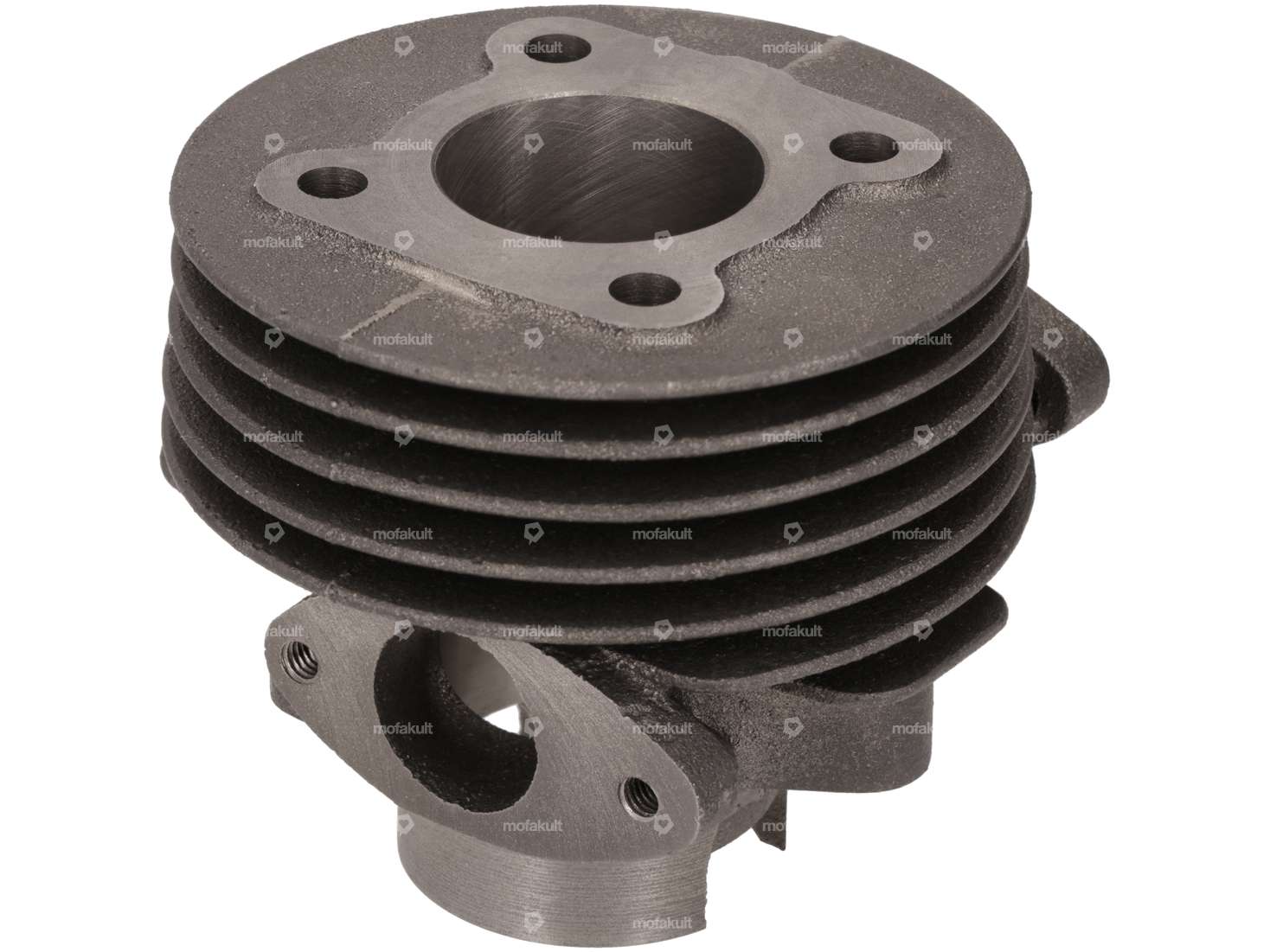

Complete cast iron cylinder set with 50 cc displacement for your Puch DS50R, DS60R, VZ50R, MC50 small motorcycle
.In addition to the piston with two piston rings, the scope of delivery also includes the pin and the necessary clips.
Note: This cast cylinder is not suitable for normal 2-, 3- or 4-speed engines and can only be used on R engines.
We recommend breaking the sharp edges and blowing out the cylinder before installation, as there may still be chip residue from production.
You can find more engine parts in the accessories section.
| Nominal diameter | 43 mm |
| Material | Gray cast iron |
| Displacement | 50 ccm |
| Ø cylinder neck | 48 mm |
| Ø outlet inside | 22 mm |
| Ø Inlet inside | 22 mm |
| Hole spacing inlet | 44 mm |
| Inlet window | 44 x 44 |
| Ø piston pin (B) | 12 mm |
| Thread inlet | M6x1 (standard thread) |
| Outlet type | straight |
| Hole spacing outlet | 49 mm |
| Thread outlet | M6x1 (standard thread) |
| Area of application | Standard |
| Puch | 3-speed VSD, DS, VZ, MC |
