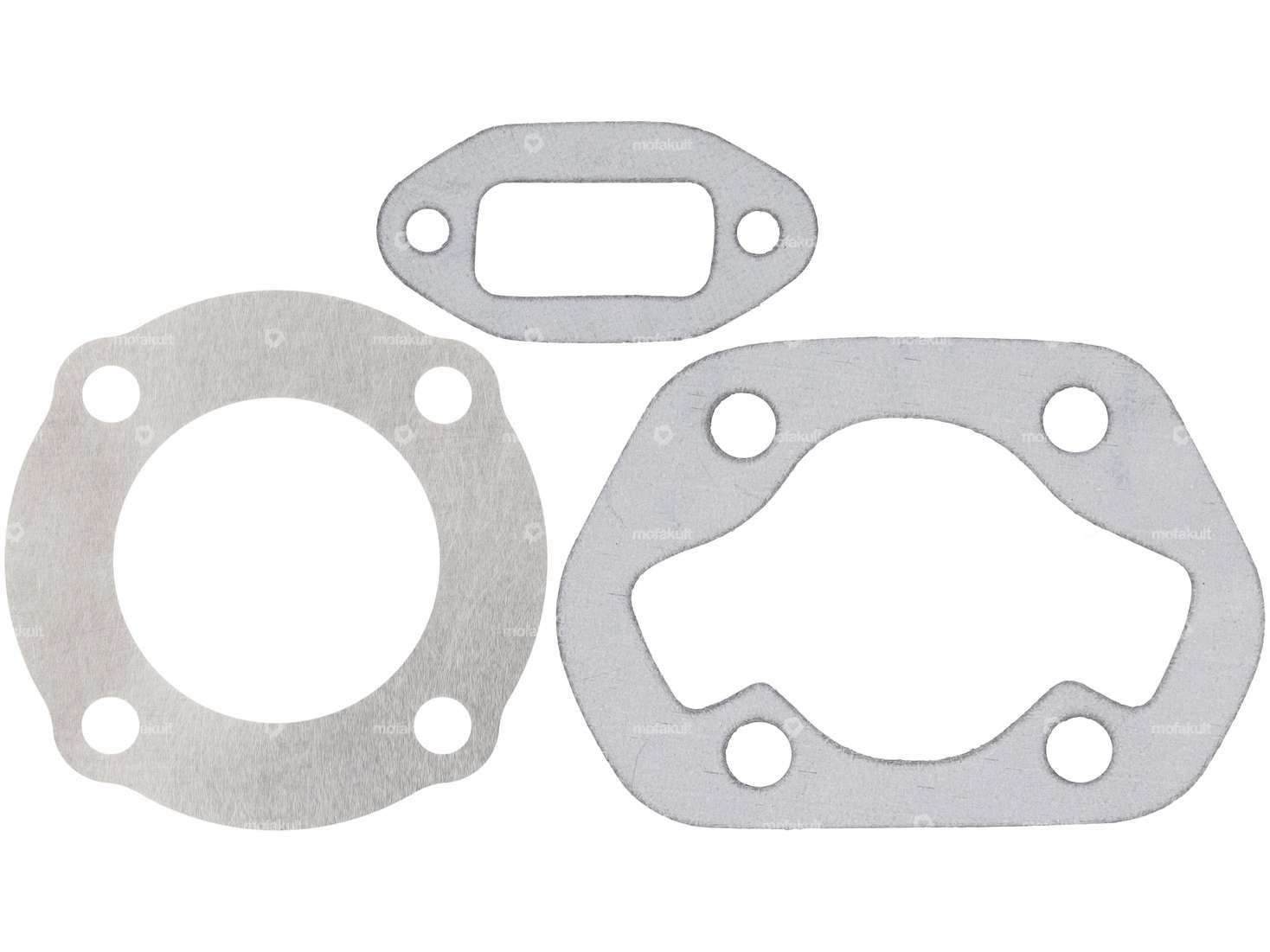

45 mm gasket set cylinder 3-piece | Zündapp

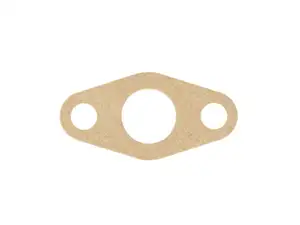

0.45 mm inlet seal oil paper (32 mm hole spacing)

Place of use: Admission · Material: Oiled paper · Ø outlet inside: 14.5 mm · Thickness: 0.45 mm · Hole spacing inlet: 32 mm

Intermediate flange cylinder Athena AJH Puch

Color: black-matt · Material: Plastic · Hole pattern [mm]: 60 x 40 · Number of fixing points: 4 pcs · Mounting type: Screws · Area of application: Tuning

GPO 43.5 mm cylinder head tuning Polini new version | Puch

Material: Aluminum · Total length: 135 mm · Height: 55 mm · Number of fixing points: 4 pcs · Manufacturer: GPO · Ø cylinder: 43.5 mm · Width: 140 mm · Area of application: Tuning · Decompressor: No

Nut left-hand thread M21x1 galvanized

Material: Steel · Height: 4 mm · Surface: galvanized (blue) · Nut type: Hexagon flat nut · Drive: External hexagon · Thread type: MF21x1 LH (fine/left-hand thread) · Width across flats: 26 mm · Strength class: 8

Outlet gasket 18 - 22 mm metal ring

Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Ø mounting hole: 6.7 mm · Ø inside: 22 mm · Thickness: 2 mm · Number of fixing points: 2 pcs · Hole spacing: 38 - 42.5 mm

GPO piston rings 41 mm (pair) | Sachs

Nominal diameter: 41 mm · Height: 1.45 mm · Manufacturer: GPO · Diameter: 41 mm · Thick piston ring: 1.75 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS)

Gasket set Zündapp 50 ccm

Manufacturer: Made in Netherlands · Ø cylinder: 39 mm · Hole spacing inlet: 40 mm · Number of components: 3 pcs · Area of application: Standard · Decompressor: Yes

swiing® revival gasket cylinder head 38 mm cylinder | Sachs 503, 502, 50/2, 50/3, 50/4

Nominal diameter: 38 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Place of use: Cylinder head · Area of application: Standard · Ø cylinder: 38 mm · Thickness: 0.2 mm · Hole pattern [mm]: 37 x 37
