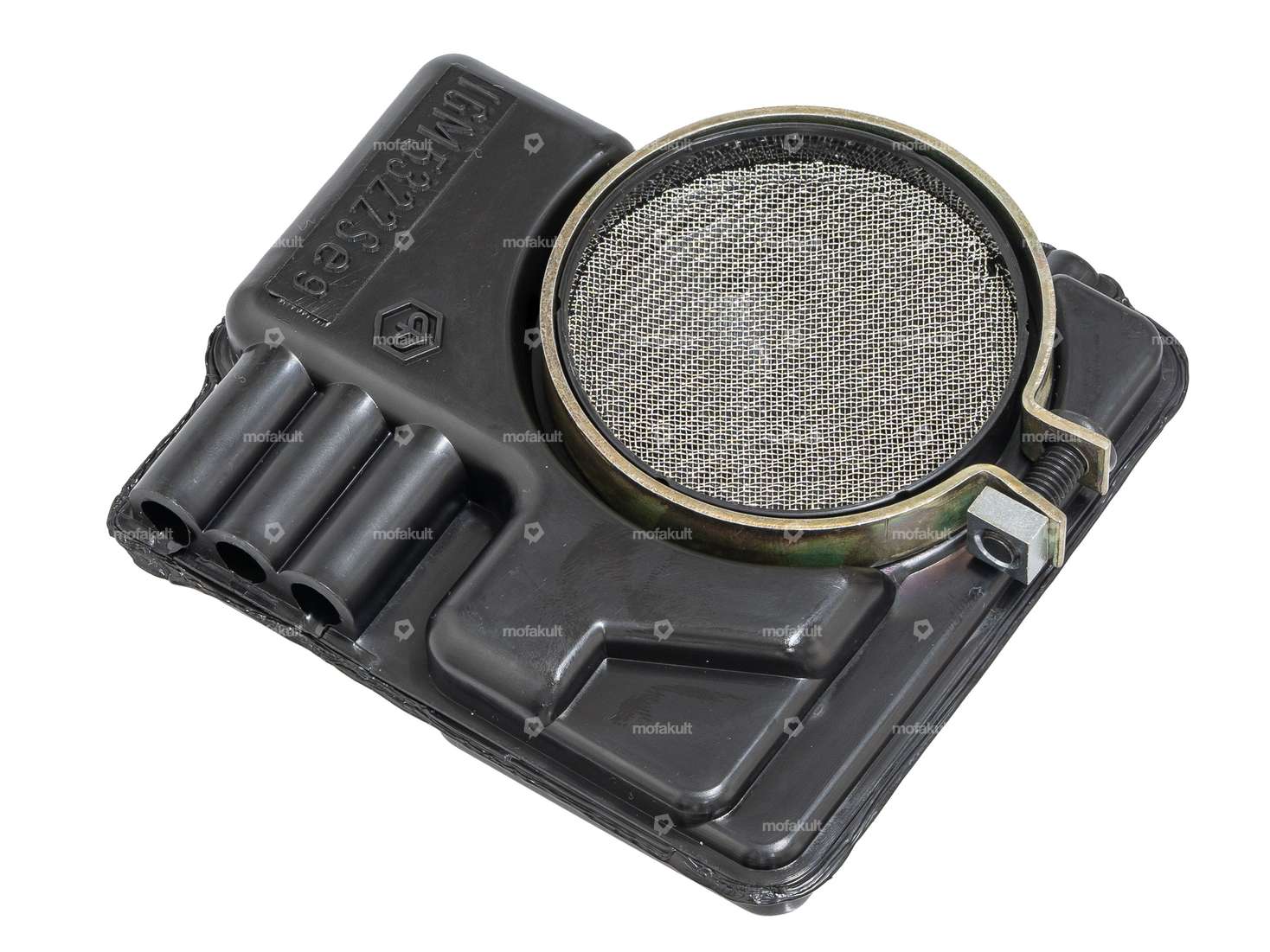

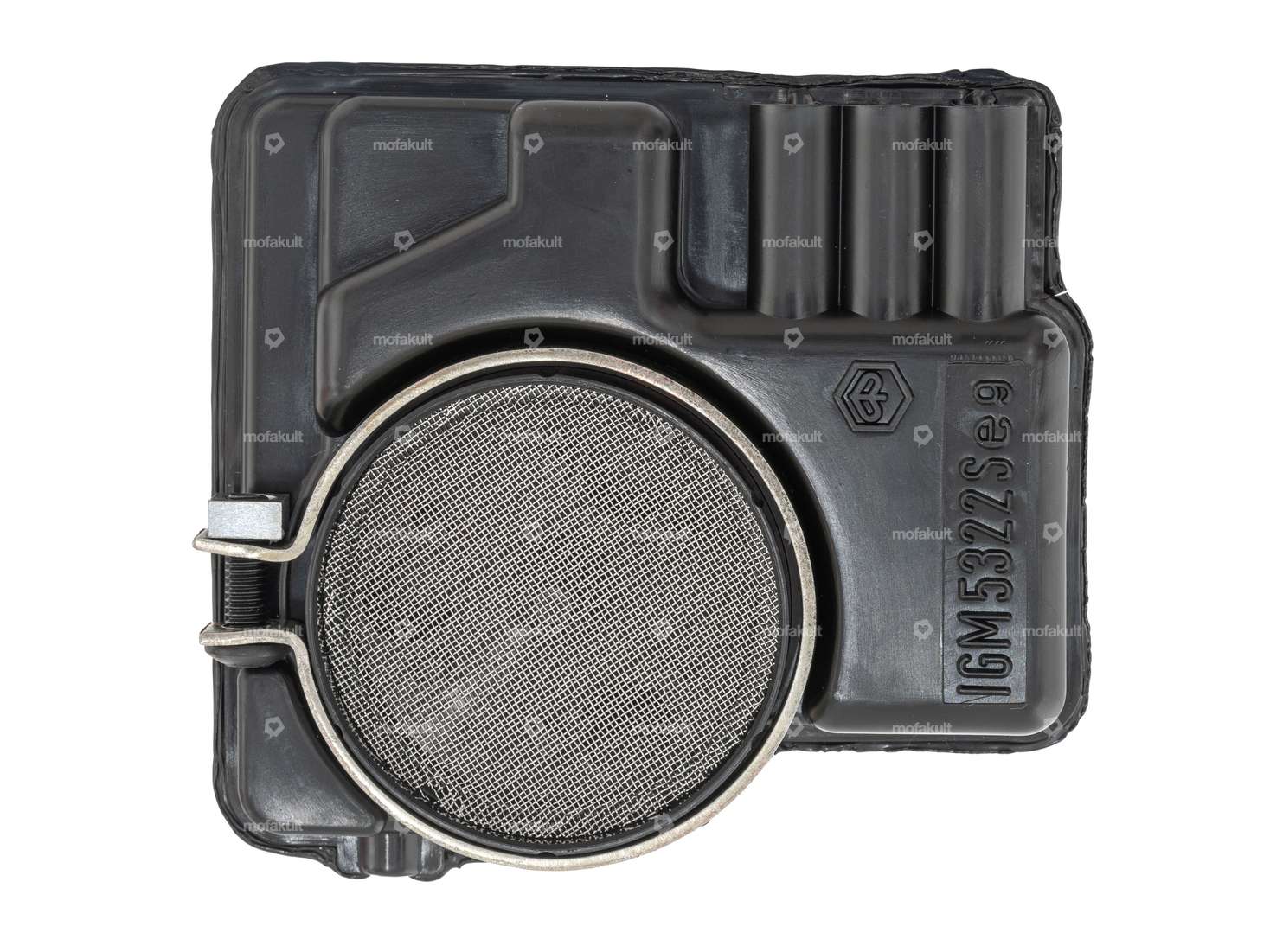

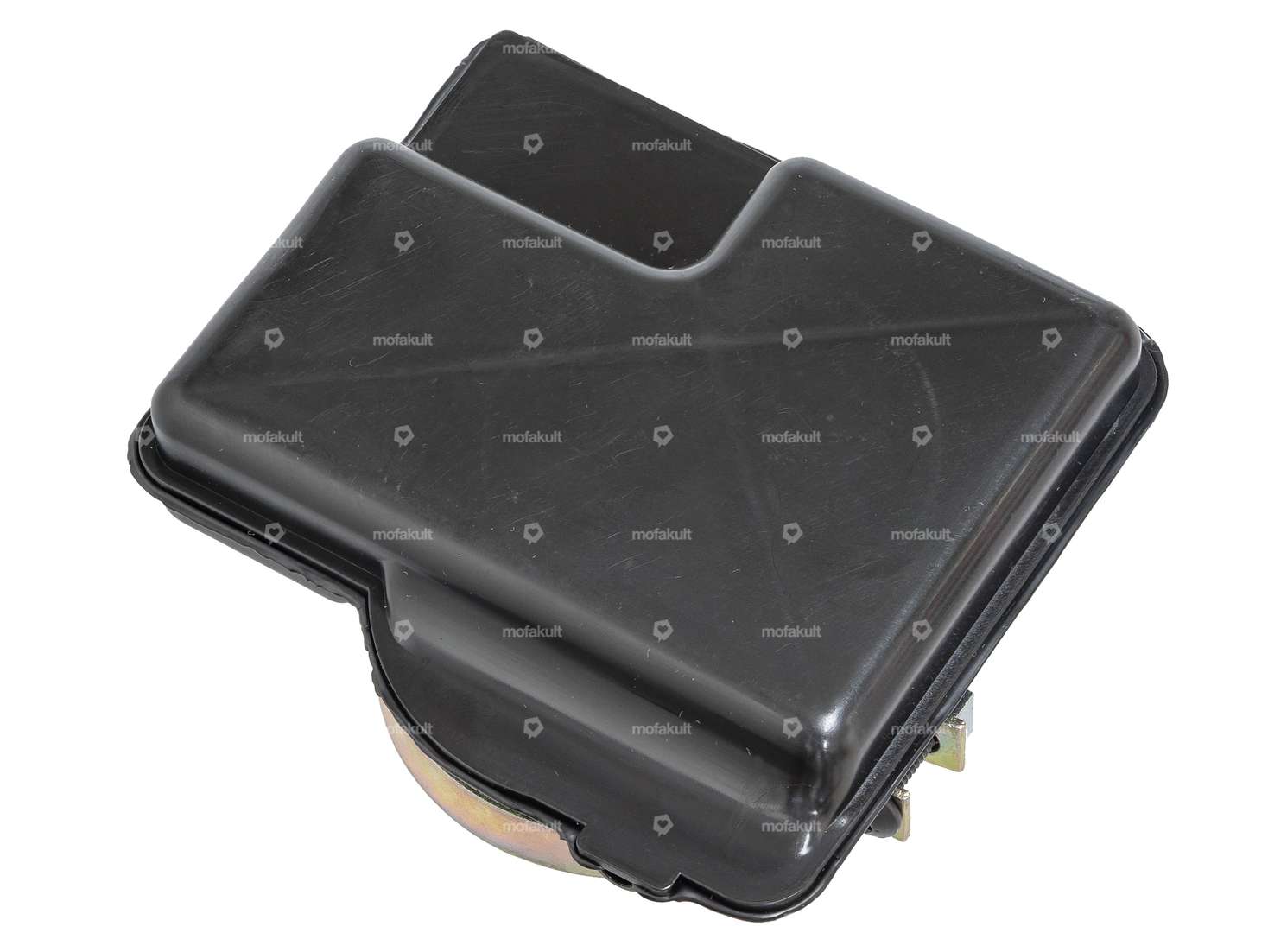

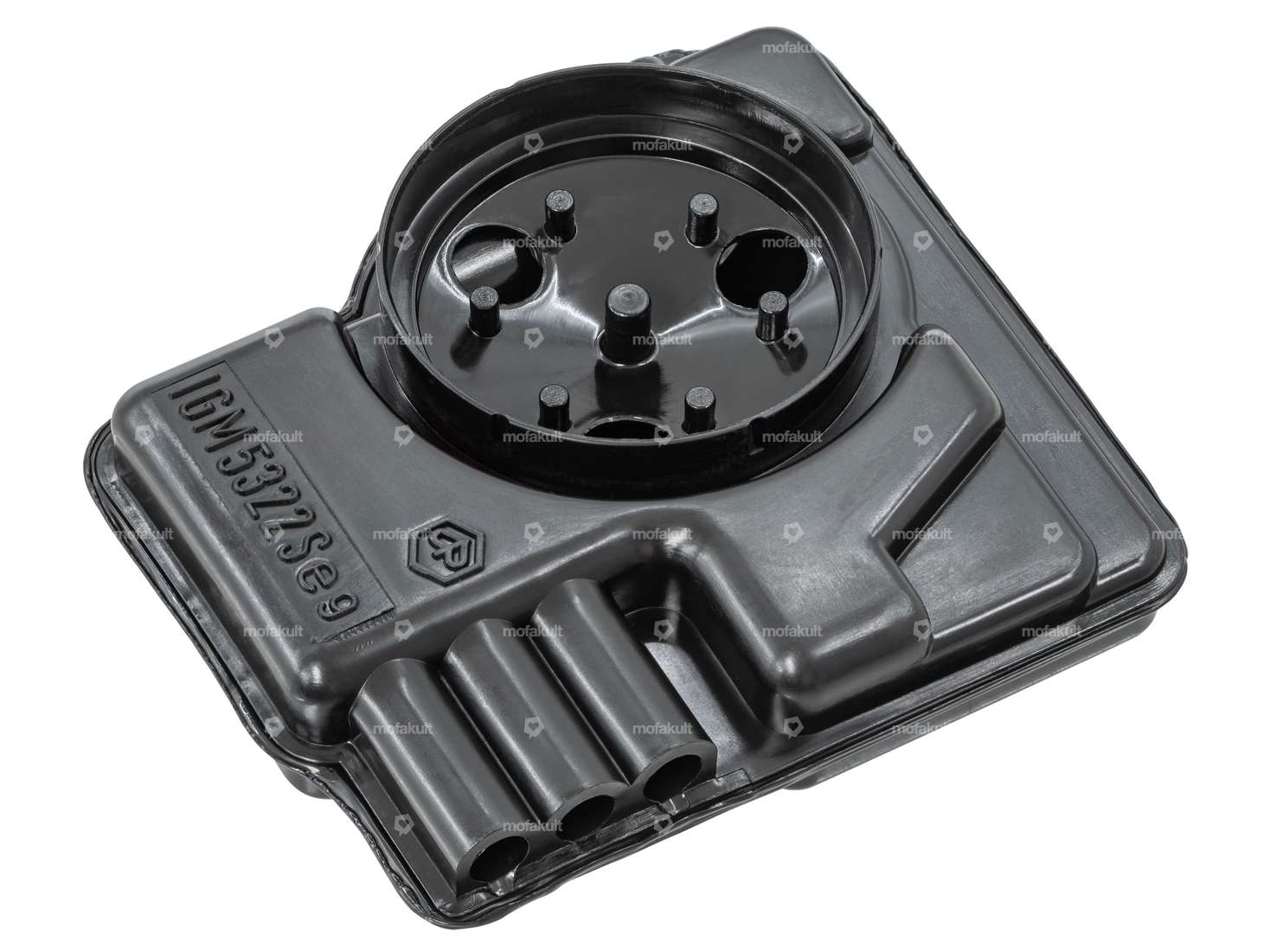

Original, very high-quality air filter box suitable for your Piaggio Ciao, Si, Bravo and Boxer moped / moped with Dell'Orto SHA type 3 carburetor.
To the best of our knowledge, this air filter was installed in Switzerland on the following type certificates with 12/10 carburetor (37 series):
- Ciao 7503
- Si 7557
- Boxer 7505
- CBA 7506
- CBA 7589
- Bravo 7504
- Bravo 7568
- Super Bravo 7629
Width: 98 mm
Height: 93 mm connection
Inside: 49.5 mm connection
outside 52 mm
Ø top holes: 3 x 6.5 mm
Ø bottom holes: 3 x 10 mm
ID: IGM5322Seg
You can find nozzles for tuning your carburetor and alternative products in the accessories section.
Quality product from the Italian manufacturer Piaggio in original equipment quality.
Original Piaggio spare part number: 1868865
| Manufacturer | Piaggio |
| Material | Plastic |
| Color | black |
| Filter type | Grille |
| Ø outside | 52 mm |
| Mounting type | Plug connection clamped |
| Ø Internal connection | 49.5 mm |
| Width | 98 mm |
| Height | 93 mm |
| Area of application | Original |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
