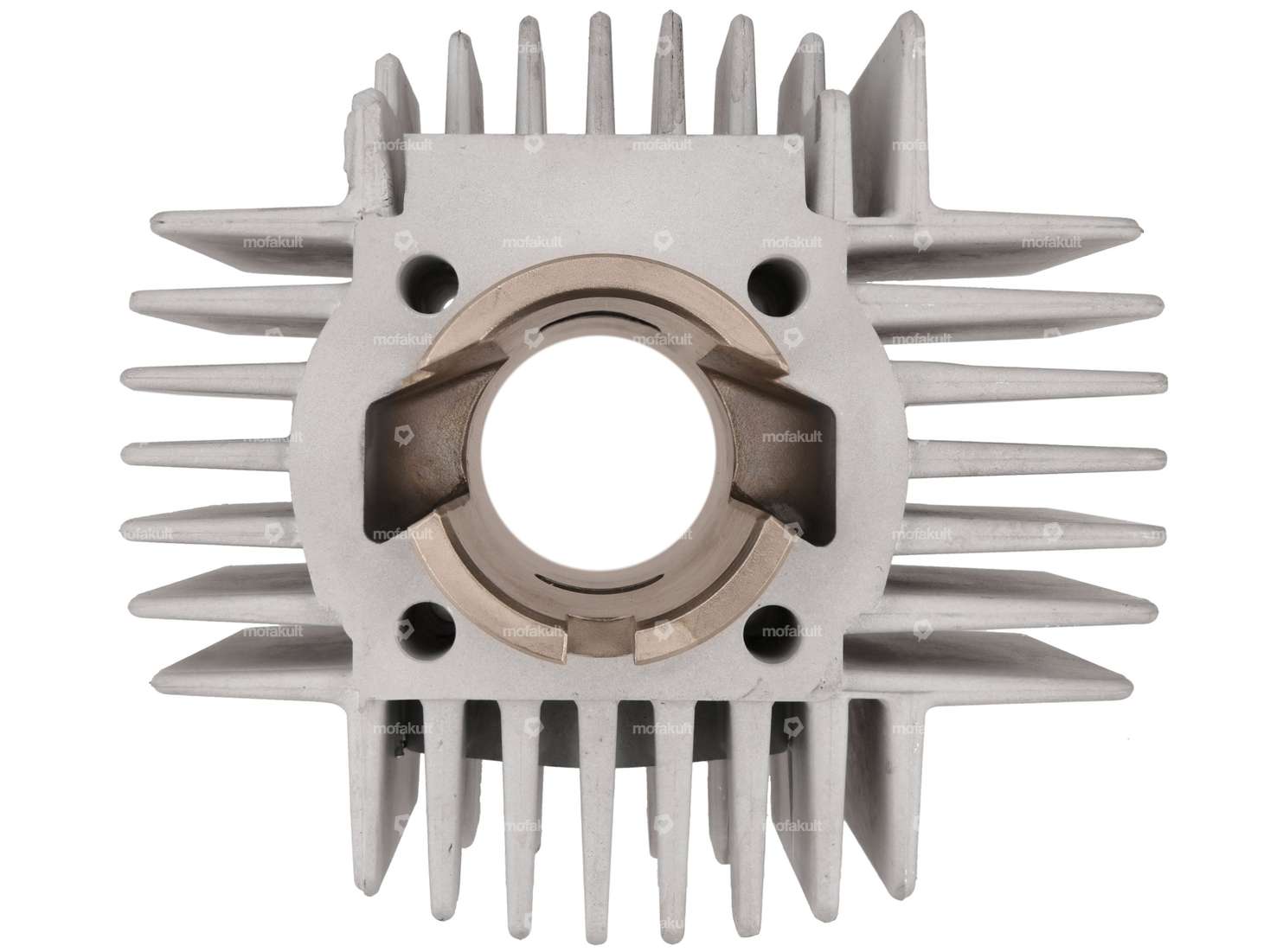

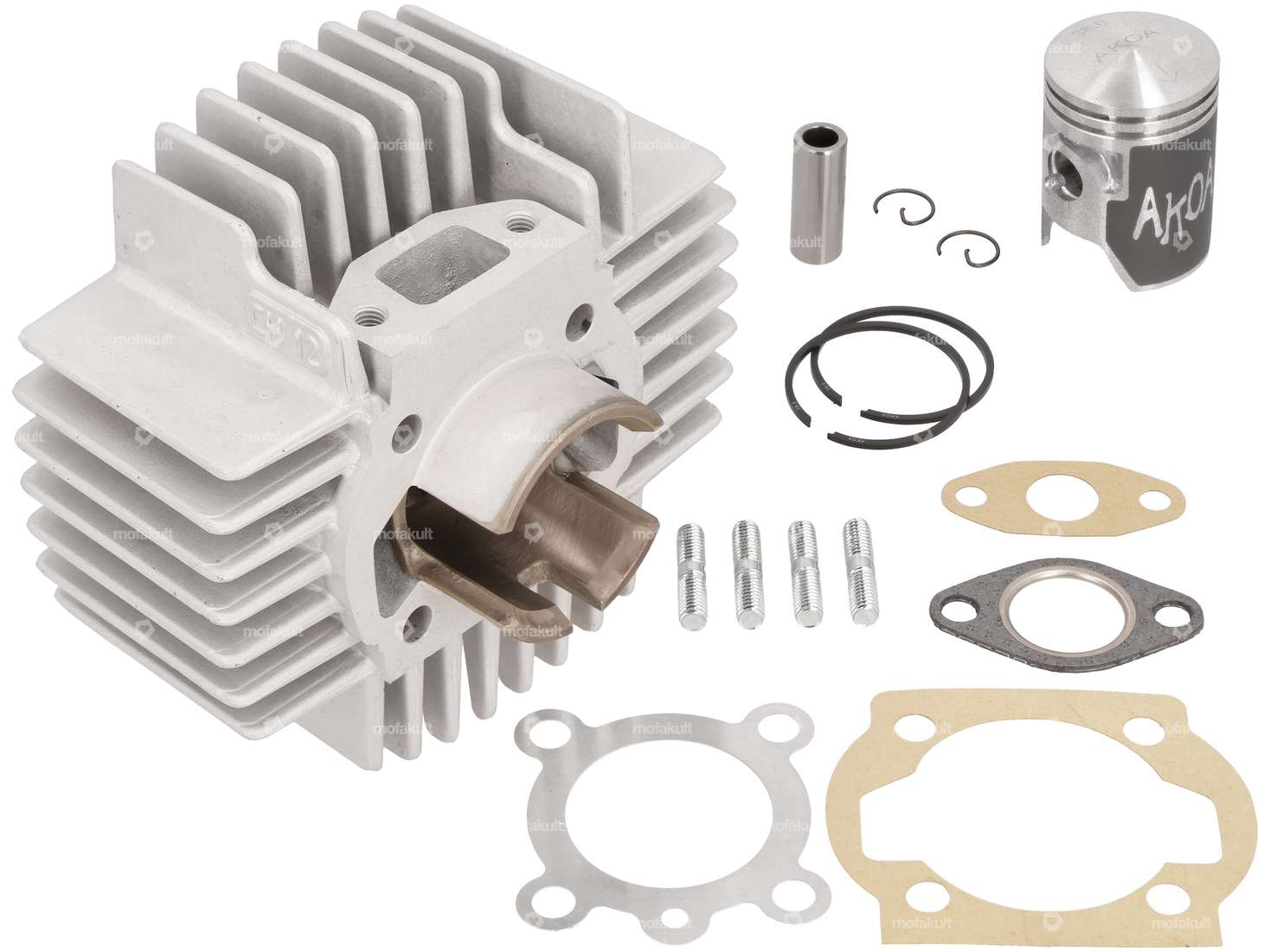

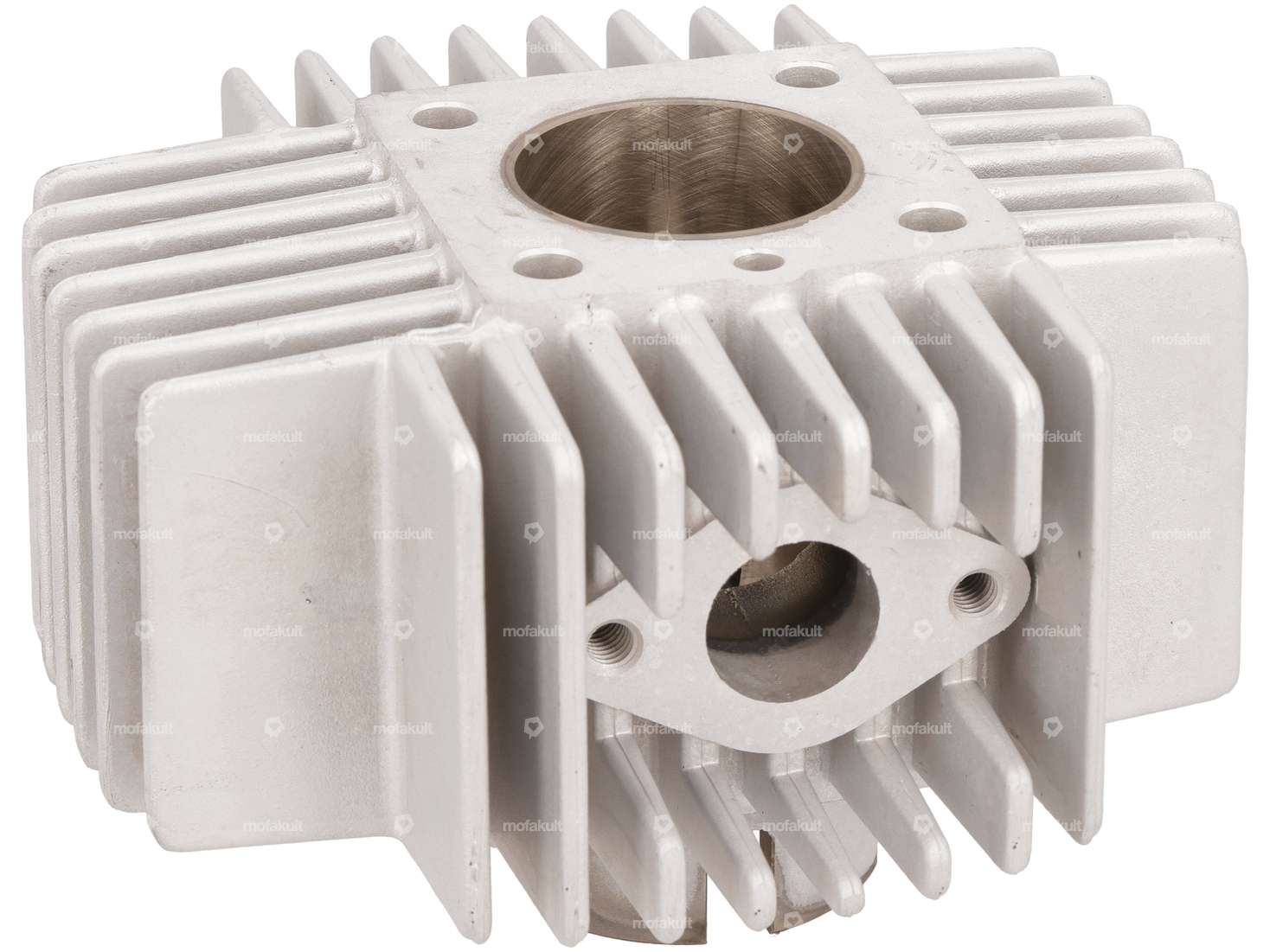

Grey cylinder in 38 mm version, suitable for your Puch Maxi S / N, Supermaxi LG1 / LG2 and your X30 Sport NS / NL moped / moped with E50 / ZA50 (Fahrtwindgekühlt) / ZA50 (catalytic converter) or Z50 engine.

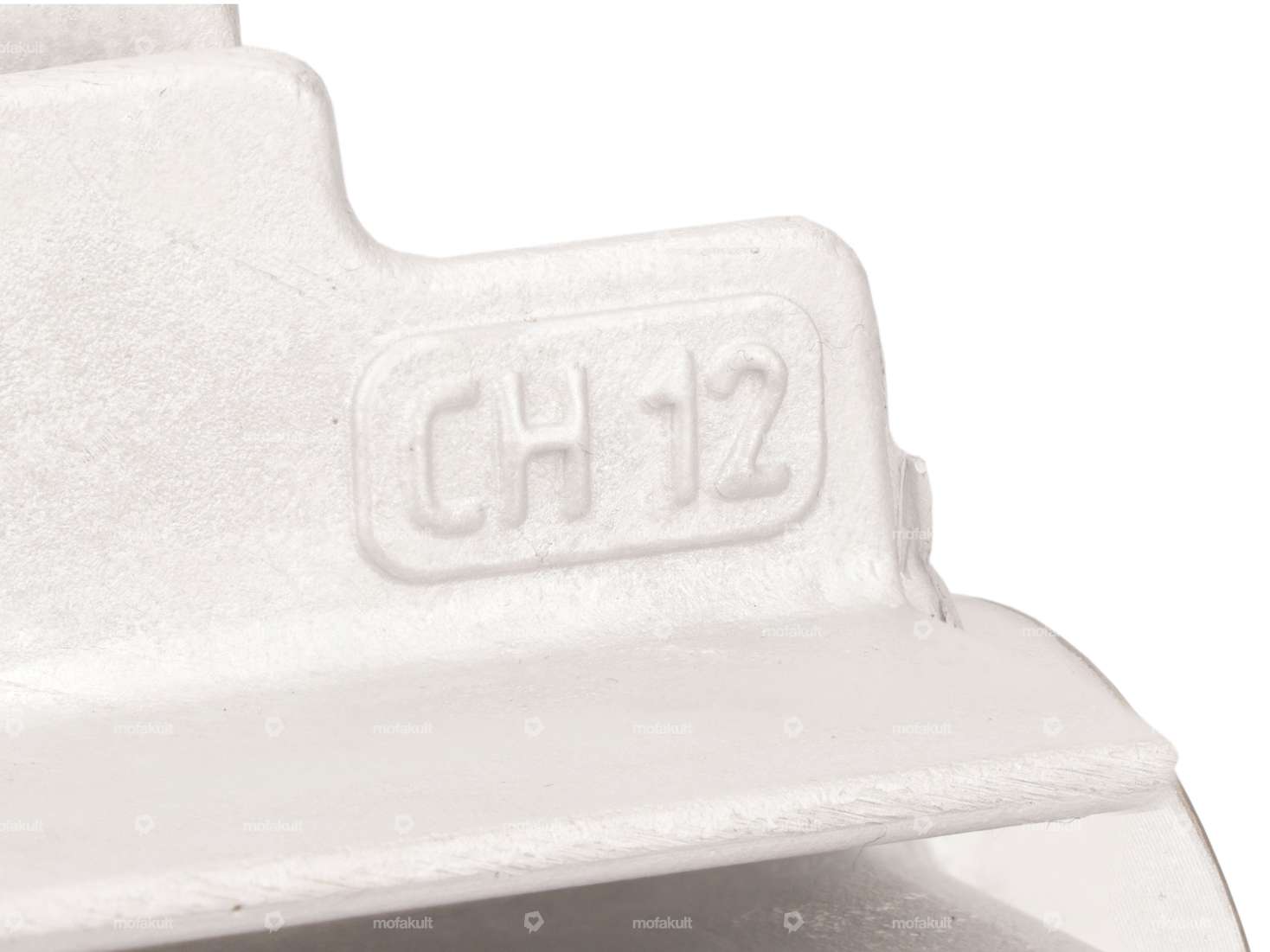

The camouflaged 50 cc cylinder is kept true to the original. The cooling fins and CH12 finish match the standard look. It is important to note that there is no decompressor bracket.
Manufacturer: AKOA · Camouflaged: Yes
| Manufacturer | AKOA |
| Material | Aluminum |
| Surface | Nickel silicon carbide (colloquially known as Nikasil) |
| Displacement | 49 ccm |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Ø cylinder neck | 47.9 mm |
| Ø Outlet outside | 19.9 mm |
| Inlet window | 9 |
| Thread inlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Hole spacing inlet | 38 mm |
| Decompressor | No |
| Outlet type | straight |
| Number of fixing points | 4 pcs |
| Area of application | Standard |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Camouflaged | Yes |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
