For: Sachs

20274

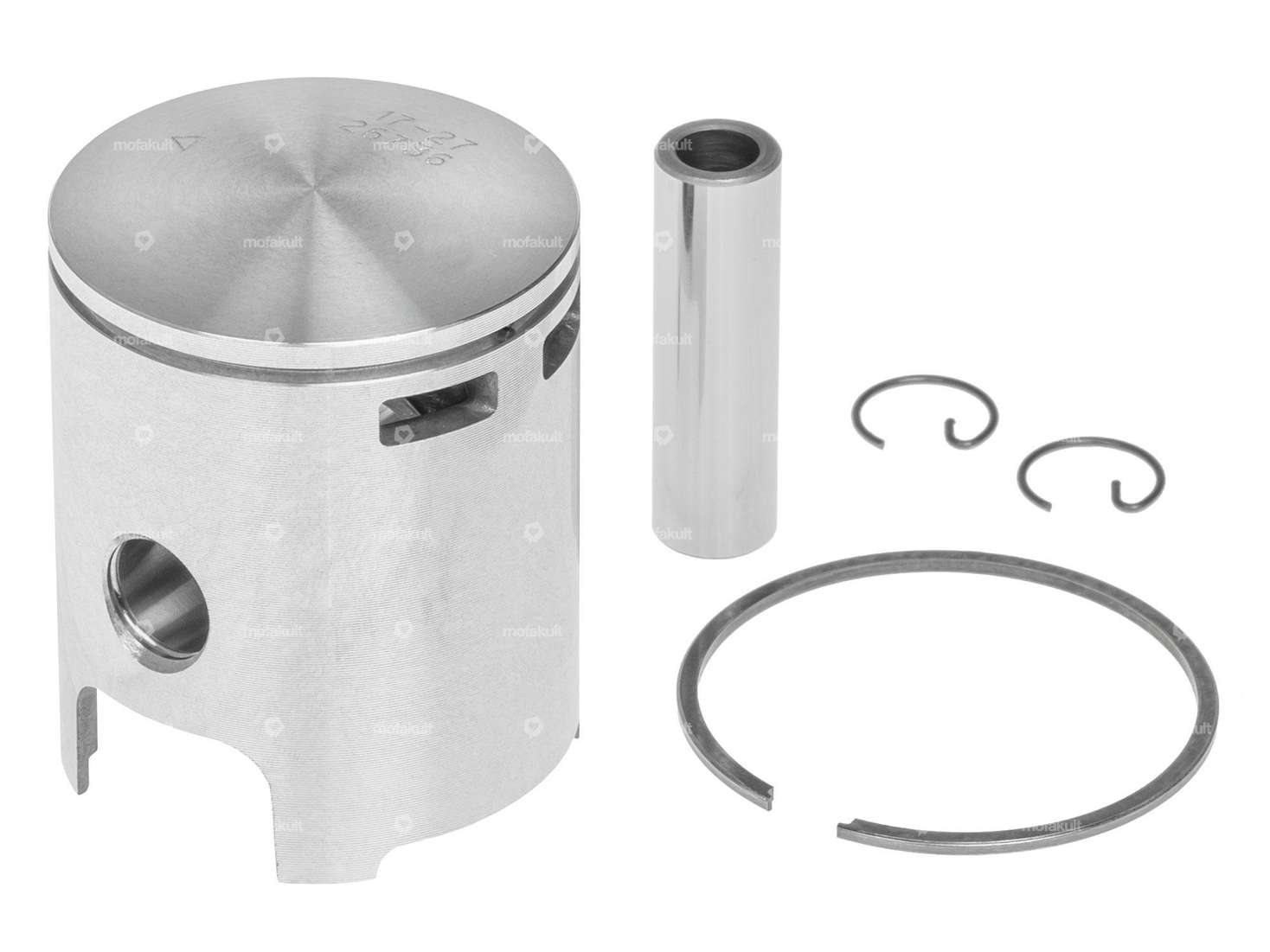

Athena piston 48 mm #B | Sachs 504 / 505

rating iconrating iconrating iconrating iconrating icon
No reviews
80,40 EUR

Incl. 19% VAT.

Description

48 mm replacement piston with a 1.5 mm rectangular piston ring with internal fuse (IS) for mopeds / mopeds with a 48 mm Athena cylinder kit suitable for Sachs 504 / 505 with and without reed valve.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter48 mm
ManufacturerAthena
Ø outside piston (A)47.96 mm
Compression height (C)30.12 mm
Curvature (D)1.94 mm
Total piston height (E)59 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance groupB
Weight piston kit123 g
Sachs

504 (without pedal shaft)

505 (with pedal shaft) - 1A (AT) , 2A (HG)
