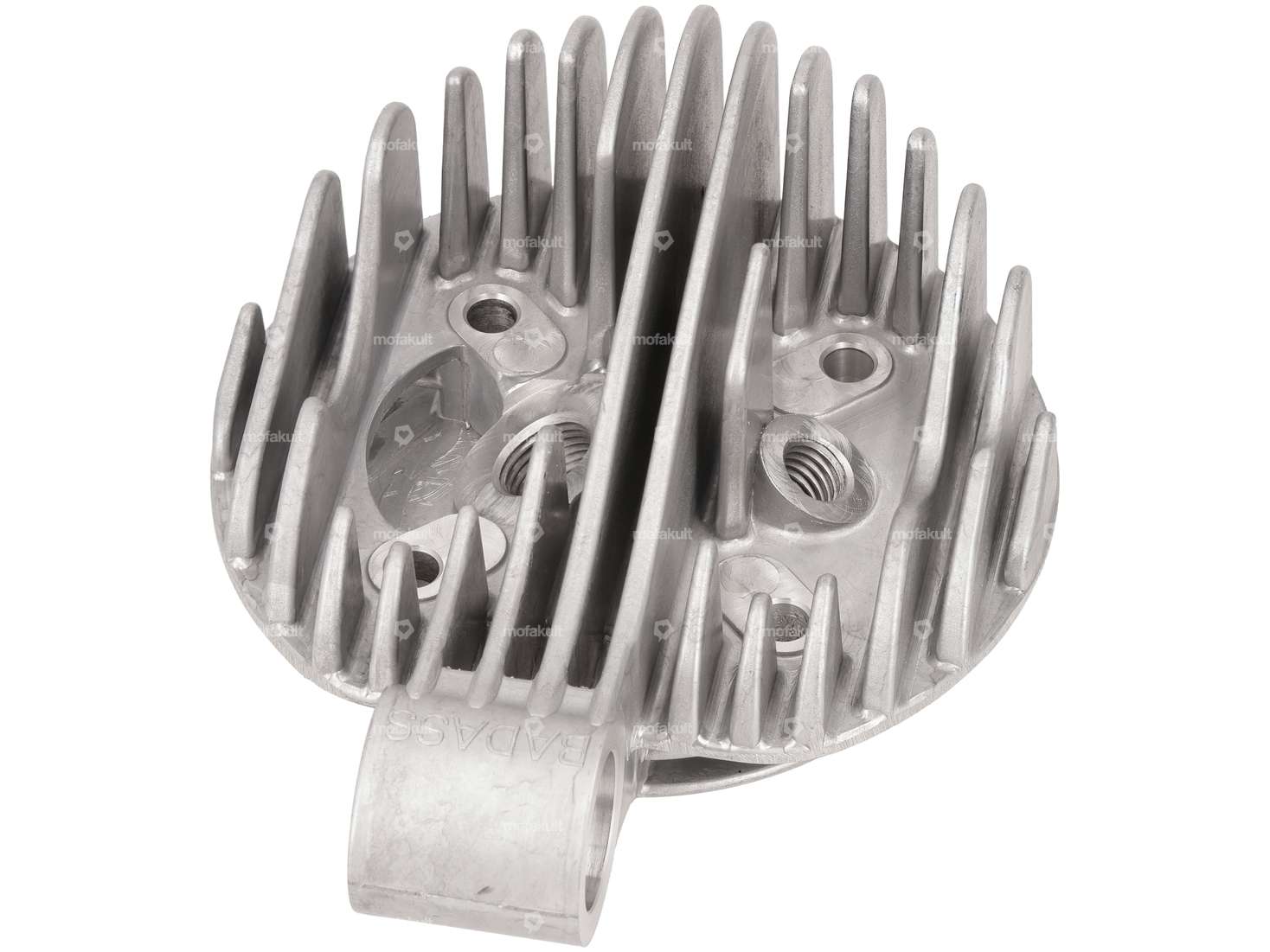

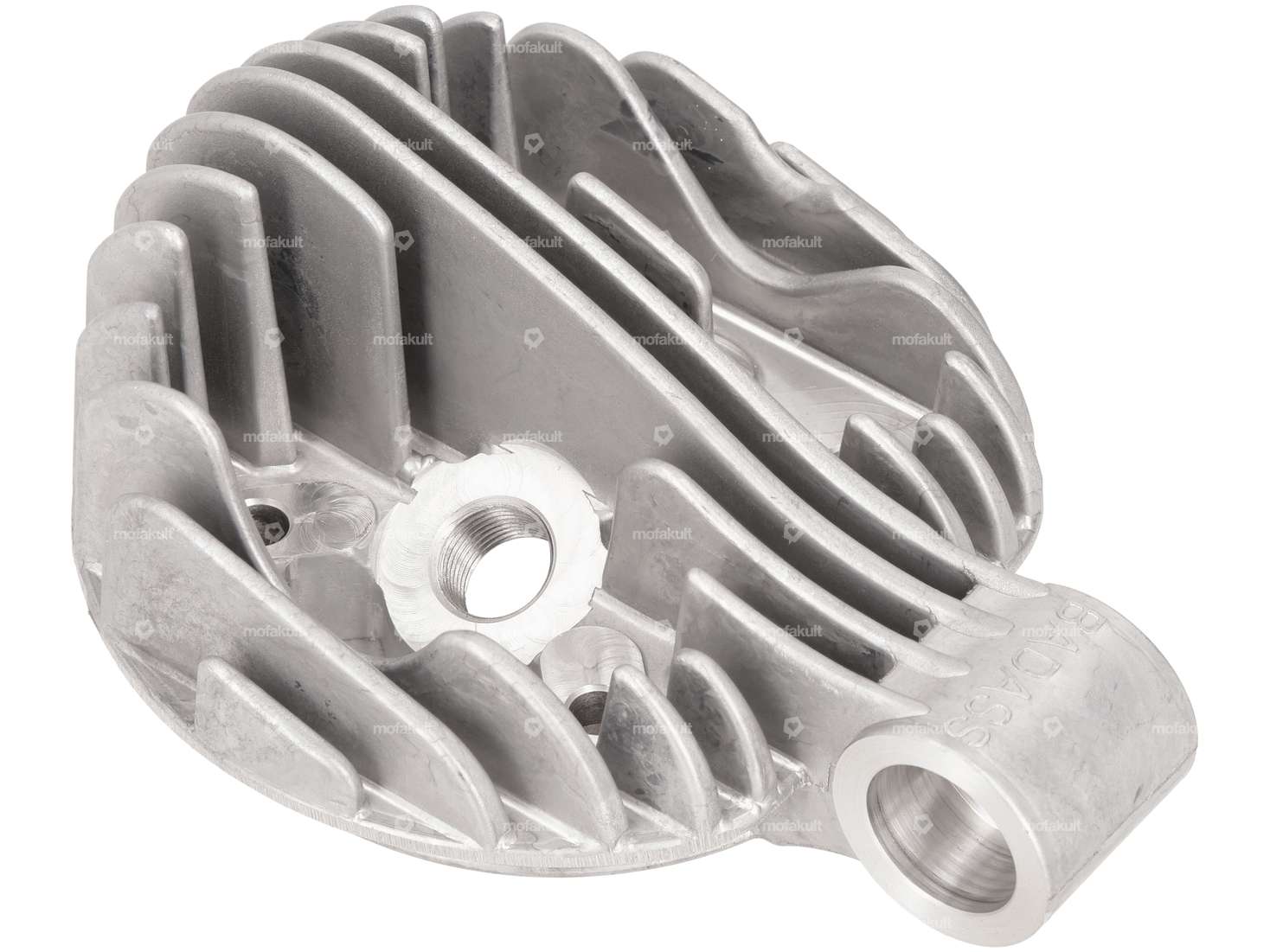

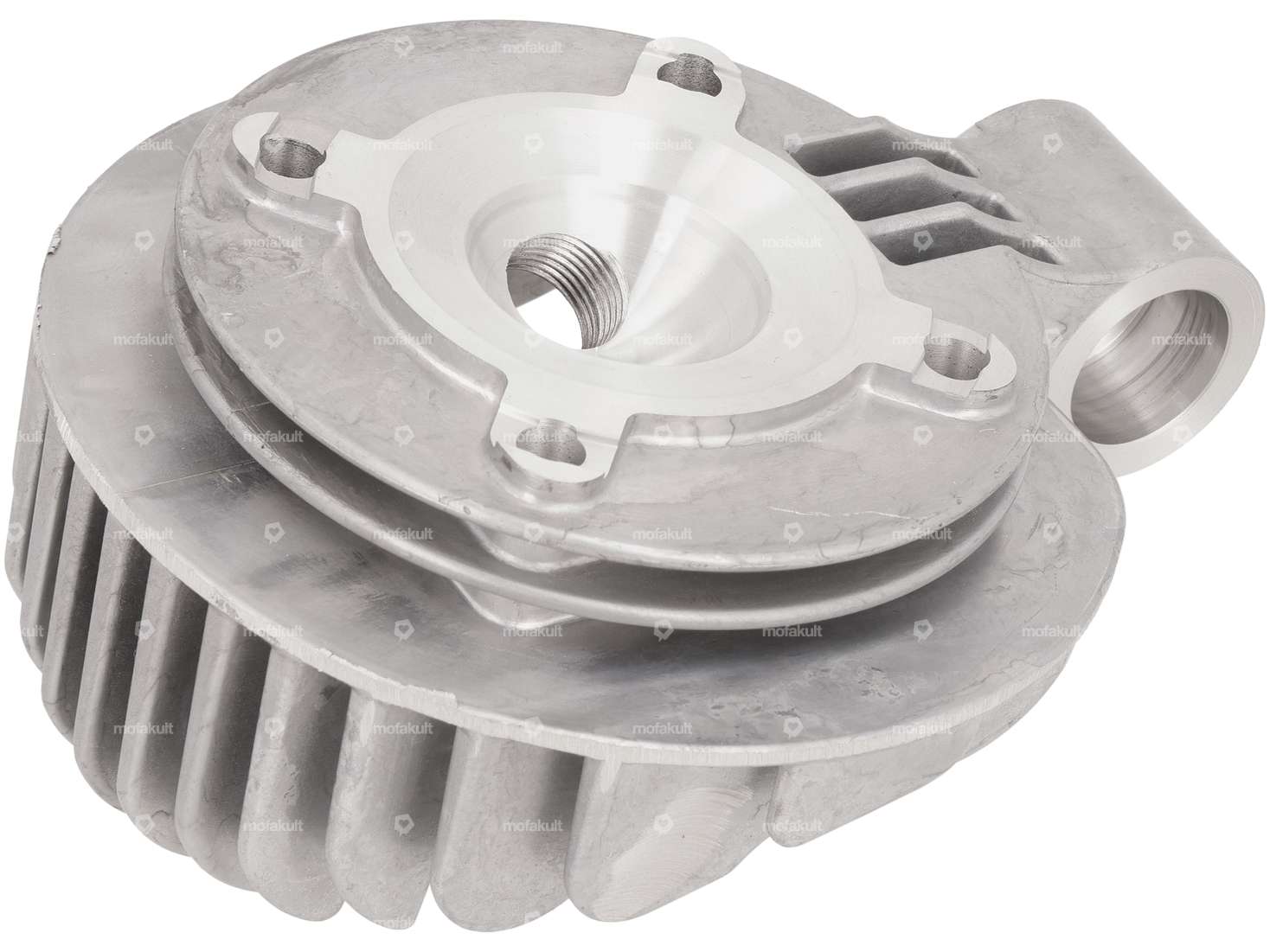

BAD ASS cylinder head XL Ø 45-47 mm | Sachs 502, 50/2, 50/3, 50/4

rating iconrating iconrating iconrating iconrating icon
No reviews
163,30 EUR

Incl. 19% VAT.

Description

Ø 45 - 47 mm XL cylinder head in original look with enlarged cooling fins, suitable for your moped / moped with Sachs 502, 50/2, 50/3, 50/4 engine.

This tuning head was specially developed for the BAD ASS Diablo Ø 45 mm racing cylinder. Thanks to the larger cooling fin design, the cylinder head can optimally dissipate heat even at high temperatures and when driving slowly uphill.

The hole for the decompressor is prepared and provided with a thread (M10 x 1.5 mm). If this is installed, it only needs to be drilled through with a 3 mm drill bit.

Ø outside108 mm, 85.5 mm
ManufacturerBAD ASS
MaterialAluminum
Area of applicationTuning, Racing
Ø cylinder45 - 47 mm
Number of fixing points4 pcs
Height61 mm
Ø screw holder19.3 mm
Hole pattern [mm]47 x 47
Candle threadshort
DecompressorM10x1.5
Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

502 (Saxonette) - AL , AML

50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS)

50/3

50/4 - MLFB (2.6 PS) , LKH (4.5 PS)

Accessories & related products

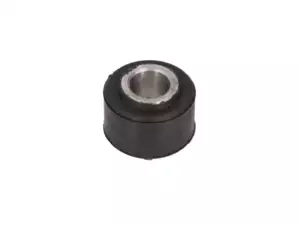

swiing® revival Silentblock Ø 19.3 x 15 | Sachs 50/2, 50/3
