logo_dellorto

Universal

20177

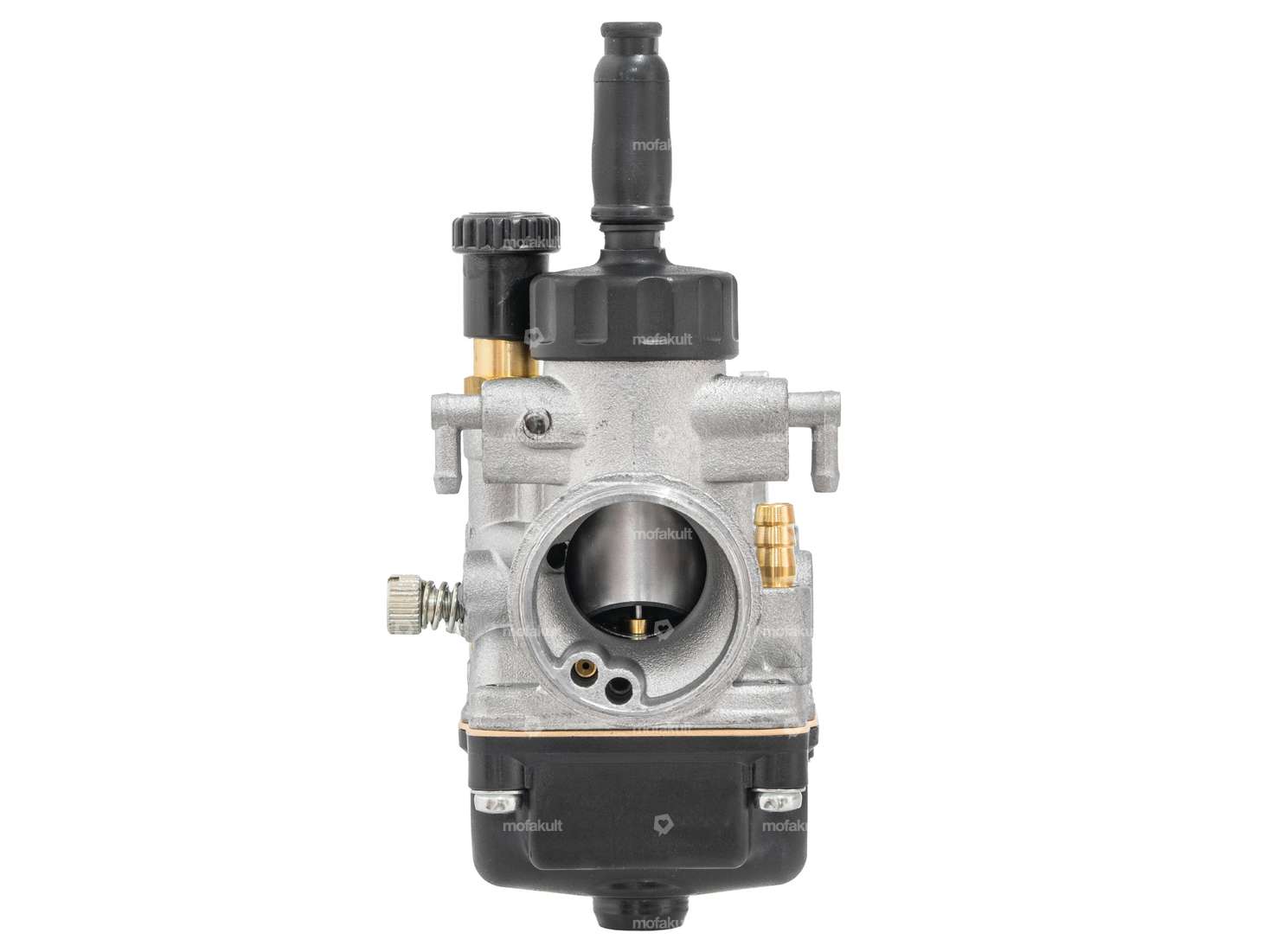

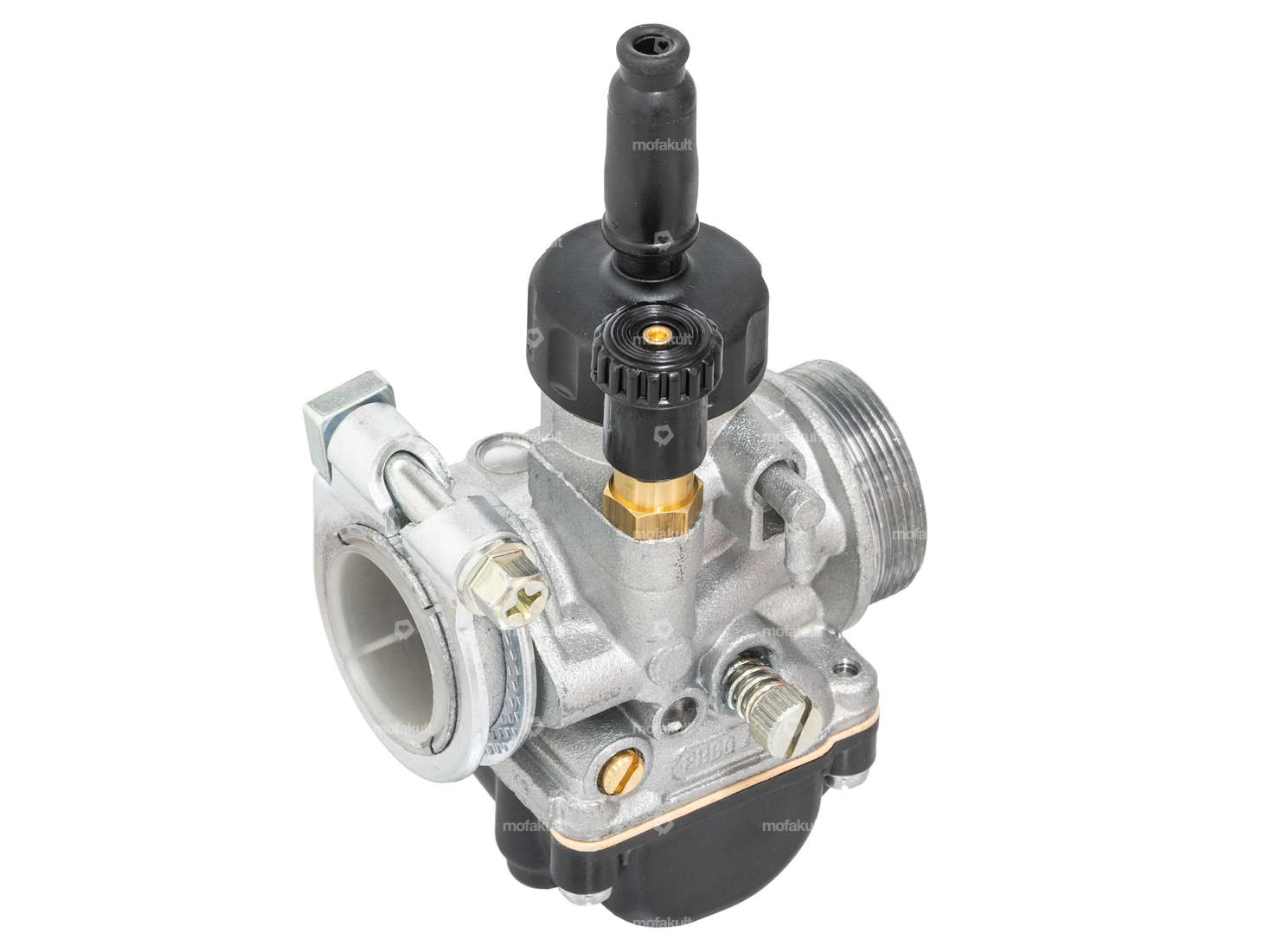

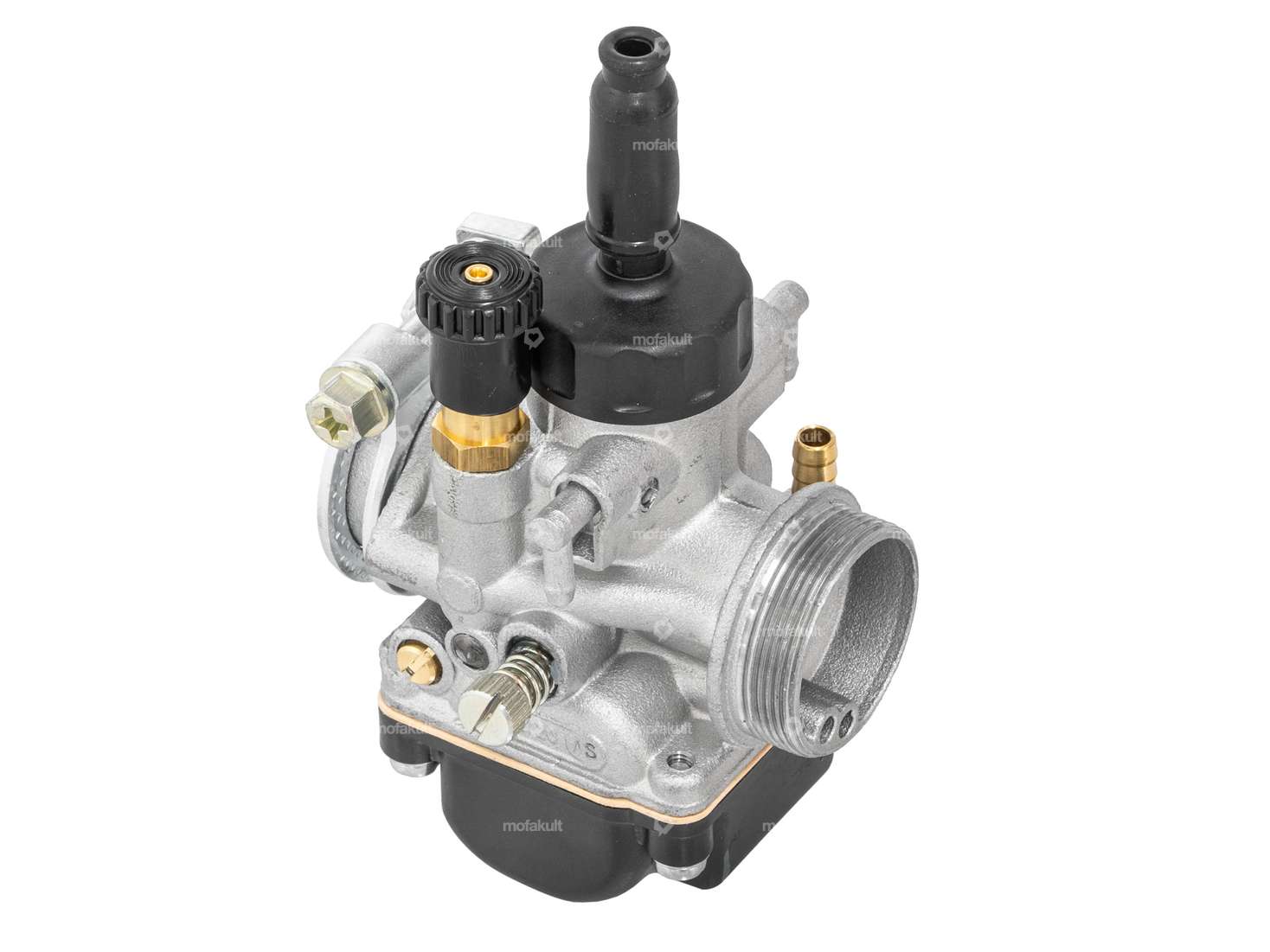

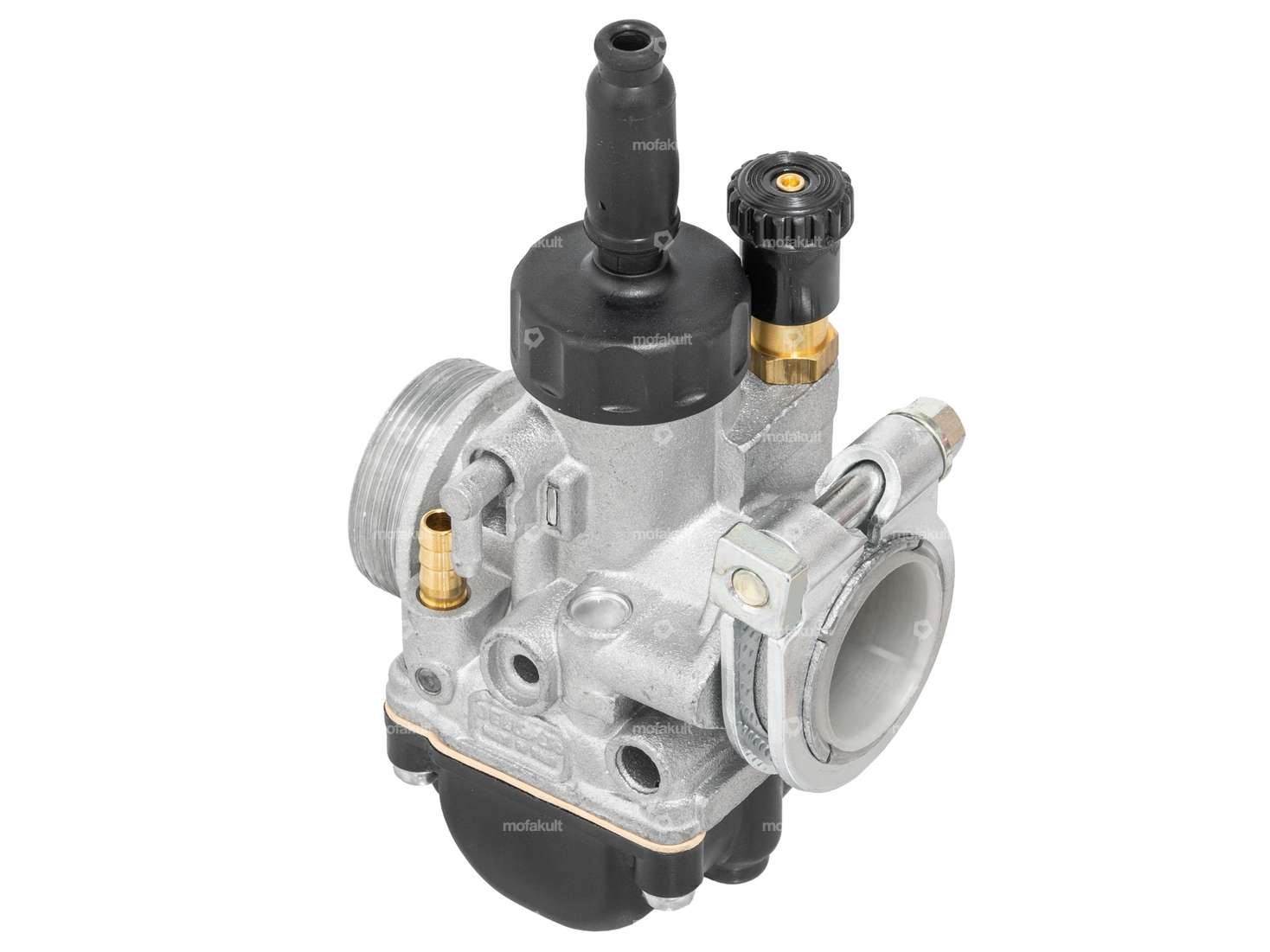

Dell'Orto 20 mm PHBG AS carburetor hand choke

rating iconrating iconrating iconrating iconrating icon
No reviews
163,30 EUR

Incl. 19% VAT.

Description

20 mm PHBG racing carburetor for universal use for your moped, moped and small motorcycle.
This high-quality racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 75 cc.

The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary lines and the mixture adjustment screw.

The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.

Main thread size (M5): 90 (with throttle plate)
Adjacent thread size (idle thread): 50
Choked thread size: 60
Air filter connection diameter: 32 mm (M32 x 1.25)
Inlet connection diameter: 24 mm (or 26 mm after removing the reducer). 26 mm after removing the reducing sleeve)
Total height: 125 mm
Total width: 75 mm

You can find matching nozzles, air filters and intake manifolds in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

ManufacturerDell'Orto
Component group CarburetorCarburetor complete
Carburetor typePHBG AS
Width75 mm
Height125 mm
Nominal diameter20 mm
Mounting typePlug connection clamped
Ø without reducing sleeve26 mm
Ø Internal connection24 mm
Ø Air filter connection32 mm
Nozzle threadM5x0.8 (standard thread)
Air filter connection threadMF32x1.25 (fine pitch thread)
Ø fuel hose connection6 mm
Choke controlHand choke
Area of applicationTuning
Choke nozzle size60
Nozzle size90
Size of secondary nozzle50

Accessories & related products

GPO 18.5 mm intake manifold Dell'Orto PHBG | Puch E50
undefined

For: Puch

10659

GPO 18.5 mm intake manifold Dell'Orto PHBG | Puch E50

Manufacturer: GPO · Camouflaged: No · Material: Aluminum · Surface: polished · Color: Chrome · Ø inside: 18.8 mm · Ø External connection: 23.9 mm · Mounting type: Screws · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 57 mm · Height flange center hole: 45 mm · Total length: 40 mm · Area of application: Tuning

20,90 EUR

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Tomos · Cilo · Hercules

10703

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø Stranded wire: 1.2 mm · Cable length: 1650 mm · Nipple shape: Ball · Ø nipple: 3.5 mm · Number of components: 1 pcs · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Area of application: Standard

2,80 EUR

swiing® revival nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG
undefined

For: Universal · Pony / Cilo (Beta 521 & 512) · Piaggio

10902

swiing® revival nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 75 · Nozzle size: 78 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Total length: 8 mm · Drive: Slot

24,40 EUR

swiing® revival nozzle set M5 (92 - 110) Dell'Orto SHA, PHBG
undefined

For: Universal · Pony / Cilo (Beta 521 & 512) · Piaggio

10903

swiing® revival nozzle set M5 (92 - 110) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98 · Nozzle size: 100 · Nozzle size: 102 · Nozzle size: 104 · Nozzle size: 106 · Nozzle size: 108 · Nozzle size: 110 · Total length: 8 mm · Drive: Slot

24,40 EUR

swiing® revival nozzle set M5 (80 - 100) Dell'Orto SHA, PHBG
undefined

For: Universal · Pony / Cilo (Beta 521 & 512) · Piaggio

17985

swiing® revival nozzle set M5 (80 - 100) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Total length: 8 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98 · Nozzle size: 100

24,40 EUR

Not in stock

swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG
undefined
angle-right

For: Universal · Pony / Cilo (Beta 521 & 512) · Piaggio · Tomos

22000

swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Total length: 8 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 30 · Nozzle size: 31 · Nozzle size: 32 · Nozzle size: 33 · Nozzle size: 34 · Nozzle size: 35 · Nozzle size: 36 · Nozzle size: 37 · Nozzle size: 38 · Nozzle size: 39 · Nozzle size: 40 · Nozzle size: 41 · Nozzle size: 42 · Nozzle size: 43 · Nozzle size: 44 · Nozzle size: 45 · Nozzle size: 46 · Nozzle size: 47 · Nozzle size: 48 · Nozzle size: 49 · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60 · Nozzle size: 61 · Nozzle size: 62 · Nozzle size: 63 · Nozzle size: 64 · Nozzle size: 65 · Nozzle size: 66 · Nozzle size: 67 · Nozzle size: 68 · Nozzle size: 69 · Nozzle size: 70 · Nozzle size: 71 · Nozzle size: 72 · Nozzle size: 73 · Nozzle size: 74 · Nozzle size: 75 · Nozzle size: 76 · Nozzle size: 77 · Nozzle size: 78 · Nozzle size: 79 · Nozzle size: 80 · Nozzle size: 81 · Nozzle size: 82 · Nozzle size: 83 · Nozzle size: 84 · Nozzle size: 85 · Nozzle size: 86 · Nozzle size: 87 · Nozzle size: 88 · Nozzle size: 89 · Nozzle size: 90 · Nozzle size: 91 · Nozzle size: 92 · Nozzle size: 93 · Nozzle size: 94 · Nozzle size: 95 · Nozzle size: 96 · Nozzle size: 97 · Nozzle size: 98 · Nozzle size: 99 · Nozzle size: 100 · Nozzle size: 101 · Nozzle size: 102 · Nozzle size: 103 · Nozzle size: 104 · Nozzle size: 105 · Nozzle size: 106 · Nozzle size: 107 · Nozzle size: 108 · Nozzle size: 109 · Nozzle size: 110 · Nozzle size: 111 · Nozzle size: 112 · Nozzle size: 113 · Nozzle size: 114 · Nozzle size: 115 · Nozzle size: 116 · Nozzle size: 117 · Nozzle size: 118 · Nozzle size: 119 · Nozzle size: 120

4,10 EUR

Dell'Orto choke nozzle 60 PHBG 15 - 21 mm
undefined

Universal

23762

Dell'Orto choke nozzle 60 PHBG 15 - 21 mm

Manufacturer: Dell'Orto · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Nozzle type: Choke nozzle · Drive: Slot · Nozzle size: 60

12,70 EUR

66HEROES Air filter mushroom grille black Dell'Orto PHBG (Ø=28 mm)
undefined

Universal

25363

66HEROES Air filter mushroom grille black Dell'Orto PHBG (Ø=28 mm)

Manufacturer: 66HEROES · Color: black · Filter type: Grille · Total length: 70 mm · Ø Internal connection: 28 mm · Mounting type: Plug connection clamped · Ø outside: 60 mm · Camouflaged: No · Area of application: Tuning

22,10 EUR

66HEROES Mushroom air filter grille 28 - 32 mm black
undefined

Universal

26152

66HEROES Mushroom air filter grille 28 - 32 mm black

Manufacturer: 66HEROES · Camouflaged: No · Area of application: Tuning · Color: black · Material: Metal · Material: Rubber · Filter type: Grille · Total length: 114 mm · Ø Internal connection: 28 mm · Ø Internal connection: 32 mm · Ø outside: 60 mm · Mounting type: Plug connection clamped

18,60 EUR

Dell'Orto secondary nozzle PHBG (size 30 - 70) of your choice
undefined
angle-right

Universal

27204

Dell'Orto secondary nozzle PHBG (size 30 - 70) of your choice

Drive: Slot · Manufacturer: Dell'Orto · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Nozzle type: Secondary nozzle · Nozzle size: 30 · Nozzle size: 35 · Nozzle size: 40 · Nozzle size: 45 · Nozzle size: 50 · Nozzle size: 55 · Nozzle size: 60 · Nozzle size: 65 · Nozzle size: 70

5,70 EUR

Polini intake system 4-folding diaphragm "Big Valve" PHBG / CP carburetor | Puch
undefined

For: Puch

34503

Polini intake system 4-folding diaphragm "Big Valve" PHBG / CP carburetor | Puch

Ø inside: 28.6 mm · Ø outside: 24 mm · Manufacturer: Polini · Material: Aluminum · Material: Plastic · Area of application: Racing · Area of application: Tuning · Surface: glass bead blasted · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Thread type: M5x0.8 (standard thread) · Mounting type: Screws · Number of fixing points: 4 pcs · Ø mounting hole: 5.2 mm · Camouflaged: No

163,30 EUR

swiing® ingenious air filter Dell'Orto PHBG with screw thread
undefined
angle-right

Universal

35679

swiing® ingenious air filter Dell'Orto PHBG with screw thread

Manufacturer: swiing® ingenious parts · Camouflaged: No · Color: graphite colors · Material: Aluminum · Thread type: MF32x1.25 (fine pitch thread) · Total length: 25 mm · Ø outside: 58 mm · Mounting type: Thread for screwing

52,40 EUR

Explore categories from Carburetor

S-10-40-060-10_Bing
Bing / swiing®
S-10-40-060-20_DellOrto
Dell'Orto
S-10-40-060-30_Stage6
Stage6
S-10-40-060-40_Polini
Polini
S-10-40-060-50_Keihin
Keihin
S-10-40-060-60_Mikuni
Mikuni
S-10-40-060-70_Solex
Solex
S-10-40-060-75_Gurtner
Gurtner
S-10-40-060-80_Sonstige
Other

Moped fans also bought

Petrol hose 30 cm black

Universal

10215

Petrol hose 30 cm black

Material: Plastic · Color: black · Ø inside: 4.6 mm · Ø outside: 8 mm · Total length: 300 mm

2,35 EUR

7,83 EUR/m

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Tomos · Cilo · Hercules

10703

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø Stranded wire: 1.2 mm · Cable length: 1650 mm · Nipple shape: Ball · Ø nipple: 3.5 mm · Number of components: 1 pcs · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Area of application: Standard

2,80 EUR

swiing® revival nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG
undefined

For: Universal · Pony / Cilo (Beta 521 & 512) · Piaggio

10902

swiing® revival nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 75 · Nozzle size: 78 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Total length: 8 mm · Drive: Slot

24,40 EUR

Speedometer bracket Ø 60 mm
undefined

Universal

12174

Speedometer bracket Ø 60 mm

Color: silver · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Ø inside: 60 mm · Total height: 47 mm

12,70 EUR

66HEROES pedals turned chrome
undefined

Universal

12293

66HEROES pedals turned chrome

Width: 76 mm · Manufacturer: 66HEROES · Material: Steel · Color: Chrome · Surface: chrome-plated · Total length: 133 mm · Drive: External square · Height: 28 mm · Thread type: FG14.3 (9/16" 20G) · Reflectors: No · Width across flats: 15 mm

52,40 EUR

GPO light coil 6/12V - 15/25W
undefined

For: Puch · Sachs · Zündapp Belmondo · Tomos · DKW · Hercules · Kreidler · Zündapp · KTM · Rixe

15441

GPO light coil 6/12V - 15/25W

Manufacturer: GPO · Area of application: Standard · Tension: 6 V · Tension: 12 V · Performance: 15 W · Height: 22 mm · Performance: 25 W · Total length: 76.5 mm · Ø mounting hole: 4.7 mm · Ø Internal flywheel: 90 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Hole spacing: 55 mm · Alternative version of the Pony OEM number: A2110 · Alternative version of the Sachs OEM number: 0265 113 004

23,20 EUR

NGK LB05F spark plug cap / 5 kΩ suppressed
undefined

Universal

16922

NGK LB05F spark plug cap / 5 kΩ suppressed

Manufacturer: NGK · Color: black · Material: Plastic · Material: Rubber · Ø cable: 5 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 5000 Ω · Subcategory: Spark plug connector

6,90 EUR

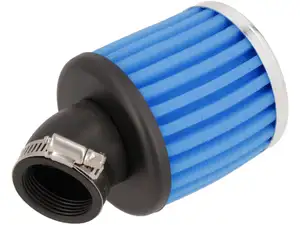

Air filter foam grooved 45° (Ø 28 / 35 mm)
