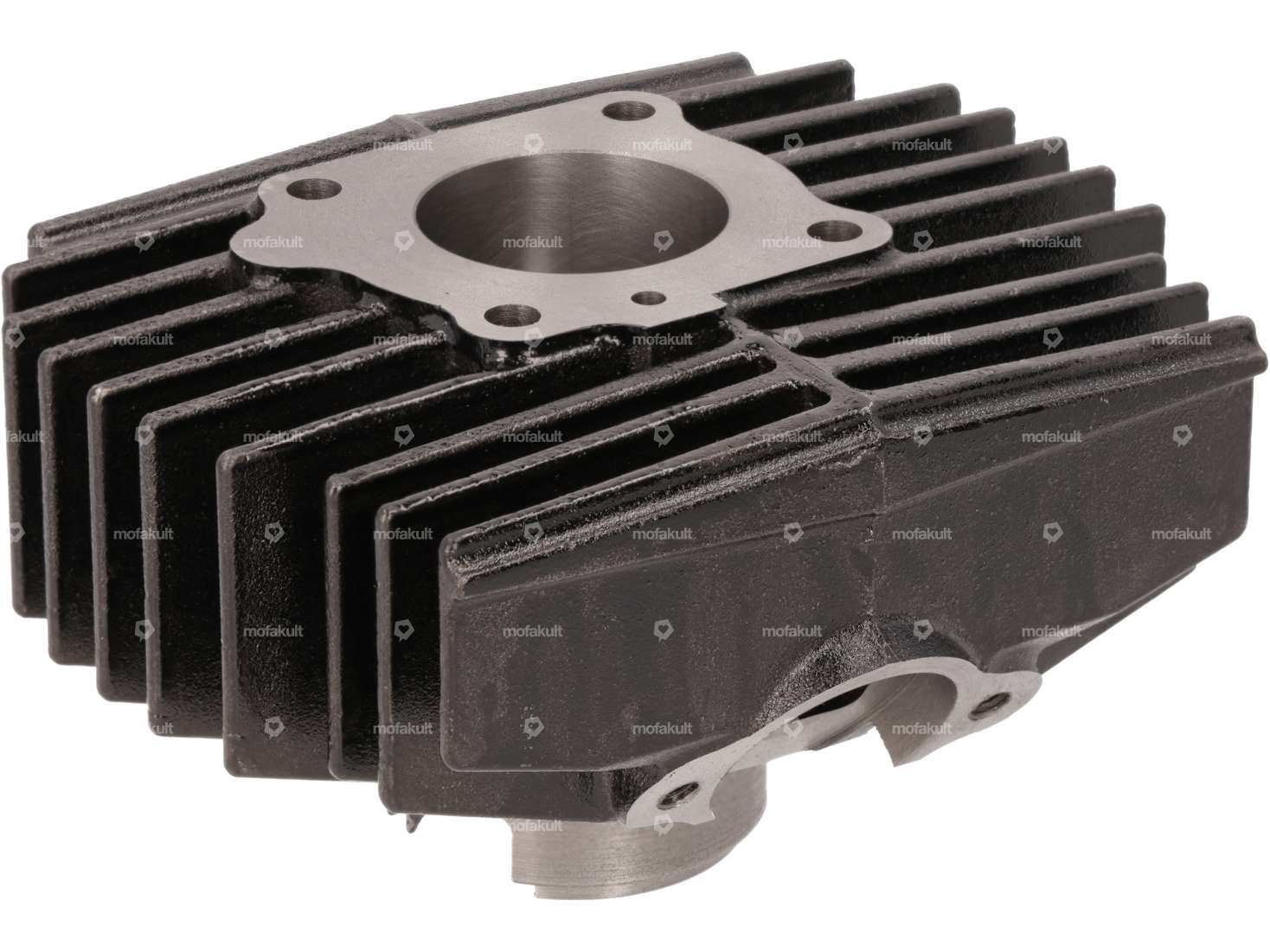

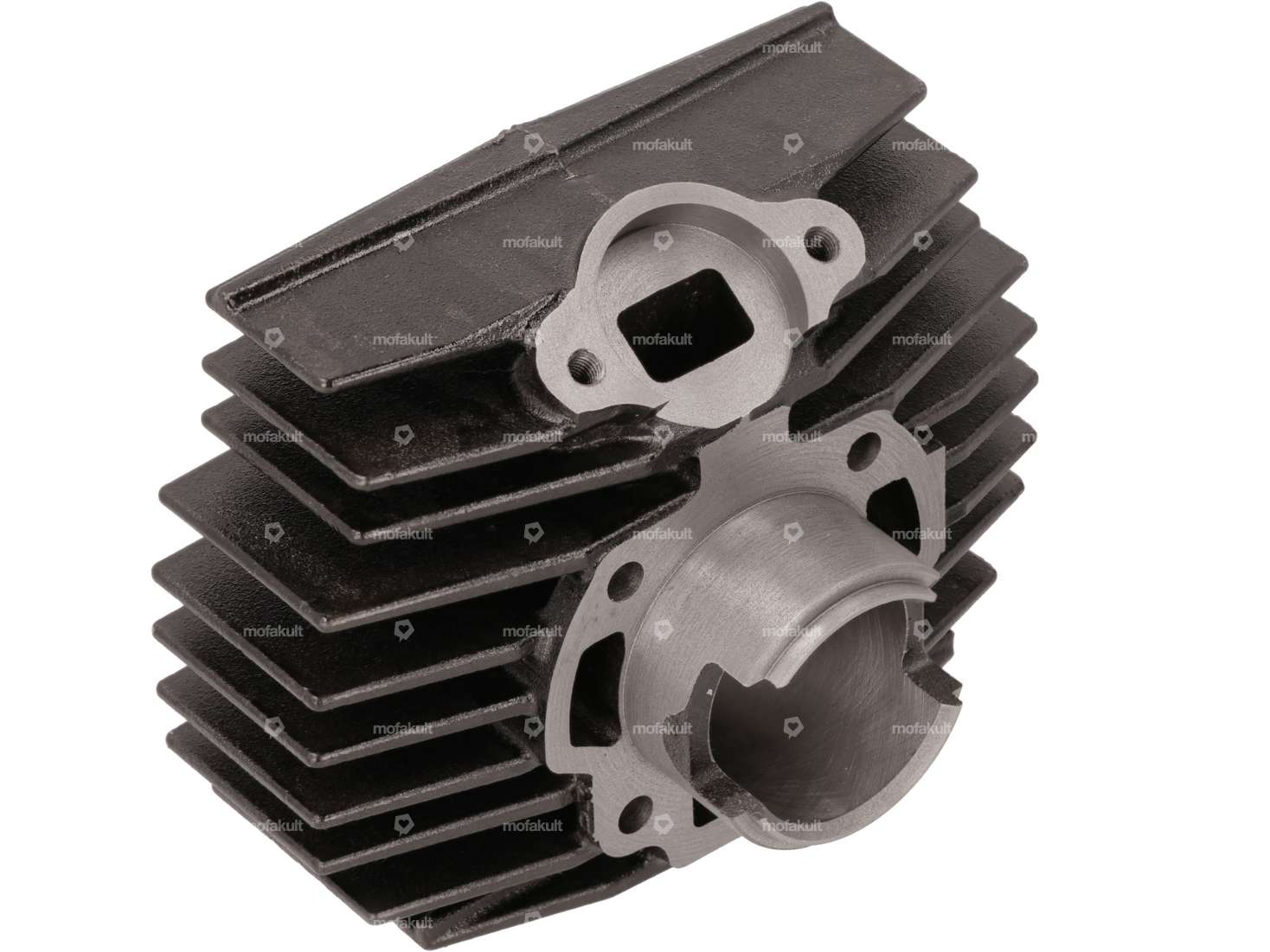

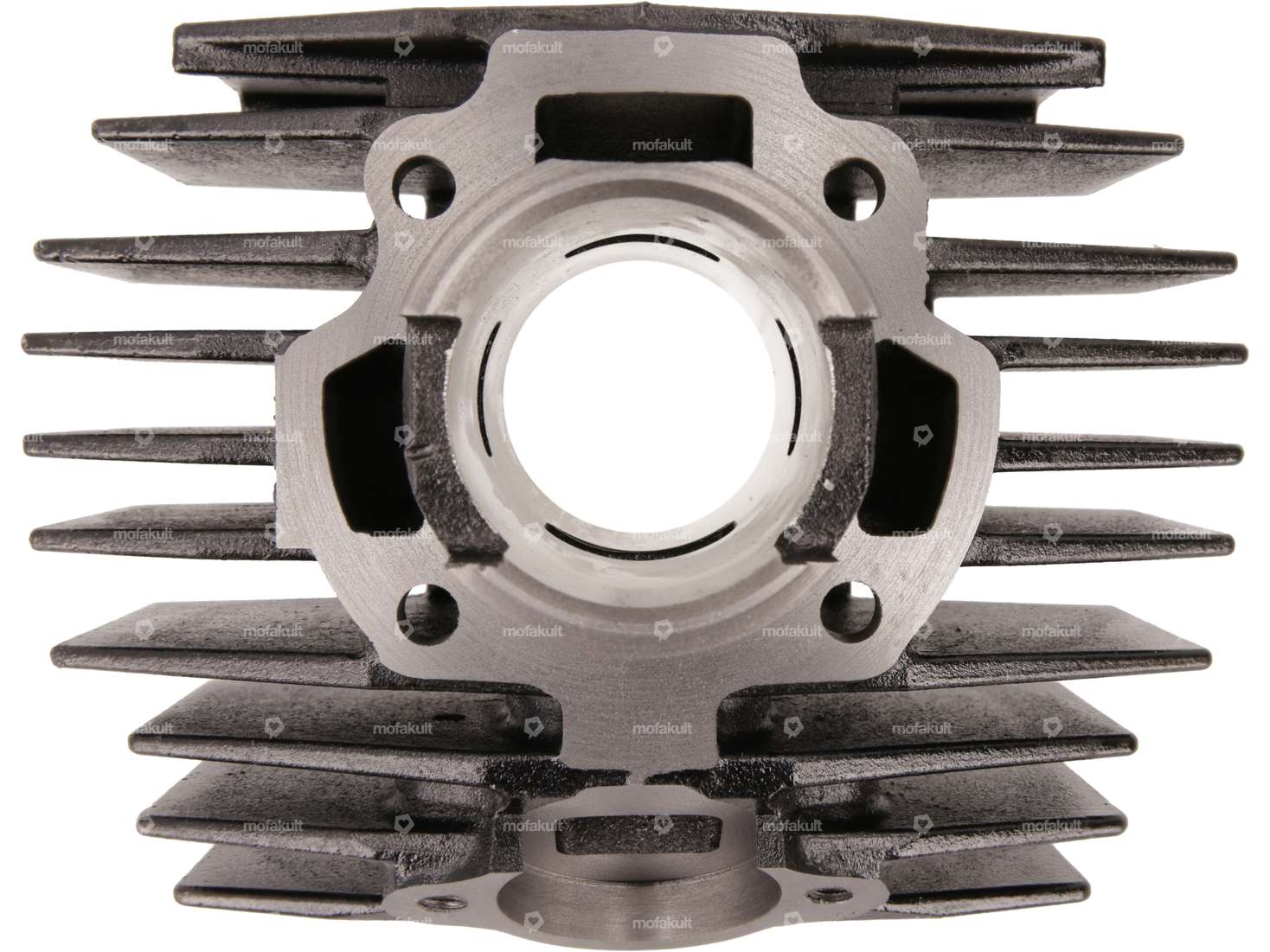

40 mm cylinder compatible with your Honda Camino moped.
The cast steel cylinder is of good quality and is solidly constructed.
Before installation, check the piston clearance and the piston ring clearance.
Cylinder material: Piston material: gray
cast iron; Piston material: cast
aluminum; Bore: 40 mm
; Displacement: 49 cm³
; Cylinder base diameter: 50.9 mm
; Internal exhaust port diameter: 34 mm
; Exhaust port hole spacing: 46 mm
; Exhaust port thread: M6 x 1
; Hole pattern: 48 x 48 mm
Ø Stud hole: 7 mm
Piston pin: 10 mm
Decompressor hole: yes

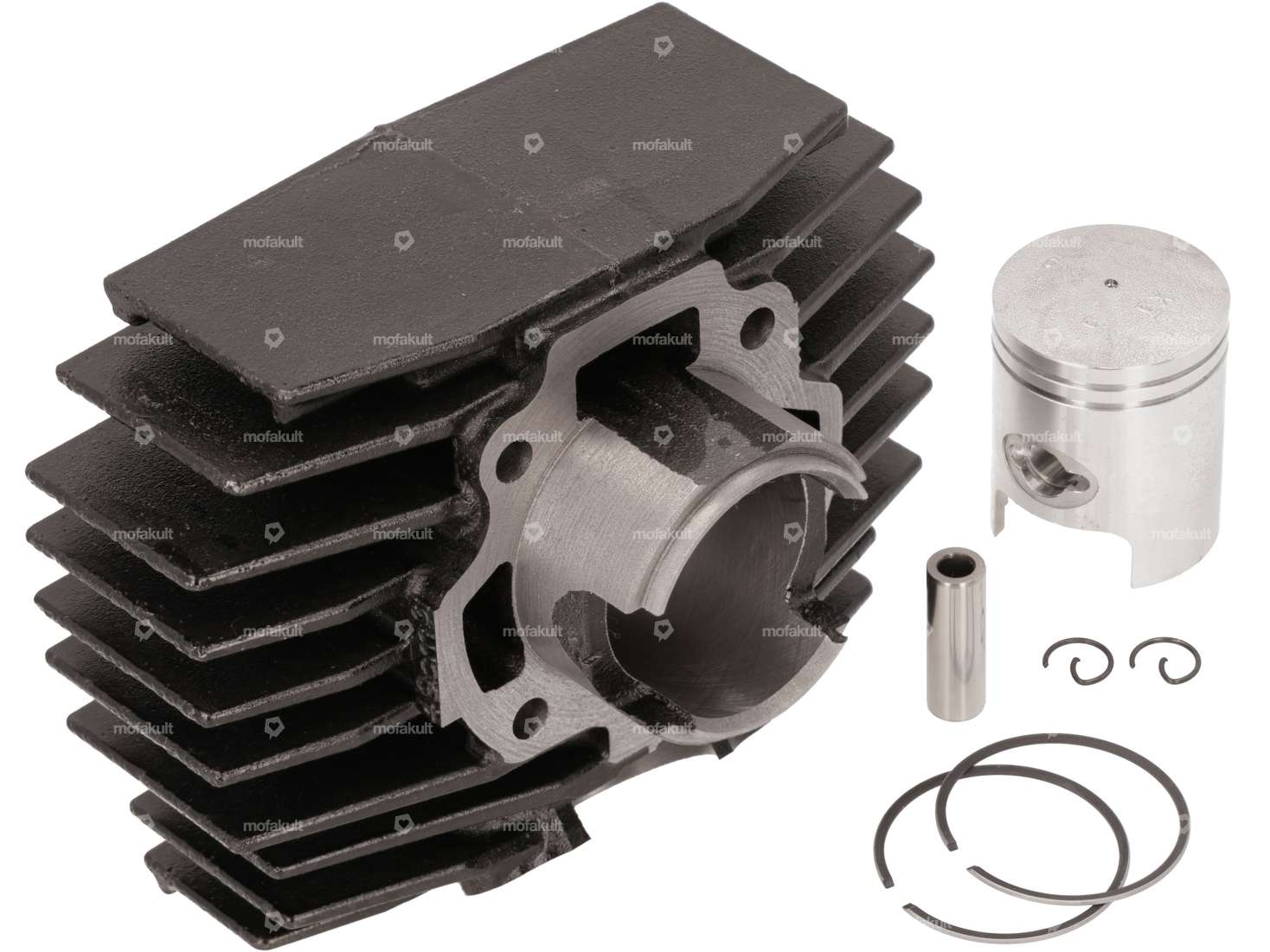

Scope of delivery as shown in Figure 1.
Note: Please observe the installation direction during assembly. The piston is installed with the arrow pointing toward the exhaust on the exhaust side.
You can find compatible exhaust systems and other practical parts in the accessories section.
Brand-name product from the manufacturer DMP.
| Manufacturer | DMP |
| Material | Gray cast iron |
| Surface | varnished |
| Displacement | 50 ccm |
| Ø piston pin (B) | 10 mm |
| Nominal diameter | 40 mm |
| Ø cylinder neck | 50.9 mm |
| Ø Outlet outside | 34 mm |
| Hole spacing outlet | 46 mm |
| Area of application | Standard |
| Hole pattern [mm] | 48 x 48 |
| Outlet type | slanted |
| Number of fixing points | 4 pcs |
| Camouflaged | No |
| Thread outlet | M6x1 (standard thread) |
| Decompressor | Yes |
| Honda |
