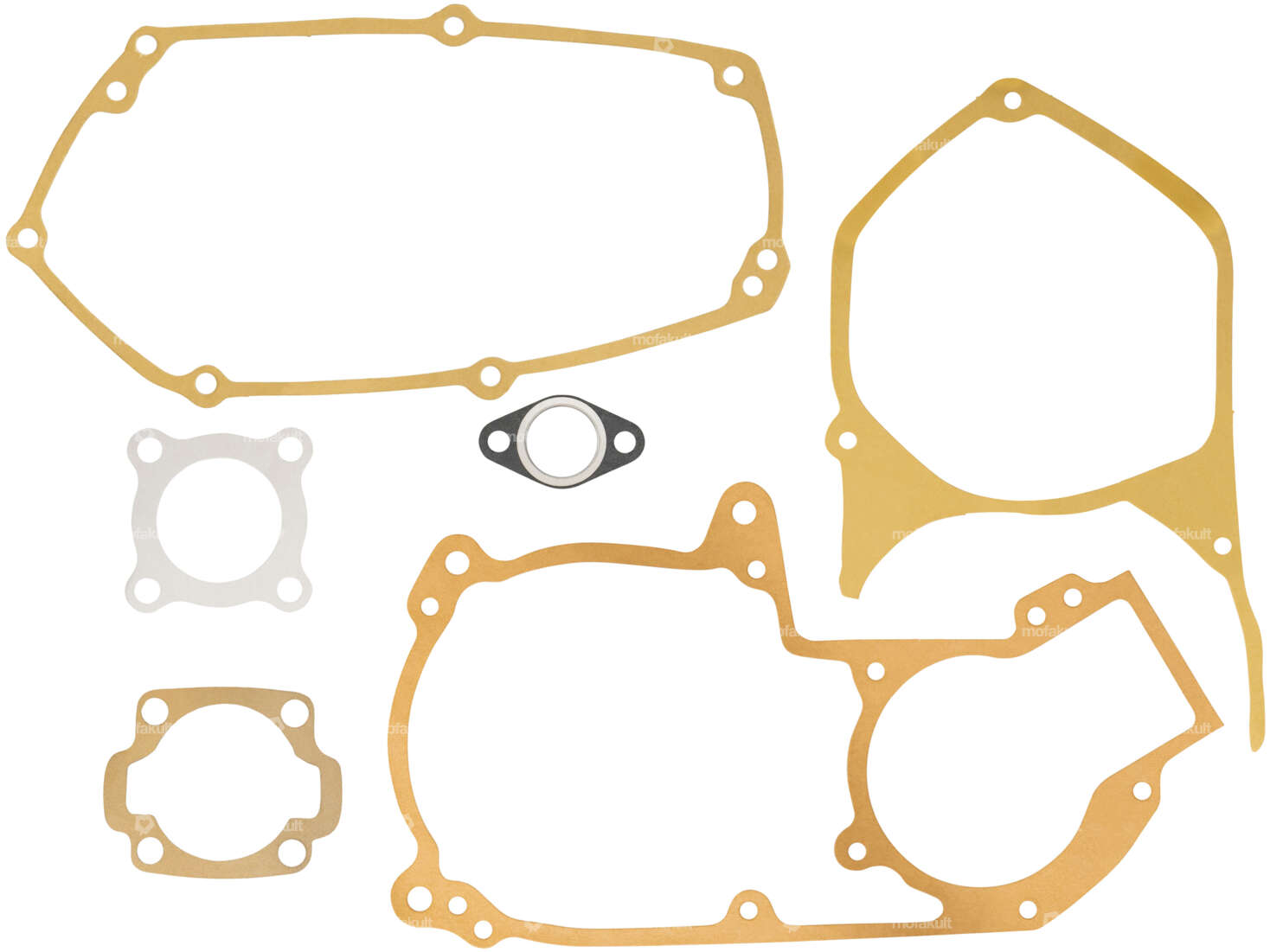

Engine gasket set | Tomos A3

Airsal 38 mm cylinder kit 12 mm KoBo | Tomos A35

Manufacturer: Airsal · Material: Aluminum · Area of application: Tuning · Displacement: 50 ccm · Nominal diameter: 38 mm · Ø cylinder neck: 47 mm · Surface: sandblasted · Ø outlet inside: 25 mm · Inlet window: 28 / 24 x 38 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 32 mm · Hole spacing inlet: 35 mm · Hole spacing inlet: 38 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No

Main stand 24 cm black | Tomos A3 / A35

Manufacturer: Made in Portugal · Material: Steel · Surface: varnished · Total height: 240 mm · Stand base - center mount (A): 205 mm · Total width of stand base (B): 220 mm · Color: black-matt · Wide receptacle (C): 52 mm · Ø Receptacle (D): 7.8 mm · Spring nipple distance - center pivot axis (E): 7.5 mm · Wide upright foot (F): 25 mm · Tomos OEM number: 237153S91

GPO 44 mm cylinder kit tuning 12 mm KoBo | Tomos A35

Manufacturer: GPO · Material: Aluminum · Area of application: Tuning · Displacement: 65 ccm · Nominal diameter: 44 mm · Crankshaft stroke: 43 mm · Ø cylinder neck: 47.8 mm · Surface: sandblasted · Ø outlet inside: 22.8 mm · Inlet window: 35.5 x 29.5 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 36 mm · Hole spacing inlet: 39 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No

TECNO Circuit Exhaust blank | Tomos A3

Manufacturer: TECNO · Material: Steel · Surface: varnished · Flame tube attachment: Flange · Mounting type: Welded lug · Ø Flame tube outside: 25 mm · Exhaust type: Snail · Number of fixing points: 1 pcs

Parmakit 45 mm cylinder kit tuning 12 mm KoBo | Tomos A35

Manufacturer: Parmakit · Material: Aluminum · Area of application: Tuning · Displacement: 70 ccm · Nominal diameter: 45 mm · Crankshaft stroke: 43 mm · Surface: sandblasted · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No

Tomos A35 ignition plate (for electric starter)

Material: Aluminum · Number of cables: 4 pcs · Tension: 12 V · Number of fixing points: 2 pcs

Intake manifold 19 mm PHBG aluminum welded | Tomos A35

Material: Aluminum · Area of application: Tuning · Surface: sandblasted · Ø inside: 19 mm · Ø External connection: 25 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 39 x 32

GPO gasket set 45 mm | Tomos A3 / A35

Manufacturer: GPO · Area of application: Tuning · Ø cylinder: 45 mm · Number of components: 3 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm

Bearing & oil seal set engine | Tomos A35, A52, A3

Manufacturer: NTN · Manufacturer: SKF · Number of components: 10 pcs

NTN 6203 C3 Ball bearing 17/40/12

Bearing cage: Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Groove ring: No · Area of application: Standard · Material: Steel · Ø outside: 40 mm · Bearing type: Deep groove ball bearing · Width: 12 mm · Surface: blank · Ø inside: 17 mm · Ball bearing closed: No

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Oil seal NBR 17/35/7 A DUO

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Material: NBR · Ø outside: 35 mm · Width: 7 mm · Surface: rubberized · Ø inside: 17 mm

NTN 608 Ball bearing 8/22/7

Bearing cage: Sheet steel cage ball-guided · Stock number: 608 · Inner ring width: 7 mm · Manufacturer: NTN · Width: 7 mm · Bearing clearance: CN (standard) · Ø inside: 8 mm · Bearing type: Deep groove ball bearing · Ø outside: 22 mm

GPO oil seal set | Tomos A35

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: GPO · Material: NBR · Ø outside: 24 mm · Ø outside: 35 mm · Ø outside: 47 mm · Width: 7 mm · Surface: rubberized · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 35 mm

NTN Bearings & Oil Seals Engine | Tomos A35

Manufacturer: NTN · Area of application: Standard · Number of components: 6 pcs

swiing® ingenious crankshaft "High End" | Tomos Classic, Quadro, Sprint, Fun Sport'R

Manufacturer: swiing® ingenious parts · Area of application: Racing · Cheek type: Full cheeks · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 93 mm · Thread type: MF10x1 (fine pitch thread) · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Wide crank webs: 34 mm · Tomos OEM number: 223421

Shaft seal NBR 35/47/7 AS Pinion shaft | Tomos

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Place of use: Pinion shaft · Manufacturer: Tomos · Width: 7 mm · Material: NBR · Surface: rubberized · Ø inside: 35 mm · Ø outside: 47 mm · Tomos OEM number: 036620

Shaft seal NBR 16/24/7 AS Pedal axle | Tomos

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Tomos · Width: 7 mm · Material: NBR · Surface: rubberized · Ø inside: 16 mm · Ø outside: 24 mm · Area of application: Standard · Tomos OEM number: 200266

Set of clutch shoes | Tomos Classic, Quadro, Sprint, Fun Sport'R

Area of application: Standard · Ø outside: 90 mm · Thickness: 14.9 mm · Number of jaws: 3 pcs · Tomos OEM number: 223432
