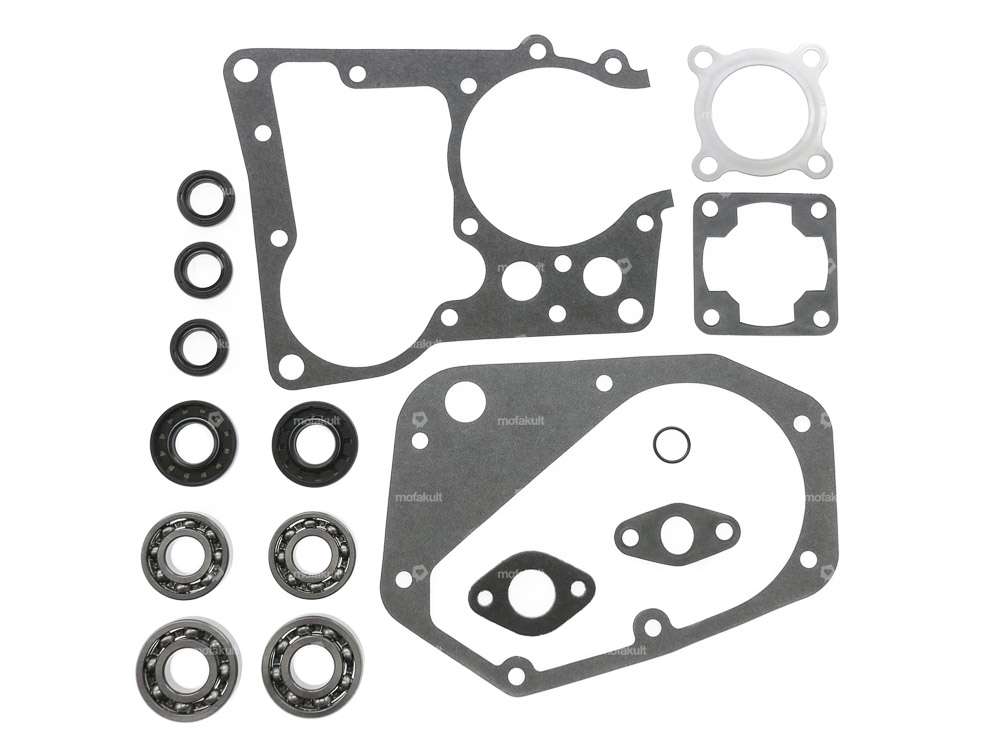

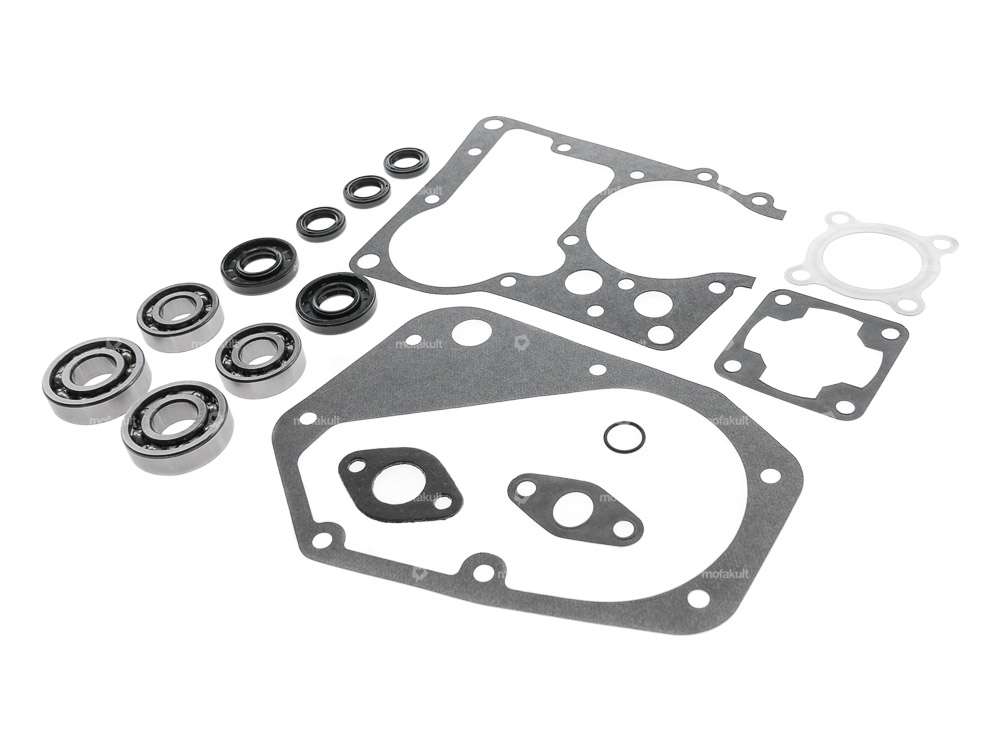

Complete revision set consisting of gaskets and shaft seals (colloquially known as oil seals) suitable for Fantic Issimo & Yamaha Yamy mopeds with a Minarelli V1 engine.
The following individual parts are included in the set:
- 1 pc. Center seal
- 1 pc. Transmission cover gasket
- 1 pc. Cylinder base gasket
- 1 pc. Cylinder head gasket
- 1 pc. Intake gasket
- 1 pc. Exhaust gasket
- 1 pc. O-ring
- 2 pcs. Ball bearing 6203
- 2 pcs. Ball bearing 6202
- 2 pcs. Shaft sealing rings 17/35/7 mm
- 3 pcs. Oil seals 15/24/5 mm
When you buy this complete set, you get a substantial percentage off the retail price of the individual parts
.Quality product from the Japanese manufacturer NTN.
Material: NBR · Temperature resistance (min.): -30 - 100 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 24 mm · Width: 5 mm
Manufacturer: Athena · Number of components: 7 pcs · Area of application: Standard
Manufacturer: NTN · Material: Steel · Area of application: Standard · Bearing type: Deep groove ball bearing · Stock number: 6203 · Bearing clearance: C3 · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Inner ring width: 12 mm · Ball bearing closed: No · Bearing cage: Sheet steel cage ball-guided · Groove ring: No
Manufacturer: NTN · Material: Steel · Bearing type: Deep groove ball bearing · Stock number: 6202 · Bearing clearance: CM (special/noise-reduced) · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Inner ring width: 11 mm · Ball bearing closed: No · Bearing cage: Sheet steel cage ball-guided · Groove ring: No
Material: NBR · Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm
| Manufacturer | NTN |
| Number of components | 16 pcs |
| Area of application | Standard |
| Fantic | Issimo |
| Yamaha |
