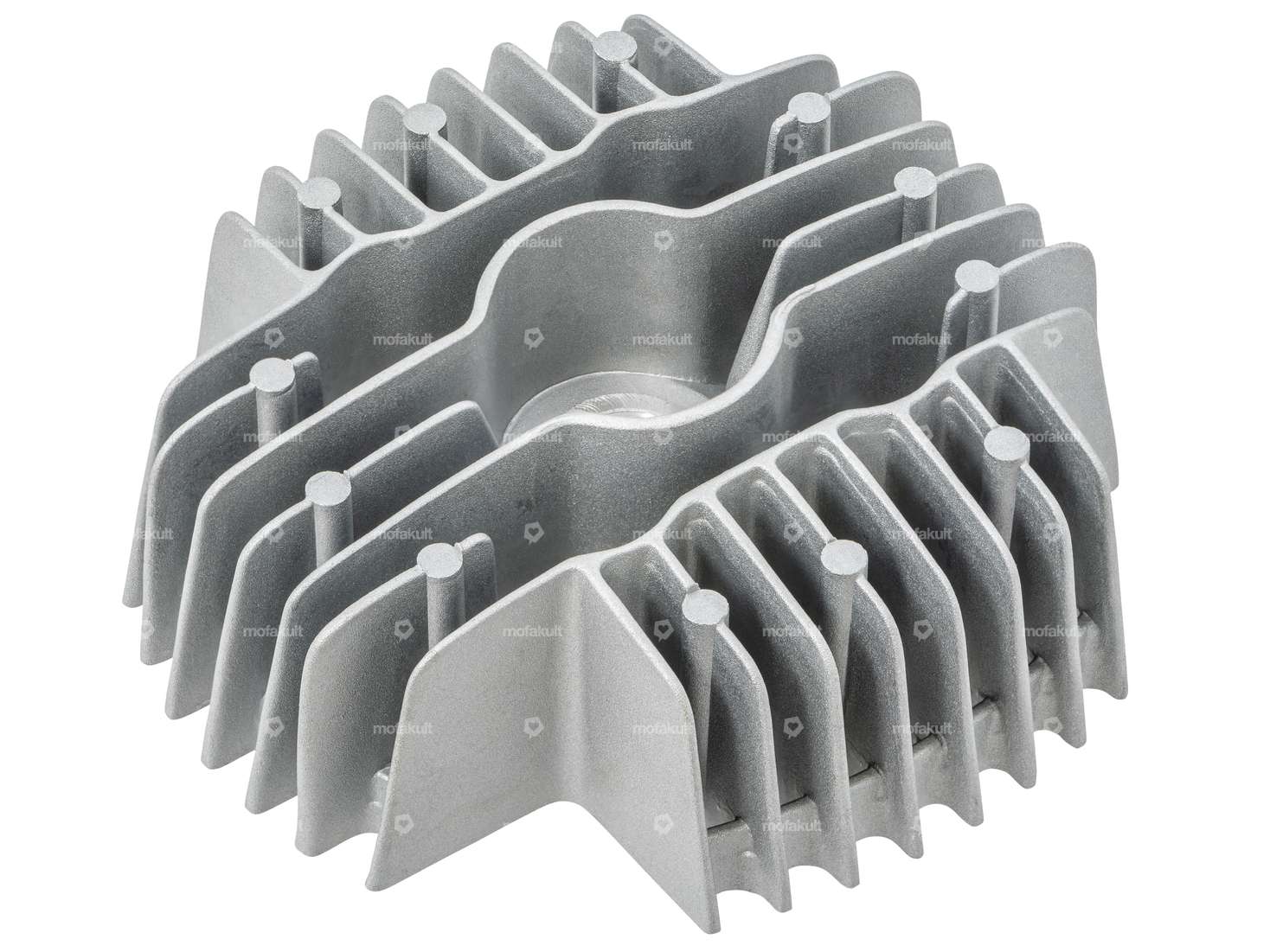

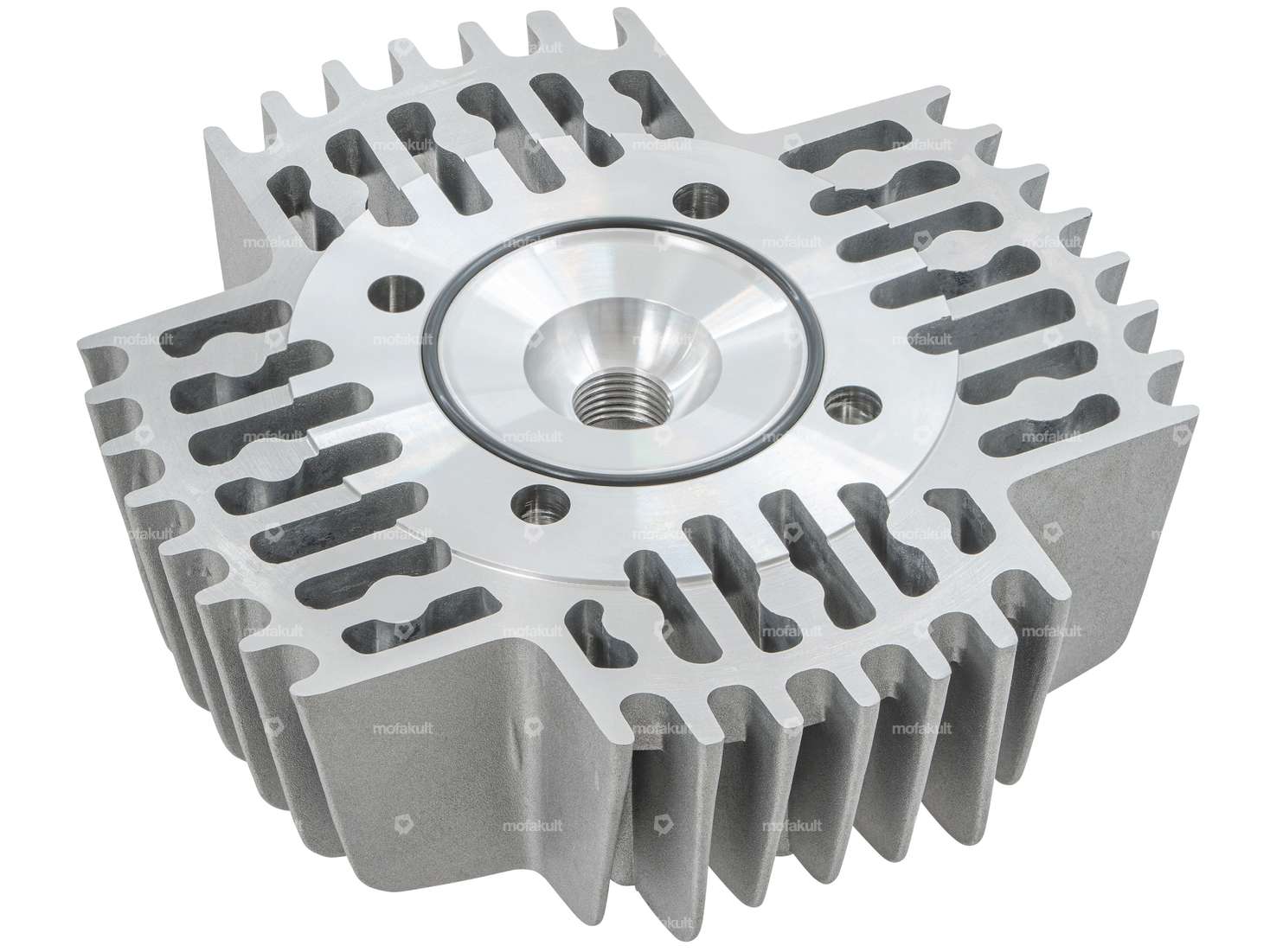

Cylinder cover with 45 mm combustion chamber diameter suitable for converted Puch Maxi S/ N, Puch X30 Sport NS/ NL, Puch X30 Sport N-2AH and Puch Supermaxi LG1/ LG2 mopeds/ mopeds.
The FPM / FKM sealing ring (also known under the protected brand name VITON®) is temperature-resistant up to 200 °C.
A good replica of the original Austrian version with slightly larger cooling fins, also known colloquially as the new model, which is cooled by ambient air (airstream).
This head is the best choice for your 45 Athena, DMP, PowerOne, GPO, AKOA, PSR or ParmaKit racing kit (racing cylinder) with large cooling fins. Also ideal for honed Austrian cylinders, of course.
Details
| Manufacturer | GPO |
| Area of application | Tuning |
| Material | Aluminum |
| Ø cylinder | 45 mm |
| Total length | 140 mm |
| Width | 137 mm |
| Height | 50 mm |
| Candle thread | short |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 44 x 44 |
| Decompressor | No |
Suitable for the following models
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
