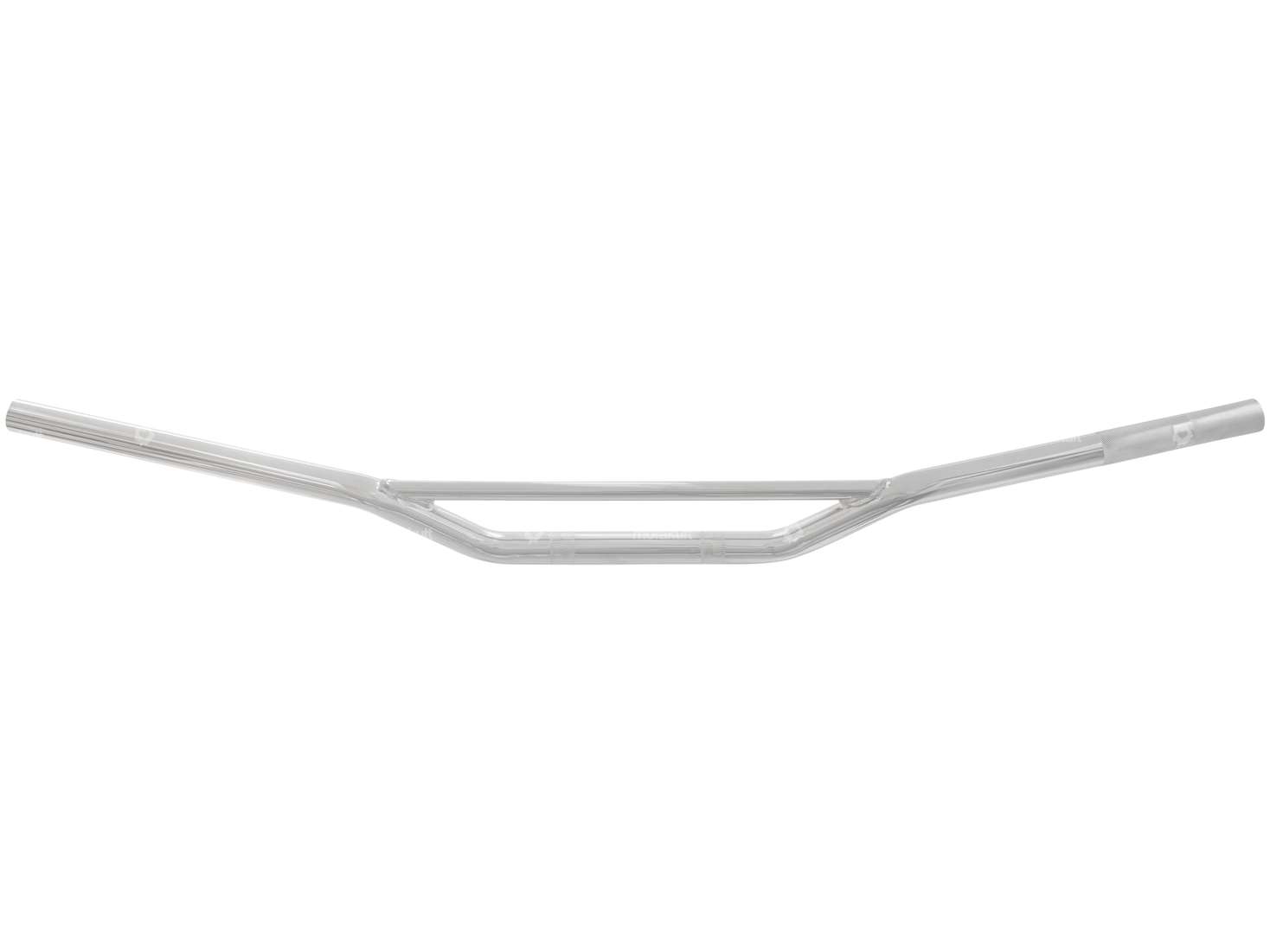

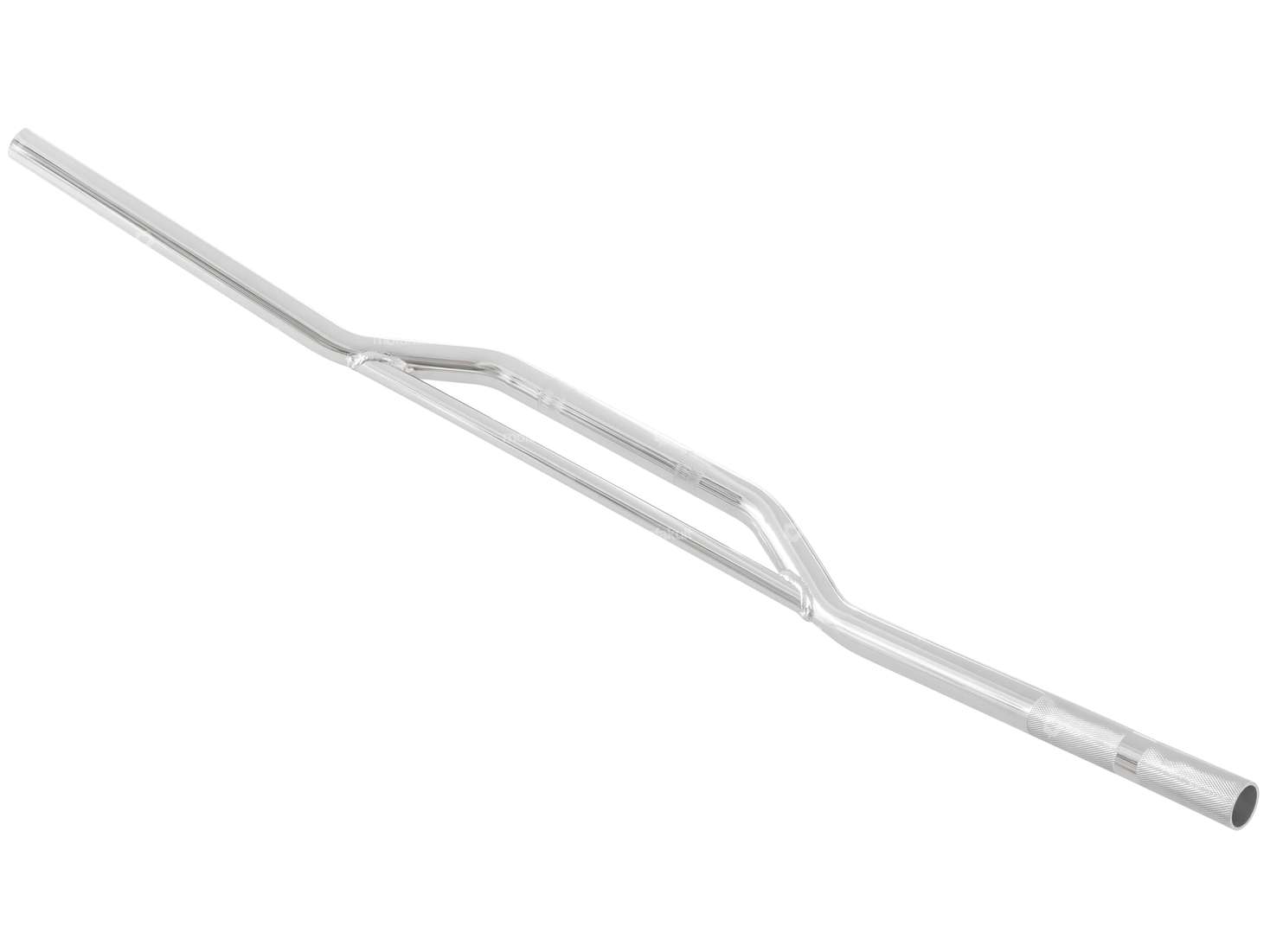

Flat, wide custom handlebars with welded-in crossbar for your moped, moped and small motorcycle. The chromed steel handlebar is mounted on the fork plate.
Both balance ends are slightly bent backwards, the left handlebar end is also knurled for additional grip.
Height: 80 mm
Width: 820 mm
Ø tube: 22 mm
Length handlebar ends (for grip mounting): 240 mm
Length fork plate mount: 130 mm
Matching attachments such as clamps, grips etc. can be found in the accessories section.
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Ø outside | 22 mm |
| Fork plate holder length | 130 mm |
| Length handlebar ends | 240 mm |
| Clamping diameter | 22 mm |
| Crossbar | Yes |
| Ø Strut | 13 mm |
| Strut length | 260 mm |
| Mounting type | Fork plate |
| Width | 820 mm |
| Height | 80 mm |
