Complete set of 0.8 mm thick stainless steel diaphragm springs for the HRT SX50 KTM clutch on your Puch moped / moped with E50 engine.
The diaphragm springs are of the highest quality and precisely defined hardness, so that each disk has the same pressure.

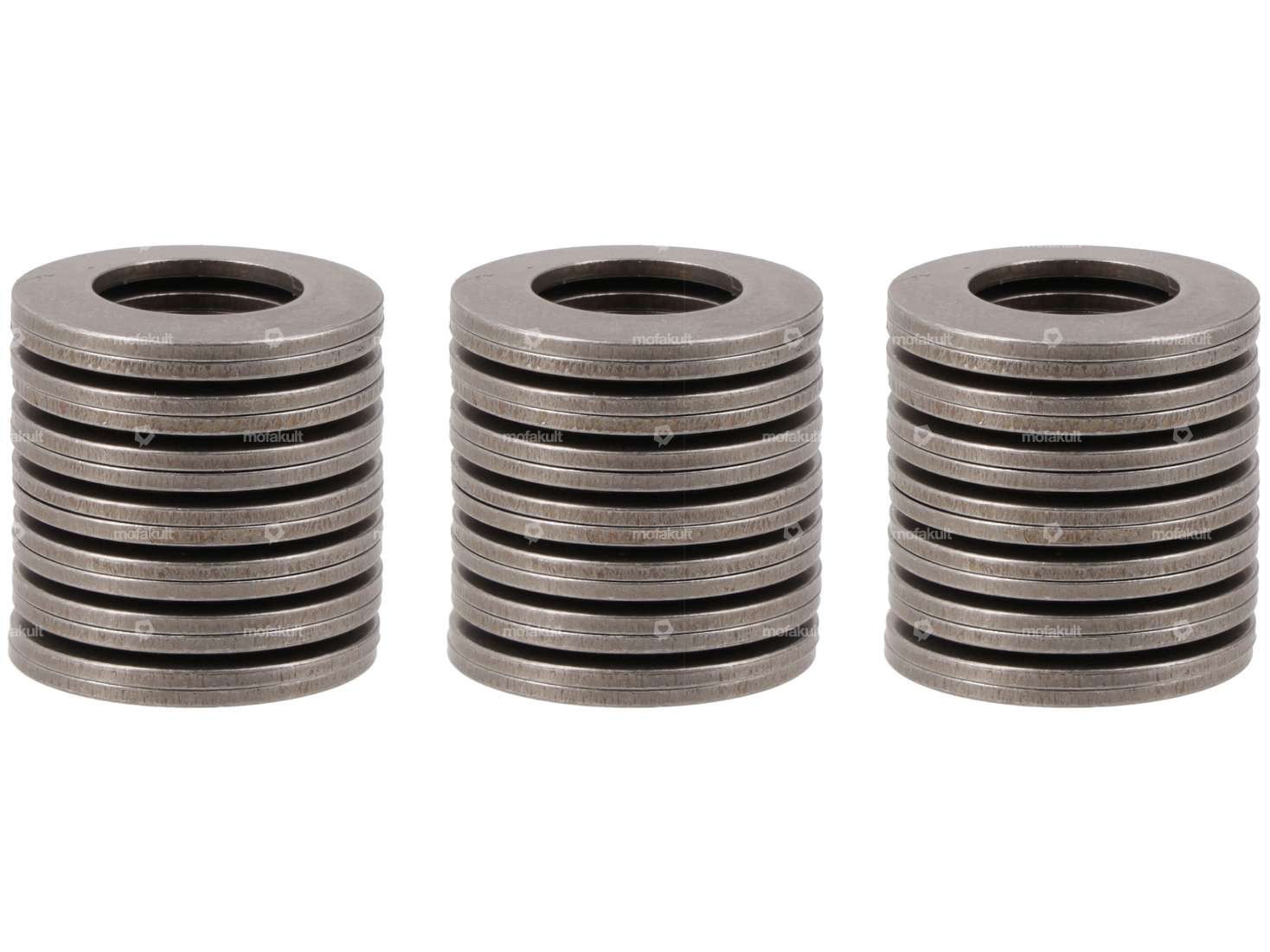

The pairs of spring disks are stacked against each other over the spacers. Depending on the requirements, more or fewer pairs can be stacked in order to adapt the spring tension to the demands of the engine.
As a basic setting for the first assembly, we recommend the following structure of the spring packs: ()()()()()()()(
respectively total dimension of the 13 stacked disc springs approx. 15.5 mm.

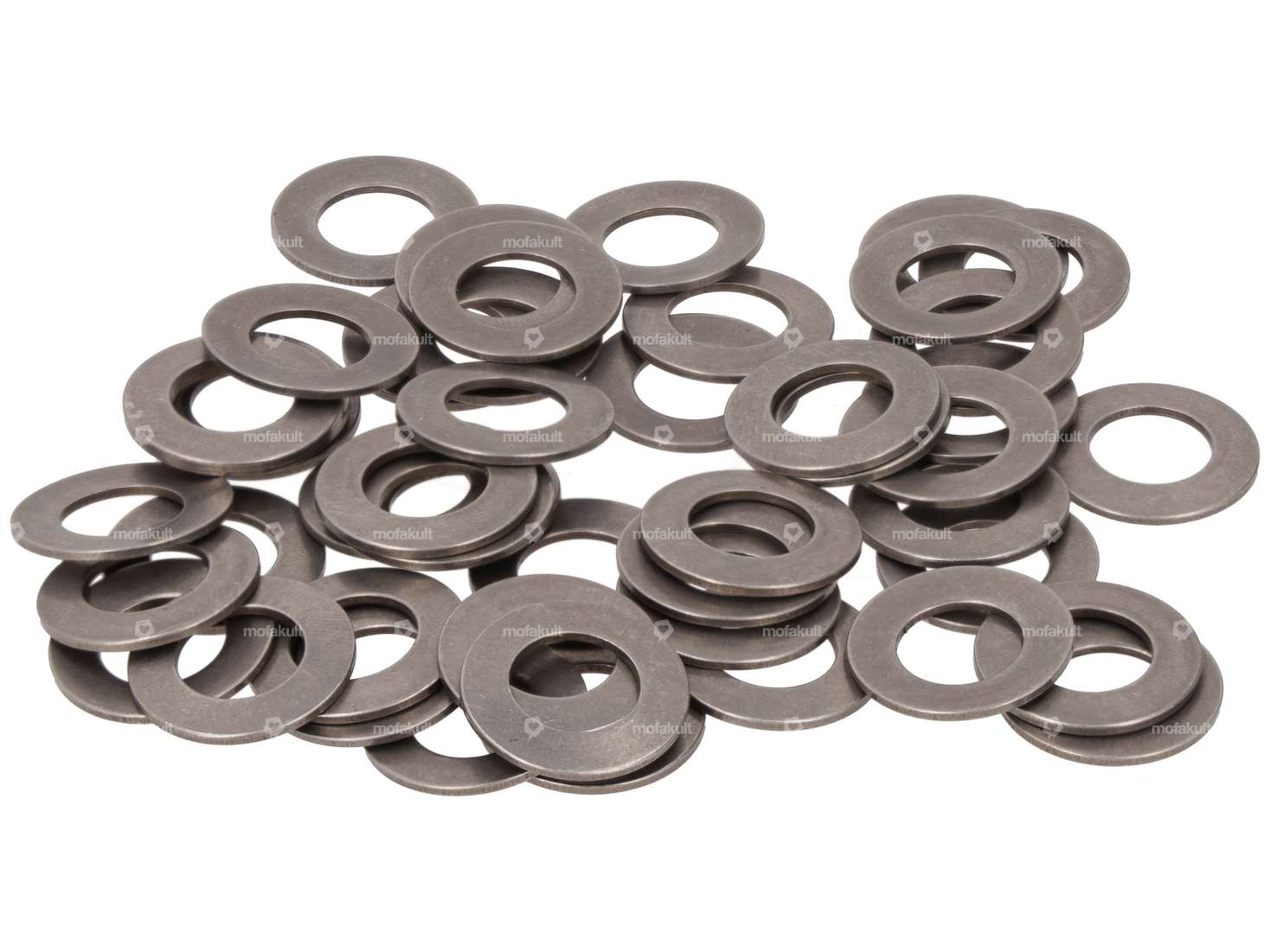

The scope of delivery includes 48 disc washers.
| Ø inside | 8.2 mm |
| Ø outside | 15 mm |
| Thickness | 0.8 mm |
| Material | Chrome steel (colloquially known as stainless steel) |
| Area of application | Racing, High End |
| Number of springs | 48 pcs |
| Puch | E50 |
