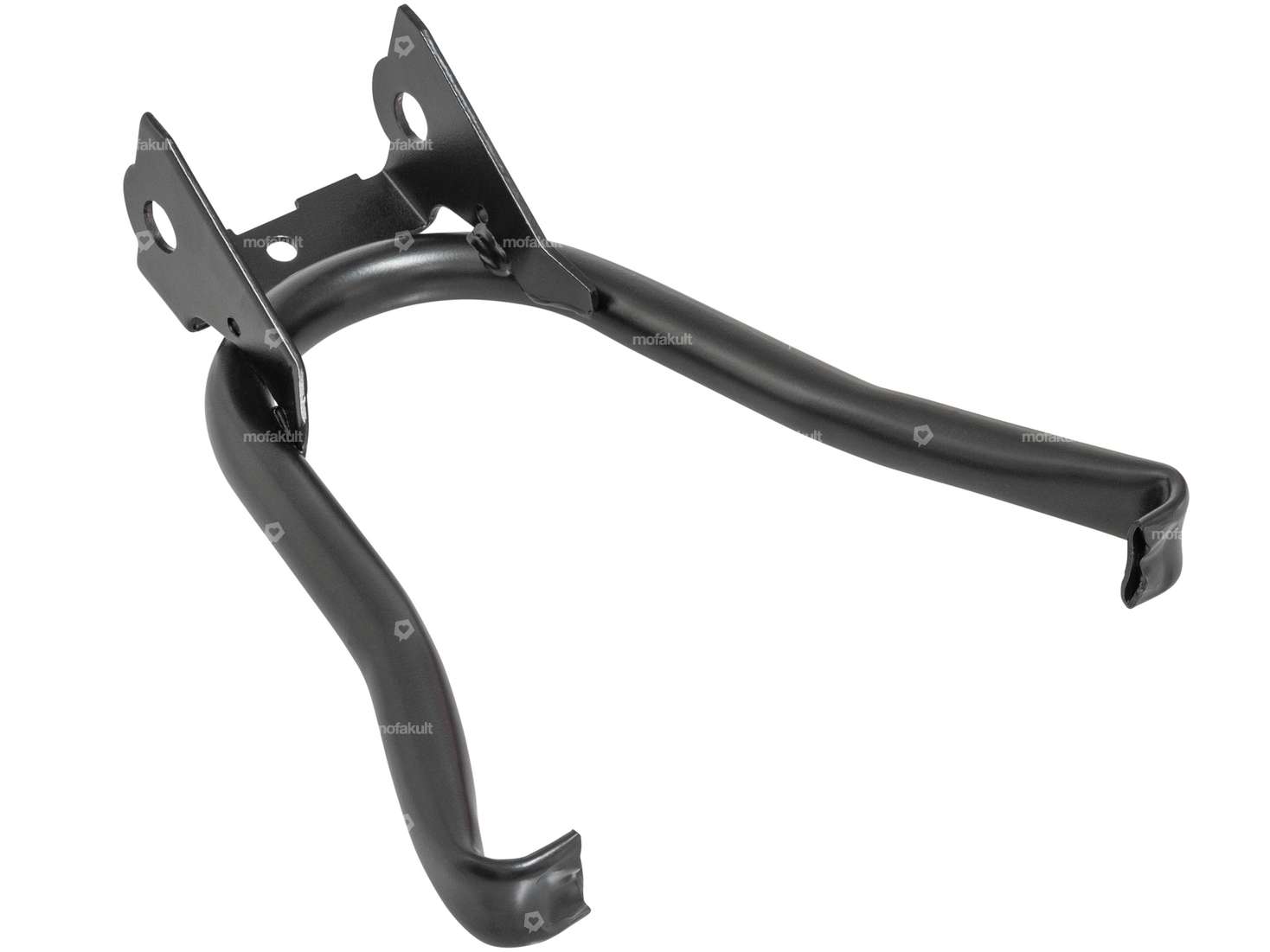

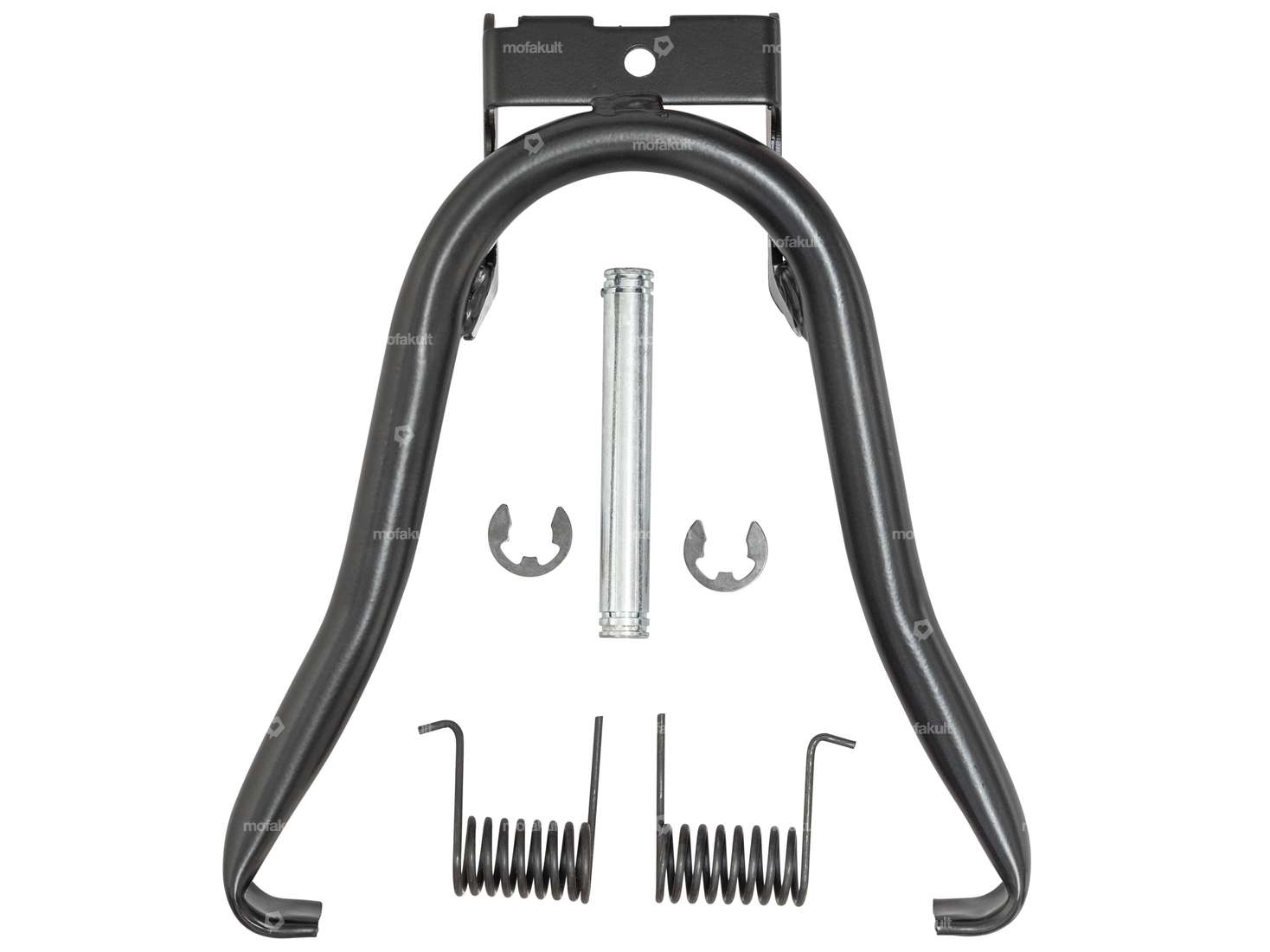

Main stand 14 mm axle | Piaggio Ciao PX, C24

Stand 14 mm axle (1A quality) | Piaggio Ciao PX, C24

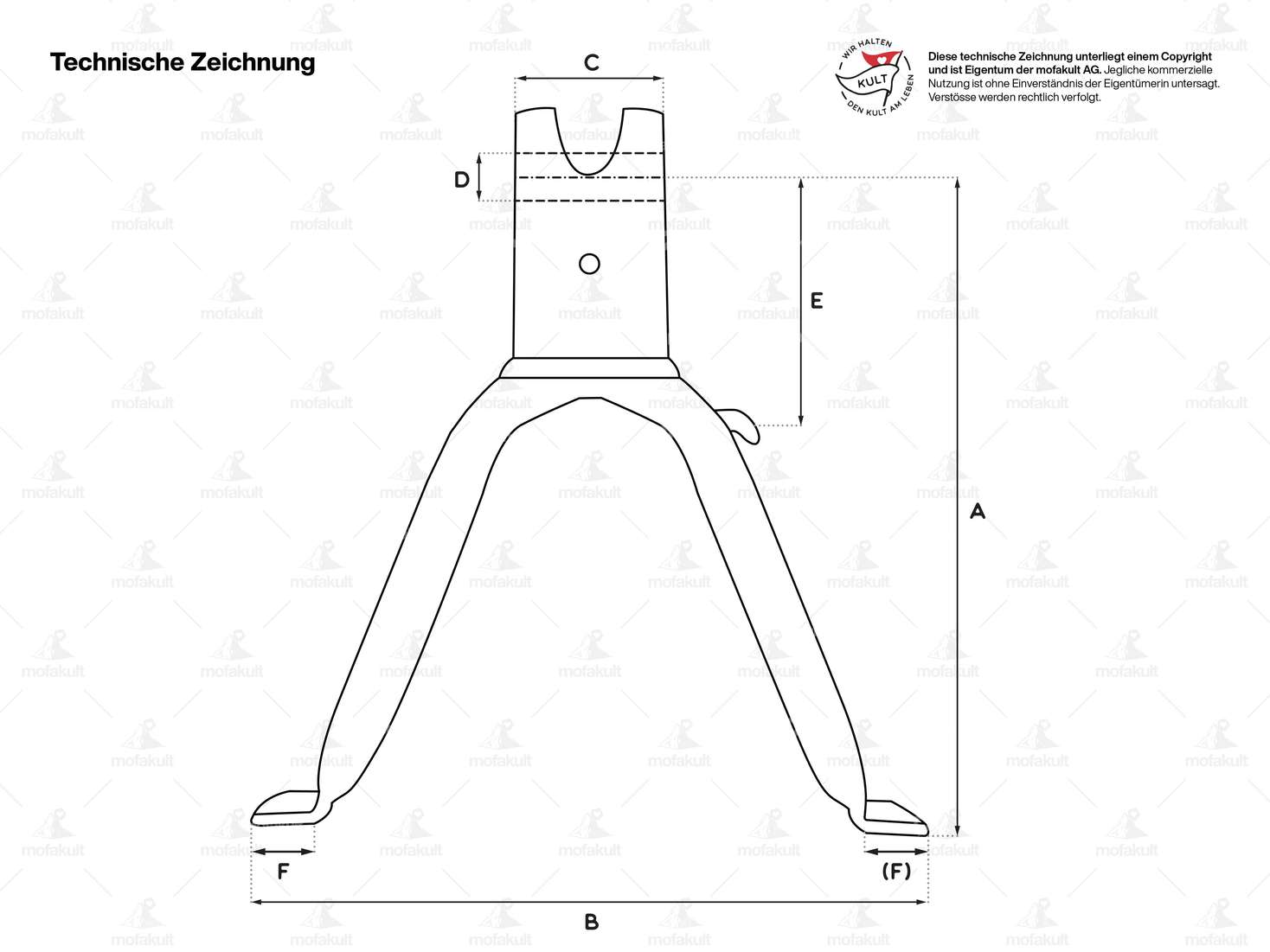

Manufacturer: Made in Italy · Surface: varnished · Color: black · Material: Steel · Stand base - center mount (A): 232 mm · Total width of stand base (B): 200 mm · Wide receptacle (C): 78 mm · Ø Receptacle (D): 14 mm · Wide upright foot (F): 20 mm · Total height: 250 mm

Side stand chrome | Piaggio Ciao PX, C24

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Carbon · Number of fixing points: 2 pcs · Mounting type: Plug connection

Side stand black | Piaggio Ciao PX, C24

Manufacturer: Made in Portugal · Surface: powder-coated · Color: black · Adjustable: No · Mounting type: Plug connection · Material: Steel · Length pivot point - floor: 190 mm · Total length: 250 mm · Number of fixing points: 2 pcs

Headlight black | Piaggio Ciao PX, C24

Manufacturer: Made in Italy · Test mark: none · Bulb holder: P26s · Housing material: Plastic · Color: black · Tension: 6 V · Tension: 12 V · Lens material: Plastic · Mounting type: Screws · Width: 125 mm · Height: 90 mm · Ø External connection: 6.3 mm · Depth: 147 mm · Speedometer recording: 48 mm · Battery operated: No · Switch included: Yes · Number of fixing points: 2 pcs · Area of application: Original · Area of application: Standard · Piaggio OEM number: 584240

Side stand turned chrome / galvanized | Piaggio Ciao

Material: Steel · Surface: chrome-plated · Color: Chrome · Manufacturer: Made in Portugal · Mounting type: Plug connection · Number of fixing points: 2 pcs

CIF Pully 80 mm V-belt 940 mm set | Piaggio Ciao

Manufacturer: CIF · Ø Outer pulley: 80 mm · Surface: galvanized (blue) · Material: Steel · Gearbox type: Mono

Main stand 10 mm axle without bolt | Piaggio Ciao P, SC

Manufacturer: Made in Italy · Material: Steel · Surface: varnished · Stand base - center mount (A): 230 mm · Total width of stand base (B): 200 mm · Color: black · Wide receptacle (C): 77 mm · Ø Receptacle (D): 10 mm · Wide upright foot (F): 20 mm · Total height: 250 mm · Piaggio OEM number: 104626

Stand bolt Ø 14 mm with circlips | Piaggio Ciao, SI, Bravo

Manufacturer: Made in Italy · Surface: galvanized (blue) · Color: silver · Mounting type: Circlip · Material: Steel · Total length: 112 mm · Number of fixing points: 2 pcs · Piaggio OEM number: 164167

Side protectors angular mono gray | Piaggio Ciao

Manufacturer: Made in Italy · Material: Plastic · Total length: 740 mm · Color: gray · Number of fixing points: 6 pcs · Width: 55 mm · Height: 270 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Mounting type: Union nut · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Ø fuel hose connection: 6 mm · Reserve level: 70 mm

Pedals angular | Piaggio Ciao. SI, Bravo

Surface: ribbed · Color: black · Material: Plastic · Drive: Outer edge · Total length: 118 mm · Width: 51 mm · Height: 29 mm · Thread type: FG14.3 (9/16" 20G) · Reflectors: Yes · Width across flats SW: 15 mm

RMS V-belt Mono 960 mm (original) | Piaggio Ciao

Manufacturer: RMS · Outer width: 9.8 mm · Material: Fabric insert · Material: Rubber · Rolling circumference: 960 mm · Belt profile: untoothed / untoothed · Height: 8.5 mm · Gearbox type: Mono

Cable set black | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Germany · Quantity: 4 pcs · Color: black · Material: Steel · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Outer shell length: 1200 mm · Outer shell length: 1250 mm · Outer shell length: 1300 mm · Total length: 1350 mm · Total length: 1600 mm · Outer shell length: 2000 mm · Total length: 2180 mm · Nipple shape: Ball · Nipple shape: Barrel (transverse) · Nipple shape: Pears

GPO chain tensioner | Piaggio Ciao

Manufacturer: GPO · Surface: galvanized (blue) · Color: black · Color: silver · Material: Plastic · Material: Steel · Number of teeth: 8 pcs · Total length: 64 mm · Width: 45 mm · Ø outside sprocket: 33 mm · Thread type: M8x1.25 (standard thread) · Number of fixing points: 1 pcs

CIF screw set side protection | Piaggio Ciao

Manufacturer: CIF · Material: Spring steel · Material: Steel · Surface: galvanized (blue) · Surface: raw · Area of application: Standard · Drive: Slot · Color: silver · Screw head: Lens head · Number of components: 12 pcs

Fuel tap horizontal M12x1 (with union nut) bottom outgoing | Piaggio Ciao

Possible lever positions: open / closed / reserve · Material lever: Aluminum · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Alternative version of the Piaggio OEM number: 103089 · Piaggio OEM number: 189525 · Piaggio OEM number: 257073

GPO Support rubber fork swing arm | Piaggio Ciao

Manufacturer: GPO · Color: black · Material: Rubber · Total length: 22.8 mm · Ø mounting hole: 6.9 mm · Width: 16.25 mm · Height: 8.8 mm · Ø outside: 7.9 mm · Total height: 22.7 mm

Fuse plate emblem original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Total length: 13 mm · Width: 8 mm · Clamping range: 3 - 5 mm · Piaggio OEM number: 008108

Headlight with parking light black | Piaggio Ciao PX, C24

Manufacturer: Quenching · Test mark: none · Bulb holder: P26s · Bulb holder: Soffit pear · Surface: raw · Housing material: Plastic · Color: black · Tension: 6 V · Tension: 12 V · Lens material: Plastic · Mounting type: Screws · Width: 125 mm · Height: 90 mm · Ø External connection: 6 mm · Depth: 147 mm · Speedometer recording: 48 mm · Battery operated: No · Switch included: Yes · Number of fixing points: 2 pcs · Area of application: Standard · Piaggio OEM number: 584240
