Sachs original ignition

swiing® revival Ignition Adjustment Instructions

Manufacturer: swiing® revival parts · Material: Paper · DIN format: A5 · Number of pages: 17 pcs · Language: German

PVL CDI Box “592 221” (2 ignition curves), digital

Width: 44 mm · Height: 26 mm · Manufacturer: PVL · Material: Plastic · Color: black · Number of fixing points: 1 pcs · Ø mounting hole: 6.6 mm · Area of application: Racing · Area of application: Tuning · Total length: 53 mm

swiing® revival rubber grommet ignition cable | Sachs 503 2AL, 2BL, AAL, 535 (A4521)

Ø outside: 10.5 mm · Manufacturer: swiing® revival parts · Material: Rubber · Color: black · Ø Cable bushing: 5.2 mm · Ø Bundle: 10.5 mm · Ø mounting hole: 8.5 mm · Waistband height: 3 mm · Pony OEM number: A4520 · Pony OEM number: A4521 · Sachs OEM no.: 0960 135 000 · Sachs OEM no.: 0960 136 000

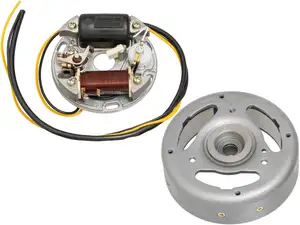

GPO ignition set 90 mm left-hand breaker 6V

Manufacturer: GPO · Tension: 6 V · Direction of rotation: left · Ø mounting plate: 90 mm · Ø Internal flywheel: 90 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Original · Area of application: Standard

GPO CDI ignition set anticlockwise 12V

Manufacturer: GPO · Tension: 12 V · Direction of rotation: left · Ø mounting plate: 90 mm · Ø Internal flywheel: 90 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Performance · Area of application: Standard

GPO CDI ignition set left-turning 6V

Manufacturer: GPO · Tension: 6 V · Direction of rotation: left · Ø mounting plate: 90 mm · Ø Internal flywheel: 90 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Performance · Area of application: Standard

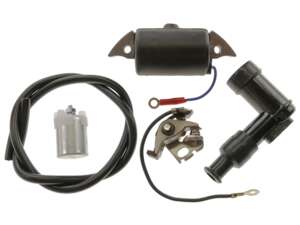

Bosch ignition revision set (budget)

Direction of rotation: left · Direction of rotation: right · Ø mounting plate: 90 mm · Ø Internal flywheel: 90 mm · Number of fixing points: 2 pcs · Mounting type: Screws · Area of application: Original · Area of application: Standard

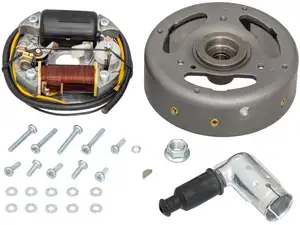

swiing® revival ignition set 90 mm breaker left-turning 6V

Manufacturer: GPO · Manufacturer: swiing® revival parts · Material: Aluminum · Tension: 6 V · Performance: 17 W · Direction of rotation: left · Ø mounting plate: 90 mm · Ø Internal flywheel: 90 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Original · Area of application: Standard

Nut M10x1 flywheel | Sachs

Material: Steel · Surface: burnished · Nut type: Hexagon nut 0.8D · Thread type: MF10x1 (fine pitch thread) · Drive: External hexagon · Height: 8 mm · Nominal diameter (thread): 10 mm · Width across flats: 17 mm · Strength class: 8

Nut M8x1 flywheel | Sachs 504, 502 1A, 1B / Zündapp / Kreidler

Material: Steel · Surface: burnished · Nut type: Hexagon nut 0.8D · Thread type: MF8x1 (fine pitch thread) · Drive: External hexagon · Height: 6.5 mm · Nominal diameter (thread): 8 mm · Width across flats: 13 mm · Strength class: 8

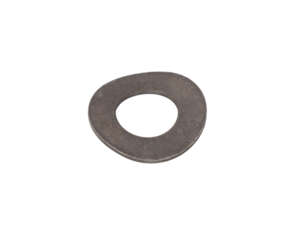

Spring washer M10 flywheel | Sachs 503, 502, 50/2, 50/3, 50/4 (A1640)

Material: Steel · Surface: burnished · Thread size: M10 · Ø inside: 10.5 mm · Nominal diameter inside: 10 mm · Nominal diameter (thread): 10 mm · Ø outside: 21 mm · Thickness: 1 mm · Pony OEM number: A1640

NGK B9ES spark plug long thread

Manufacturer: NGK · Candle designation: B9ES · Candle thread type: long · Thread type: MF14x1.25 (fine pitch thread) · Spark plug socket: M4 · Suppressed: No · Spark plug socket: SAE · Width across flats: 21 mm · Area of application: Original · Area of application: Standard

CTE breaker without cable (small) NOS | Bosch / Ducati

Manufacturer: CTE · Ø axle: 4 mm · Material: Steel · Cable available: No · Number of fixing points: 2 pcs · Ø Internal flywheel: 80 mm · Ø mounting hole: 4.3 mm · Cable length: 100 mm · Pony OEM number: A2495 · Pony OEM number: A2496 · BOSCH OEM number: 1 207 013 004 · BOSCH OEM number: 2 207 013 005 · BOSCH OEM number: 2 207 110 007 · Morini OEM number: 29 0026 005 · Morini OEM number: 29 0034 005 · Sachs OEM no.: 0283 116 000 · Minarelli OEM number: 82 000 16 · BERU OEM number: 0 340 100 458

GPO Ignition plate empty (Bosch / Ducati)

Manufacturer: GPO · Pony OEM number: A2133 · Pony OEM number: A5532 · Sachs OEM no.: 0265 140 005 · Sachs OEM no.: 0265 206 000

CTE breaker with cable (small) NOS | Bosch / Ducati

Manufacturer: CTE · Ø axle: 4 mm · Material: Steel · Cable available: Yes · Number of fixing points: 2 pcs · Ø Internal flywheel: 80 mm · Ø mounting hole: 4.3 mm · Cable length: 100 mm · Pony OEM number: A2495 · Pony OEM number: A2496 · BOSCH OEM number: 1 207 013 004 · BOSCH OEM number: 2 207 013 005 · BOSCH OEM number: 2 207 110 007 · Morini OEM number: 29 0026 005 · Morini OEM number: 29 0034 005 · Minarelli OEM number: 82 000 16 · BERU OEM number: 0 340 100 458 · Fantic OEM number: 320 4500 5150

Cable 630 mm eyelet Ø 4.3 mm (ground, ignition interrupter, ignition cable etc.)

Color: black · Number of cables: 1 pcs · Cable length: 630 mm

swiing® ingenious fan wheel black (EVO, HPI, Bosch,Ducati) | Puch X30 Velux / Sachs 503 / Belmondo

Ø inside: 39 mm · Ø outside: 120 mm · Height: 13.5 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Color: black · Weight: 87 g · Ø bolt circle: 48 mm · Ø bolt circle: 70 mm · Ø bolt circle: 100 mm · Number of fixing points: 10 pcs · Ø mounting hole: 5.5 mm · Ø mounting hole: 6 mm

GPO Counter-Rotating Flywheel 6V - 17W | Puch & Sachs & Zündapp Belmondo

Height: 36.1 mm · Manufacturer: GPO · Material: Steel · Weight: 900 g · Thread type: MF26x1.5 (fine pitch thread) · Direction of rotation: left · Ø cone small inside: 11.5 mm · Ø Internal flywheel: 91.1 mm · Tension: 6 V · Ø cone large inside: 15 mm · Ø Flywheel outside: 116.5 mm · Performance: 17 W · Cone length: 18.5 mm · Cone ratio: 1:5 · Thread length: 8 mm · Pony OEM number: A2600 · Sachs OEM no.: 0286 175 005

BOSCH screw-in condenser | Bosch / Ducati

Ø outside: 18 mm · Height: 27 mm · Manufacturer: BOSCH · Capacity: 0.2 µF · Thread type: M3x0.5 (standard thread) · Mounting type: Plug connection clamped · Connection type: Thread for screwing · Area of application: Original · Area of application: Standard · Total height: 33.5 mm · Alternative version of the Pony OEM number: A2090 · Pony OEM number: A2092 · BOSCH OEM number: 2 207 330 050 · Alternative version of the Sachs OEM number: 0265 052 003 · Sachs OEM no.: 0265 052 007

BOSCH breaker without axle | Bosch ignition

Manufacturer: BOSCH · Ø axle: 4 mm · Material: Steel · Cable available: No · Number of fixing points: 1 pcs · Ø mounting hole: 4.5 mm · Area of application: Original · Pony OEM number: A4606 · BOSCH OEM number: 1 217 013 015 · Sachs OEM no.: 0983 106 000 · BERU OEM number: 0 340 100 436

BERU Ignition Interrupter with Cable (Small) NOS | Bosch / Ducati / Minarelli

Manufacturer: BERU · Ø axle: 4 mm · Material: Steel · Cable available: Yes · Number of fixing points: 1 pcs · Ø Internal flywheel: 80 mm · Ø mounting hole: 4.5 mm · Area of application: Original · Pony OEM number: A2496 · BOSCH OEM number: 2 207 013 005 · BOSCH OEM number: 2 207 110 007 · Morini OEM number: 29 0026 005 · Morini OEM number: 29 0034 005 · Minarelli OEM number: 82 000 16 · BERU OEM number: 0 340 100 458 · Fantic OEM number: 320 4500 5150

DUCATI Capacitor (Screw-On) NOS | Bosch / Ducati

Ø outside: 18 mm · Height: 23.5 mm · Manufacturer: DUCATI · Capacity: 0.2 µF · Thread type: M3x0.5 (standard thread) · Mounting type: Plug connection clamped · Connection type: Thread for screwing · Area of application: Original · Area of application: Standard · Total height: 30.5 mm · Alternative version of the Pony OEM number: A2090 · Alternative version of the Pony OEM number: A2092 · Alternative version of the Pony OEM number: A5520 · Alternative version of the Sachs OEM number: 0265 052 003 · Alternative version of the Sachs OEM number: 0265 052 007 · Alternative version of the Sachs OEM number: 0265 202 000

swiing® revival rubber plug ignition coil

Manufacturer: swiing® revival parts · Material: Rubber · Color: black · Pony OEM number: A4663 · Sachs OEM no.: 2865 003 000

EFFE breaker with cable | Bosch / Ducati

Manufacturer: EFFE · Ø axle: 4 mm · Material: Steel · Cable available: Yes · Number of fixing points: 1 pcs · Ø Internal flywheel: 90 mm · Ø mounting hole: 4.5 mm · Cable length: 100 mm · Area of application: Original · BOSCH OEM number: 1 217 013 025 · BERU OEM number: 0 340 100 710

Rubber grommet ignition cable | Sachs 50/3, 50/4

Material: Rubber · Color: black

Round Rubber Grommet for 4 Cables | Sachs

Material: Rubber · Color: black · Pony OEM number: A1924 · Sachs OEM no.: 0260 020 005

GPO Leaf Gauge Set 0.05–1.00 mm, 13-piece

Measuring range: 0.05 - 1 mm · Total length: 105 mm · Width: 13 mm · Manufacturer: GPO · Area of application: Measuring tool · Material: Metal · Surface: blank / oiled · Thickness: 0.05 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 0.5 mm · Thickness: 0.6 mm · Thickness: 0.7 mm · Thickness: 0.8 mm · Thickness: 0.9 mm · Thickness: 1 mm · Number of components: 13 pcs

GPO ignition coil Bosch 2 204 210 013 | Puch, Sachs, Pony, Hercules

Manufacturer: GPO · Ø Internal flywheel: 90 mm · Color: black · Ø cable holder: 6 mm · Ø mounting hole: 4.7 mm · Place of use: Internal (in the ignition) · Height: 11 mm · Mounting type: Screws · Total length: 76.8 mm · Number of fixing points: 2 pcs · Cable length: 24 mm · Hole spacing: 55 mm · Area of application: Original · Area of application: Standard

Lubricating felt flywheel / contact breaker ignition

Material: Felt · Color: white · Area of application: Original · Pony OEM number: A4665 · Sachs OEM no.: 2865 008 000

GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs, Tomos, Beta 521

Width across flats trigger: 27 mm · Width across flats Screw: 19 mm · Manufacturer: GPO · Clamping depth: 10 mm · Material: Steel · Surface: blackened · Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Total length: 55 mm · Total length: 75 mm · Number of components: 1 pcs · Area of application: (Dis)assembly tool · Strength class: 8.8
