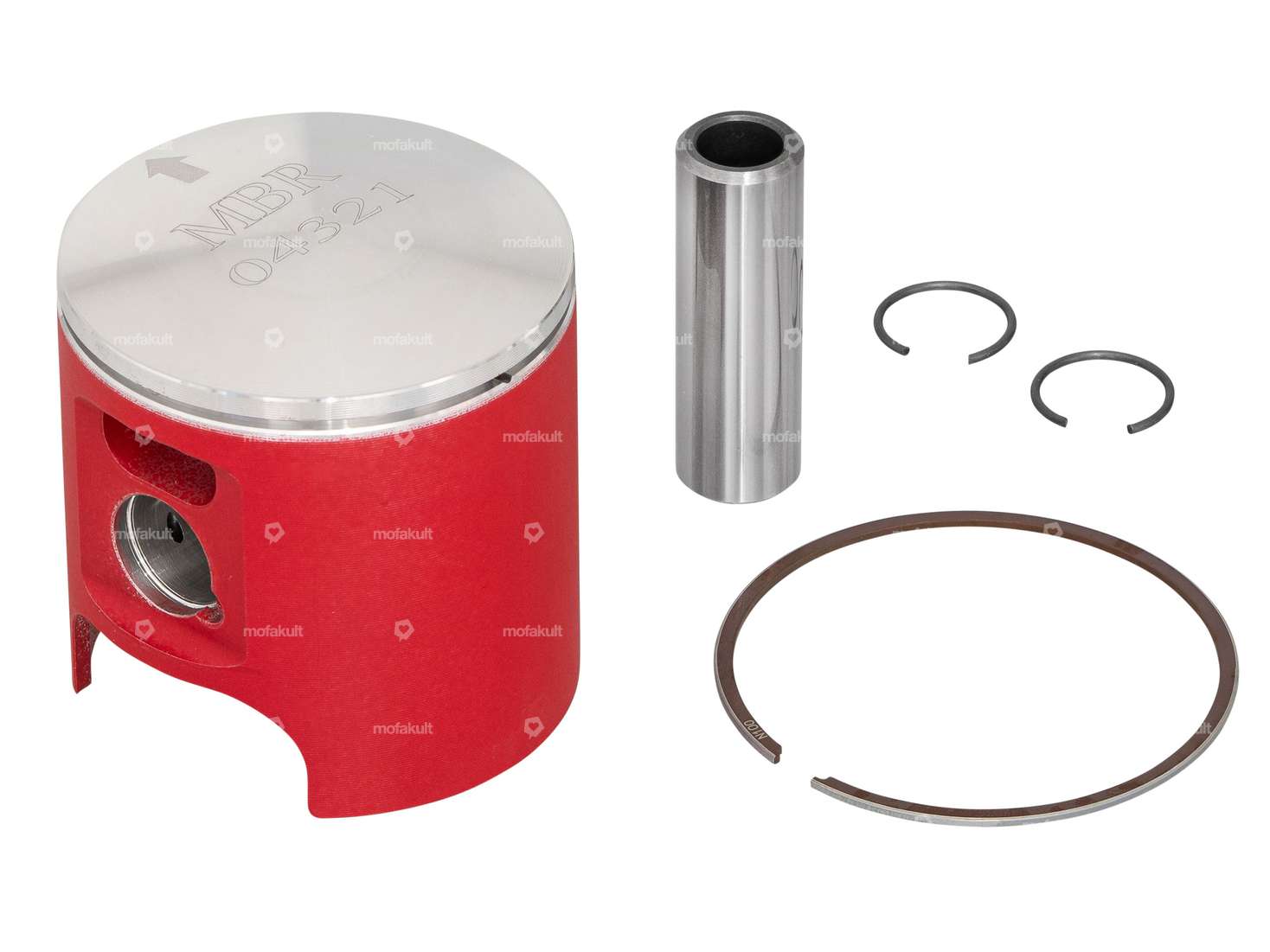

Forged Wössner high-performance piston for the 47 mm Gilardoni italkit Puch cylinder kit when operated with a housing-membrane inlet (GME).
Attention, the piston cannot be used for conventional Gilardoni italkit cylinders which are operated with cylinder diaphragm inlet (ZME).
GME forged piston developed by MBR with a 1 mm rectangular piston ring with internal locking (IS), which is very often used in the Mofacross / Mofacup scene.
Optimal material structure, flow-optimized shape and large lubrication pockets above the piston pin characterize this high-quality racing piston.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the common piston rings, their stems and locking types on the legend in the images.
The molybdenum coating in combination with oil provides technologically advanced wear protection with outstanding sliding properties.
Recommended piston size (coating corresponds to +0.01 mm to +0.02 mm):
Gilardoni italkit Cylinder A (47.00 mm): 46.94 mm piston (in exceptional cases, e.g. when using ASP®).e.g. when using ASPEN: 46.93 mm piston)
Gilardoni italkit cylinder B (47.01 mm): 46.95 mm piston
Gilardoni italkit cylinder C (47.02 mm): 46.96 mm piston
Gilardoni italkit cylinder D (47.03 mm): 46.97 mm piston
Piston ring, piston pin and piston pin retainers are included in the scope of delivery.
Matching add-on parts such as cylinder kits, needle bearings, stroke plates, carburettors, air filters etc. can be found under accessories.
| Manufacturer | Wössner, MBR |
| Surface | molybdenum-coated |
| Ø outside piston (A) | 46.95 mm |
| Compression height (C) | 21.5 mm |
| Curvature (D) | 2.63 mm |
| Total piston height (E) | 48.15 mm |
| Number of piston rings (F) | 1 pcs |
| Nominal diameter | 47 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1 mm |
| Ø piston pin (B) | 12 mm |
| Weight piston kit | 97 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Ratings
Accessories & related products
HOMOET exhaust P8 | Puch (slanted exhaust)
Ø outside: 88 mm · Total length: 915 mm · Manufacturer: HOMOET · Material: Steel · Surface: varnished · Color: black · Ø Internal connection: 25 mm · Ø Silencer: 50 mm · Ø Flame tube outside: 28 mm · Exhaust type: Cone / double cone · Flame tube attachment: Flange · Number of fixing points: 1 pcs · Mounting type: Welded lug
338,30 EUR
swiing® ingenious intake manifold Gilardoni italkit Inox
Manufacturer: swiing® ingenious parts · Mounting type: Screws · Number of fixing points: 4 pcs · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Total length: 80 mm · Ø inside: 21 mm · Height flange center hole: 42.5 mm · Total height: 55 mm · Ø External connection: 24 mm · Hole pattern [mm]: 60 x 35
79,20 EUR

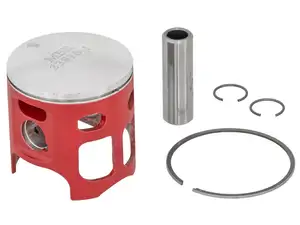

MBR piston 46.95 mm Gilardoni italkit | Puch
Nominal diameter: 47 mm · Manufacturer: MBR · Manufacturer: Wössner · Surface: molybdenum-coated · Ø outside piston (A): 46.95 mm · Compression height (C): 22 mm · Curvature (D): 2.65 mm · Total piston height (E): 48.15 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1 mm · Ø piston pin (B): 12 mm · Weight piston kit: 94 g
138,70 EUR
Explore categories from Piston
Moped fans also bought
Airsal 46 mm cylinder kit straight exhaust | Puch
Nominal diameter: 46 mm · Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 43 mm · Hole spacing inlet: 38 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread)
233,30 EUR
Fortune / Merrick 2.00-2.25 x 16" / 17" inner tube
Manufacturer: Fortune · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width: 2.5 " · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Tire width [mm]: 50.8 - 63.5 · Wheel size: 16 - 17 " · Wheel size: 17 " · Old designation: 20 x 2 " · Old designation: 20 x 2.25 " · Old designation: 20 x 2.5 " · Old designation: 21 x 2 " · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 " · Tire height [%]: 100 · Valve type: TR4 Auto valve
12,30 EUR

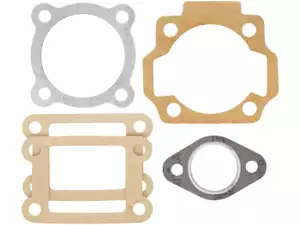

Airsal gasket set 44 - 45 mm
