For: Zündapp

24347

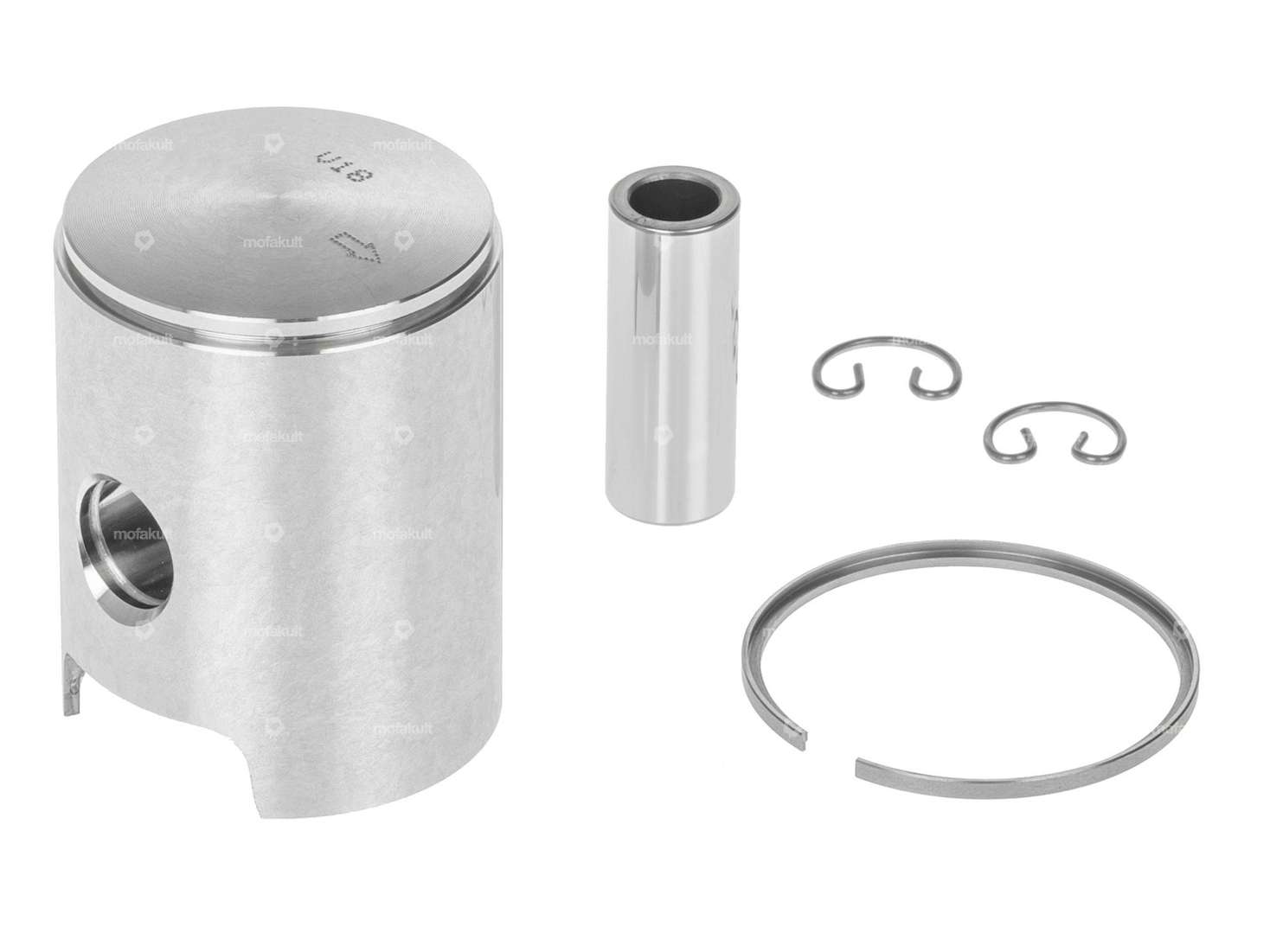

Meteor piston 38.97 mm #EF | Zündapp Type 530

66,40 EUR

Incl. 19% VAT.

Description

39.0 mm piston with an L-piston ring with internal circlip (IS) suitable for Zündapp KS50 / KS80 small engine bikes, which have a Zündapp engine type 530 installed.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerMeteor
Ø outside piston (A)38.97 mm
Compression height (C)26 mm
Curvature (D)1.5 mm
Total piston height (E)51.5 mm
Number of piston rings (F)1 pcs
Nominal diameter39 mm
Piston ring moldL-ring
Piston ring impactInternal fuse (IS)
Ø piston pin (B)12 mm
Tolerance groupEF
Weight piston kit78 g
Zündapp OEM number284-02.775
Zündapp
