38.0 mm piston with two 2 mm rectangular piston rings with flank lock (FS) suitable for Sachs 505 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the images.
Type D

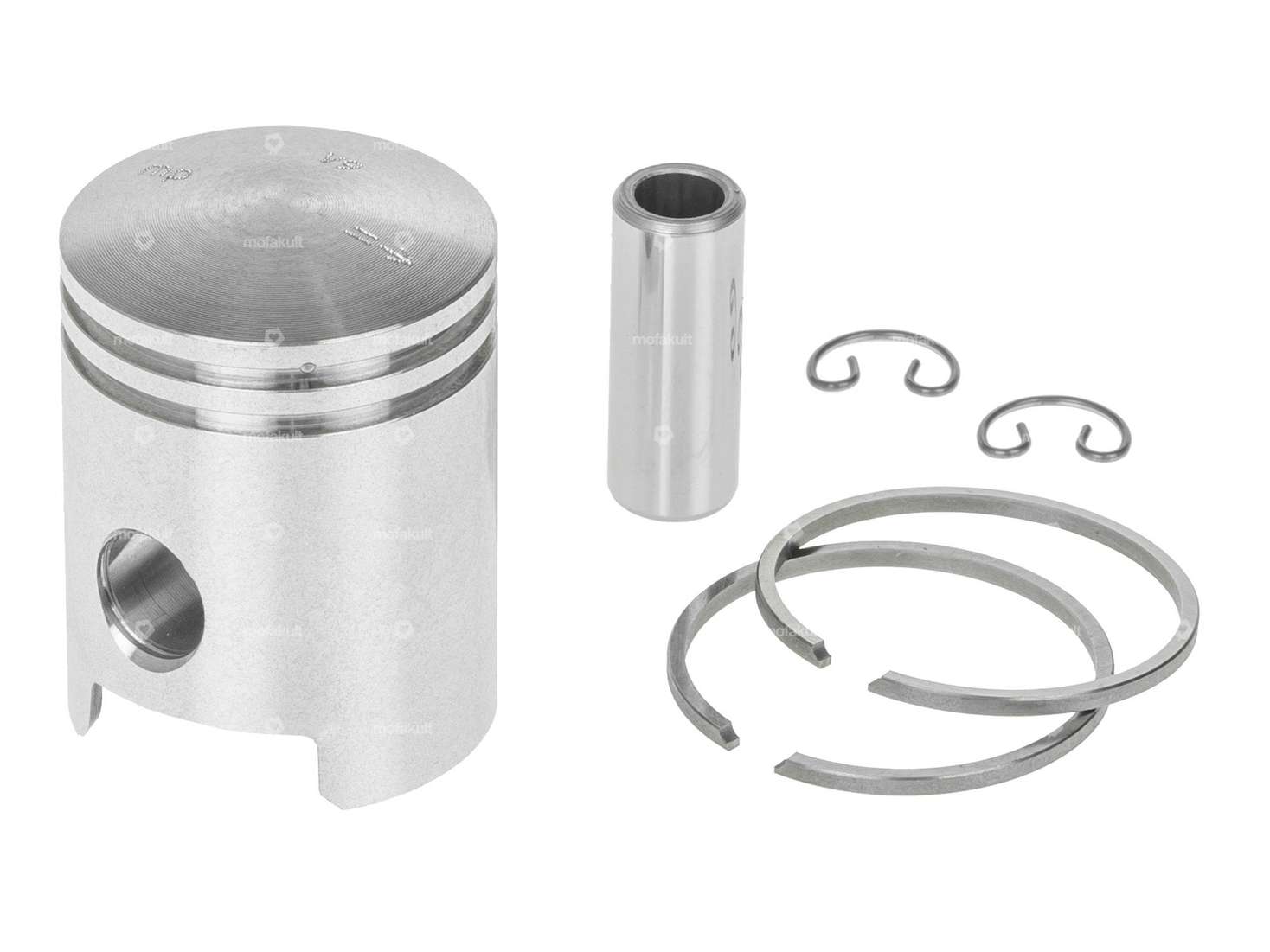

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Meteor.
| Nominal diameter | 38 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 38 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 3 mm |
| Total piston height (E) | 50.5 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Ø piston pin (B) | 12 mm |
| Tolerance group | D |
| Weight piston kit | 78 g |
| Sachs | 505 (with pedal shaft) - 1A (AT), 2A (HG) |
Ratings
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Material: Steel · Total length: 130 mm · Manufacturer: GPO · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool · Number of components: 7 pcs
23,40 EUR
Meteor piston 38 mm #A | Sachs 505
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.97 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Weight piston kit: 79 g
66,40 EUR
Not in stock
Meteor piston 38 mm #B | Sachs 505
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.98 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: B · Weight piston kit: 79 g
66,40 EUR
Meteor piston 38 mm #C | Sachs 505
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.99 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: C · Weight piston kit: 79 g
66,40 EUR
