For: Kreidler

22310

Meteor piston 39.96 mm (14 mm KoBo) C | Kreidler Florett RS

rating iconrating iconrating iconrating iconrating icon
No reviews
69,90 EUR

Incl. 19% VAT.

Description

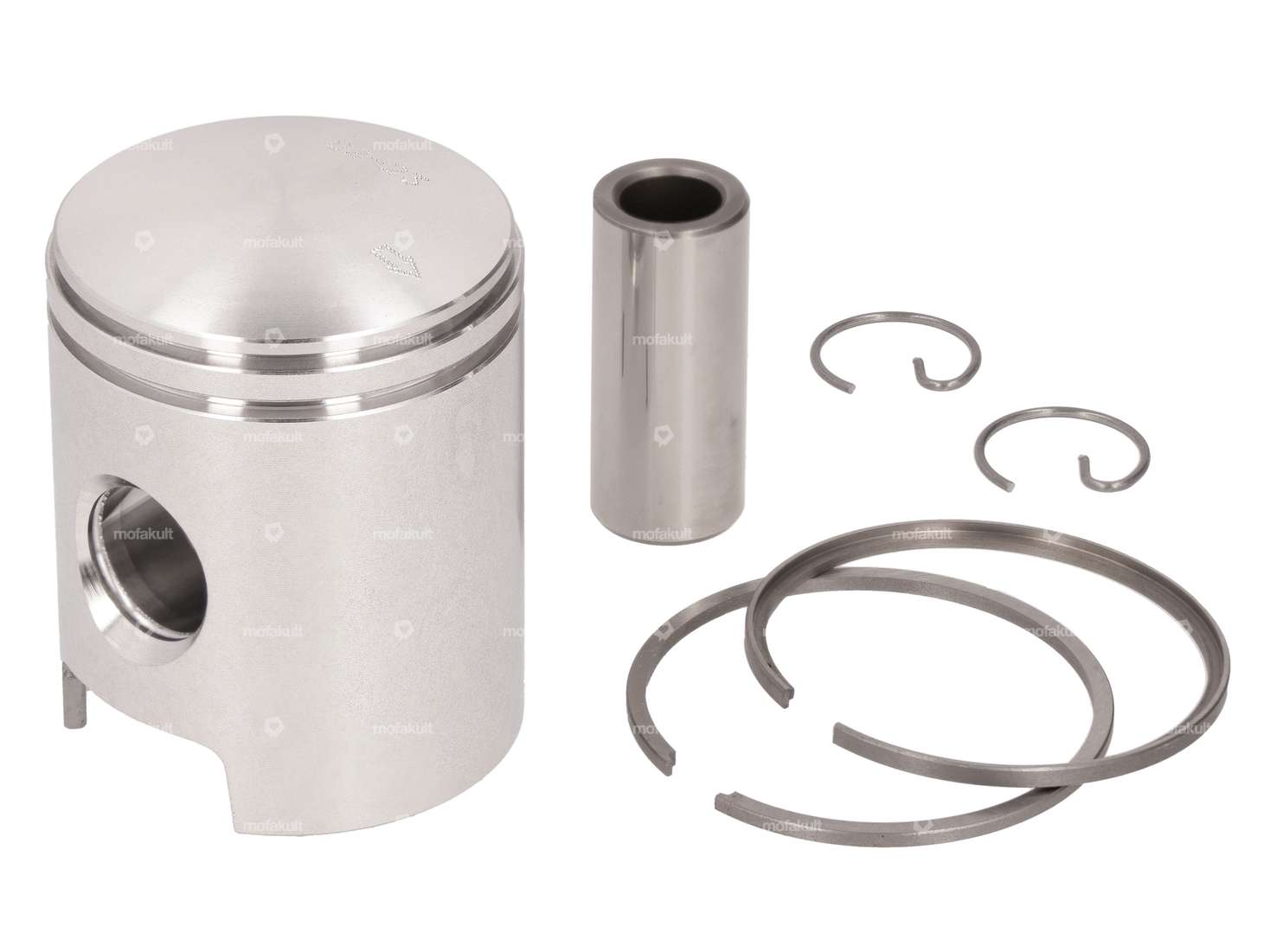

40.0 mm replacement piston with a 2 mm L-shaped piston ring with internal circlip (IS) and a 1.5 mm rectangular piston ring with internal circlip (IS) suitable for Kreidler Florett RS small engine bikes with 40 mm cylinder.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerMeteor
Nominal diameter40 mm
Ø outside piston (A)39.96 mm
Ø piston pin (B)14 mm
Compression height (C)27 mm
Curvature (D)3 mm
Total piston height (E)51 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring, L-ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm, 2 mm
Tolerance groupC
Weight piston kit100 g
Kreidler
