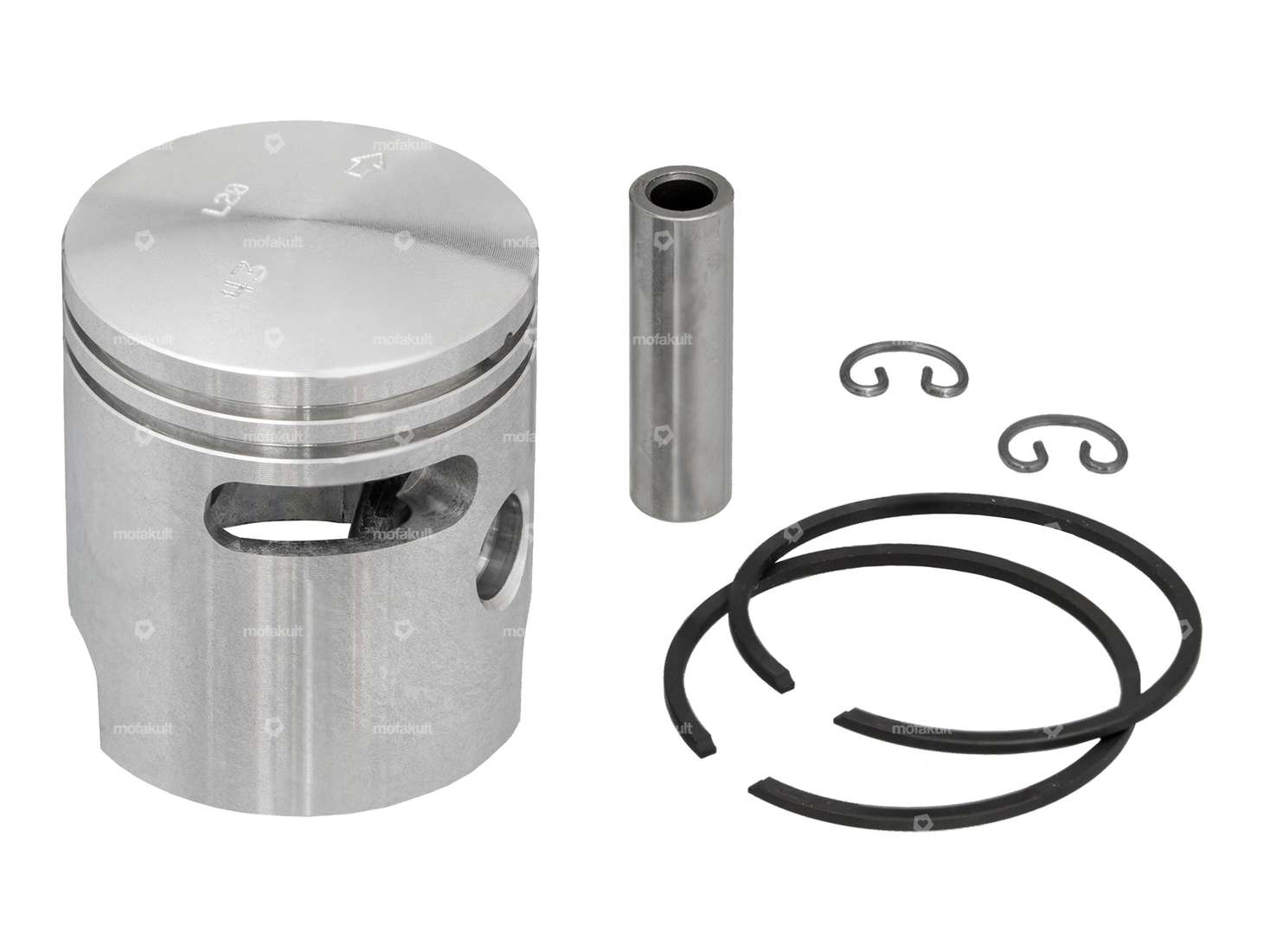

43.00 mm piston with two 1.5 mm rectangular piston rings with flank lock (FS) for Piaggio Ciao / Si / Bravo / Boxer and Grillo mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Meteor.
| Nominal diameter | 43 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 42.93 mm |
| Compression height (C) | 26.6 mm |
| Curvature (D) | 2.4 mm |
| Total piston height (E) | 50.5 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 10 mm |
| Piston weight | 87 g |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Surface: burnished · Manufacturer: GPO · Material: Steel · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Area of application: (Dis)assembly tool · Number of components: 7 pcs · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm
23,10 EUR
Polini 43 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Surface: sandblasted · Nominal diameter: 43 mm · Manufacturer: Polini · Camouflaged: No · Material: Gray cast iron · Displacement: 63 ccm · Area of application: Tuning · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.8 mm · Ø Outlet outside: 22.6 mm · Ø outlet inside: 18.4 mm · Hole pattern [mm]: 55 x 34 · Ø piston pin (B): 10 mm · Outlet type: clamped · Decompressor: Yes · Number of fixing points: 3 pcs
214,90 EUR

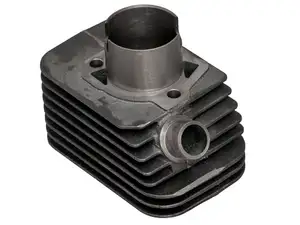

43 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer
