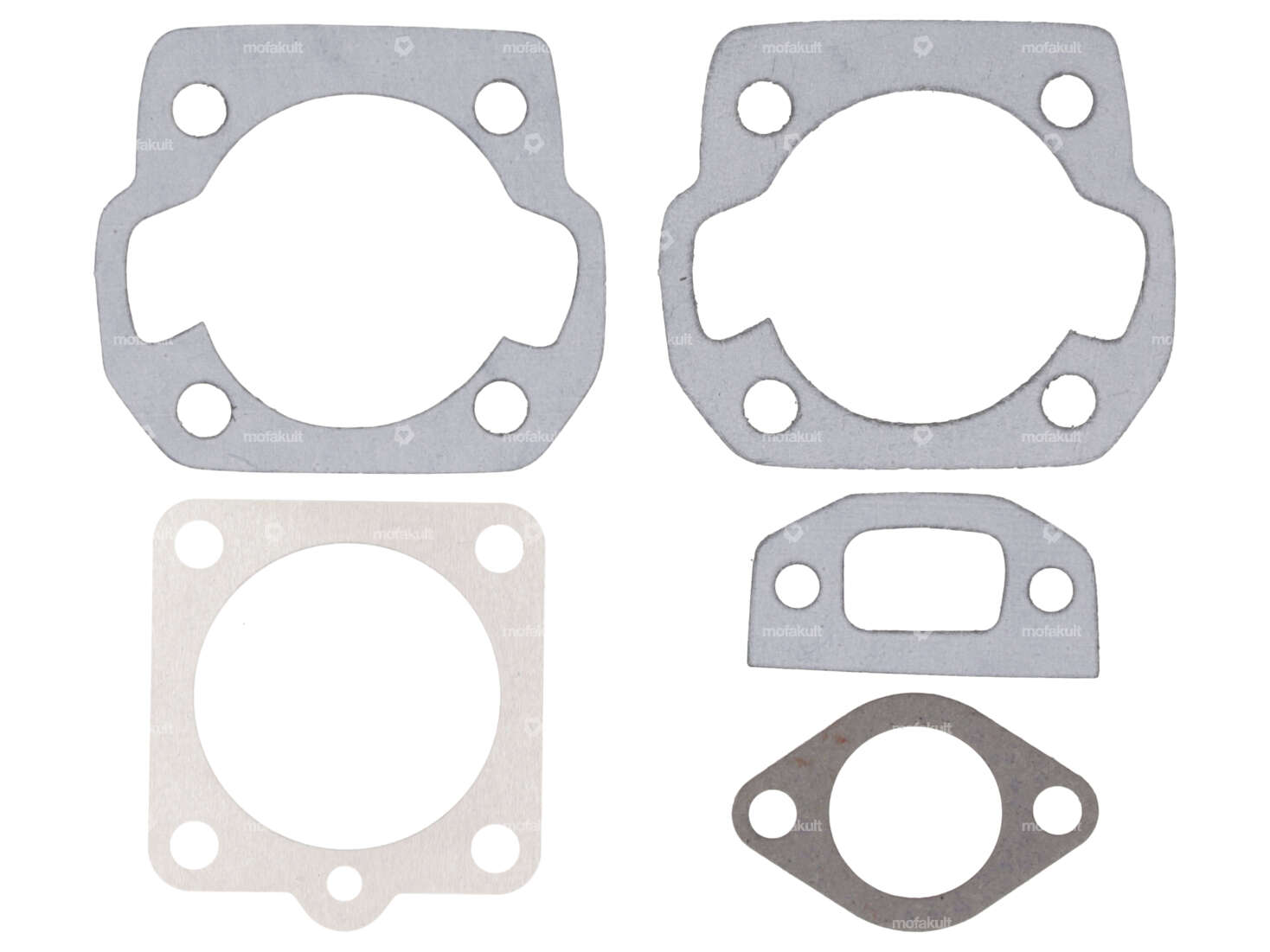

Metrakit gasket set 43.5 mm

Large outlet seal with metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Thickness: 2.1 mm · Reinforced: Yes · Ø outlet inside: 27 mm · Hole spacing outlet: 42.5 mm · Ø screw holder: 6.3 mm · Area of application: Tuning

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Thread type: M6x1 (standard thread) · Total length: 30 mm · Thread length: 12 mm · Strength class: 10.9

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

GPO 44 mm cylinder head | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Area of application: Tuning · Ø cylinder: 44 mm · Width: 125 mm · Hole pattern [mm]: 44 x 44 · Candle thread: short · Height: 55 mm · Number of fixing points: 4 pcs · Total length: 135 mm · Decompressor: No

Barikit piston 43.5 mm MetraKit | Puch

Manufacturer: Barikite · Thick piston ring: 0.97 mm · Ø outside piston (A): 43.44 mm · Compression height (C): 22.5 mm · Curvature (D): 2 mm · Total piston height (E): 51.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Nominal diameter: 43.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 98 g

Metrakit piston 43.5 mm | Puch

Manufacturer: Metracite · Nominal diameter: 43.5 mm · Ø outside piston (A): 43.45 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.9 mm · Curvature (D): 3.1 mm · Total piston height (E): 49.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Weight piston kit: 85 g

swiing® ingenious 15 mm carburetor camouflaged | Puch

Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Total length: 66 mm · Ø Air filter connection: 20 mm · Mounting type: Plug connection clamped · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Width: 50 mm · Vacuum connection: No · Height: 95 mm · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m · Area of application: Tuning · Puch OEM number: 349.1.15.100.0 · Puch OEM number: 349.2.15.800.0 · Puch OEM number: 349.4.15.500.0 · Puch OEM number: 349.4.15.000.0 · Puch OEM number: 349.4.15.300.0 · Puch OEM number: 349.6.15.400.0 · Puch OEM number: 349.7.15.700.0 · Puch OEM number: 349.8.15.400.0 · Puch OEM number: 349.9.15.300.0

Metrakit 43.5 mm cylinder kit (65 cc - camouflaged) | Puch

Nominal diameter: 43.5 mm · Manufacturer: Barikite · Manufacturer: Metracite · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Hole pattern [mm]: 44 x 44 · Area of application: Tuning · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Camouflaged: Yes
